Water-wash Anilox Cleaning Machine

---





---

Water-wash Anilox Cleaning Machine

Introduction & Application :：



1. Anilox Roll Cleaner is designed for all types of aniloxes and gravure cylinders. It is cleaning system based on liquid and high pressure water .The cleaning theory is simple, liquid soften residual ink anilox cells, and high pressure water deeply wash residuals in cells to restore anilox rolls completely.

2. Anilox Roll Cleaner is especially efficient to aniloxes in high screen lines or hard to clean. The cleaning process is gentle and quick without any harm to aniloxes. Aniloxes can be used immediately after cleaning. Meanwhile guarantee a longer life of aniloxes

3. Anilox Roll Cleaner is capable to keep your aniloxes totally clean, provide ink transfer or coating volume, and guarantee fine printing or coating.

4. Anilox Roll Cleaner is humanized design, safe and reliable, easy operation. Autorun after program setting, One-touch operation. The machine can be operated by all types of staff, no need professional staff to operate.



Cleaning Procedure :





 1. Choose anilox sizes on MENU(Initial settings, Memory function),

 2. Place anilox into machine chamber, close the lid and press start,

 3. Anilox rotates while liquid is sprayed on it automatically

 4. Liquid is recycled to tank for re-use at the end of the wash cycle

 5. High pressure water clean residuals of ink and cleaning liquid on anilox

 6. Compressed air blows off water residual on anilox surface;





Leading Anilox CleaningTechnology (Advantages):





1. Design for anilox with shaft, anilox sleeve and gravure cylinders ;

2. Applicable for all types of ink, coating medium ;

3. Restore Anilox cells totally ;

4. Short cleaning time ;

5. Harmless to aniloxes;

6. Liquid recycling use;

7. PLC controlled touchscreen interface;

8. Memory function for multi roll specifications;

9. Total stainless steel construction.



Pls check these 2 models :





Technical Date
Anilox Water Wash Machine	AC2100WW	AC2600WW
Max Length incl shaft	2100mm/83 inch	2600mm/102 inch
Max Cleaning Length	1700mm/86 inch	2200mm/86 inch
Max Roll Diameter	300mm/8.5 inch	300mm/8.5 inch
Number of Rolls	1(2.3.4,)	1(2)
Control System	PLC	PLC
Max Roll Weight	250kg	400kg
Power Supply	11kwAC380-420V50/6Ohz	11kwAC380-420V/506Ohz
Compressed Air	7 bar/0. 6mpa, 350 L/min	7 bar/0. 6mpa, 350u/min
Water Supply	Running water/1/2-3/4 inch	Running water/1/2-3/6 inch
Machine Dimensions	2810mm X 880mmx 1250mm	3310mm X 880mm X 1250mm
Machine Weight(Approx)	480kg	530kg

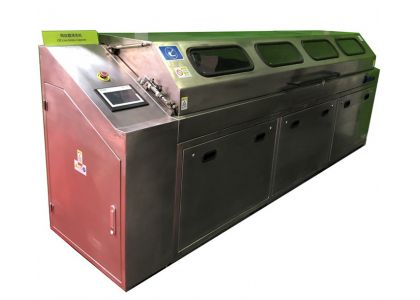

Machine Picture :



 System Features of our Anilox Roll Cleaner :

1. Using the cleaning agent to soften the mesh residue and the high pressure water rinse combination to restore the mesh volume, the cleaning effect is excellent;

  2. It adopts environmentally friendly cleaning agent and safe water pressure washing, which will not cause any damage to the netting report and has high safety.

  3. The cleaning agent ring is heated to achieve the best cleaning effect;

  4. Cleaning can be recycled to reduce cleaning costs;

  5. The automatic program is air-conditioned, and the total spray drying of the cleaning agent is automatically completed;

  6. The fuselage and cleaning chamber are made of stainless steel and have a longer service life;

  7. Double protection device for contactless limit switch;

  8. Can wash a variety of types of ink, light and glue;

  9. The best netting and plate roll cleaning method.
