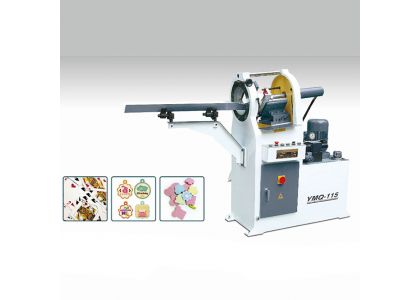

Die Punching Machine Product Instruction

Function of product:

YMQ series brand die cutter are mainly aimed to various different shape brand, such as various wine, food and drink label shaping die cutter.

Application of product:

Widely applied to cut various size playing card, aluminum plastic, New year card, instant noodles, note book. Credit card, drop and handbook etc, and various special shape children reading book.



Advantage of product:

This machine adopts hydraulic pressure system, work stability and crudity, the die cutting products surface is smooth, and the size is unified and regular with higher efficient. There are photo electricity eye in left and right with safer use; the charge bench can do front & back and integrate adjustment, with more convenient use.



The finished products are exquisite, beautiful and high quality. Our machine can fully meet customer requirements.

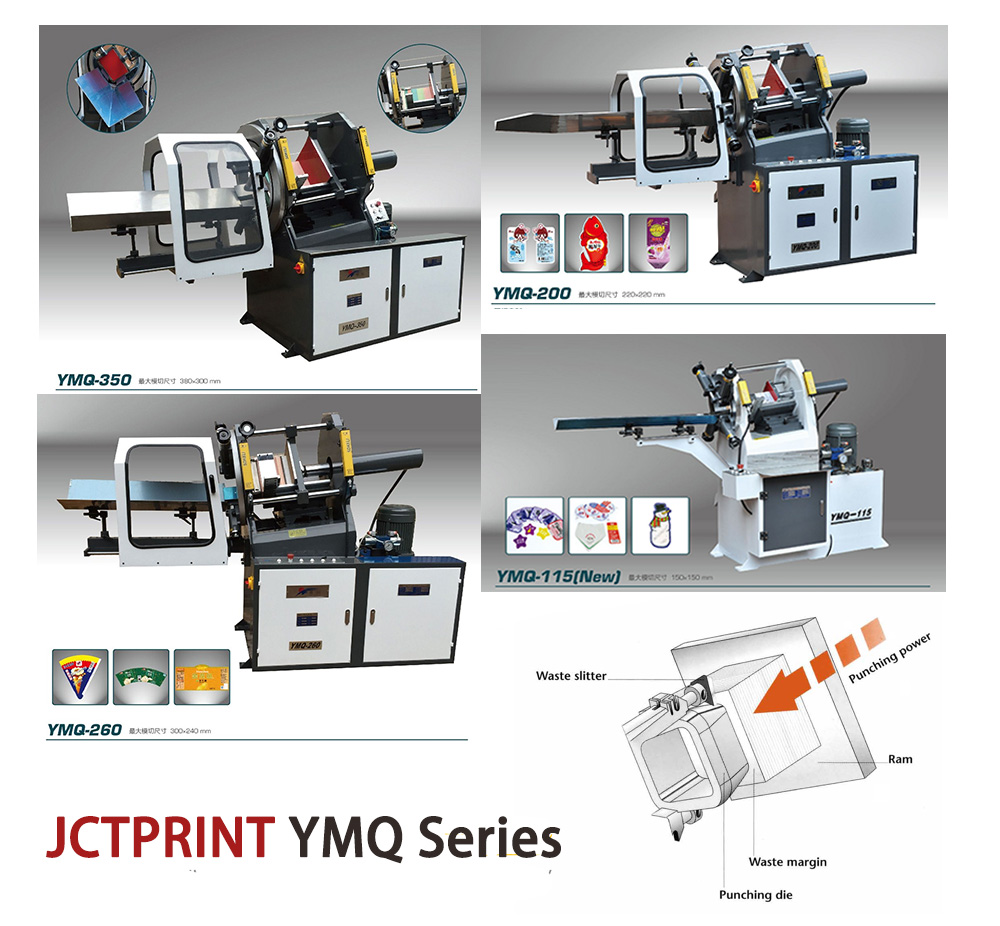

Main Technical Parameter of YMQ Die Punching Machine
Model	YMQ-350	YMQ-260	YMQ-200	YMQ-115
Max.Die-cut size	380*300mm	300*240mm	220*220mm	140*140mm
Min.Die-cut size	90*90mm	65*65mm	50*50mm	20*20mm
Max.Die-cut height	310mm	260mm	220mm	200mm
Die-cut pressure	11 T	8 T	5 T	3 T
Working speed	7 Times/min	8 Times/min	10 Times/min	12 Time/min
Motor voltage power	7.5HP 5.6KW	7.5HP 5.6KW	5HP 3.75KW	3HP 2.25KW
Overall dimension(mm)	2600*1250*1900	2450*1000*1800	2200*850*1650	1350*850*1480
Weight of whole machine	1900kg	1600kg	1050kg	680kg

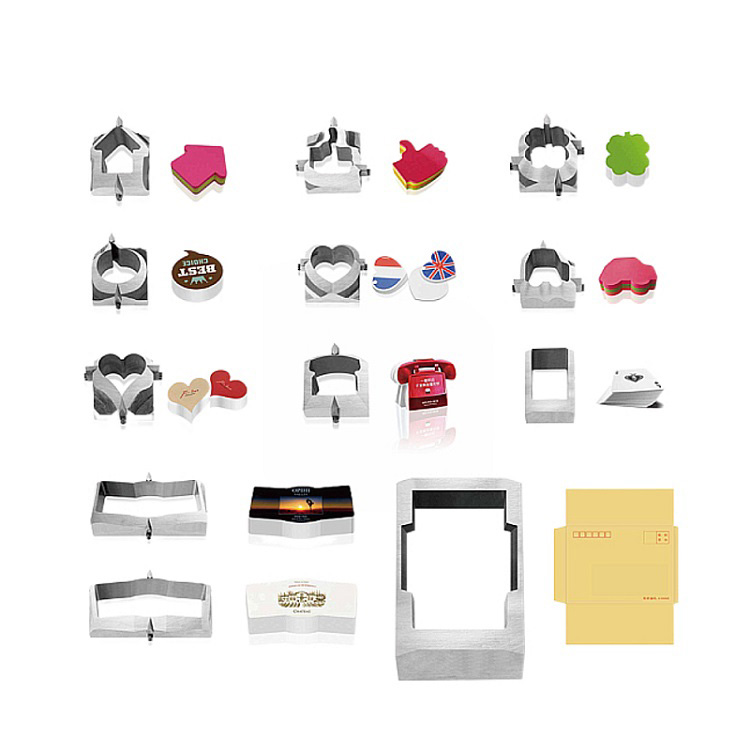

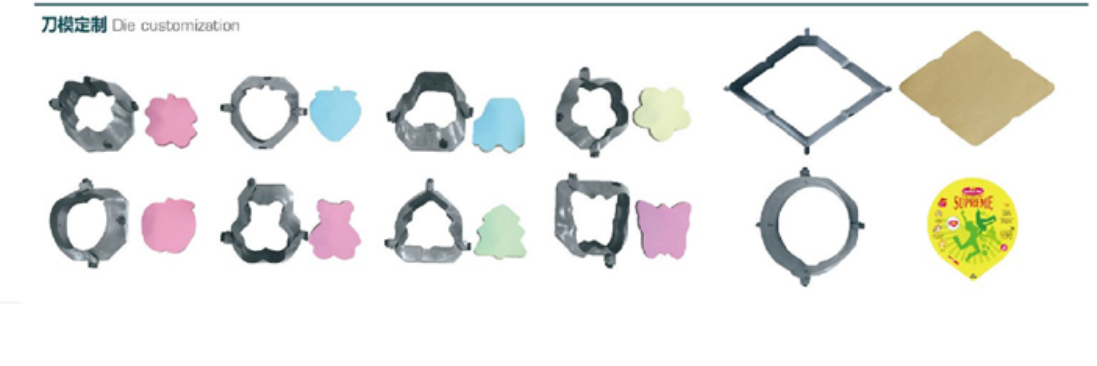

We also can make the die(mold/mould),if you need ,pls also send me your mold drawing or picture .
