Exploring the Technical Parameters and Selection Principles of Anilox Rollers from Practical Applications

    Currently, flexographic printing holds a prominent position in the global printing industry. The continuous advancement in anilox roller technology has emerged as a pivotal factor driving the rapid development of flexo printing processes. Particularly, the introduction of laser-engraved anilox rollers has brought flexographic printing to a level of competitiveness almost on par with gravure and offset printing. Anilox rollers with ceramic-coated surfaces have enhanced ink transfer performance and improved ink layer quality, representing the fruits of adopting this innovative technology.

    The primary role of anilox rollers is to quantitatively deliver ink to printing plates according to predetermined standards, aiming to maintain a thin and uniform ink layer. The stability of the ink layer directly influences the print quality of images. Thinner and more uniform ink layers are preferred for several reasons. They facilitate easier adjustments during the printing process and reduce dot gain, which is vital for high-quality printing.

    One of the key reasons why laser-engraved anilox rollers achieve exceptional uniformity in ink layers lies in their ability to reduce the gaps between individual cells. Traditional mechanical engraving forms cells by physically moving metal, whereas laser engraving employs a focused laser beam to vaporize ceramic material, creating cells. This fundamental distinction provides laser-engraved anilox rollers with a more precise level of control. First, it significantly reduces the gap between cells, known as cell walls. Second, it allows for the engraving of more densely packed cells within the same line screen ruling. These two factors result in a higher level of uniformity in ink layers transferred by such cells.

    But how does laser engraving lead to thinner ink layers? The thickness of the ink layer depends on the volume of individual cells. For example, when comparing a 300-line anilox roller with a volume of 5.50 BCM (Billion Cubic Microns) to an 800-line anilox roller with a volume of 2.00 BCM, it is evident that the 800-line roller delivers a thinner ink layer due to its smaller cell volume. Laser engraving can create smaller cell volumes compared to mechanical engraving, resulting in thinner ink layers. Thinner ink layers provide greater control, particularly when printing high highlights.

    Selecting the engraving pattern is a crucial factor in optimizing the performance of ceramic anilox rollers. Laser engraving offers three common patterns: 30° hexagonal, 45° diamond, and 60° hexagonal. After the ceramic surface is polished, a laser beam with a rounded edge burns parabolic-bottomed pits into the ceramic surface, and the diameter of the laser beam can be adjusted based on line screen or cell size requirements while maintaining a circular shape.

    The choice of geometric shape is influenced by the arrangement of cells. Diamond patterns encircle a center cell with four surrounding cells, while hexagonal patterns surround one cell with six others. Hexagonal patterns are more efficient in terms of space utilization and are favored for this reason. Mathematically, hexagonal patterns occupy 15% more space than diamond patterns within the same area, which allows for shallower hexagonal cells while preserving the same cell volume, enhancing control over ink layer thickness.

    Maintaining the proper relationship between cell depth and cell opening size is crucial. The ideal cell depth-to-opening width ratio (d/o) should fall within the range of 23% to 33%. For example, for cells with a 100 µm opening width, the depth should be between 23 µm and 33 µm to ensure excellent ink release and ease of cleaning. A conversion table outlines the relationship between cell depth and cell opening width. For example, a 400-line anilox roller with a 2.6 BCM cell volume has an d/o ratio of 18%. Switching to a 550-line anilox roller with a 4.5 BCM volume would result in a more refined d/o ratio, optimizing performance. Conversely, switching from a 550-line anilox roller with a 40% d/o ratio and a 4.5 BCM cell volume to a 400-line roller would maintain an ideal d/o ratio for the best results.

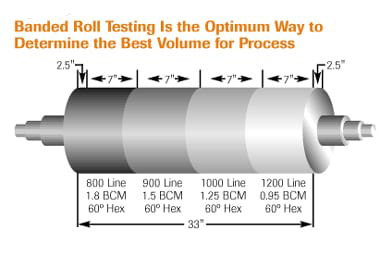

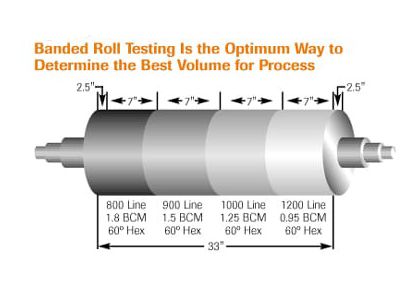

    Traditional printing practices have traditionally emphasized line screens. However, the advent of ceramic anilox rollers has shifted the focus toward optimizing cell volume, ink layer quality, and geometric shape, rather than just line screens. Laser-engraved ceramic anilox rollers provide flexibility in line screen selection based on the printing method and ink quality, which directly affects cell size and cell count. For instance, in process printing on film, cell volumes typically range from 1.0 to 3.3 BCM/inch. The d/o ratio can be used to determine the optimal engraving parameters, and line screens from 1200 to 400 LPI (lines per inch) are recommended based on this d/o ratio.

    In color process printing, the selection of line screens on ceramic anilox rollers is influenced by ink strength, the thickness of the printing plates, and the percentage of dot reproduction (size). An 800 LPI anilox roller, for instance, can accommodate the reproduction of high highlights on printing plates with line screens ranging from 85 to 150 LPI. However, the traditional rule of four times the anilox to plate line screen count applies to midtone printing but not to reproducing small highlights.

    Finally, regular cleaning and maintenance of ceramic anilox rollers are of paramount importance. Proper cleaning methods and storage practices help extend the life of these rollers and ensure consistent print quality. Routine inspections, training, and education of operators are also essential components of an effective maintenance program.

    In conclusion, the evolution of ceramic anilox rollers, especially those engraved with lasers, has played a pivotal role in advancing the flexographic printing industry. Their ability to deliver thin, consistent ink layers, along with geometric and cell volume optimizations, has positioned them as a crucial component in modern printing processes. To remain competitive and meet the evolving needs of the industry, collaboration between printing companies, ink manufacturers, plate makers, and pre-press system providers is imperative. Only through such collaboration can the flexographic printing sector continue to thrive and grow.
