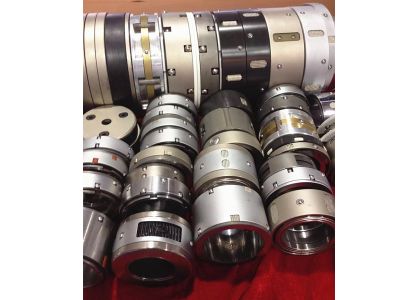

JCTPRINT steel friction ring introduction

In the printing industry, slip rings play a crucial role as essential transmission components. They are used to facilitate precise printing operations and maintain the smooth functioning of machinery. Slip rings are typically composed of various slip ring styles and designs to meet the specific requirements of different applications within the industry. This article will introduce common slip ring styles in the printing industry, discuss their advantages and disadvantages, and outline the suitable scenarios for each.

1. Ball Bearing Slip Rings:

• Advantages:

  • High torque transmission capability, suitable for heavy-duty printing machinery.
  • Excellent axial positioning control, contributing to print accuracy.

• Disadvantages:

  • Regular maintenance may be necessary due to potential ball wear.
  • Not ideal for high-speed printing as friction can generate excess heat.

• Suitable Scenarios: Ball bearing slip rings are appropriate for applications demanding high torque and lower printing speeds, such as packaging machinery and flexible packaging machines.

2. Keyed Slip Rings:

• Advantages:

  • Capable of achieving axial displacement for applications requiring relative motion.
  • Lower friction levels, aiding in energy efficiency.

• Disadvantages:

  • Relatively lower torque transmission capacity, unsuitable for high-load applications.
  • Periodic maintenance is required to ensure the keys' condition.

• Suitable Scenarios: Keyed slip rings are well-suited for applications needing axial displacement and moderate torque transmission, such as web offset printing machines and flexible packaging machines.

3. Dual-row Ball Dual-row Keyed Slip Rings:

• Advantages:

  • High torque transmission capacity and axial displacement capabilities.
  • Effective axial positioning control and relative motion.

• Disadvantages:

  • Relatively larger physical dimensions, potentially requiring more installation space.
  • Higher cost compared to some other slip ring styles.

• Suitable Scenarios: Dual-row ball dual-row keyed slip rings are suitable for applications requiring high torque and significant axial displacement, such as adhesive laminating machines and high-speed printing presses.

In the printing industry, the selection of an appropriate slip ring style depends on the specific printing machinery and application requirements. For high-load and high-precision applications, ball bearing and dual-row ball dual-row keyed slip rings may be the preferred choice, while keyed slip rings are suitable for applications with moderate loads and axial displacement requirements. Taking into account cost, performance, maintenance, and environmental factors is crucial to ensure the reliable operation of printing machinery and the stability of print quality.
