Mold Installation Guide



    Welcome to the mold installation guide, covering the installation of molds such as punching dies, die cutting molds, punch dies, die cutters, and metal stamping dies. Molds play a crucial role in the manufacturing and processing industries, and correct installation is the first step to ensuring high-quality production. This guide will walk you through the steps of mold installation and provide some additional information to help you fully understand the use and maintenance of molds.

Steps for Mold Installation

1. Preparation: Before starting the mold installation, ensure you have made adequate preparations. This includes checking the integrity and cleanliness of the mold and having the necessary tools and equipment ready.

2. Safety First: Prior to mold installation, ensure you and your team are familiar with safety measures. Wear the required personal protective equipment, such as gloves and safety goggles.

3. Workpiece Positioning: Place the workpiece to be processed within the working area of the mold. Ensure the workpiece's position and orientation are correct to avoid mishaps.

4. Mold Installation:

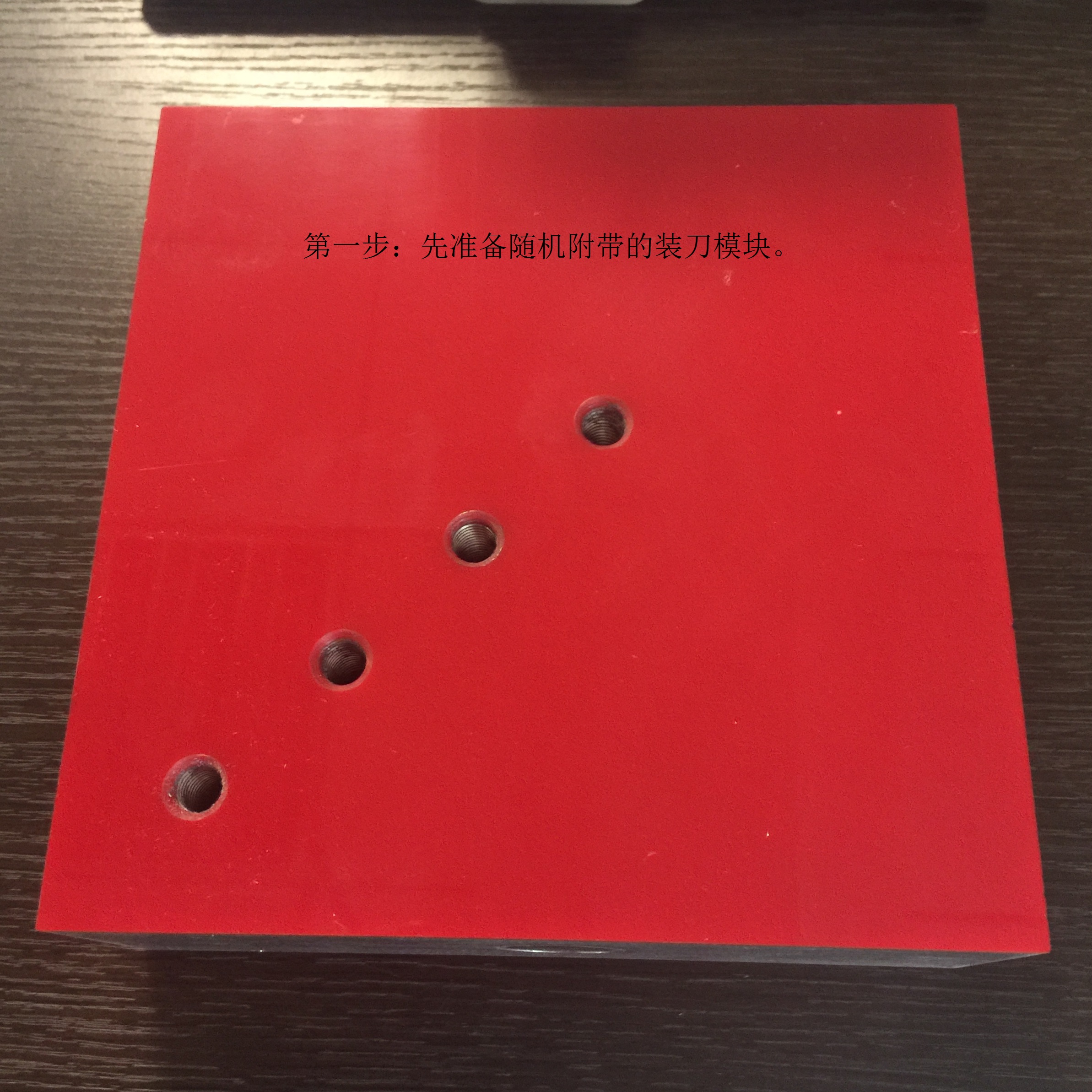

Step 1: Prepare the supplied tooling module first.

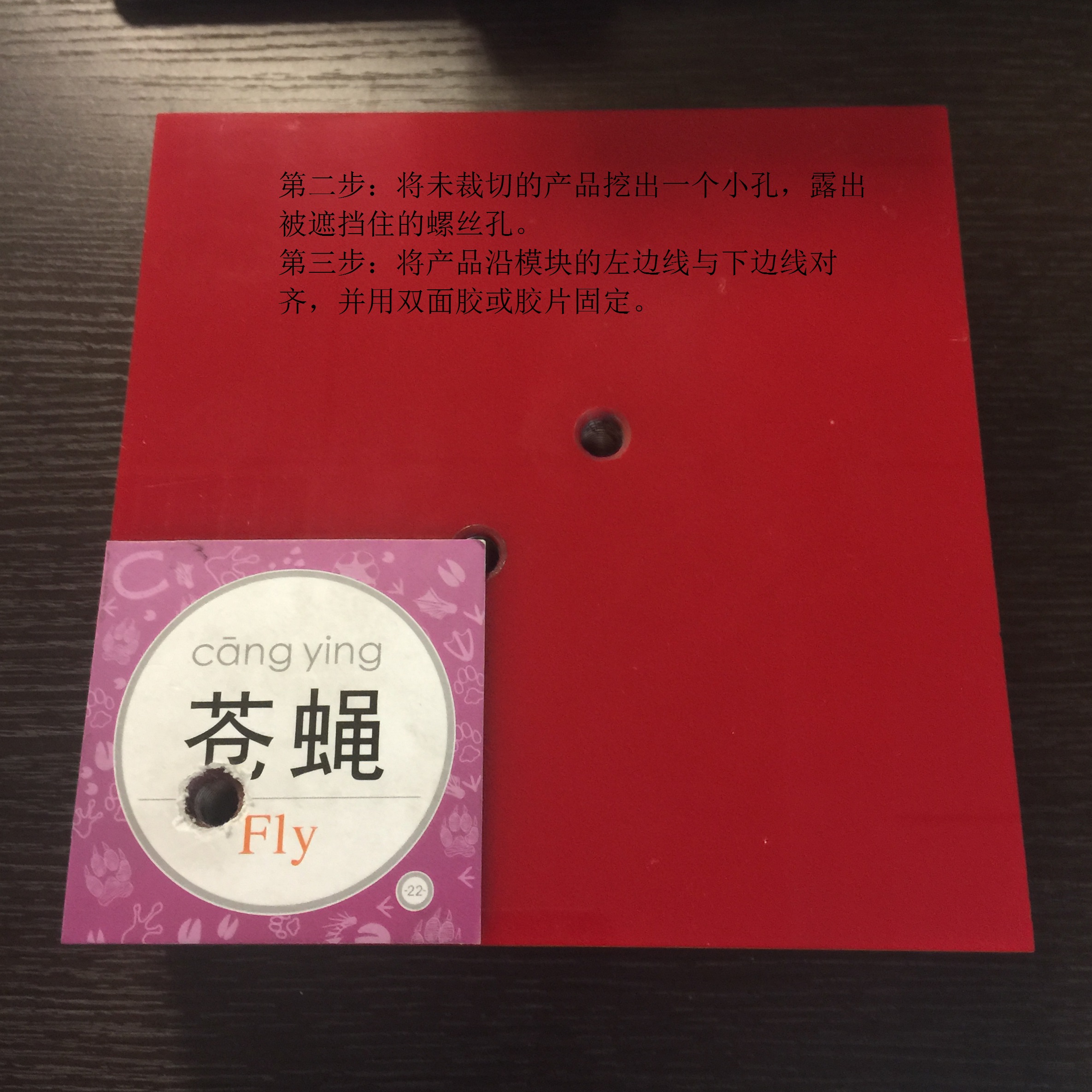

Step 2: Dig the uncut product into a small hole to expose the blocked screw hole.

Step 3: Align the product along the left and right edges of the module and secure with double-sided tape or film.

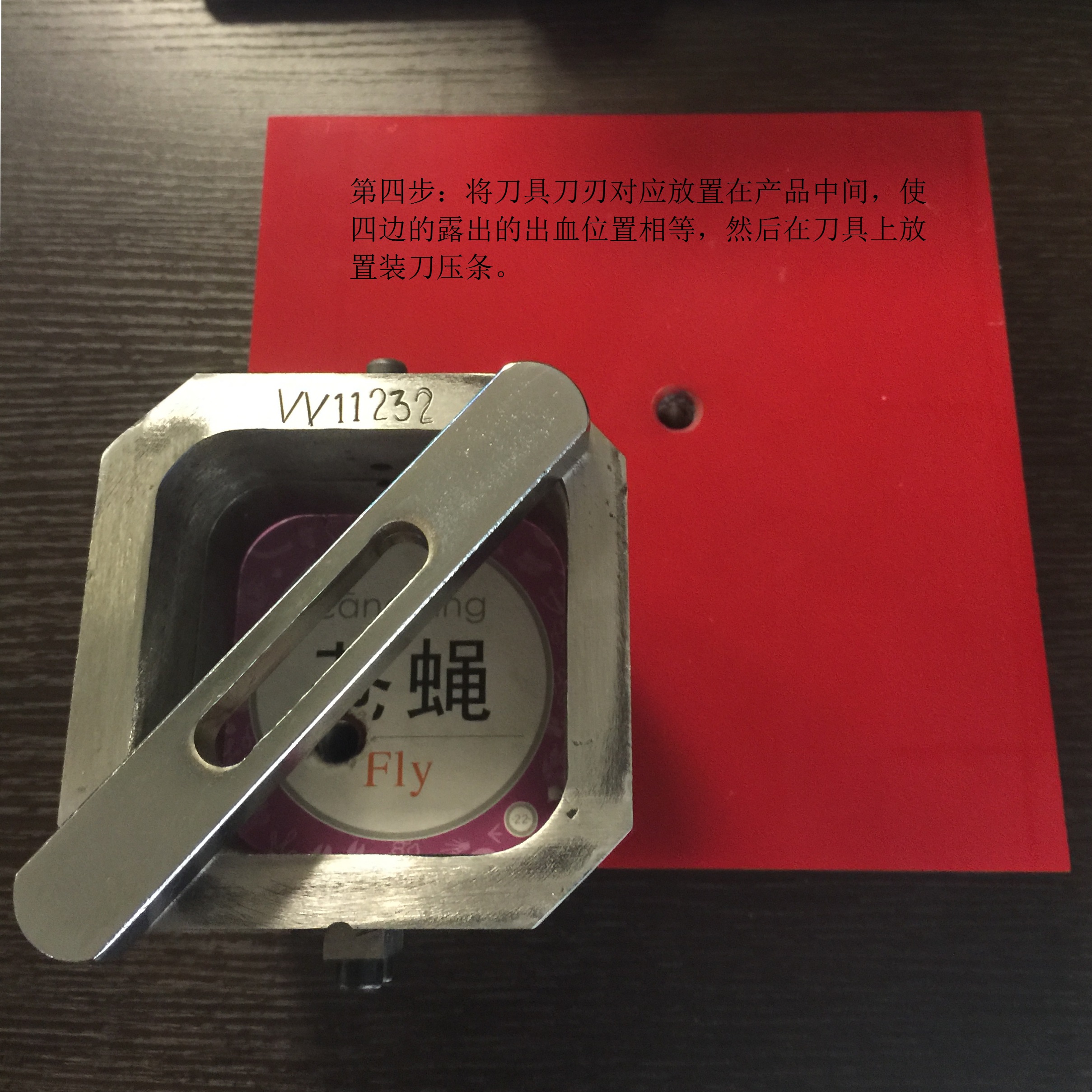

Step 4: Place the cutter edge in the middle of the product so that the exposed positions on the four sides are equal, and then place the knife press strip on the mould.

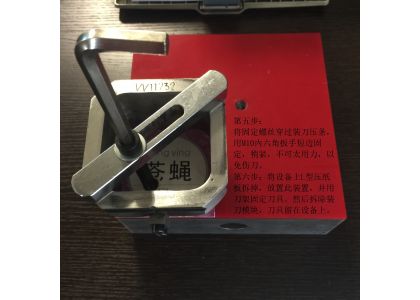

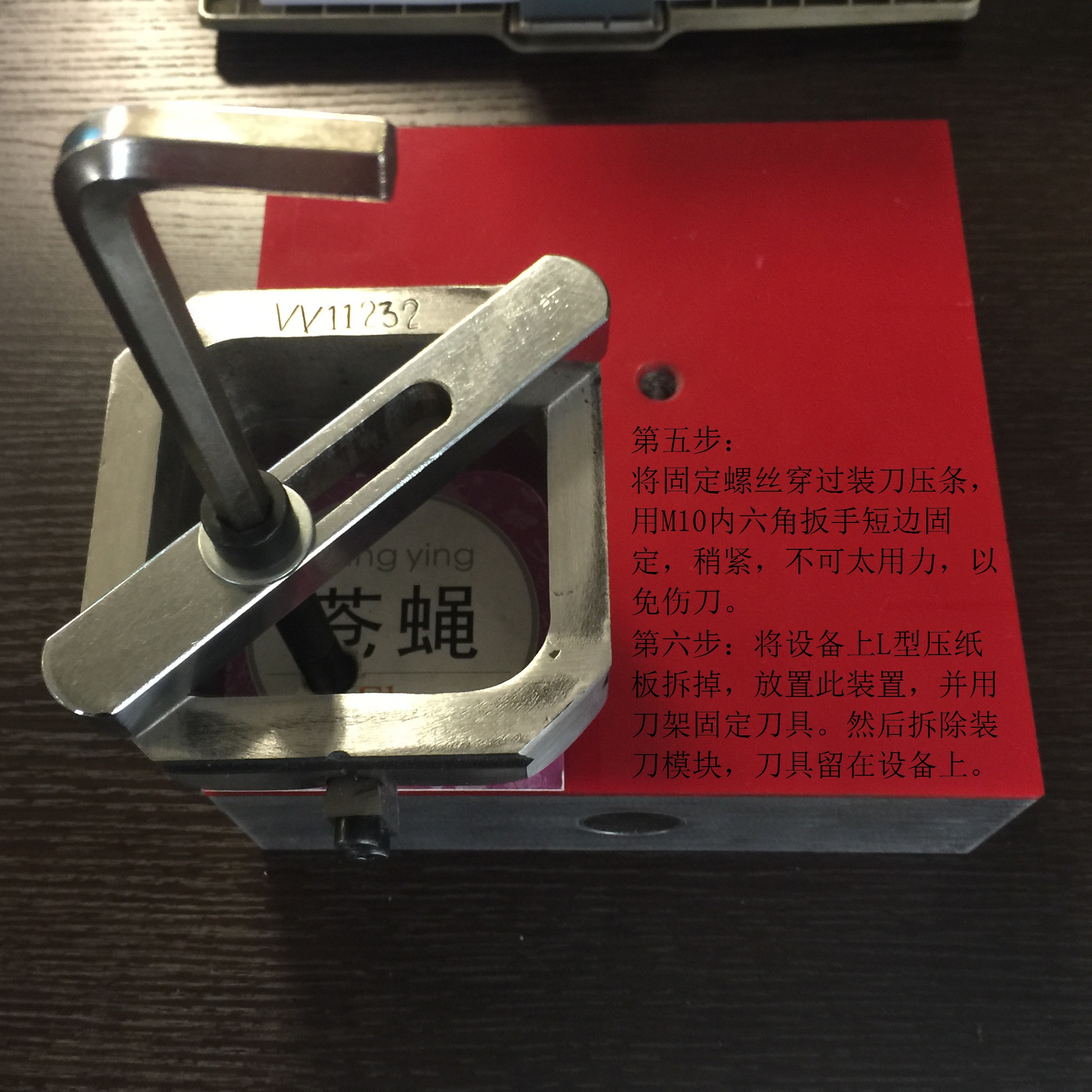

Step 5: Pass the fixing screw through the press strip and fix it with the M10 Allen key on the short side. It should be tight, not too hard, to avoid hurting the knife.

Step 6: Remove the L-shaped platen from the machine, place this device, and secure the knifel with the knife holder. Then remove the tooling module and leave the knife on the machine.

1. Test Run: Before formal production, perform a test run of the mold. Ensure that the mold performs operations as expected and check for any anomalies or issues.

2. Production Operation: Once the mold is installed and has been tested, you can commence formal production operations. Ensure that personnel are familiar with the correct operating procedures and maintain cleanliness and maintenance of the mold and equipment.

It is worth noting that

• Mold Maintenance: Long-term use of molds requires regular maintenance, including cleaning, lubrication, and periodic replacement of components. Ensure maintenance is conducted following the manufacturer's recommendations.

• Safety Training: To ensure the safety of personnel, proper safety training is essential. Train employees on how to operate molds correctly and how to handle potential emergencies.

• Material Selection: Different types of workpieces and production requirements may necessitate different mold materials. Understanding the characteristics and suitability of various materials can help you select the right mold.

• Production Efficiency: Proper use and maintenance of molds can significantly improve production efficiency. Understanding how to optimize production processes to save time and resources is an important topic.

• Environmental Considerations: When using molds, consider reducing waste and energy consumption. Understanding how to minimize environmental impact through mold design and operation is crucial.

    In conclusion, correct mold installation and maintenance are crucial for the smooth operation of the production process. By following the above steps and gaining an in-depth understanding of related content, you can ensure the reliability and durability of molds, ultimately improving the quality and efficiency of production.
