Aluminum differential air shaft for slitting machine

 Aluminum differential air shaft for slitting machine

The introduction of differential slip shaft:

A special winding, unwinding, that is, the surface can be inflated through a high pressure shaft protruding surface part deflate quickly after retraction axis is called air shaft air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound.

Usage of differential slip shaft:

 Slitting/Rewinding where multiple roll widths are running on one air shaft.
The Differential Air Shaft is suitable for the full range of converting and web production operations. Its rugged construction and shaft design is available in 3", 6", and 10" diameters and up to 150" wide. Air shaft weights for your specific application are available upon request.

The introduction of differential slip shaft:

A special winding, unwinding, that is, the surface can be inflated through a high pressure shaft protruding surface part deflate quickly after retraction axis is called air shaft air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound.

Application of JCT differential slip shaft:

The Differential Air Shaft Clutched Rollers that auto-lock to equalize tension on multiple width cores that can be placed anywhere on the shaft. It features a bi-directional, internal clutching
mechanism which actuates based on the location of each core on the shaft. When the shaft begins to rotate, the rollers under each core lock independently and apply tension to each individual core.

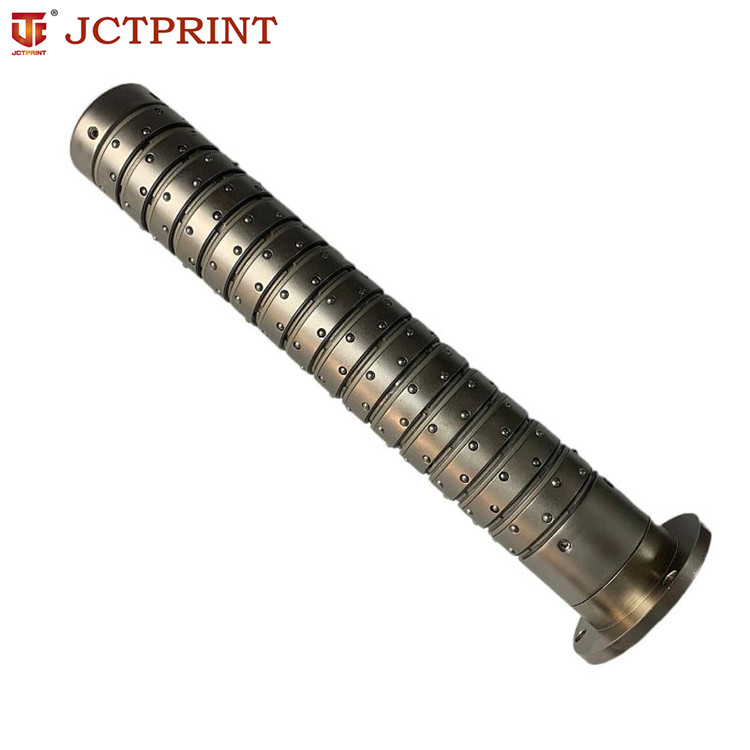

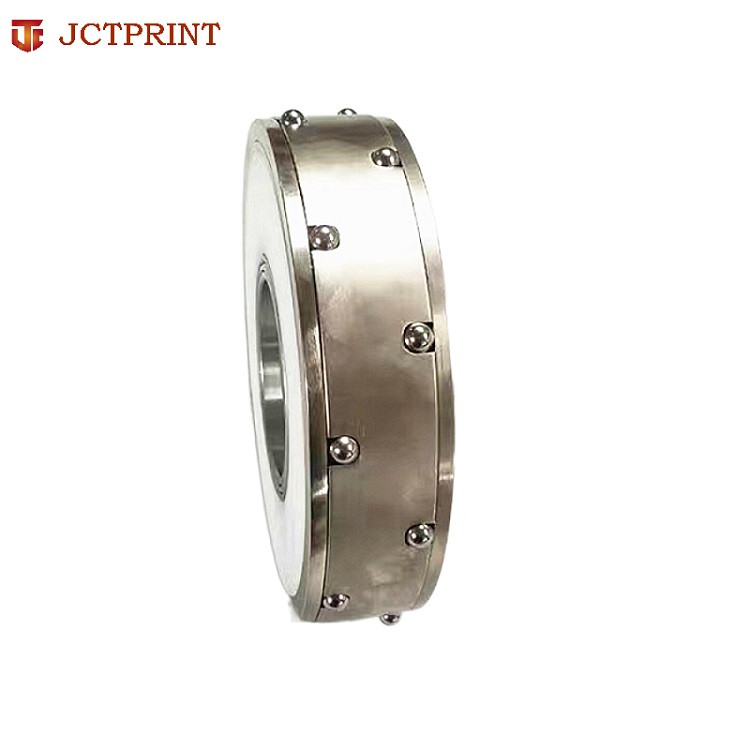

The photo in detailed of differential slip shaft:

Technical Parameters

Grade of dynamic balance accuracy rating: 6.3

 Pressure sensitivity: 0.01MPa

The difference in torque of the slip differential unit under same air pressure: <5%

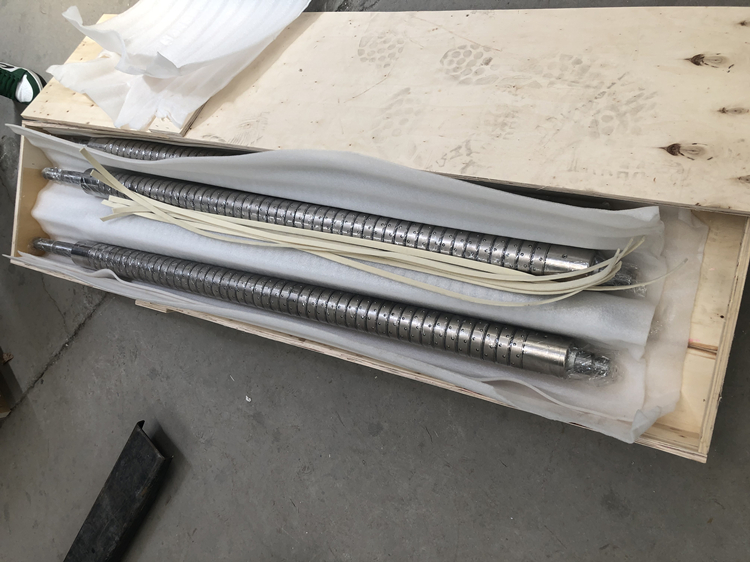

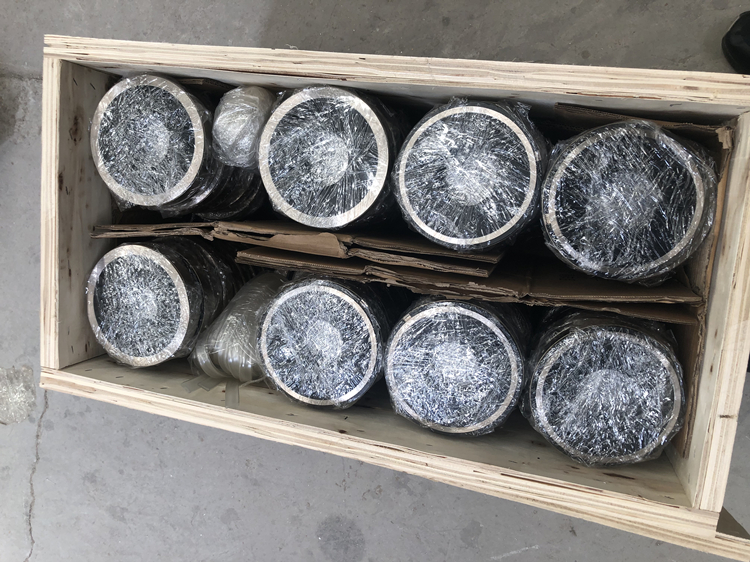

The package:

Other more products:

Our main products:

Our exhibition pictures:
