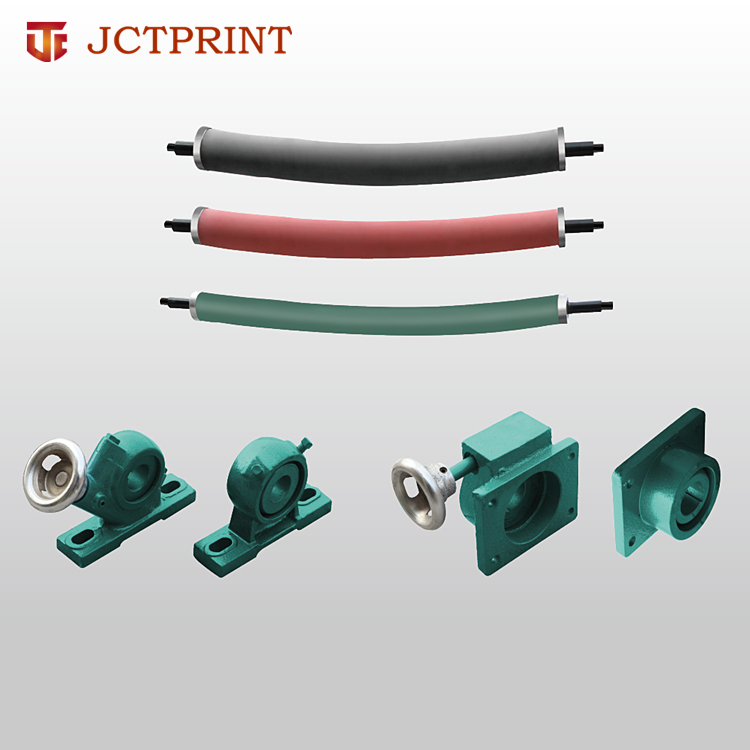

Banana Bow Rollers are used for wrinkle removing & also for removing slack edges, slit separation. Banana Bow Rollers used for Manufacturing and converting of Paper, foils, films, plastic Tyrecord, textile. Applications before winding, before coating, before slitting, after slitting for slit separation.
Products description
Banana roller, used to remove wrinkles, using high-quality materials, suitable for different types of industries.
Our curved rollers/bowed roller are ideal for separating cut webs or eliminating web wrinkles.

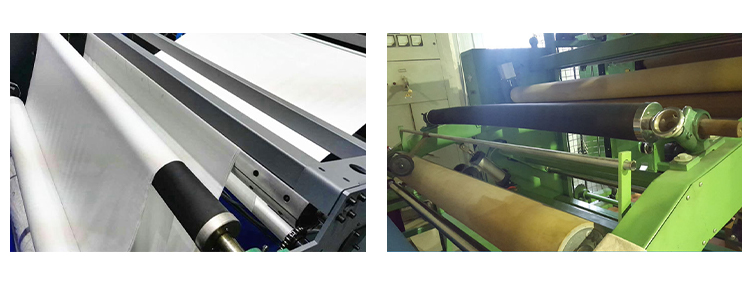

2. What can a banana roller be used for:
1. Paper machine;
2. Film machine;
3. Textile machine; And so on
Specifications of banana roller

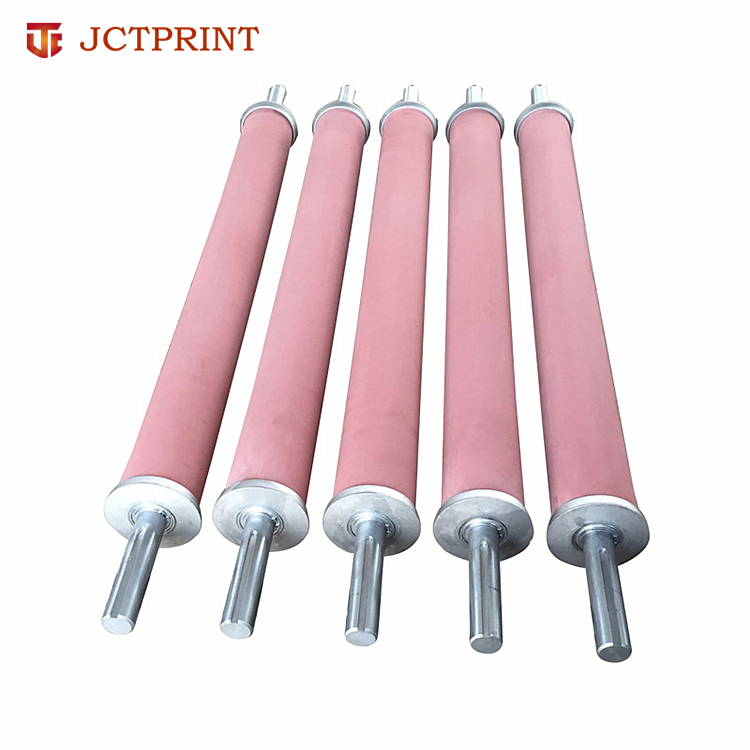

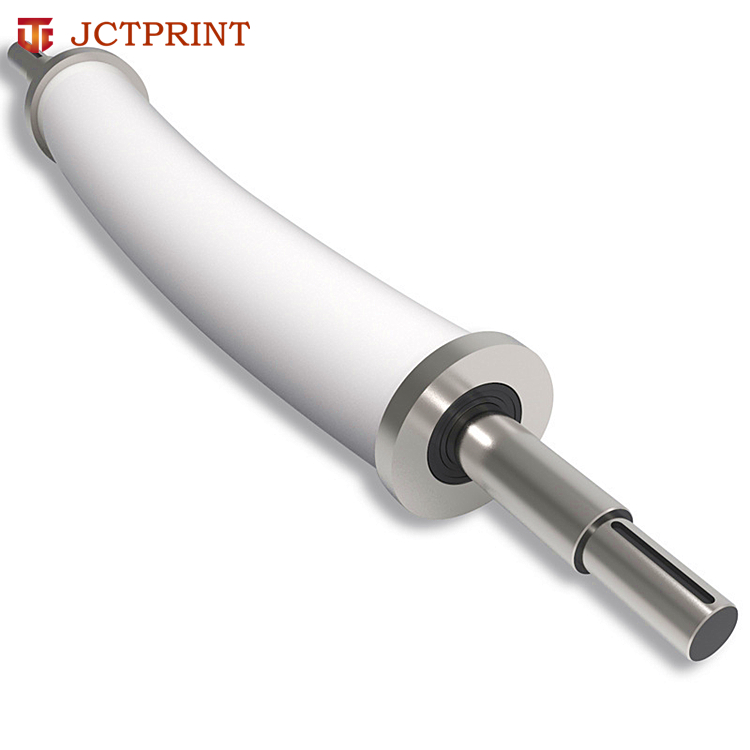

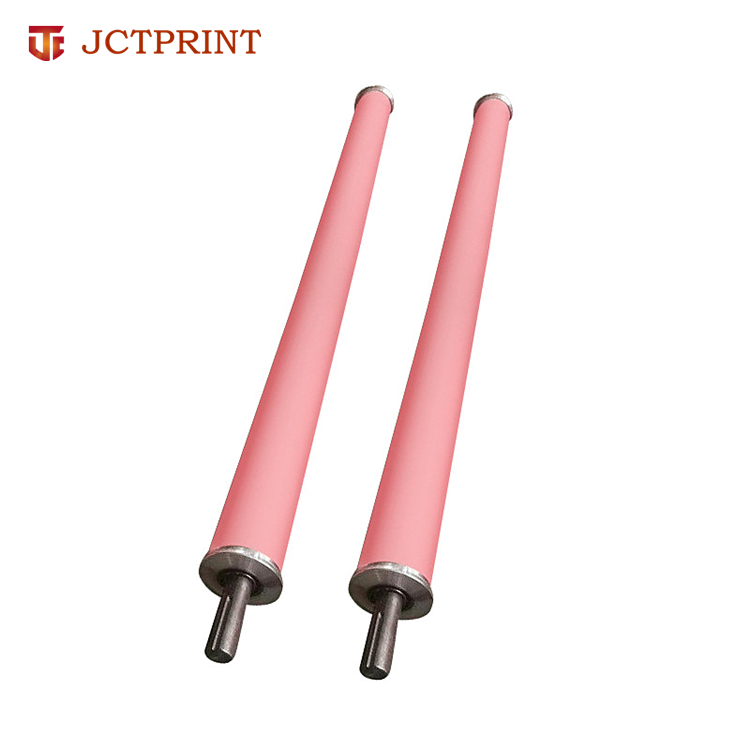

1.Curved roller with rubber surface
This type of curved roller is often used in the calendering, calendering, coating, compounding and other processing of paper and board paper, fur, film, textile and other materials. According to user requirements and different applications, the adhesive surface can be Choose wear resistance, high temperature resistance and surface slotting, Teflon sleeves and other special requirements can also be added.
|
Type |
D1 |
D2 |
L |
|
R85 |
85 |
30 |
1000 |
|
R105 |
105 |
40 |
2000 |
|
R125 |
125 |
60 |
2500 |
|
R150 |
150 |
75 |
3000 |
|
R175 |
175 |
90 |
4000 |
|
R200 |
200 |
105 |
5000 |
|
R230 |
230 |
120 |
6000 |
2. Metal arc roller
Metal surface arc rollers are more widely used, such as rewinding machines, calendering machines, coating machines, winding sections, felt press sections and other related web materials to eliminate wrinkles. The metal surface can be processed with different materials to meet the needs of users, such as tungsten carbide, Teflon chromium, hard chromium, surface slotting and other special requirements.
Advantage
1. Covered with rubber sleeve. (High quality synthetic Nitrile sleeve or EPBM).

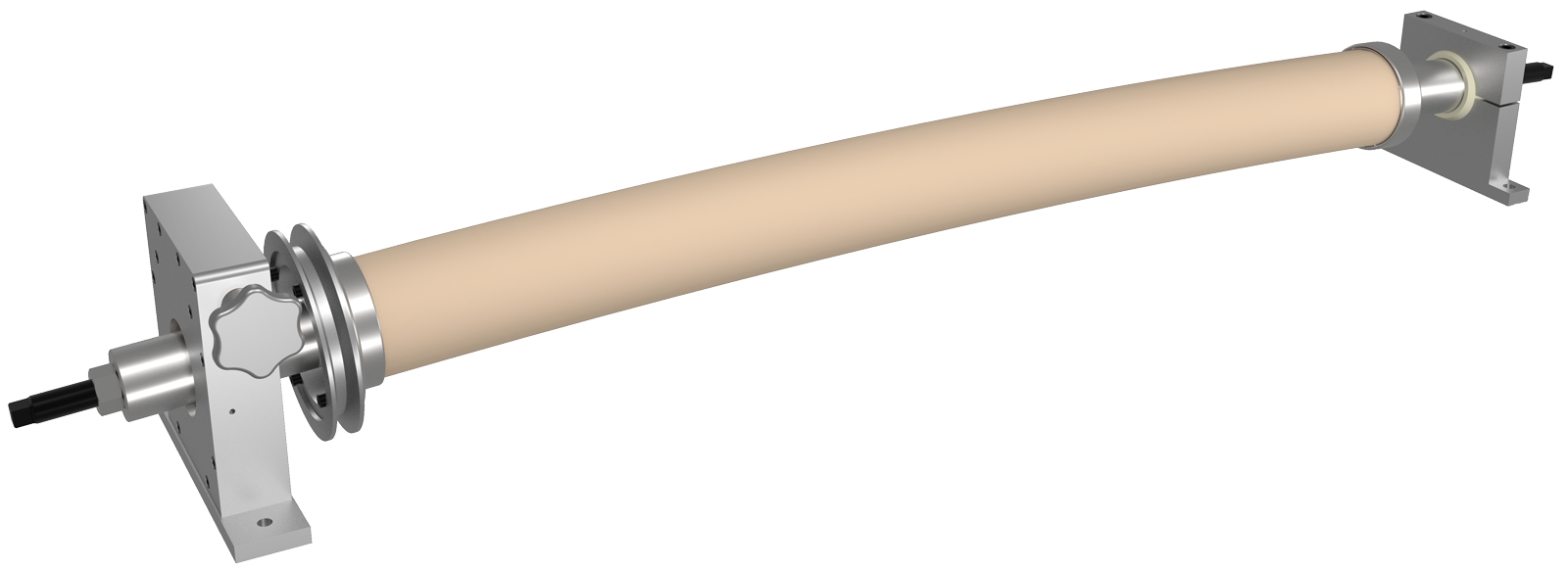

2. Roller face angle adjusting possible
3. The bearing is installed in a rubber sleeve to produce a small swing torque
4. The smooth rubber surface will not have any negative impact on the material.

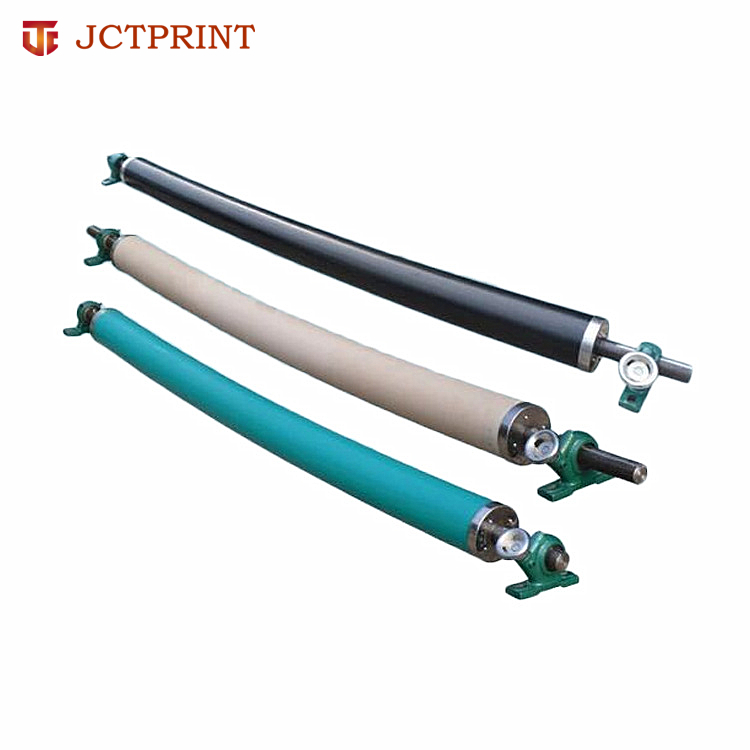

5. Gear set and mounting brackets: Foot-Mounted or Wall-Mounted.
6. Diameter as per buyer demand
7.Strict quality control system and quality inspection before shipment.

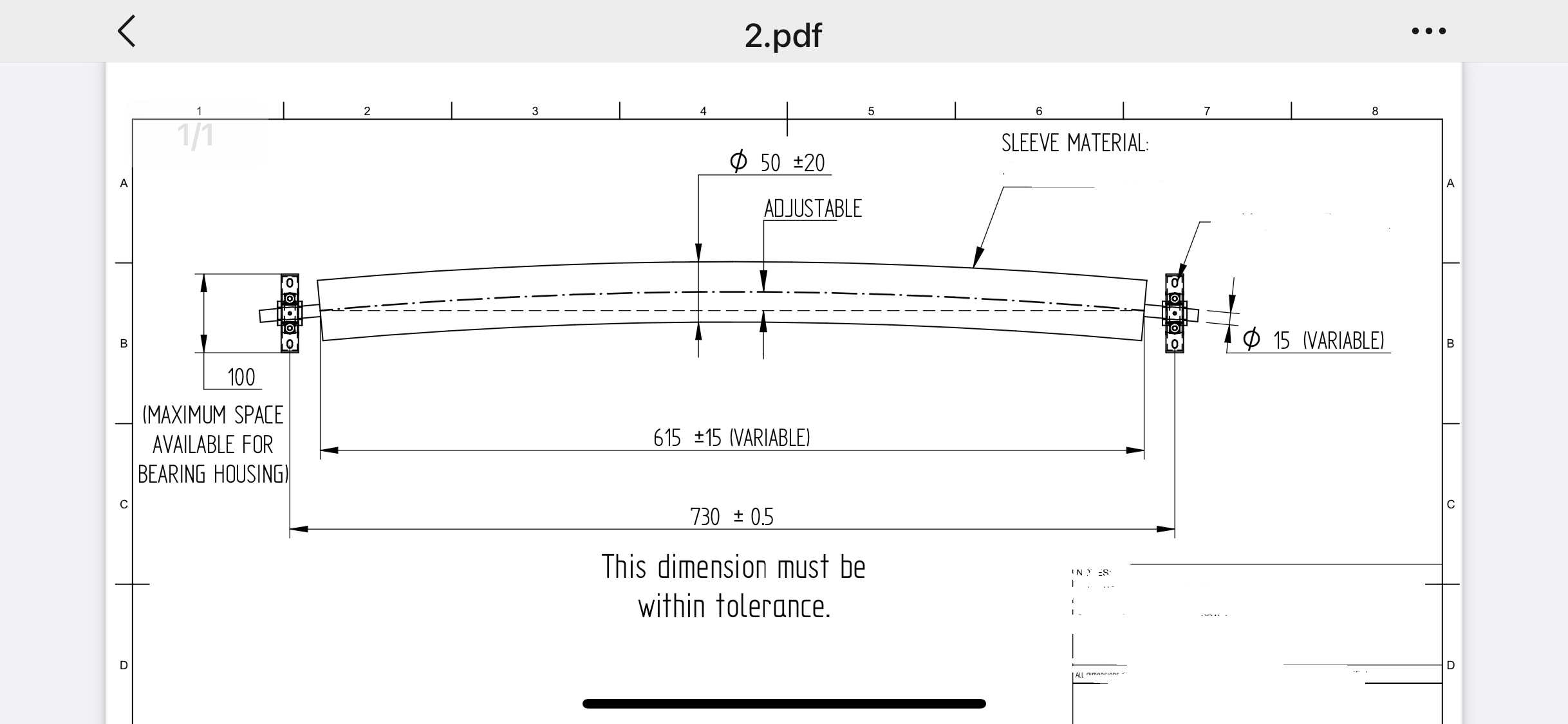

Reference drawing
