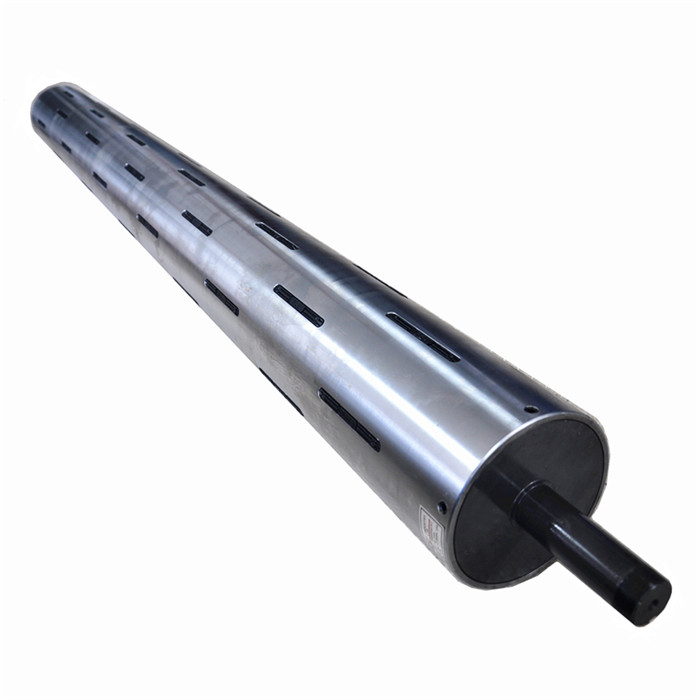

Introduction

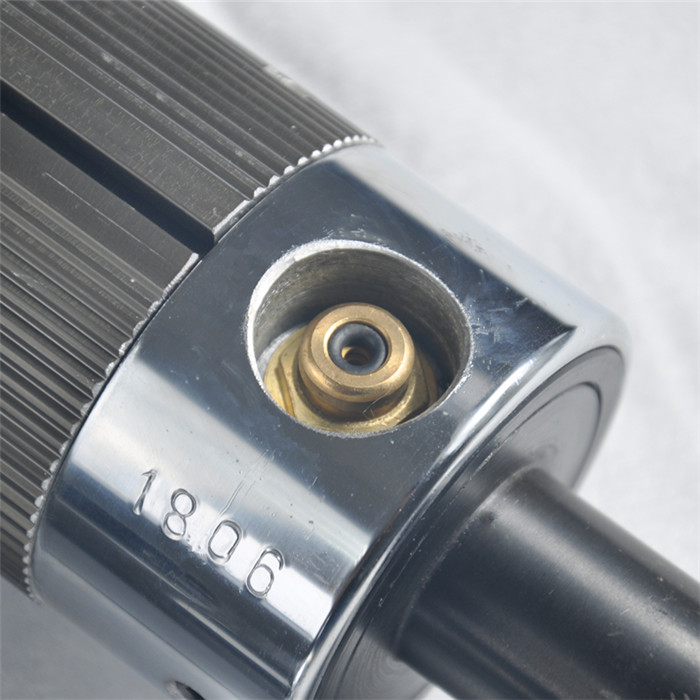

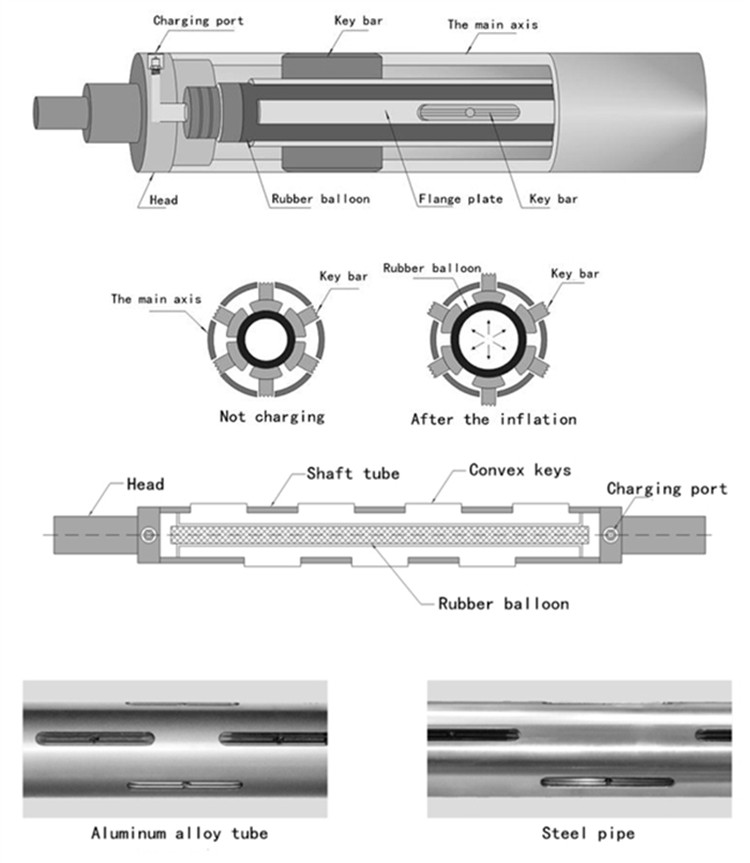

1. How does the air shaft work? used for ?

When the air shaft inflated by  high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract . The advantage of using an air shaft  is that it can greatly improve the working effeciency .

2. Application

Air shaft is widely used in printing, packaging, plastic, paper making, spinning industries for all the machines with the winding, rewinding unit and slitting unit for the operation of material in roll .

Printing equipment:

drying machine, flexo printing machine, gravure machine, Grooving machine ,trademark printing machine, etc .

Other machinery:

Coating machine, leather machine, setting machine, embossing machine, slitting machine, die cutting machine, rewinding machine, paper tube machine, bag making machine, laminating machine, film blowing machine, Foaming machine, Extruder machine, knurling machine, paper machine, non-woven machine, cloth inspection machine, bronzing machine, stamping machine battery equipment and so on .

Advantage

Now I will introduce the advantages of our air shafts :

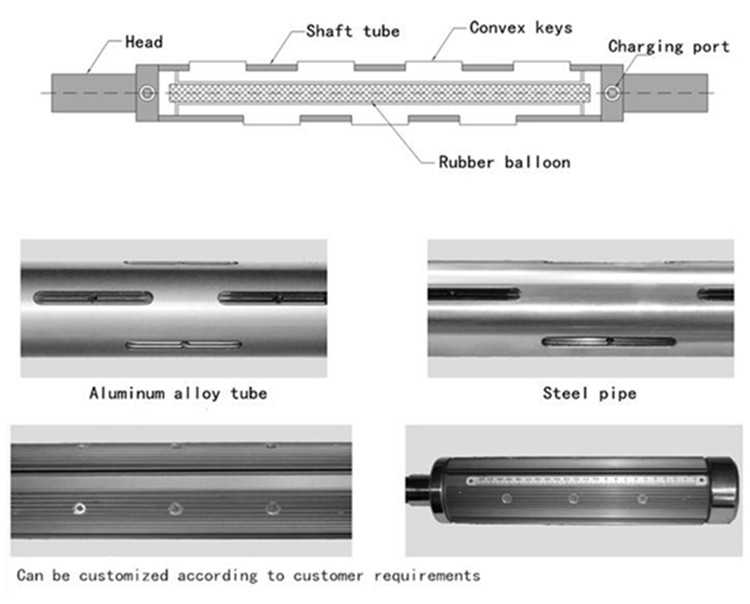

A: Air shaft body Material

We adopt hi-precision cold-drawn steel tube as the shaft body . The thickness of this kind of tube is uniform so after inflation , all key strips will stick out at the same height which will realize minimum eccentricity of the paper core.

And it will greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.This kind of material is 460 dollars more expensive per ton than normal materials.

B: Key bar structure for our key type air shaft

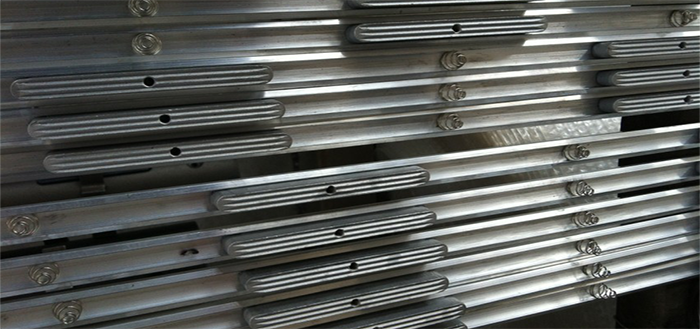

Our exported key type is the following structure, it used the whole long key bar forming a good protective ring around the air chamber ,and we adopt the pagoda springs. It can bear 300000 compression without broken and the quality guarantee period is one year.

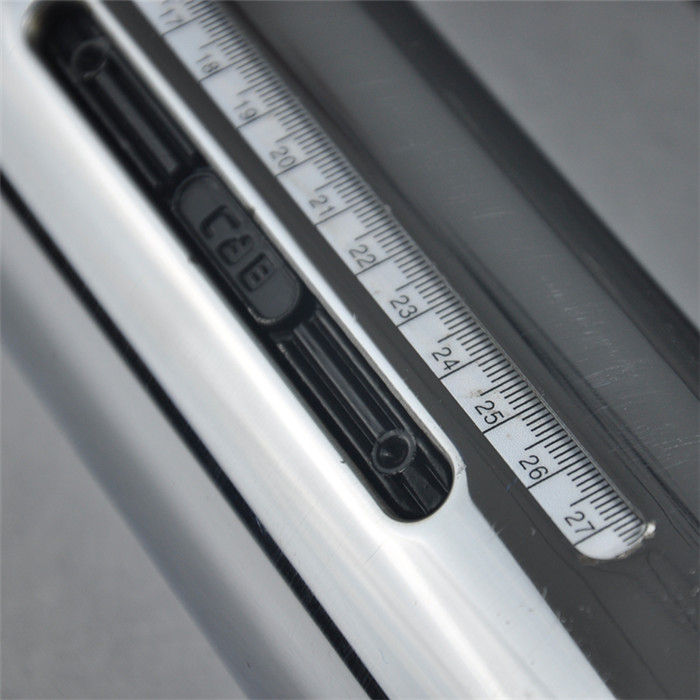

The key bar is made of aluminum alloy. It is light in weight and is suitable for ordinary tubes such as paper tubes.

As shown in the following figure:

C. From the analysis of future maintenance costs

Those two structures of the expansion shaft, if need to repair ,you must replace all the keys, springs and air bags, but our structure is different. Even if need to repair after a few years later, because the spring can be directly take away, for dozens of springs, the cost of a few dollars. Plus a new airbag, the general maintenance and cost, one meter about at 24 dollars, plus a labor costs, even if a two-meter shaft, all the maintenance costs are around 63 dollars.

Quality control

We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft  is qualified.

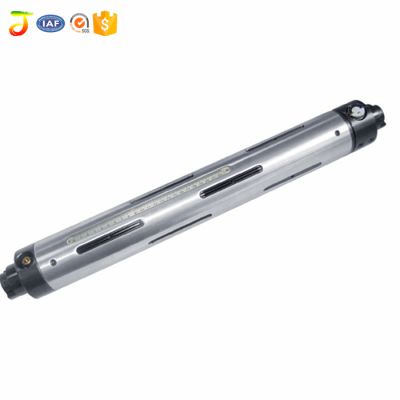

Classification

1. According to the structure

The shaft can be divided into key type air shaft and lath type air shaft. Most are using the key type air shaft and lath type air shaft is usually used on rewinding part of slitting machine or thin paper core. Because thin paper core is easy to be out of shape.

The key type air shaft is possible to make the paper core broken.

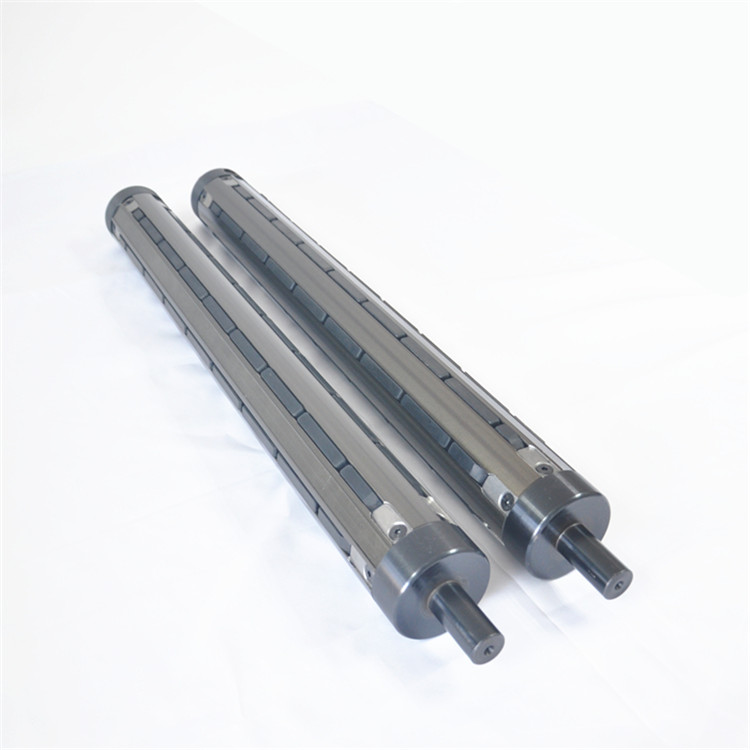

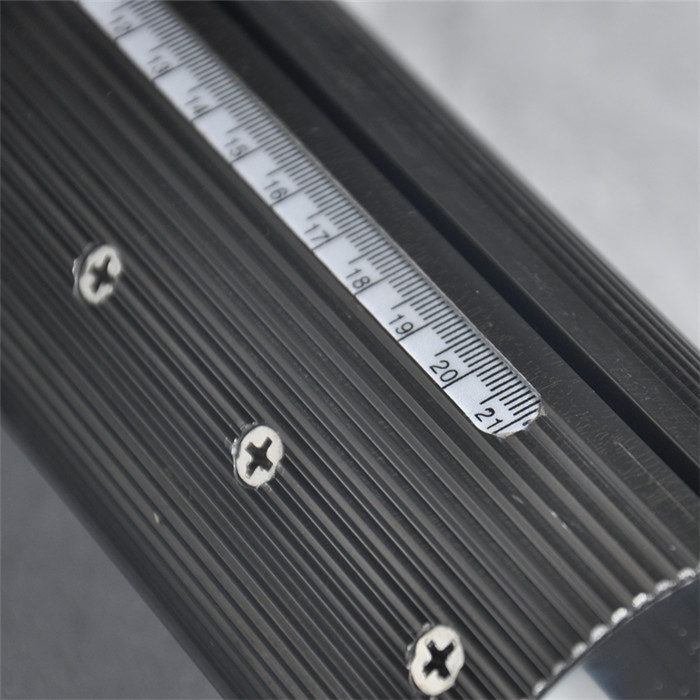

The tile type air shaft is three pieces of tiles after inflation. The roundness is good.

But compared with key type air shaft, the strength and load is smaller and the price is higher. So most customer will choose key type air shaft. We need to choose suitable not expensive product.

2. According to the diameter

We have the following normal type but other dimensions can be customized.

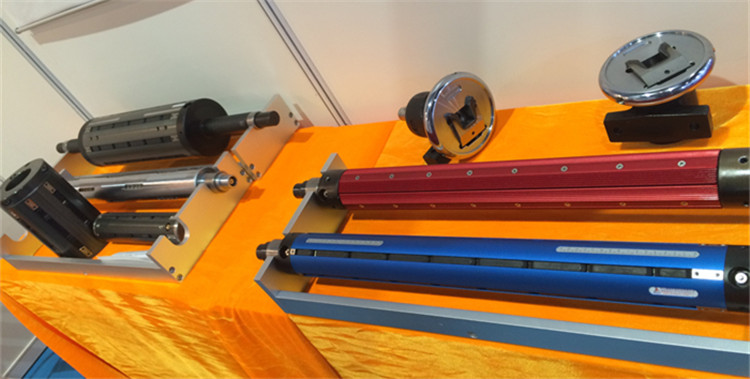

Company

FAQ

1. How should I place the order?

For air shaft , please send us your drawing, or let us know your request.

2. What is your MOQ?

1 Piece.

3. What material of your shaft is made of?

45# steel ,aluminum.

4. Can you produce relative product,like adapter,hand shank?

Yes,Sure.

Contact us
