Cellular shaft model magnetic powder brake for tension controller
1) High-precision torque control
2) Superior durability,long life
3) The stability of a fixed superior torque characteristics
4) Continuous operation of the use of sliding
5) Ink sleek,non-shock
6) Suitable for high-frequency operation
Cellular shaft model magnetic powder brake for tension controller
1.Introduction of magnetic powder brake:
Magnetic powder brake can transmit torque based on electromagnetic theory and the use of magnetic powder.It has the characteristics which magnetizing current and transmit torque has a linear relationship,It has advantages of fast response,simple structure,no pollution,no noise,no shock and vibration,energy-saving and so on.It is a versatile,superior performance of automatic control components.Magnetic brake an also be used to buffer starting,overload protection,speed control and so on.
2.Application of magnetic powder brake

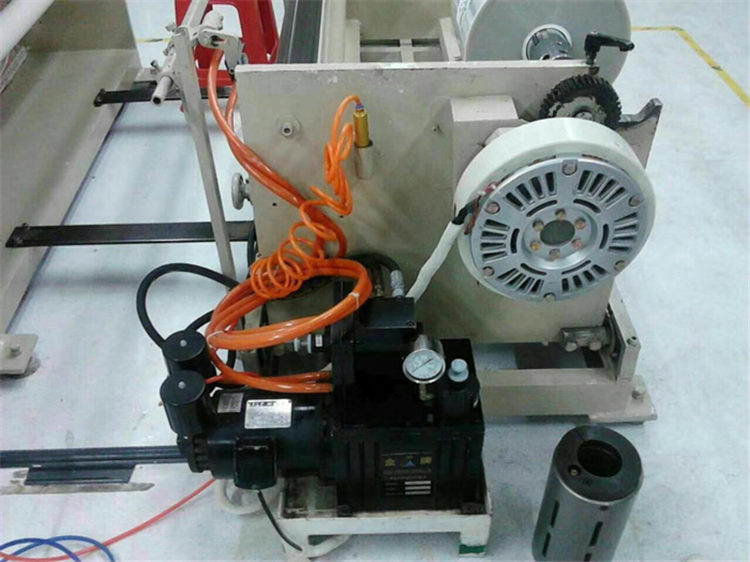

It is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire winding machines,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.
3.Models and specifications of magnetic powder brake

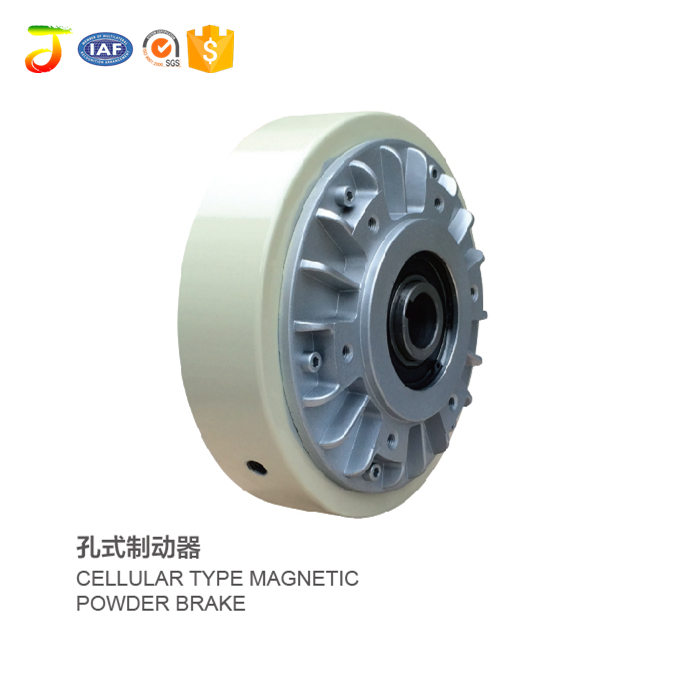

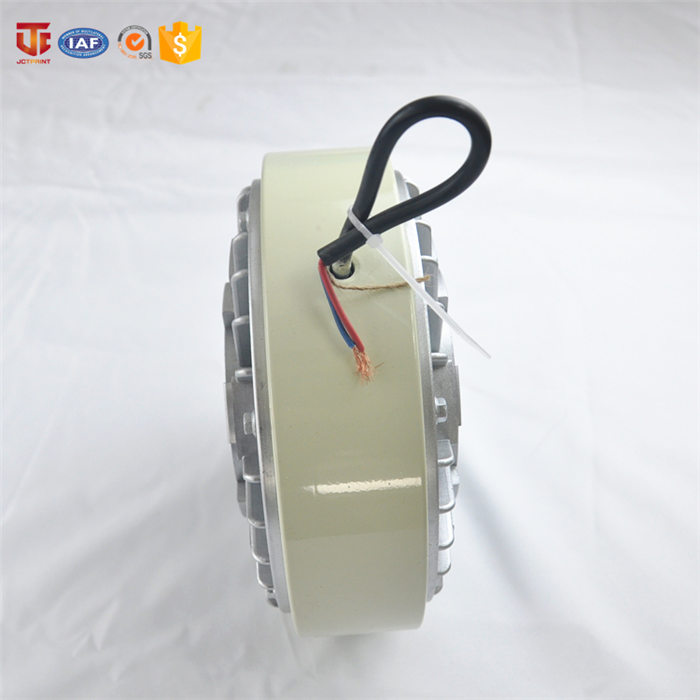

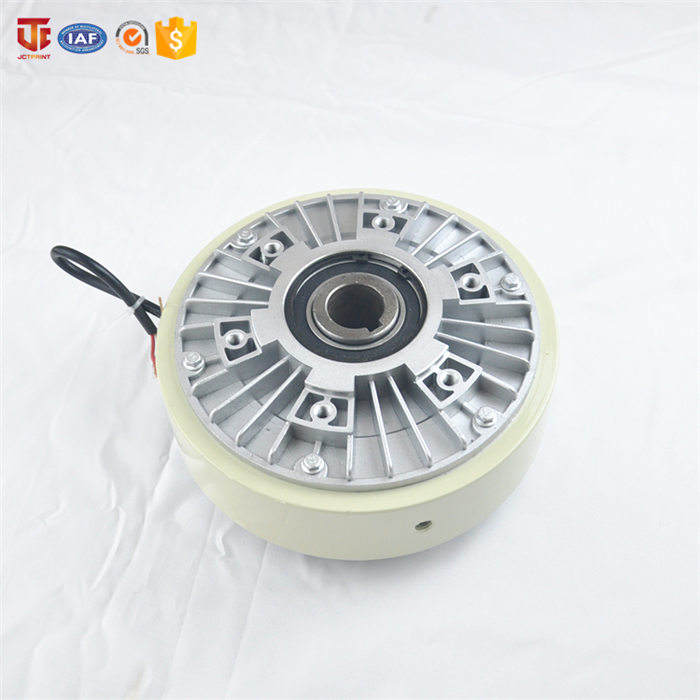

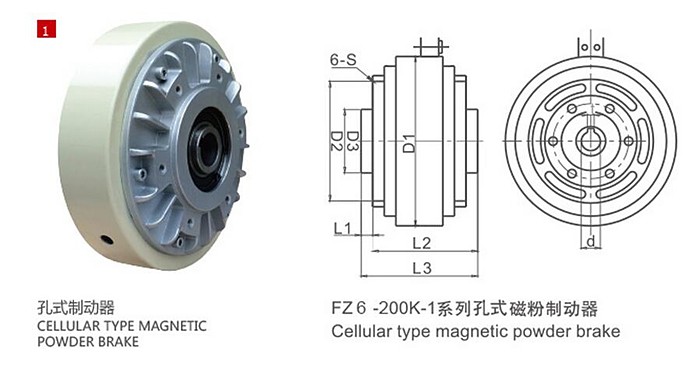

1)cellular type magnetic powder brake
| Modle | Torque(N.m) | Current(A) | Votage(V) | Rotation speed (RPM) |
Weight(kg) |
| FZ 6K-1 | 6 | 0.8 | 24 | 1000 | 3 |
| FZ 12K-1 | 12 | 1 | 24 | 1000 | 4.5 |
| FZ 25K-1 | 25 | 1.5 | 24 | 1000 | 7.5 |
| FZ 50K-1 | 50 | 1.8 | 24 | 1000 | 12 |
| FZ 100K-1 | 100 | 2 | 24 | 800 | 20.5 |
| FZ 200K-1 | 200 | 2.8 | 24 | 800 | 30 |

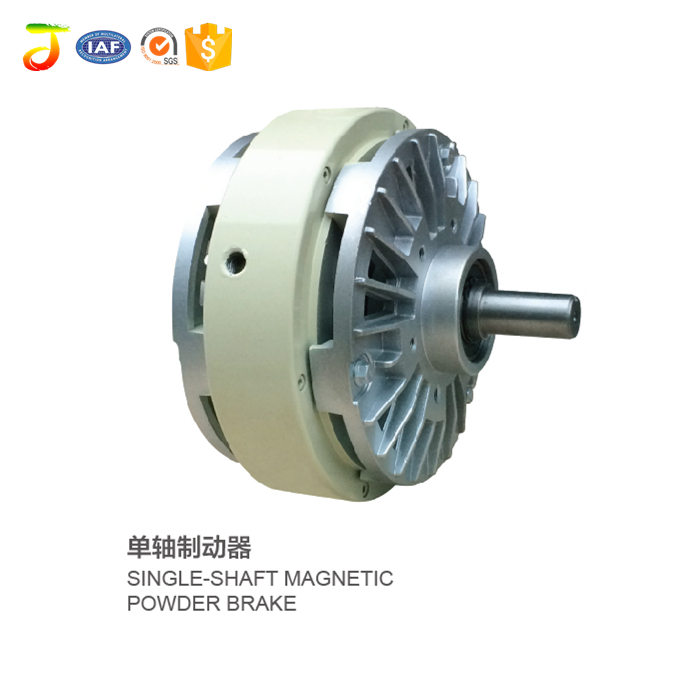

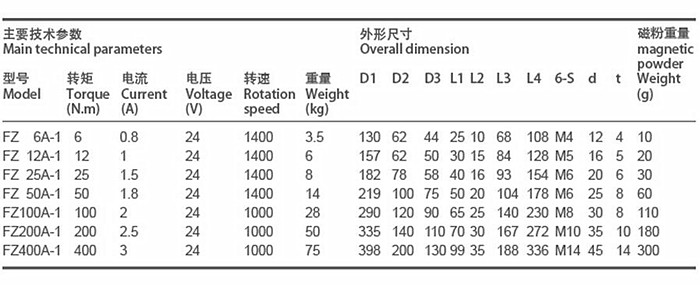

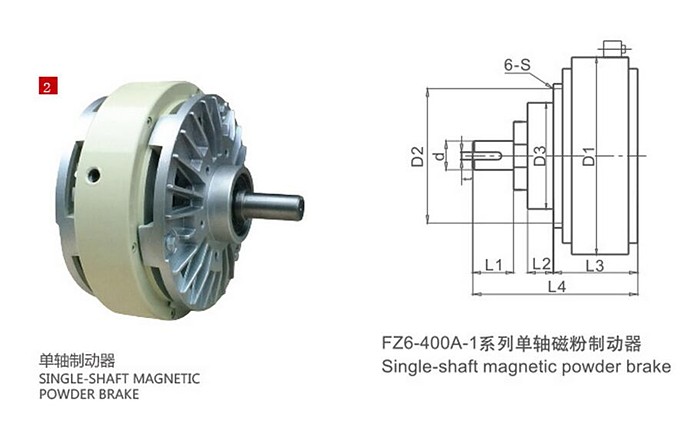

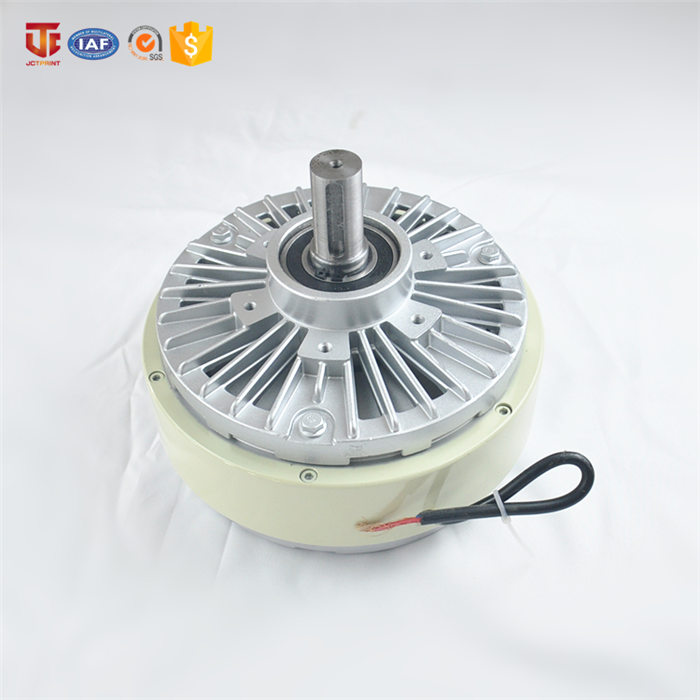

2)Singel shaft type magnetic powder brake
| Modle | Torque(N.m) | Current(A) | Votage(V) | Rotation speed (RPM) |
Weight(kg) |
| FZ 6A-1 | 6 | 0.8 | 24 | 1400 | 3.5 |
| FZ 12A-1 | 12 | 1 | 24 | 1400 | 6 |
| FZ 25A-1 | 25 | 1.5 | 24 | 1400 | 8 |
| FZ 50A-1 | 50 | 1.8 | 24 | 1400 | 14 |
| FZ 100A-1 | 100 | 2 | 24 | 1000 | 28 |
| FZ 200A-1 | 200 | 2.5 | 24 | 1000 | 50 |
| FZ 400A-1 | 400 | 3 | 24 | 1000 | 75 |
