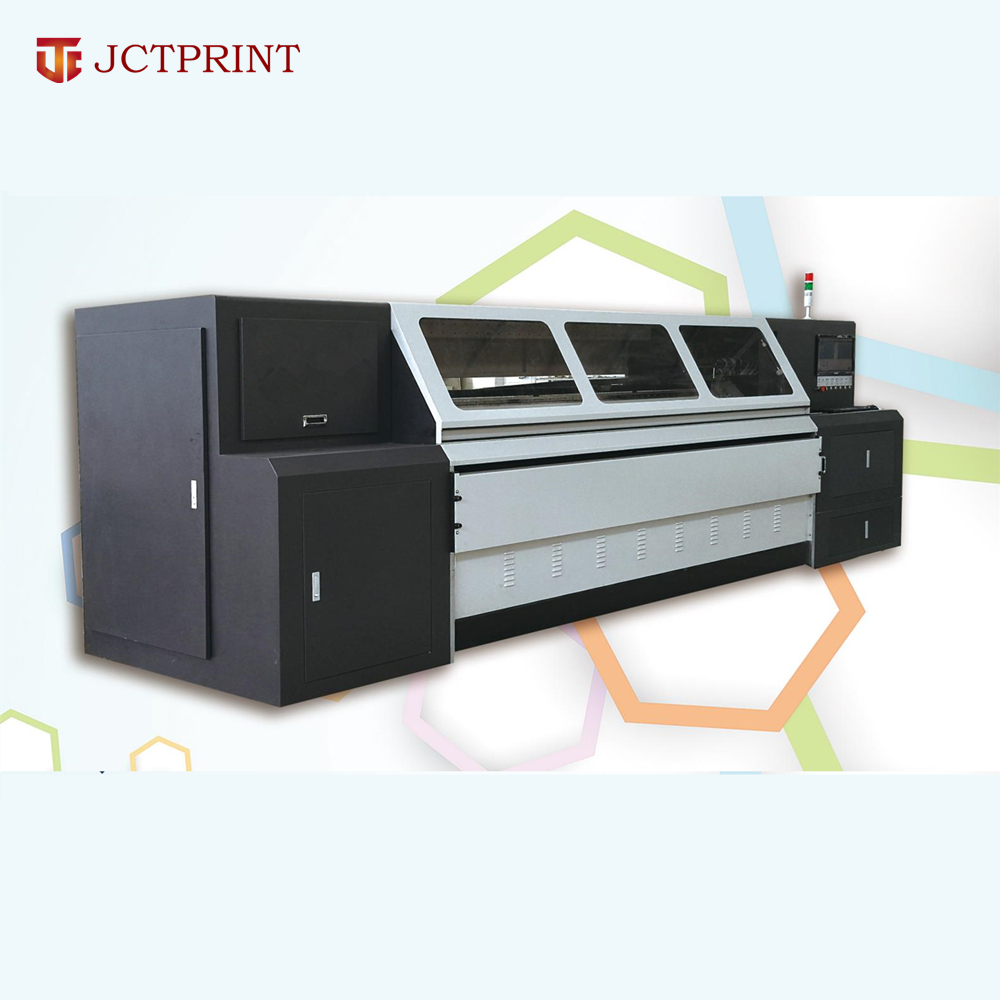

Digital Inkjet Printing :refers to methods of printing from a digital-based image used type of printer which is functioned to create a digital image by propelling droplets of ink onto paper.
Inkjet printers are the most commonly used printer types, range from small inexpensive consumer models to expensive professional machines.

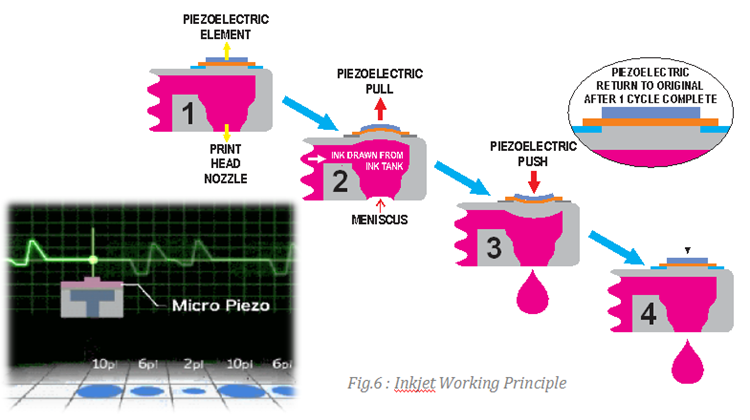

"Inkjet printing" is an integrated printing technology, with a small amount of ink from the reservoir, converting it into droplets, using micro electric pulse to spray ink to the Substrate (paper, film, wood board, glass, floor tile, wallpaper and other materials).

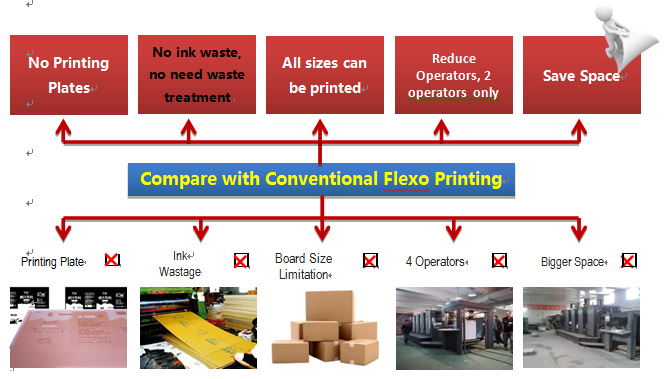

2.Comparison of flexography & digital inkjet printing:
A. Flexography or “Flexo,” a more traditional printing technology developed in the early 1900’s which utilizes flexible relief plates and semi liquid inks, either solvent based, water based, or UV cured.
It is essentially a version of letterpress which can be used for printing on almost any type of substrate.
B.Digital Inkjet Printing technology is non- touch printing, two different production methods.
Digital inkjet printing will replace Traditional Flexo Printing in the next 5 years.
|

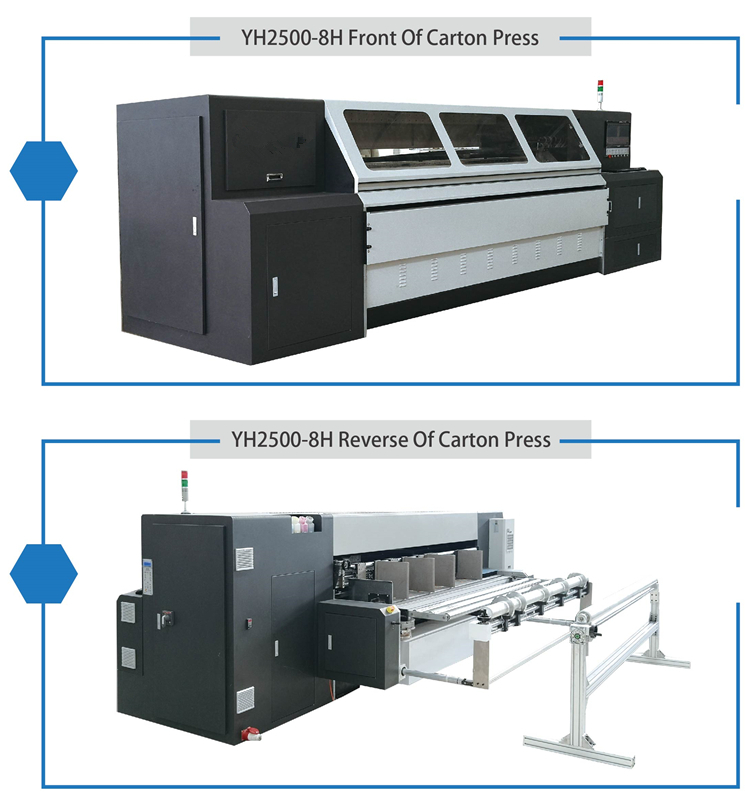

Product specifications & nbsp; &n bsp; &nb sp; Description |
|||
|
Printing Head |
1.Epson Original Micro-piezoelectric 2.High precisionPrint Head.Max up to 8 Arrays for 8 Heads 3.Print Head to Board gap is 1mm to 2mm. 4.Each pass print width 271mm. |
||
|
Ink |
Water Base Dye Ink |
||
|
Colour |
C M Y K |
||
|
Printing Speed |
Mode |
PASS |
Area |
|
|
High Speed |
1PASS |
500 square meter/h |
|
|
High precision |
2PASS |
250square meter/h |
|
Maximum Printing Width |
2500mm |
||
|
Print Length Range |
≥550mm |
||
|
Media Thickness |
3mm-20mm(≥20mm can be custom made) |
||
|
Control Mode |
P. L. C.System |
||
|
Print Resolution |
2 pass:720*600 1 pass: 360*600 |
||
|
Ink Drying Speed |
Dry immediately for medium paper(drying speed vary depending on other substrate quality) |
||
|
Software |
Printer Manager by YH and RIP System |
||
|
Working Environment |
Room Temperature 10-35 Degrees,Humidity 20-70% |
||
|
Rated Power& Power Supply |
10KW;AC380±10%,50-60HZ,3 phases |
||
|
Machine Dimension |
4750(L)×2220(W)×1730(H)mm |
||
|
Machine Weight |
Net Weight=4500kg |
||
ü High printing quality, up to 175+ lpi process color printing, achieve 80%off set printing result
ü Eliminate printing flute mark
ü Suitable For Printed Sample Preparation For New Development.
ü Can develop multi-market orientation and increase market width
ü Ideally Suited For Short Runs With Multiple Version Changes.
ü Reduce Process Waste & Indirectly Reduce Order Shortage & Replacement Quantity.
ü Reduce Ink Storage Stock & Manage.
ü Digital printing, No Printing Plates, No Need Block Setting, No Block Setting Accessories. Reduce the block storage area.
ü Proper Management Of Printing Block & Saving On Manpower For Block Searching & Maintenance
ü High Printing Quality With Less Process Disturbance
ü (Dust, Colour Inconsistence, Registration Out, etc.)
ü Prepress workflow simplify; Fast Printing set up time with minimum set up waste
ü Environmental or Eco-friendly (No Ink Waste).
