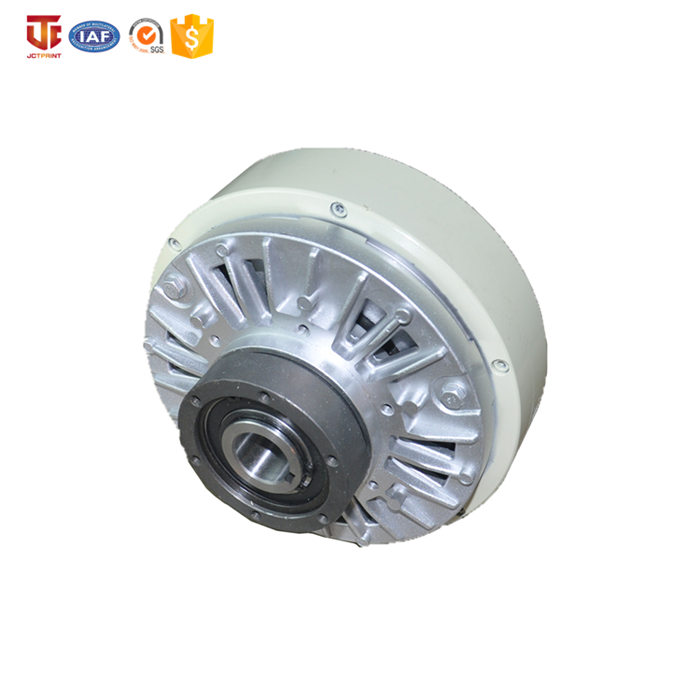

Factory price magnetic powder clutch for packaging machine
1.Introduction of magnetic powder clutch:
Magnetic powder clutchcan transmit torque based on electromagnetic theory and the use of magnetic powder.It has the characteristics which magnetizing current and transmit torque has a linear relationship,It has advantages of fast response,simple structure,no pollution,no noise,no shock and vibration,energy-saving and so on.It is a versatile,superior performance of automatic control components.Magnetic clutch can also be used to buffer starting,overload protection,speed control and so on.
2.Application of magnetic powder clutch
It is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire winding machines,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.
3.Models and specifications of magnetic powder brake

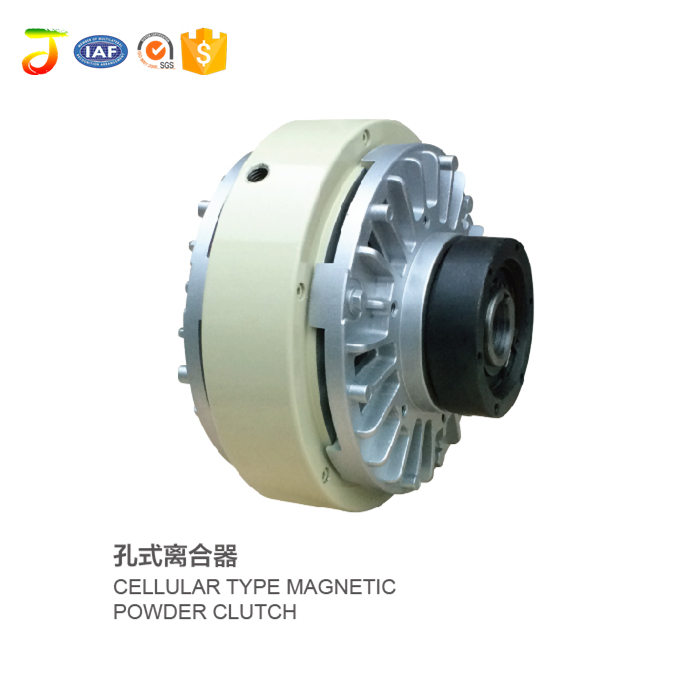

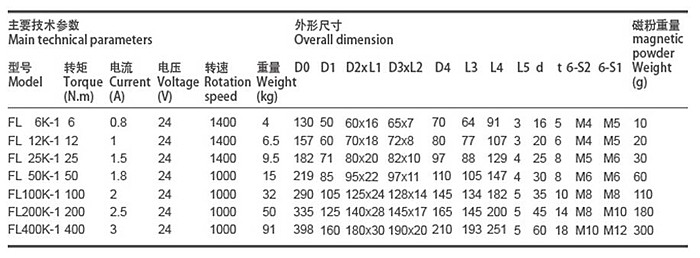

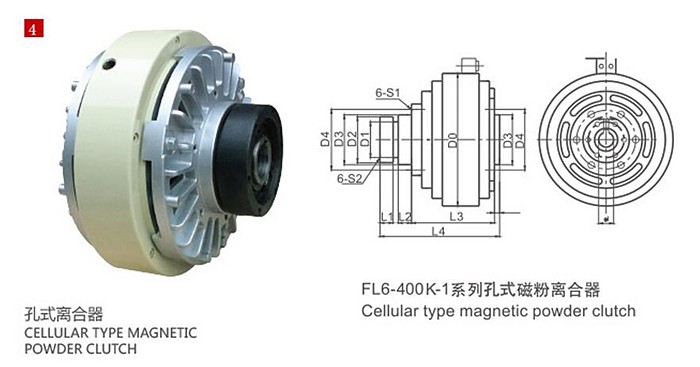

1)cellular type magnetic powder clutch
| Modle | Torque(N.m) | Current(A) | Votage(V) | Rotation speed(RPM) | Weight(kg) |
| FL 6K-1 | 6 | 0.8 | 24 | 1400 | 4 |
| FL 12K-1 | 12 | 1 | 24 | 1400 | 6.5 |
| FL 25K-1 | 25 | 1.5 | 24 | 1400 | 9.5 |
| FL 50K-1 | 50 | 1.8 | 24 | 1000 | 15 |
| FL 100K-1 | 100 | 2 | 24 | 1000 | 32 |
| FL 200K-1 | 200 | 2.5 | 24 | 1000 | 50 |
| FL 400K-1 | 400 | 3 | 24 | 1000 | 91 |

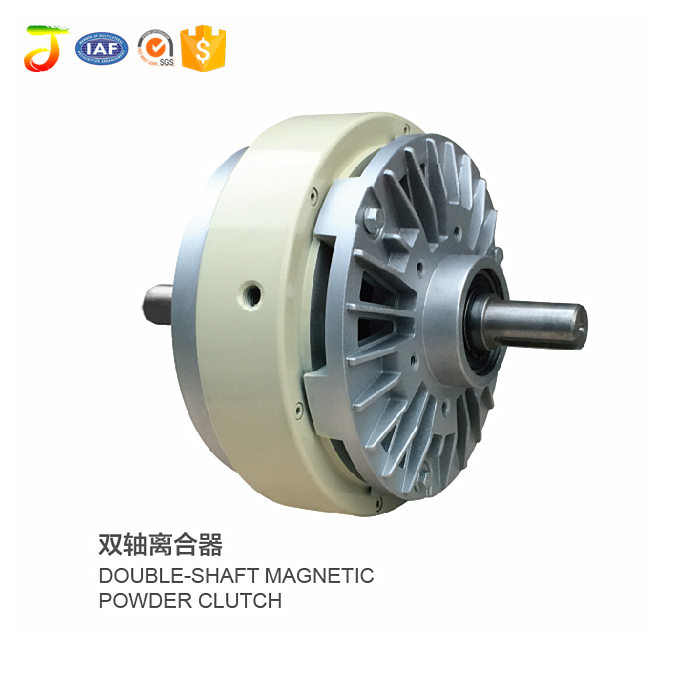

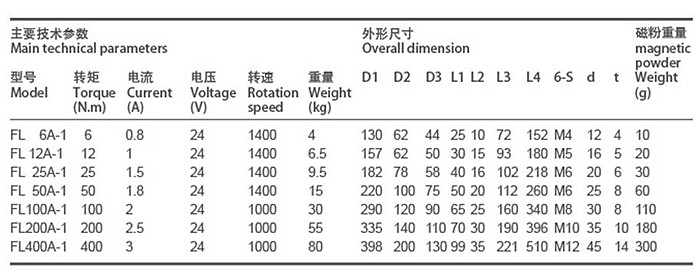

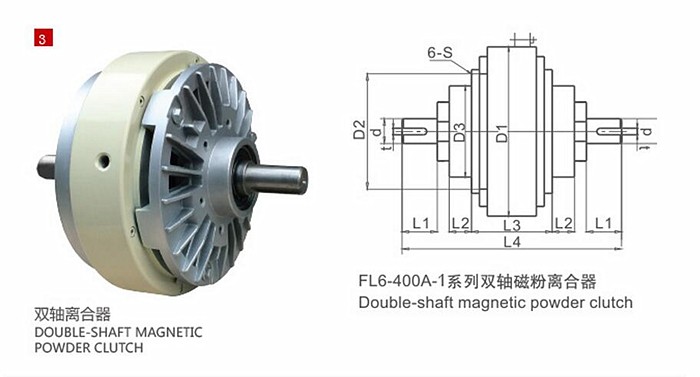

2)Double-shaft type magnetic powder clutch
| Modle | Torque(N.m) | Current(A) | Votage(V) | Rotation speed (RPM) | Weight(kg) |
| FL 6A-1 | 6 | 0.8 | 24 | 1400 | 4 |
| FL 12A-1 | 12 | 1 | 24 | 1400 | 6.5 |
| FL 25A-1 | 25 | 1.5 | 24 | 1400 | 9.5 |
| FL 50A-1 | 50 | 1.8 | 24 | 1400 | 15 |
| FL 100A-1 | 100 | 2 | 24 | 1000 | 30 |
| FL 200A-1 | 200 | 2.5 | 24 | 1000 | 55 |
| FL 400A-1 | 400 | 3 | 24 | 1000 | 80 |
