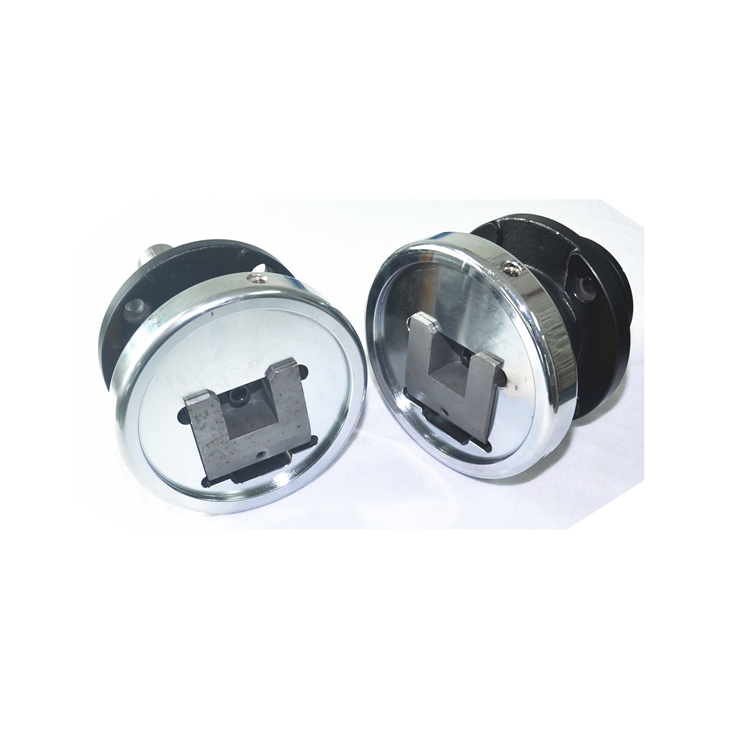

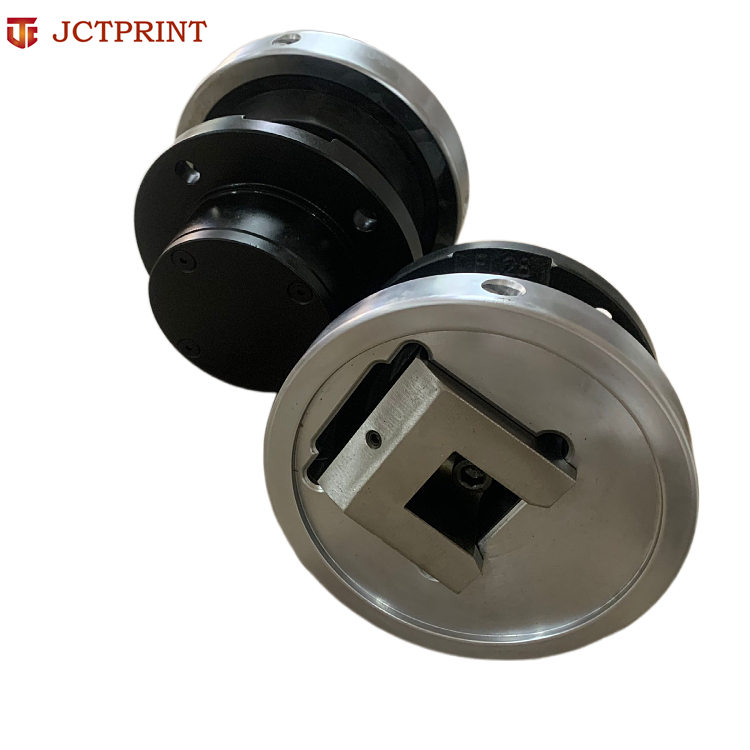

Foot mounted type Flange type safety chuck for Air expanding shaft

Foot mounted type Flange type safety chuck for Air expanding shaft

Production description:

1. introduction:

The safety chuck is a quick-connecting device that is applied to the receiving and discharging reels to save the operator time for loading and unloading. There is no need to move the structure of the machine every time when changing materials. The safety chuck provides the operator with the ability to quickly change materials when receiving and discharging. The time of the upper and lower materials is reduced, and the operator's work is more efficient to achieve cost savings.

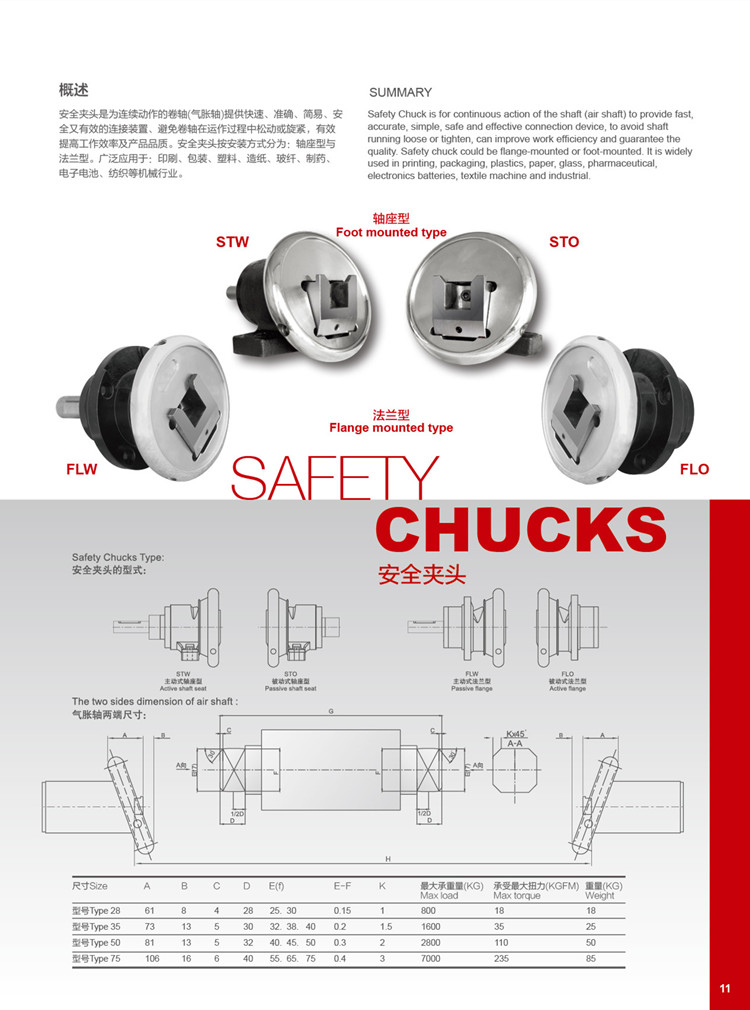

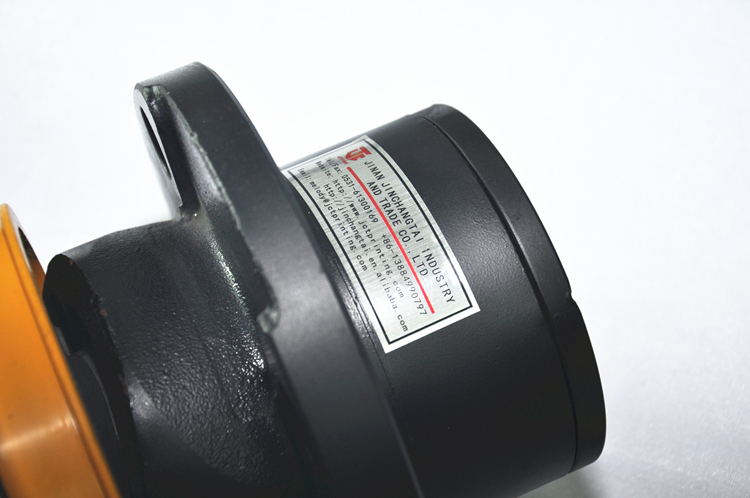

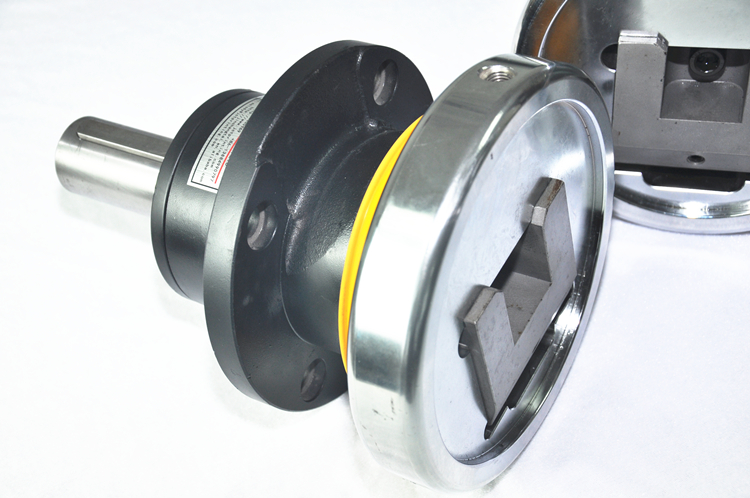

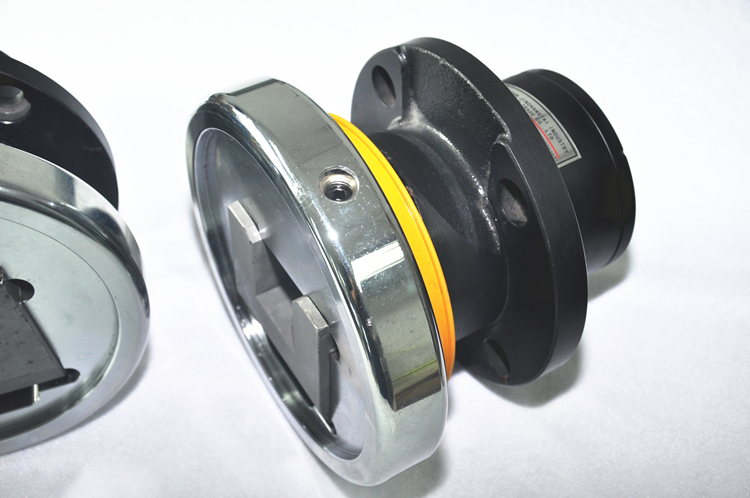

Safety chuck can be divided into pedestal and flange type, or we can say, horizontal and vertical installation. Our standard safety chuck has the design of security, economy and easy installation, can provide swift, safe, true and simple shaft coupling and separation action.

2. Application

Safety chucks can be used in steel machinery, packaging machinery, printing machinery, textile machinery, wire and cable machinery, winding machines, machine tools, plastic machinery, chemical machinery, paper machinery, and other major industries, machinery and automation equipment.

3.Advantages of  our safety chuck

1. The whole structure for safety chuck is outstandingly rigid, can bear high torque, no worry for loosening away in safe running.

2. Precise process accuracy can assure exact locating, reel holding mouth adopts special heat processing technology.

3. VT-type reel holding mouth can be provided, which will extend its use life greatly.

4. Special excellent alloy steel material will be adopted with great durability.

5. Nickeling and hardening treatment for mouth can bring high stiffness and robustness, which can assure favorable performance in high load and high speed.

6. Reasonable tolerance design on mouth parts can assure smoothness and continuousness in torque transmission, which can extend greatly safety performance for machinery.

Company Introduction

Contact：

Helen Shen

Jinan Jinchangtai Industry And Trade Co., Ltd

Add:Room1406,Business office building B, Lushangshengjing Plaza,

No.6 Qingfeng Road,Lixia District,Jinan city, Shandong Province, China

Tel:0086-0531-61300169

Fax:0086-0531-61300169

Mobile/wechat/Whasapp/skype:0086-18660813189

Email:sales06@jctprinting.com

Website:http://www.jctprinting.com/

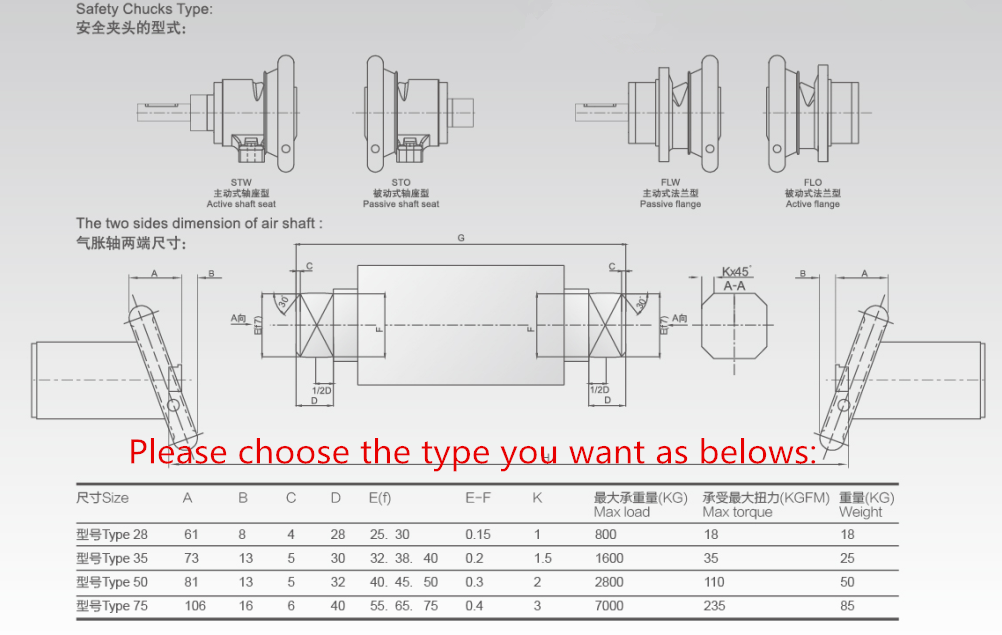

 To quote you ,we need the information as below:
