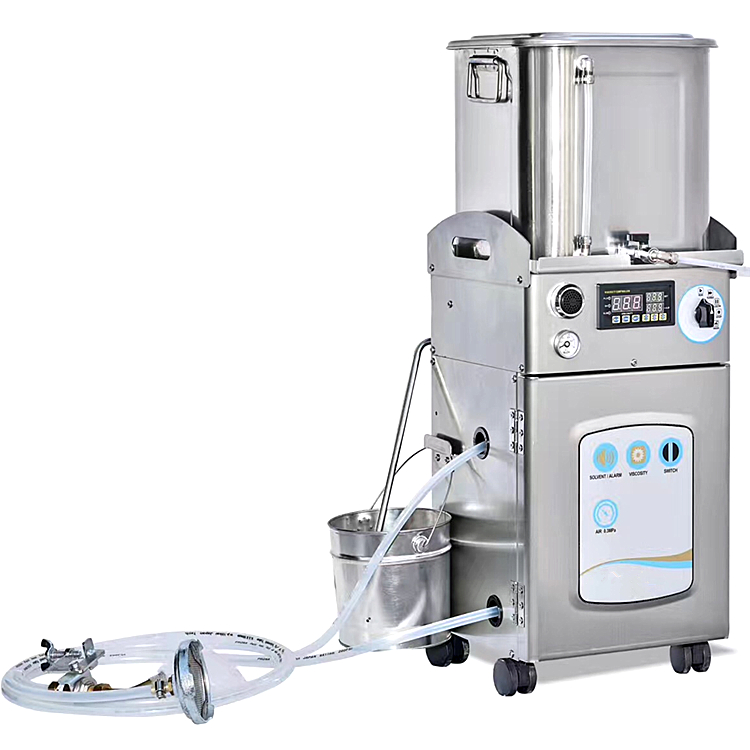

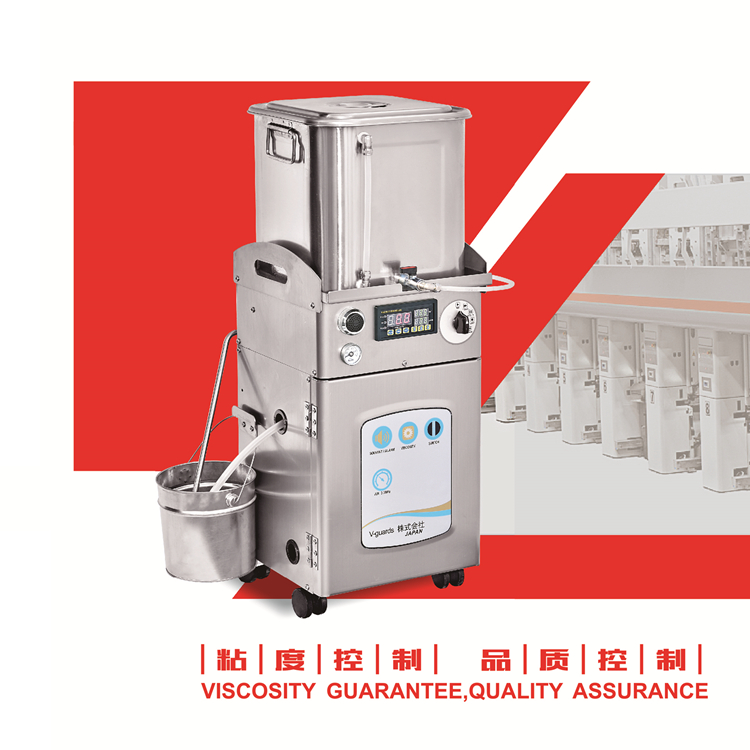

Ink viscosity controller machine glue viscosity regulator for flexographic
The viscostiy controller can be used in the following conditions:
1).Gravure printing and flexo printing: food package printing,plastic bag printing, PVC calico paper printing and all kinds of plastic package peinting.
2).Laminating: food plastic package laminating,paper laminating and rubber laminating
3).Coating: fit for bank card,negative,film,Polaroid,car decorating and all kinds of substrate coating.
4).Other use: all kinds of industry which is required for liquid.
Ink viscosity controller machine glue viscosity regulator for flexographic
1.Product Introduction
The viscosity controller is suitable for printing industry to automatically dilute the viscosity of the ink, and glue.
Our machine is easy to use , don't need to adjust the ink manually.The only thing you need to do is setting the viscosity value according to the product requirement and then the pulse detectorwill test the viscosity and the pneumatic diaphragm pump circulate ink and glue.
It's safe and reliable to operate, and the viscosity detection is accurate.The viscosity controller automatically tracks and monitors to make the viscosity consistent when printing, lamination and coating.
2.Models of our viscosity controller
| Model | V-10 | V-15 | V-20 |
| Appearance | 304 stainless steel,detachable box | 304 stainless steel,detachable box | 304 stainless steel,detachable box |
| Dimension | 300*320*750mm | 300*320*750mm | 300*320*750mm |
| Net weight | 17.5kg | 20kg | 23kg |
| Viscosity control range | 3#Zahn Cup 13-30sec/30-100cP | 3#Zahn Cup 13-30sec/30-100cP | 4#Zahn Cup 10-60sec/100-1000cP |
| Solvent tank | 304 stainless steel tank, capacity:12L | 304 stainless steel tank, capacity:12L | 304 stainless steel tank, capacity:12L |
| Inlet tube | 6.5mm*10mm*2.5m | 11mm*16mm*2.5m | 15mm*21mm*2.5m |
| Outlet tube | 8mm*12mm*2.5m | 11mm*16mm*2.5m | 15mm*21mm*2.5m |
| Ink circulating Rate | 1.5-4.5L/min | 3.5-9L/min | 7.5-19L/min |
| Air consumption | 40L/min | 90L/min | 160L/min |
| Working pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa |
| Voltage/power | 220V/40W | 220V/40W | 220V/40W |
| Application range | Gravure printing,Flexo printing (Sub tank under 20L) | Gravure printing,Flexo printing,compound,coating (Sub tank under 40L) | Gravure printing,Flexo printing,compound,coating (Sub tank over 40L) |
3.Why choose us?
1). Electrical linkage design, simple operation experience, "work file" "high gear" wash gear one key switch.
2). Simple control interface, viscosity use zahn cup value of "seconds" as the unit, intuitive, easy to observe and operate.
3). "one-click auto cleaning" function, automatic stop after cleaning equipment, save time.
4). Accurate viscosity detection and control, ensure the floating range is controlled within + / -0.5 seconds.
5).Intelligent system, consists of the following functions: "simple operation panel", "ink circulation" ,"viscosity signal acquisition and analysis", "viscosity value setting", "solvent supplies", "viscosity value abnormity alarm", diaphragm pump automatic lubrication ", "automatic cleaning”
6).Stainless steel material case, can be disassembled partially, convenient maintenance.
7).Electrical room pressurized safety design.
8). Electrical components adopt CKD, SMC, OMRON and other well-known brands, stable and durable.
9).Lower later maintenance costs
10).Have applied for many national patents
