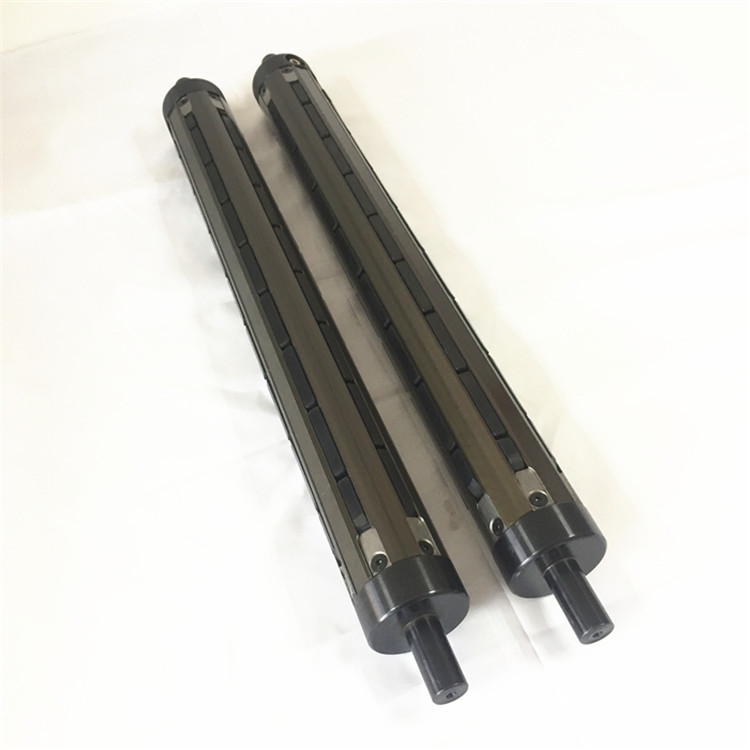

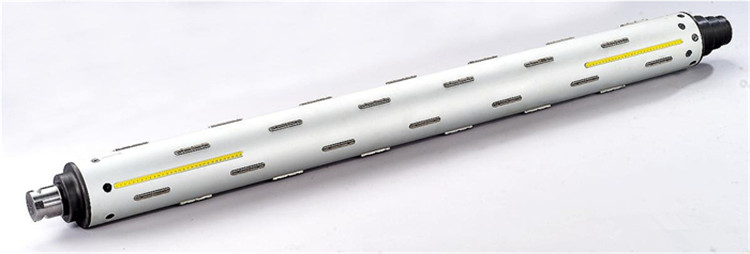

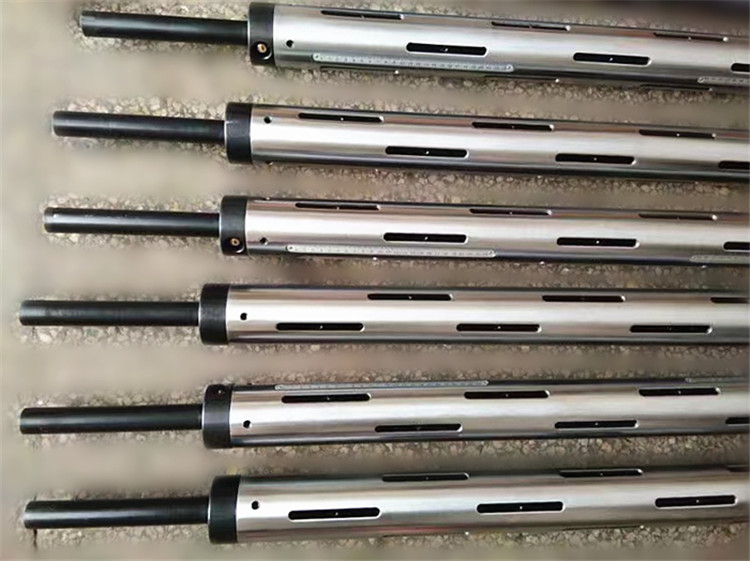

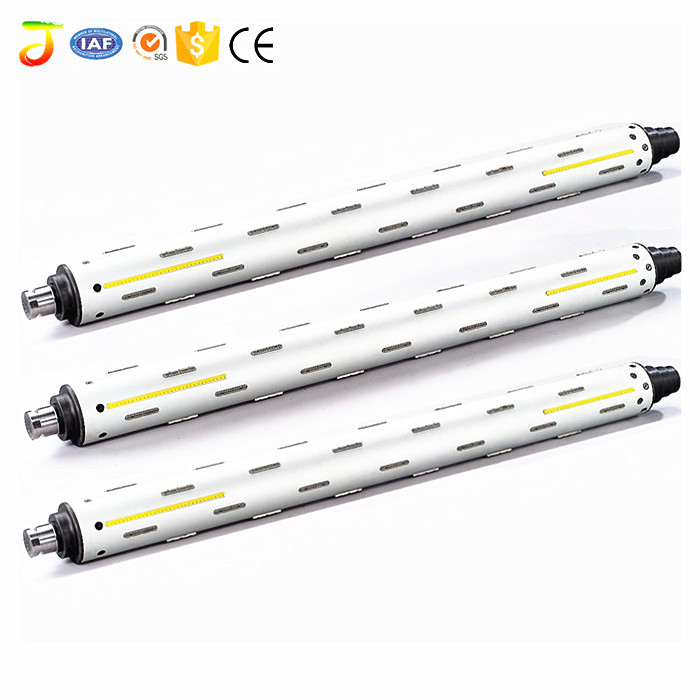

Air shaft is widely used in printing, packaging, plastic, paper making, spinning industries for all the machines with the winding, rewinding unit and slitting unit for the operation of material in roll.
Features of air shaft:
1. Inflatable operation time is short
2. Paper tube placed simple
3. Heavy loading
4. High economic efficiency
|
Type |
Material |
Spec. |
Unaerated diameter (ømm) |
Inflated diameter (ømm) |
Applicable volume tube inner diameter (ømm) |
|
Key strip/Lug/Leaf Type |
No.45 steel/ Aluminum
|
1″ |
24.8 |
24.8-28 |
25-26 |
|
1.5″ |
37 |
40-42 |
38-38.5 |
||
|
2″ |
49 |
52-54 |
50-51 |
||
|
3″ |
74-75 |
80-82 |
75.5-78 |
||
|
4″ |
99-100 |
104-106 |
101-102 |
||
|
5″ |
125 |
130-133 |
126-128 |
||
|
6″ |
150 |
154-156 |
151-153 |
||
|
8″ |
200 |
206-264 |
202-204 |
||
|
10″ |
250 |
260-264 |
252-256 |
||
|
12″ |
300 |
308-310 |
302-305 |
|
Industry |
Name |
|
Air shaft for printing industry |
Flexo printing machine Offset printing machine Gravure printing machine |
|
Air shaft for cutting industry |
Cutting machine |
|
Air shaft for slitting industry |
Slitting machine |
|
Air shaft for coating industry |
Coating machine |
|
Air shaft for laminating industry |
Laminating machine |
|
Air shaft for bag making industry |
Bag making machine |
Advantages of our air shaft

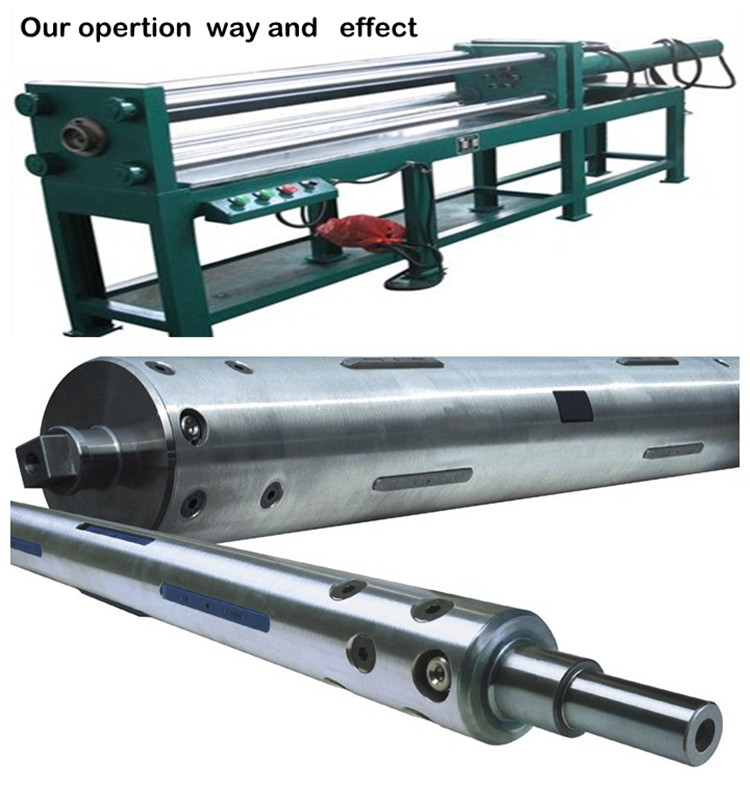

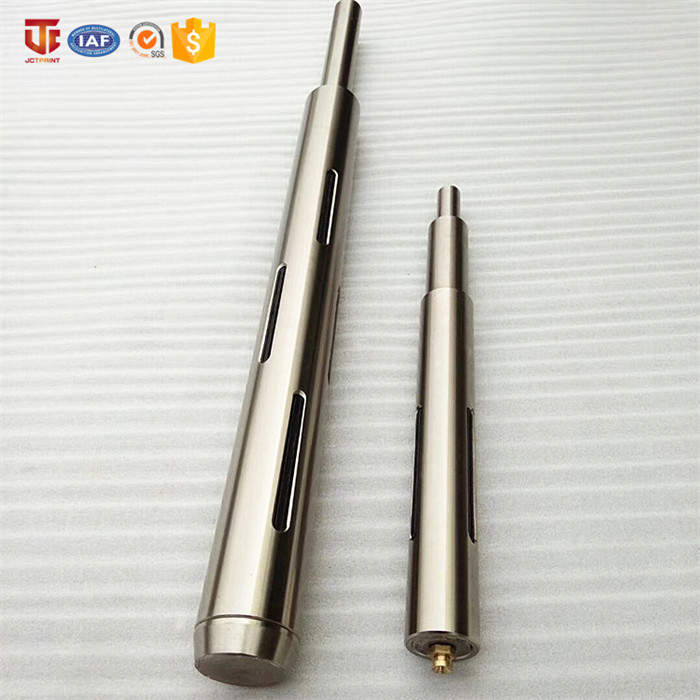

1. Adopting high power press machine to realize interference fit
We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube for the air shafts. Light type air shaft is with 0.03mm interference fit.Heavy type air shaft is with 0.06mm interference fit.While many factories knock it in with a big hammer,no quality and accuracy.

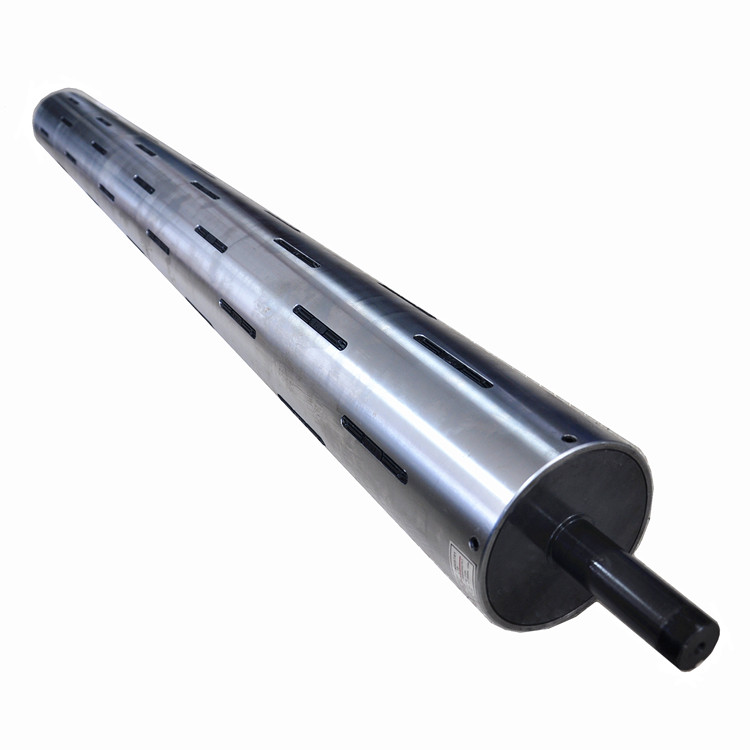

2. Adopting hi-precision cold-drawn steel tube as the shaft body
We adopt hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height .And it will greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.

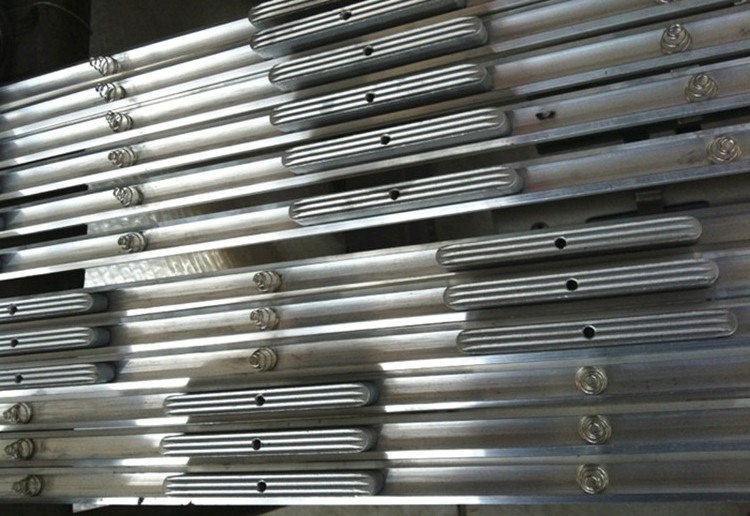

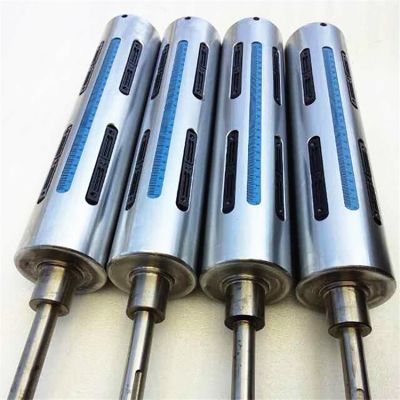

3. Adopting whole long key bar and pagoda springs for key type air shafts
We use the whole long key bar to form a good protective ring around the air shaft air chamber ,and we adopt the pagoda springs which can bear 300000 compression spring .The key bar is made of aluminum alloy. It is light in weight and suitable for ordinary tubes such as paper tubes.
4. Adopting special equipment to connect air chamber and shaft head

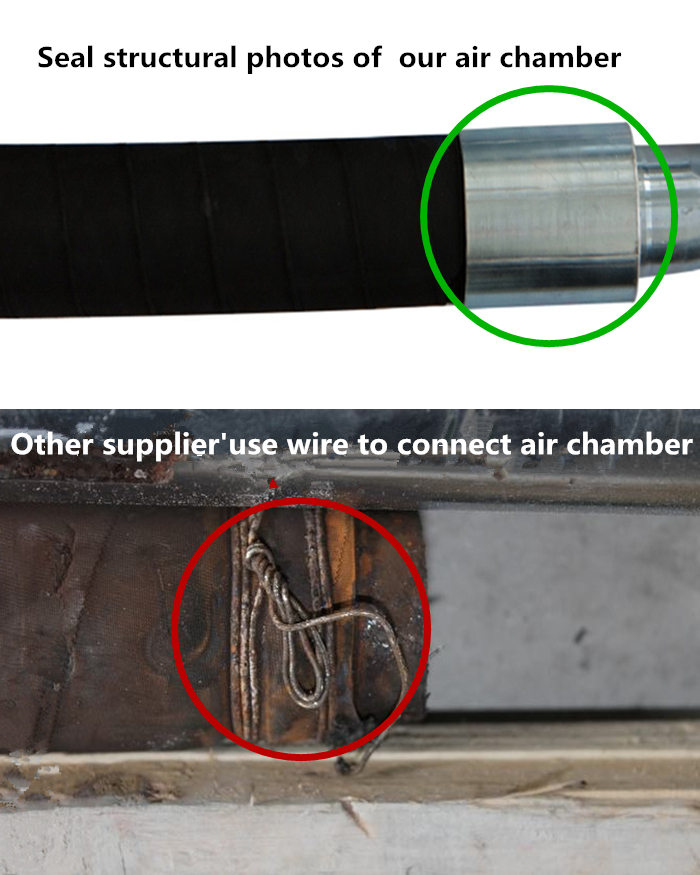

The connection mode between the air chamber and the shaft head is very important process,our company are using special equipment to realize it.Outside is buckled by siderosphere directly which can realize good sealing performance and stability. Many air shafts produced by other suppliers , both ends are fastened by iron wire,this is easy to leak and is with unstable sealing performance.
5. Quality control
We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft is qualified.
