Description of printing mdc doctor blade:
Our company is a professional saler of all kinds of soft packaging and printing printing mdc doctor blade, printing equipment, supplies of spare parts, printing raw materials and related technical services to Integrated Company. We own professional technical staff, can provide a full range of solutions in packaging and printing industry related technology equipment for customers. Our company will stick on good faith principle, pragmatic attitude, to provide high-quality products and service for the domestic printing industry.
Our printing mdc doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect. Due to the high precision blade manufacturing, durable degree is high, so it can greatly reduce the production cost and save the replacement or turning grinding blade time. This coating printing mdc doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.
Technical data sheet of printing mdc doctor blade:
Level | Low speed blade | Middle speed blade | Above the average | High speed blade |
Speed | 0-80/min | 0-120/min | 0-150/min | 0-180/min |
Material | T10 | SK4 | C100 | 20C |
Specification of printing mdc doctor blade:
Specification | Detail |
Hardness | 1960N/mm(580HV+/-15) |
Edge thickness | 0.07mm-0.10mm |
Edge height | 1.3mm |
Blade thickness | 0.15mm-1.5mm |
Blade height | 10-60mm |
Length of each box | 100m |
Dimension of printing mdc doctor blade:
Regular size |
30(40,50,60)×0.15 |
25(30,35,40,50,60)×0.2 |
10×0.1 |
17(30,40,50,60)×0.3 |
60×0.4 |
50×0.5 |
Customized |
Features of printing mdc doctor blade:
Feature | Detail |
1 | Good scraping effect &high printing quality |
2 | Good elasticity & strong layering feeling |
3 | Durable &Long life |
Application :
Printing mdc doctor blade is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.
Delivery:
Delivery in 20 days after payment received

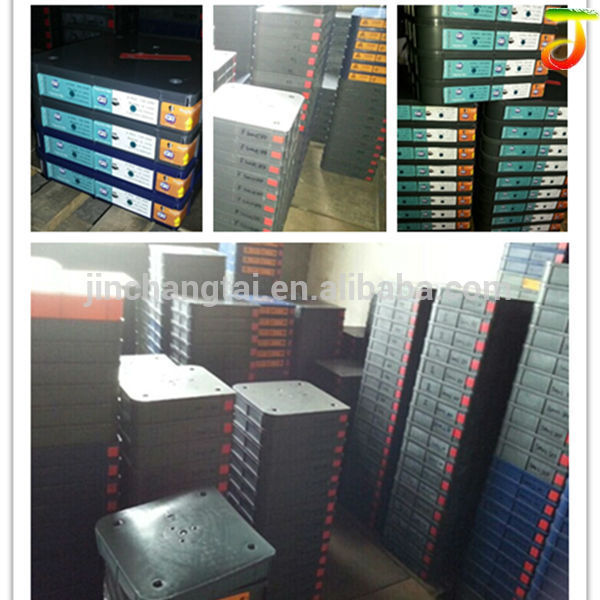

Packaging:
Standard export carton, also can be packaged as customer's requirement.
Detail: According to customer’s requirement

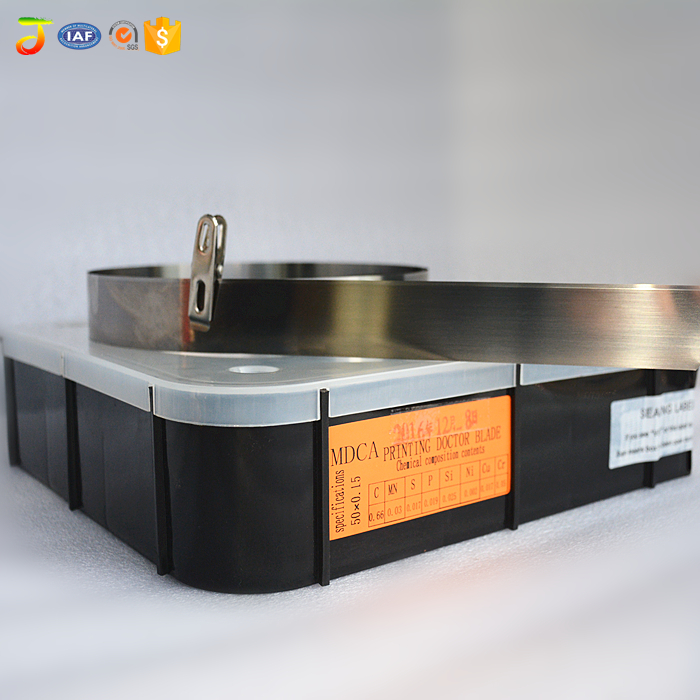

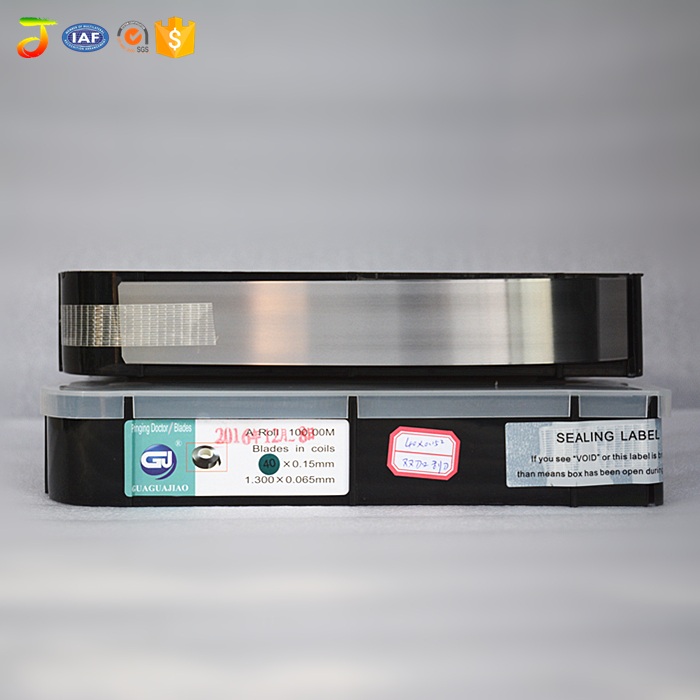

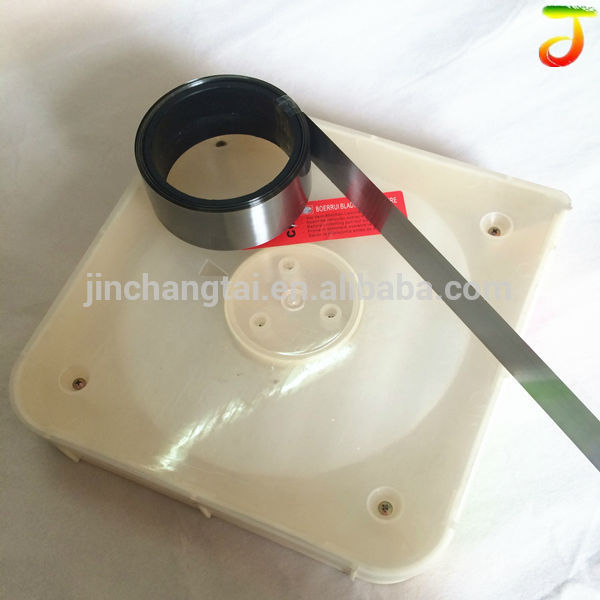

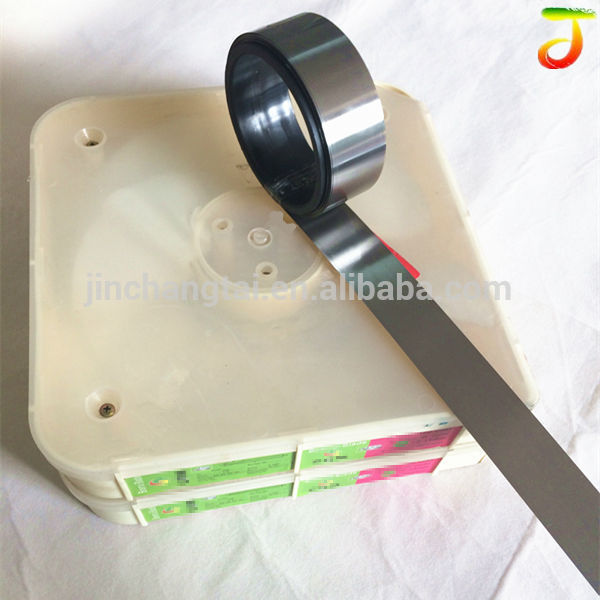

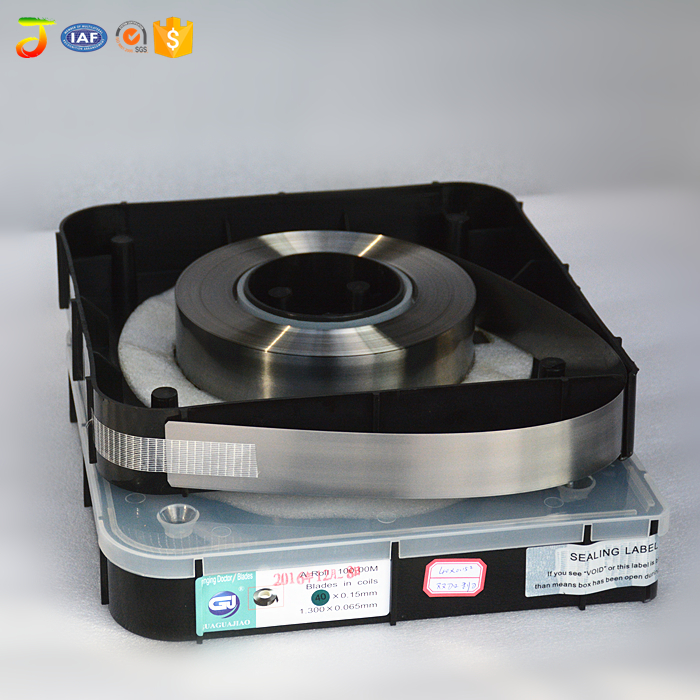

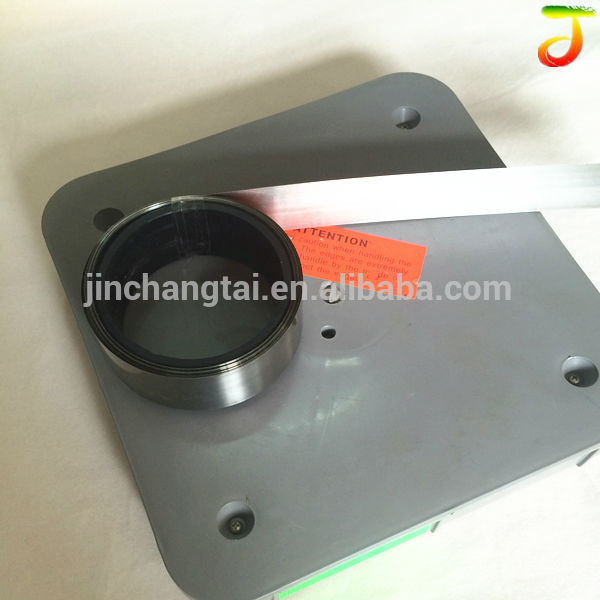

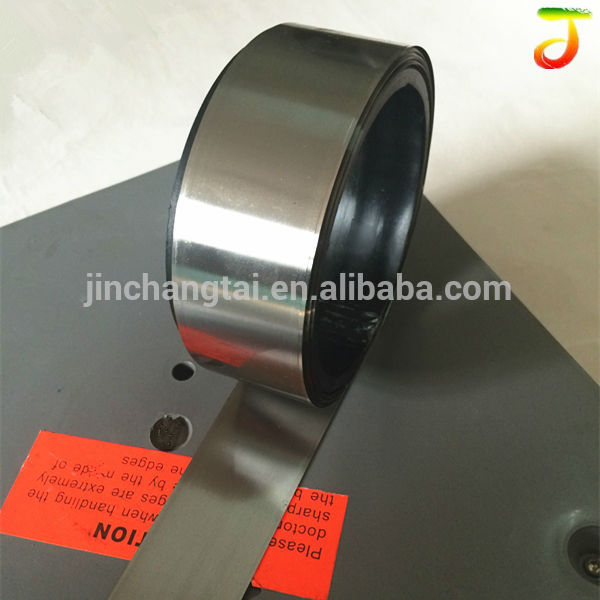

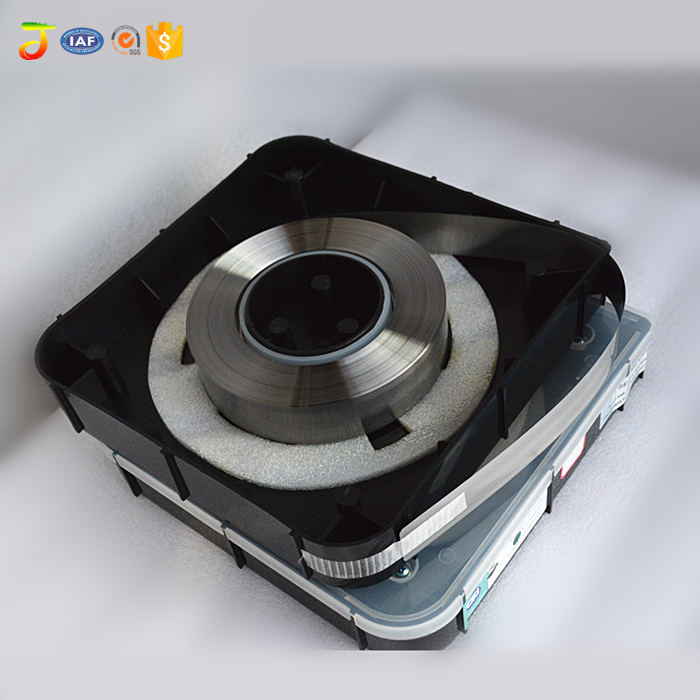

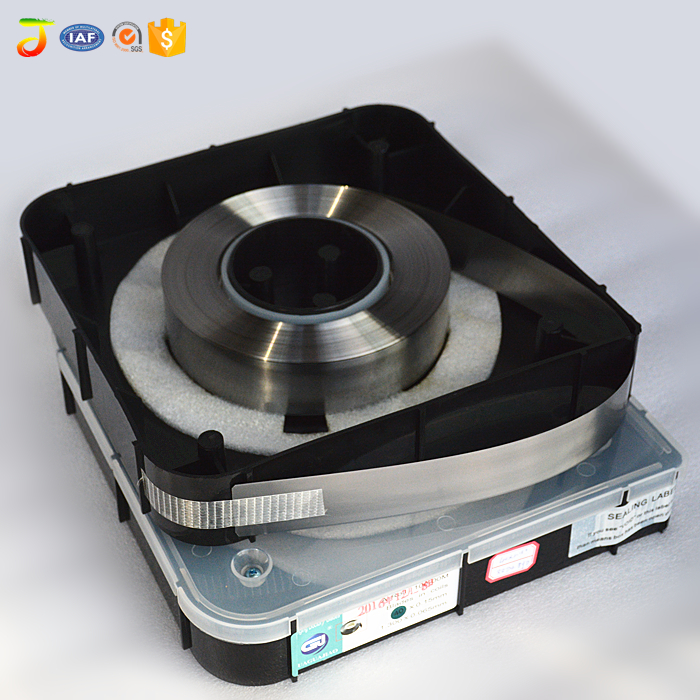

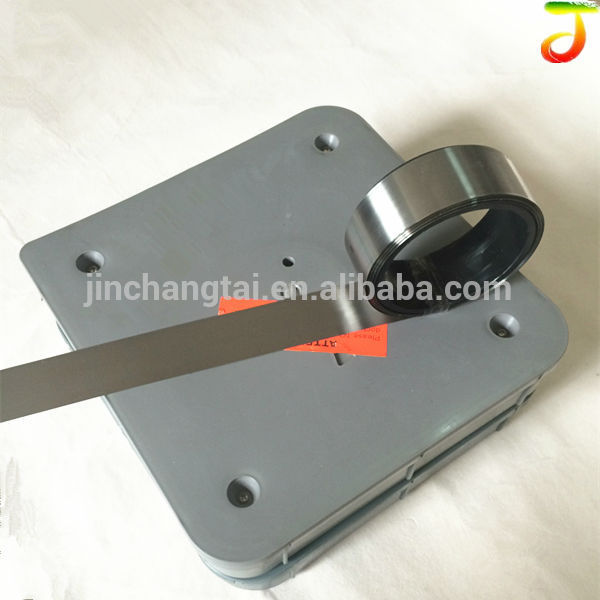

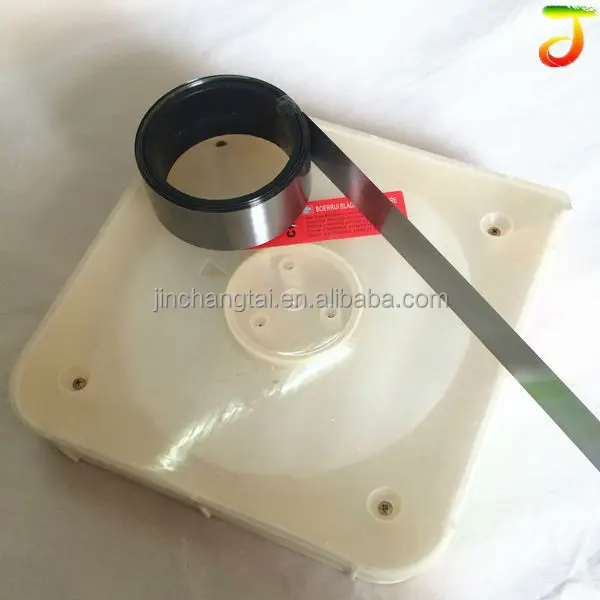

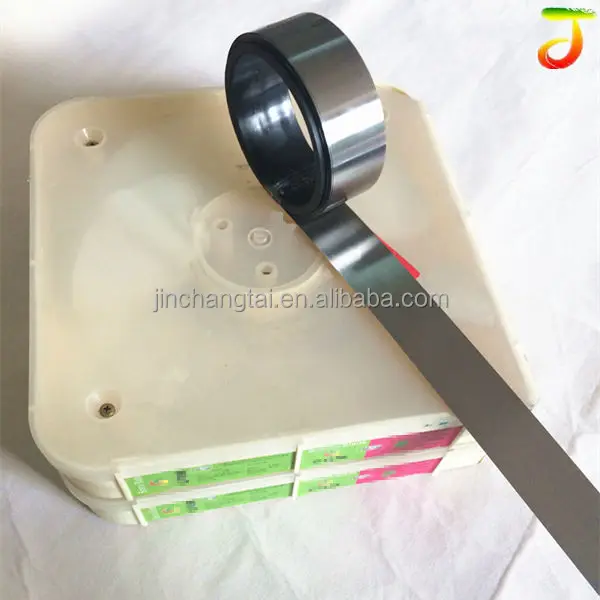

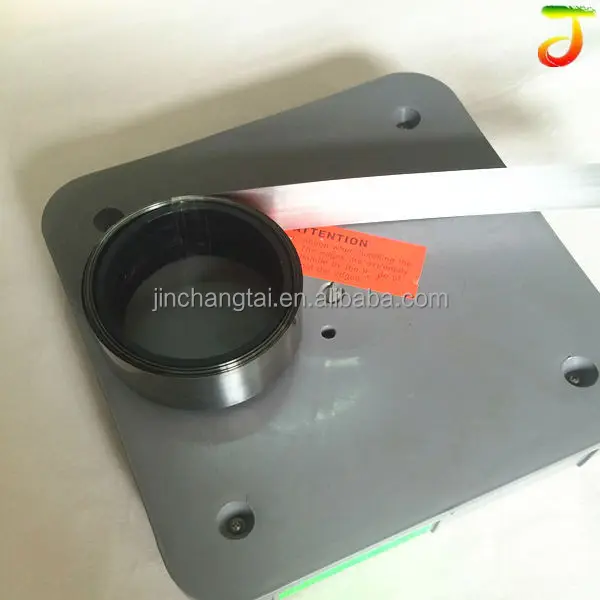

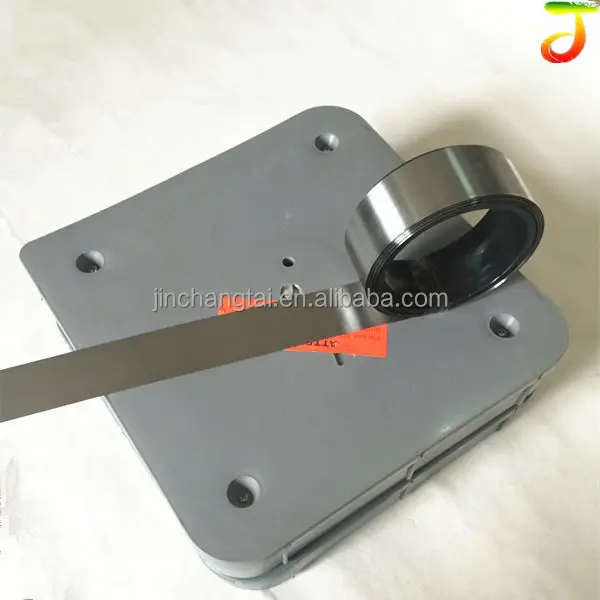

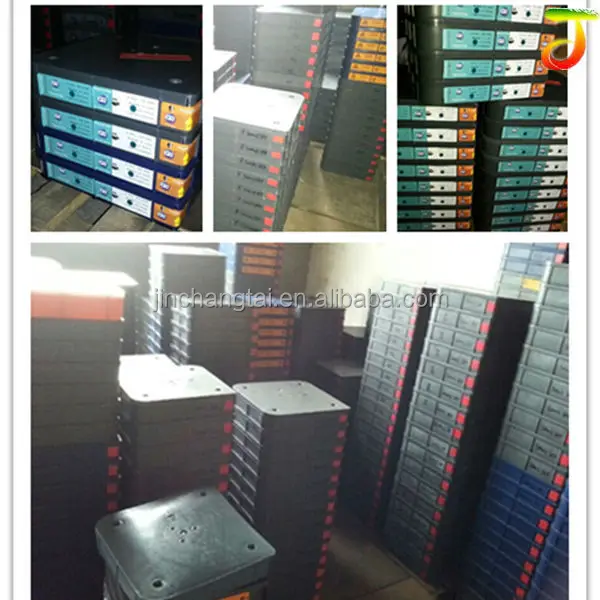

Picture of printing mdc doctor blade:
printing mdc doctor blade
