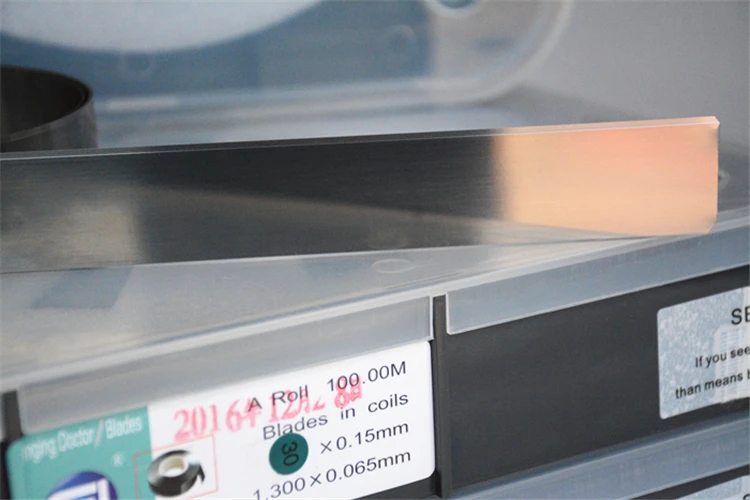

Our doctor blade is made of high quality steel,the finished blade is thin,precise and has strong elasticity, good toughness and high smoothness. We adopt unique technology process and self sharpening opening design ,you don't need to turn and grind before work, which can ensure the good contact with the surface of the plate, so can achieve the best scraping effect.
1.Product description of doctor blade
| Material | Carbon steel,stainless steel,SK4,C100,20C,65MN |
| Printing machine speed | high speed/medium speed/low speed |
| Doctor blade width | 10-60mm |
| Doctor blade width tolerance | ±0.100mm |
| Lamella edge width | 1.3mm |
| Lamella edge width tolerance | ±0.025mm |
| Doctor blade thickness | 0.15mm-1.5mm |
| Doctor blade thickness tolerance | ±0.005mm |
| Lamella edge thickness | 0.07mm-0.10mm |
| Lamella edge thickness tolerance | ±0.003mm |
| Doctor blade hardness | 1960N/mm(580HV+/-15) |
| Doctor blade tensile strength | 1950-2150Pa |
| Doctor blade surface | bright polished |
| Straightness maximum deviation | 0.5mm/3.0m |
| Contact edge roughness | Rao.10 ±0.05um. |

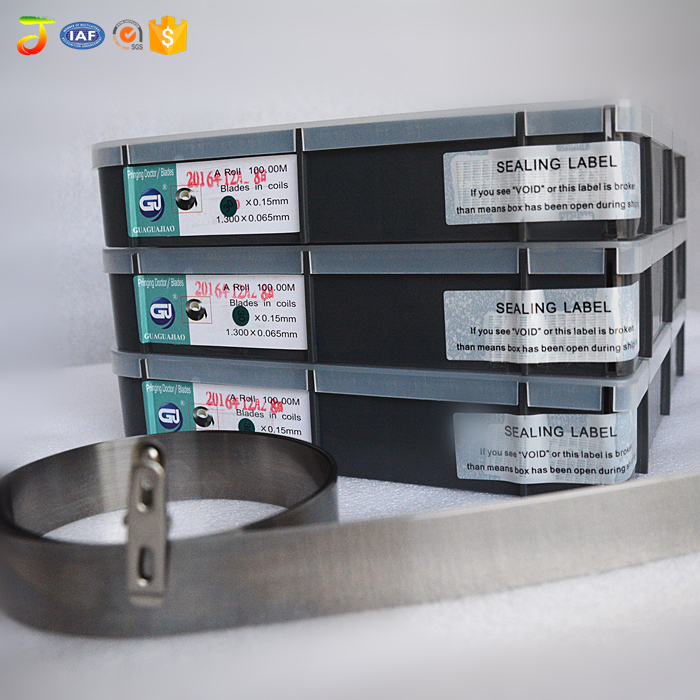

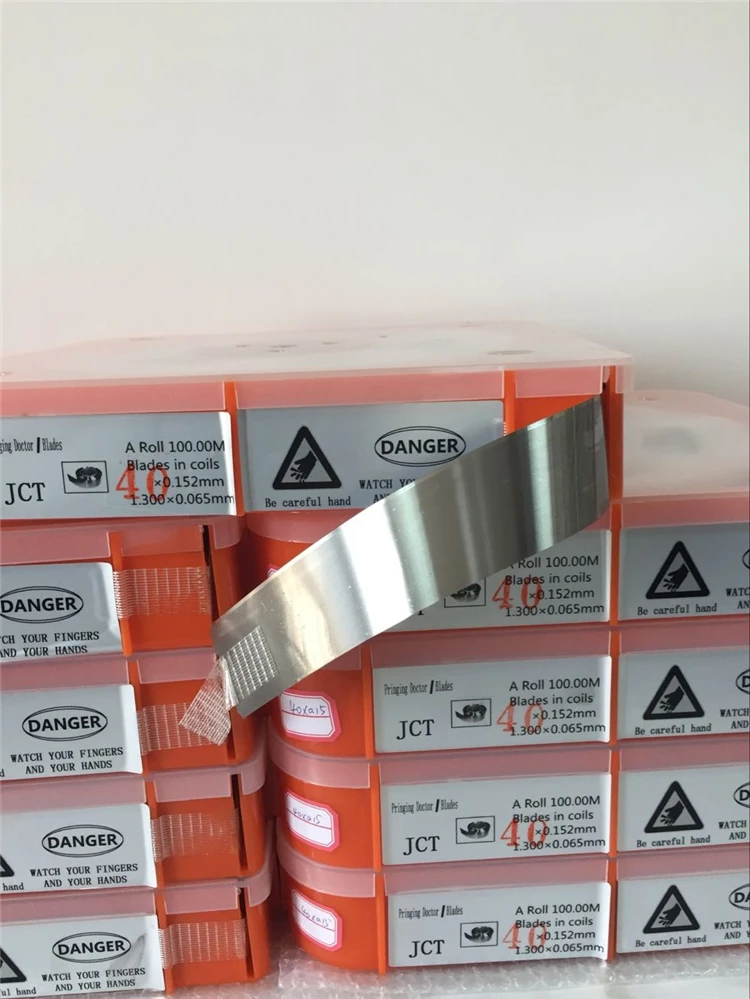

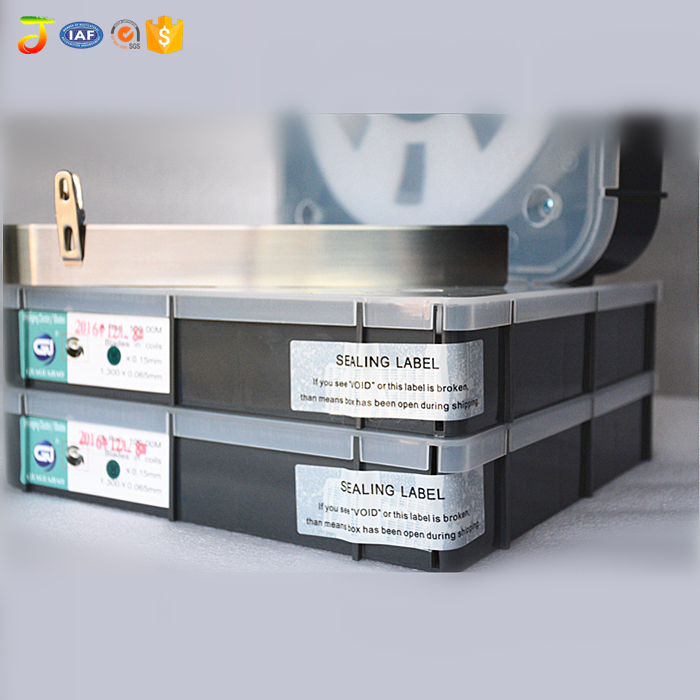

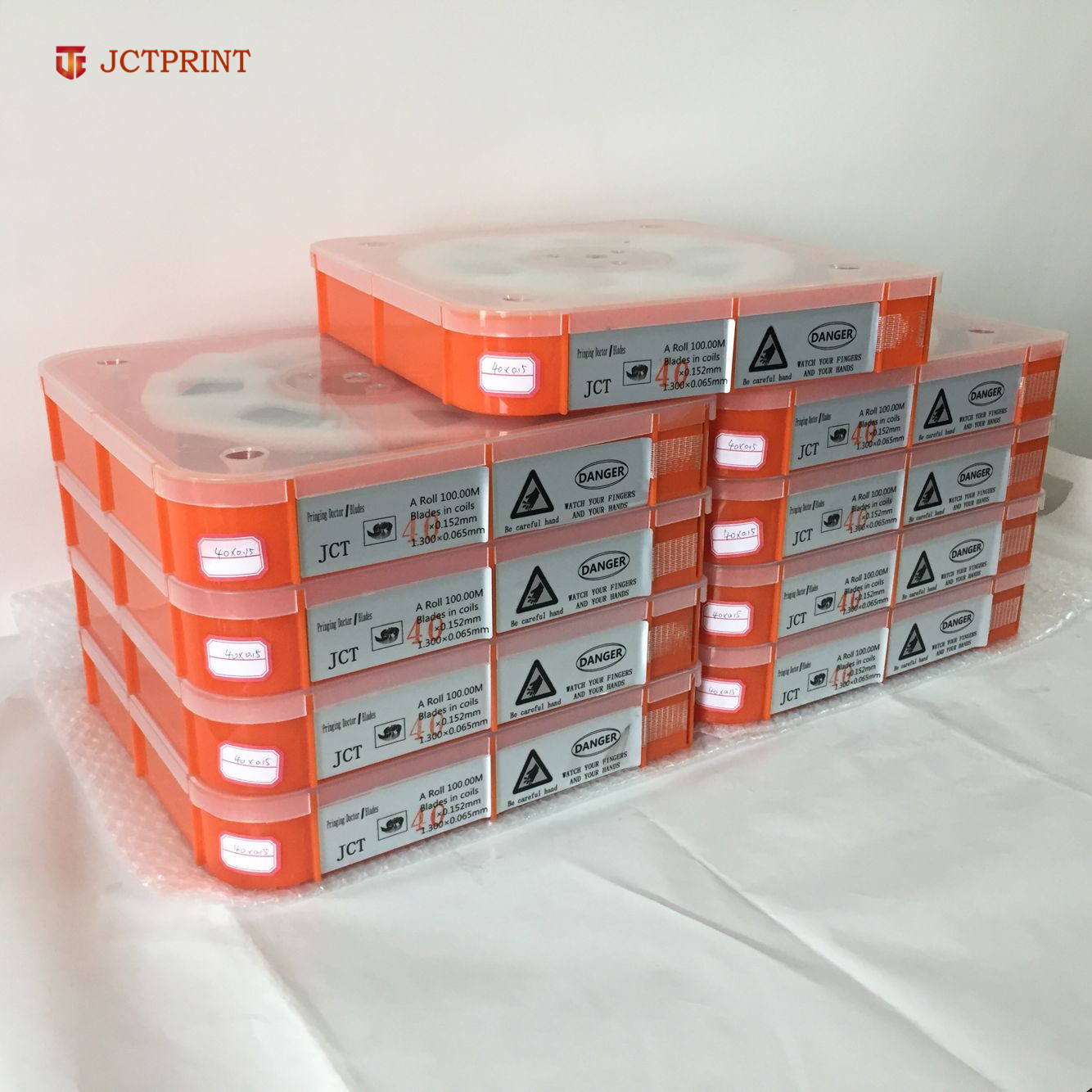

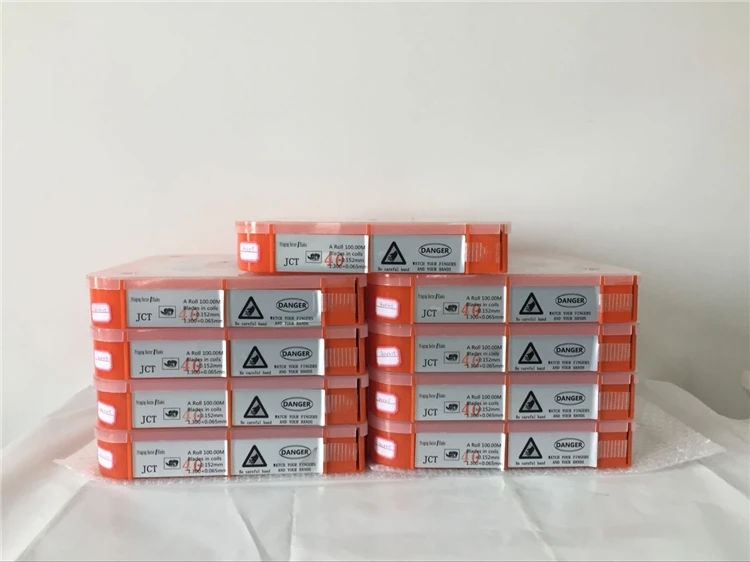

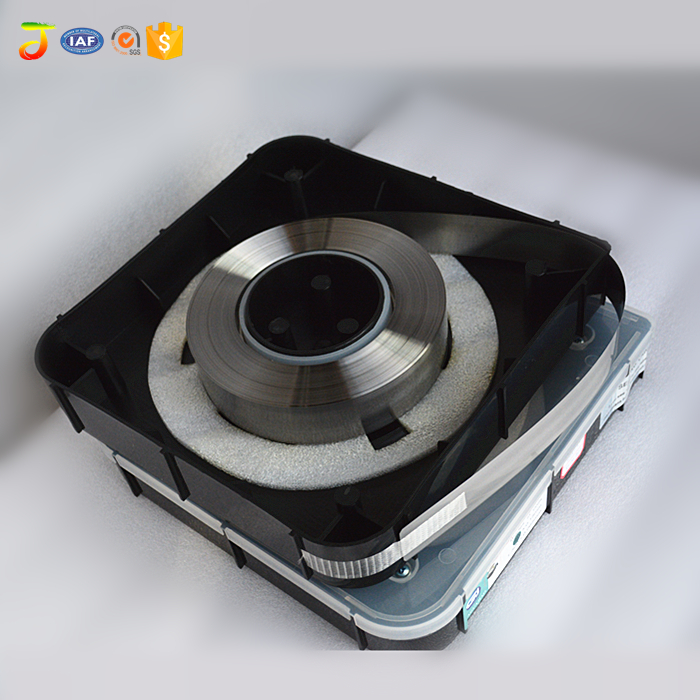

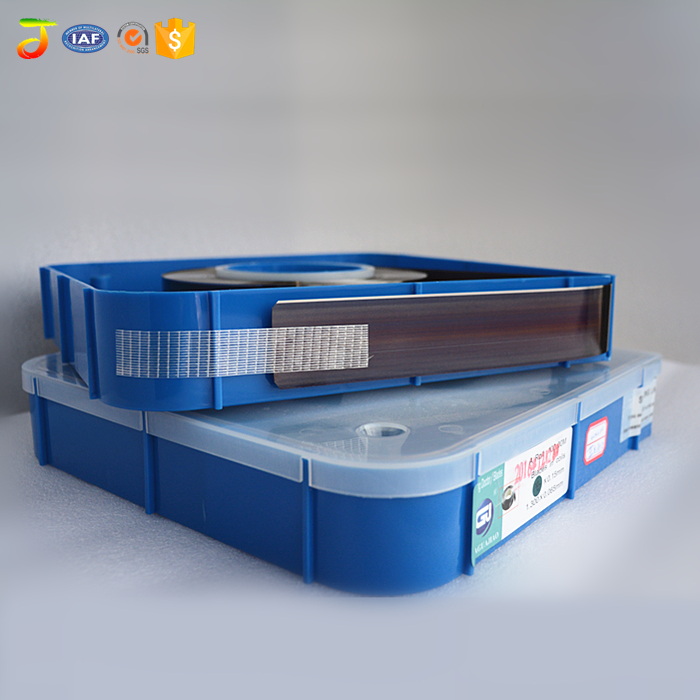

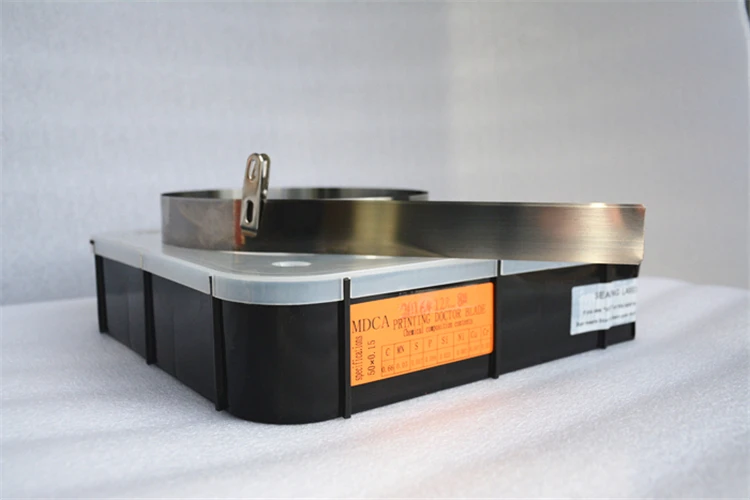

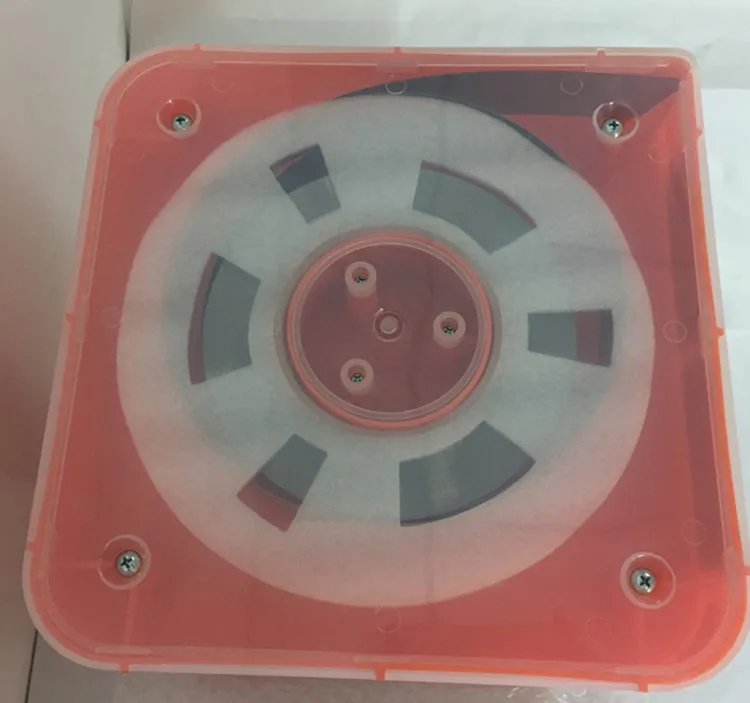

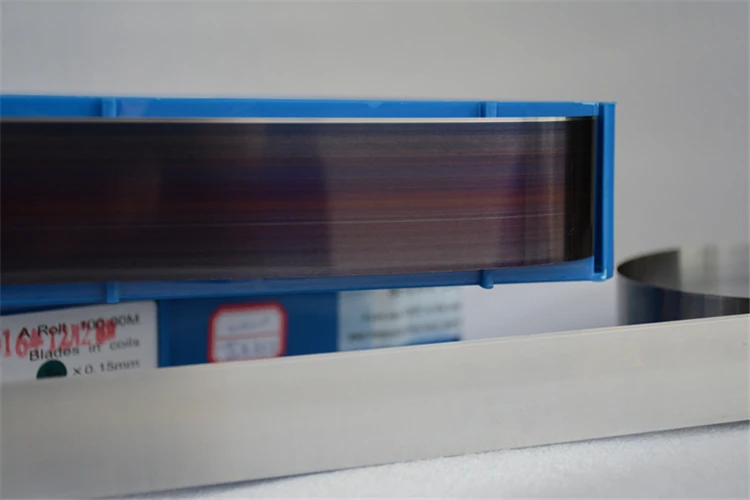

| Packaging | 100m/box |
3.Features of doctor blade:
1)Good scraping effect &high printing quality
2)Good elasticity & strong layering feeling
3)Durable &Long life
4.Production process
Choose material - Initial processing - Vacuum heat treatment - Cooling and tempering - Hardness testing - Accurate size grinding - Finished product - Inspection - Anti rust oil spraying - Mark making - packing
5.Applications
This coating doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.
Contact us:
Betty
Tel: 0034 670305072
Mobile/Whatsapp/Skype: 0013065090971
Web: www.jctprinting.com
1. How many years have you been producing doctor blade?
We have been making doctor blade for more than 10years and our doctor blade has good reputation all over the world.
2. Why should we choose you?
We can provide you not only the competitive price product but also most satisfactory supporting service.
3. How can we get the price?
A.The material you want or you can tell me the printing speed of your machine
B.The size of the doctor blade you want(Width and thickness)
4. How long is the lead time?
Usually it will take 10 working days to produce the doctor blade,but it also depends on the quantity and your requirement.
