Small paper Corner Cutter book angle cutting machine



Small paper Corner Cutter book angle cutting machine

1.Application

Corner cutter is used in soft packaging bags (including: three-side sealing bags)And stand-up pouches, etc.), trademark tags, business cards, books, packaging, decoration, documents, documents, bags, cards to cut the round corners.

For example: rounded corners of bank savings passbooks, various hardcover books, rounded corners of hardcover notebooks, clothing tags, business cards, poker, etc., is a post-press device.

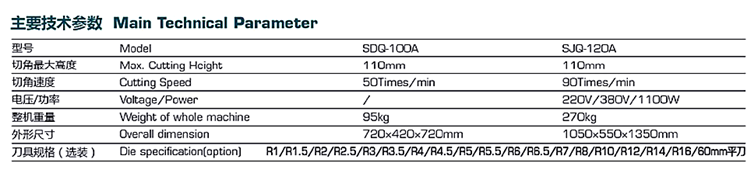

2.Technical paremeter of the Corner cutter



Model	SDQ-100	SJQ-120	PJQ-100 (straight angel cutter)
Max cutting height	110mm	110mm	110mm
cutting speed	50Times/Min	90Times/Min	90Times/Min
Voltage	/	220V/380V	220V/380V
Power	/	750W	1100W
Net weight of the machine	Manual	260KG	300kg
Dimension	720*420*720mm	1050*550*1350mm	1350*650*1350mm
automaticity	Semi-automatic	Semi-automatic	semi-automatic



3.Features of the Corner cutter

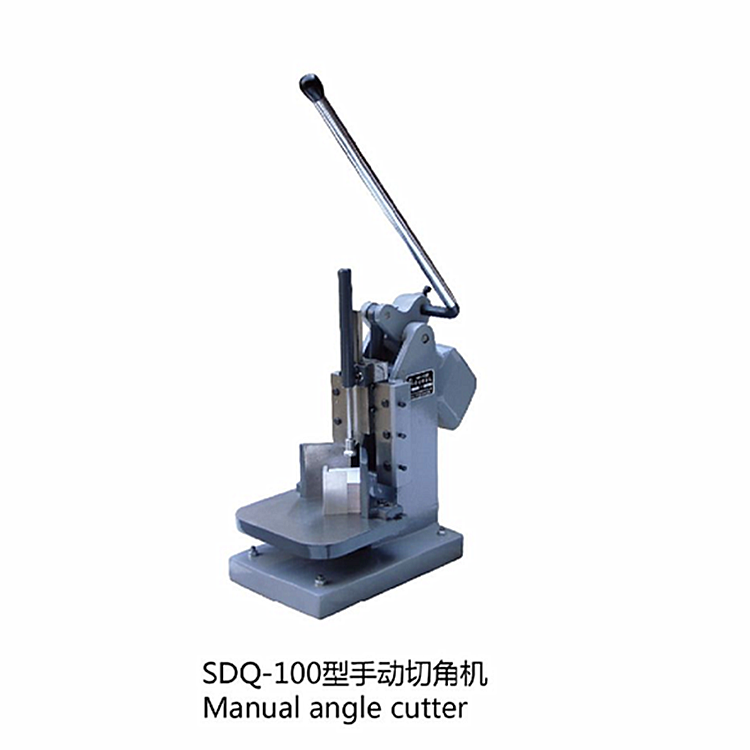

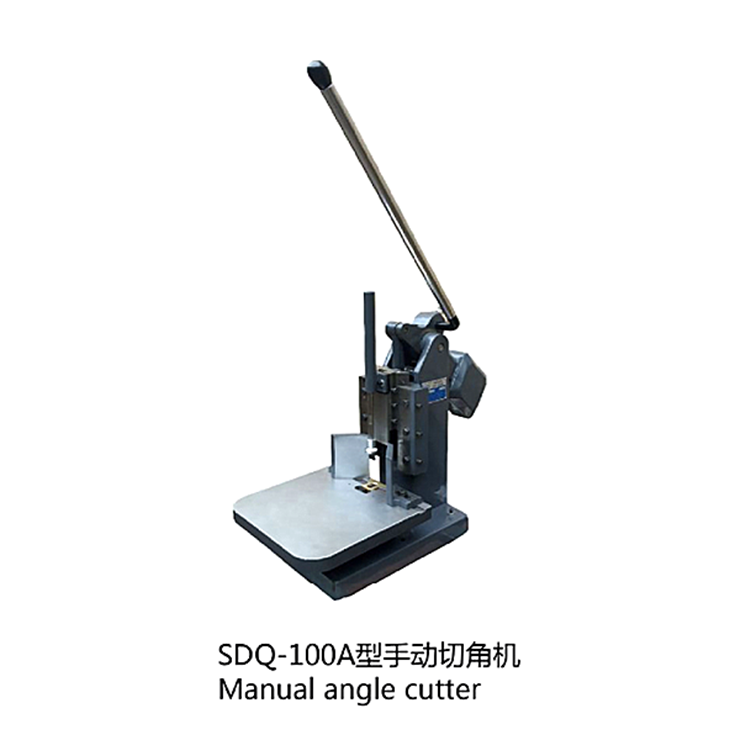

 Manual Type

1. Compact and portable design.

2. Manual wood aluminum paper round corner cutter.

3. Cutting blades are replaceable.

4. Lengthened handle makes the cutting job become easy and effortless.

5.The paper pressing device can effectively prevent the materials from moving or slipping.

6.Special bearing design results in hign durability and more fun.

7. Various optional cutting blades are available for your choice.

8. Heavy metal base helps keep the machine steady while working.

9. Ideal for cutting business cards, pvc cards, photos, books, plastic sheets, thin aluminum sheets, etc

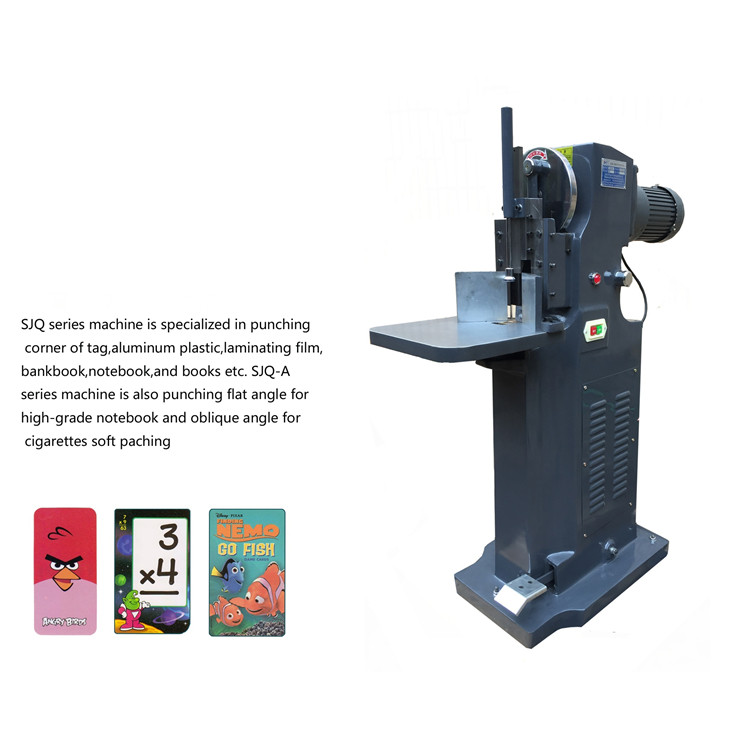

Electric Type

1.It applies to cutting various round angles and flat angles of the notebooks, logo, business cards, books and trademarks, etc.

2.Vertical design with compact structure,easy to use

3.Operated by foot switch

4.Blades can be selected from R1 to R16, Flat die and straight angel die and other sizes of dies can be customized

5.Controlled by clutch

6.Strong cutting force,labor saving,safe

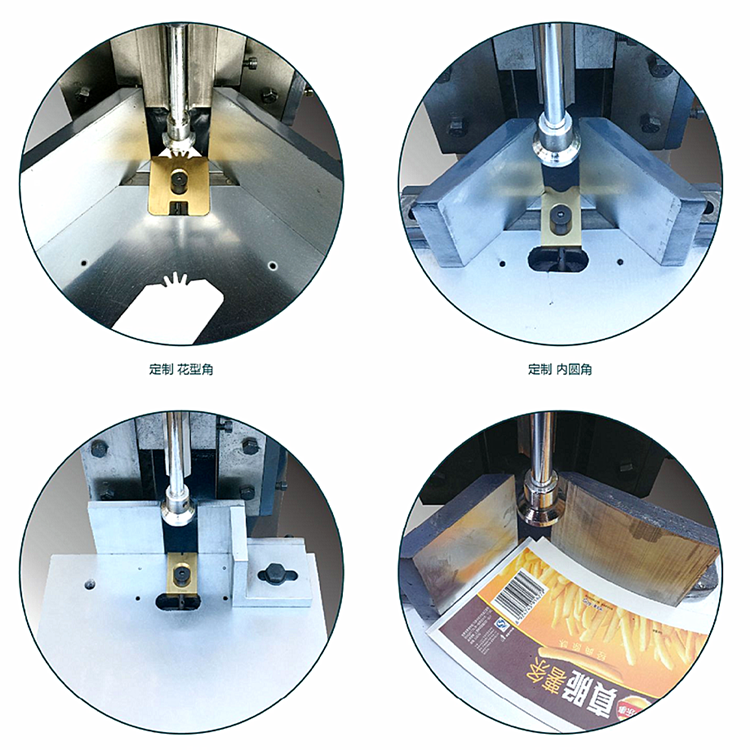

4.Specification of punching dies

Optional:R1/R1.5/R2/R2.5/R3/R3.5/R4/R4.5/R5/R5.5/R6/R6.5/R7/R8/R10/R12/R14/R16/ 22mm Flat die, 60mm Flat die and straight angel die.Other sizes of dies can be customized

The punching die is made of high-speed steel, high hardness, long service life.The die cutting product surface is smooth, and the size is unified and regular with higher efficient.

Product pictures















---



Company Information



 FAQ

1,Are you manufacturer or Trading company?

We are manufacturer and we have been producing angle corner cutter for playing card,cup pad,notebookds and so on for more than 18years.

 2, Do you have quality certificate?

 Yes ,we have CE, SGS etc,so you can rely on the quality.

 3,What's the delivery time?

Around 14-20days after pre-payment received, however, based on order.

 4.Can you provide foreign country machine instation services?

Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.

 5. Can you make punching dies which are used on your machine?

Yes,sure.Just tell your request, we can make it for you.

6.How can i can a quotation?

Just tell me the machine model number and the angle you want to cut,then we will quote you accordingly.
