Water cleaning flexo anilox cleaner for printer
Due to the long printing time, the cells of the anilox roller is easily blocked by dirt such as ink, paint, coating glue, etc. If the cleaning is not performed at this time, the quality of the printing and the normal use of the anilox roller may be affected. The anilox roller cleaning machine is specially designed for cell cleaning.

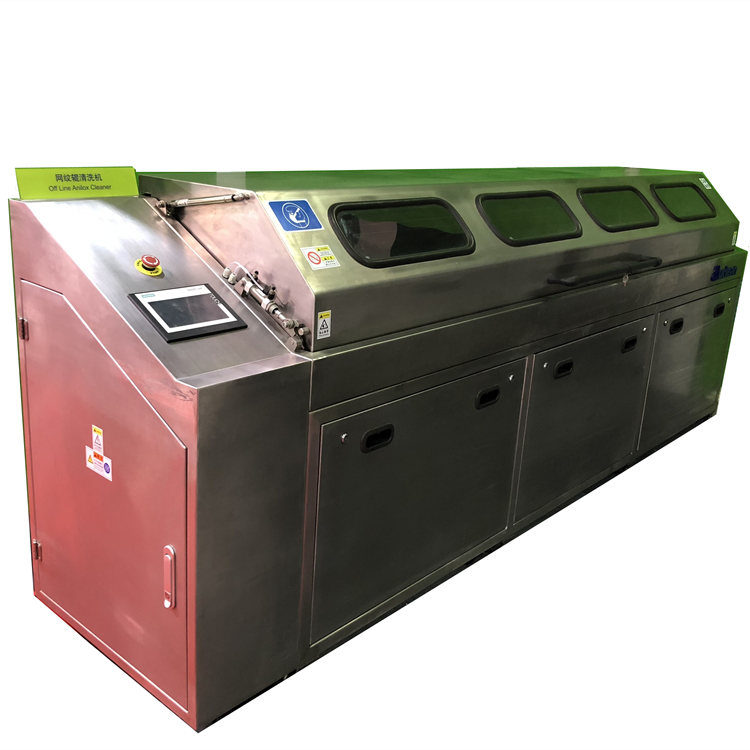

Water cleaning flexo anilox cleaner for printer
1.Application
Anilox Roll Cleaner is especially efficient to aniloxes in high screen lines or hard to clean. The cleaning process is gentle and quick without any harm to aniloxes. Aniloxes can be used immediately after cleaning. Meanwhile guarantee a longer life of aniloxes
Anilox Roll Cleaner is capable to keep your aniloxes totally clean, provide ink transfer or coating volume, and guarantee fine printing or coating.
2.Technical paremeter of the anilox cleaner
| Anilox Water Wash Machine | AC2100WW | AC2600WW |
| Max Length of the machine | 2100mm/83 inch | 2600mm/102 inch |
| Max Cleaning Length | 1700mm/86 inch | 2200mm/86 inch |
| Max Roll Diameter | 300mm/11.8 inch | 300mm/11.8 inch |
| Number of Rolls | 1(2.3.4,) | 1(2) |
| Control System | PLC | PLC |
| Max Roll Weight | 250kg | 400kg |
| Power Supply | 11kw /AC380-420V50/6Ohz | 11kw/AC380-420V/506Ohz |
| Compressed Air | 7 bar/0. 6mpa, 350 L/min | 7 bar/0. 6mpa, 350u/min |
| Water Supply | Running water/1/2-3/4 inch | Running water/1/2-3/6 inch |
| Machine Dimensions | 2810mm X 880mmx 1250mm | 3310mm X 880mm X 1250mm |
| Machine Weight(Approx) | 480kg | 530kg |
3.Why choose us
1. Design for anilox with shaft, anilox sleeve and gravure cylinders ;
2. Applicable for all types of ink, coating medium ;
3. Restore Anilox cells totally ;
4. Short cleaning time ;
5. Harmless to aniloxes;
6. Liquid recycling use;

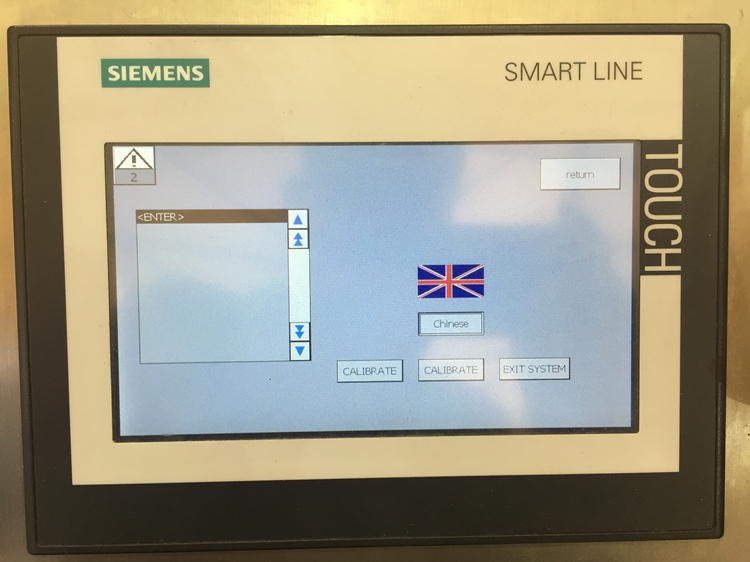

7. PLC controlled touchscreen interface;
8. Memory function for multi roll specifications;
9. Total stainless steel construction.
10.Anilox Roll Cleaner is humanized design, safe and reliable, easy operation. Autorun after program setting, One-touch operation.
The machine can be operated by all types of staff, no need professional staff to operate.

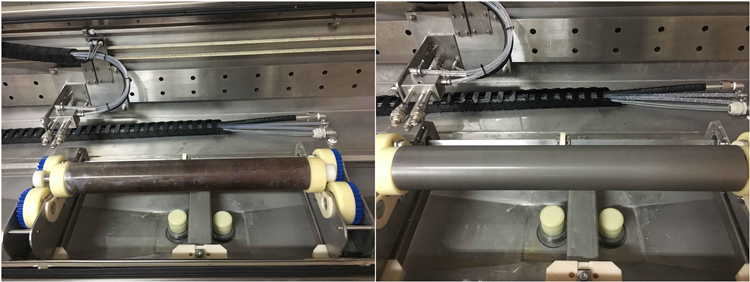

Cleaning effect
Company Information
Helen Shen
Jinan Jinchangtai Industry And Trade Co., Ltd
Add:Lushangshengjing Plaza Building B-1406, No.6 Qingfeng Road,
Jinan, Shandong, 250014, China
Tel:0086-0531-61300169
Fax:0086-0531-61300169
Mobile/wechat/Whasapp/skype:0086-18660813189
Email:[email protected]
FAQ
1,Are you manufacturer or Trading company?
We are manufacturer and we have been producing anilox cleaner for many years and our machine are sold to more than 20countries in the world and have good reputation.
2, Do you have quality certificate?
Yes ,we have CE, SGS etc,so you can rely on the quality.
3,What's the delivery time?
Around 20~30days after pre payment received, however, based on order.
4.Can you provide foreign country machine instation services?
Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.
