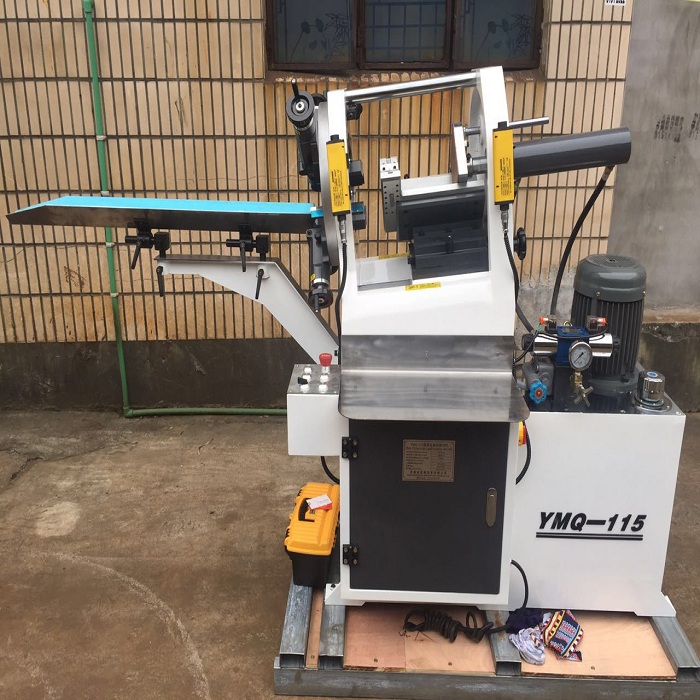

Product name:YMQ-115 Hydraulic Label Die Cutting machine for playing card
Certification:ISO9001
Warranty:1 Year
Voltage:3HP
Power(W):2.25KW
Dimension(L*W*H):1350*850*1480
Weight:680kgs
After-sales Service Provided: Engineers available to service machinery overseas
Max.Die-cut size:140*140mm
Min.Die-cut size:20*20mm
Max.Die-cut height:200mm
Working speed:12 Time/min
Die-cut pressure:3 T
Cutting materials:Paper,plastic card and other materials
Application:Industrial Paper Cutting Machine

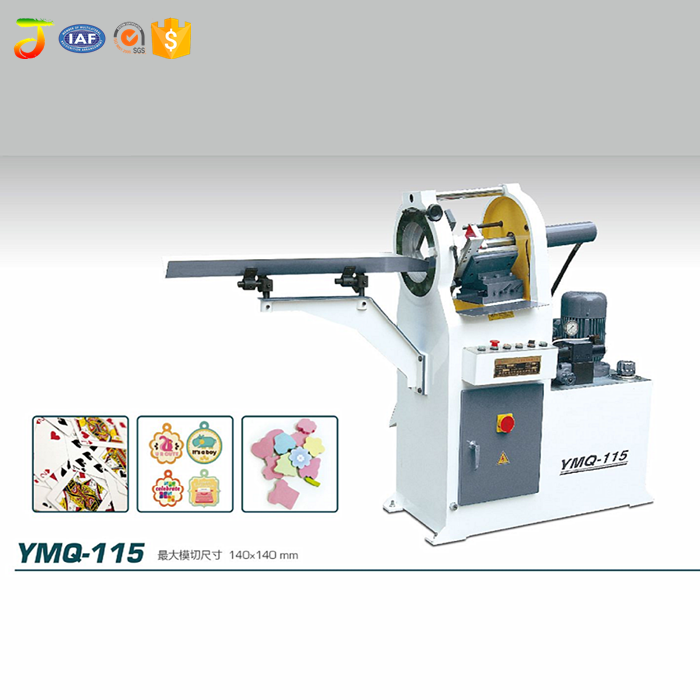

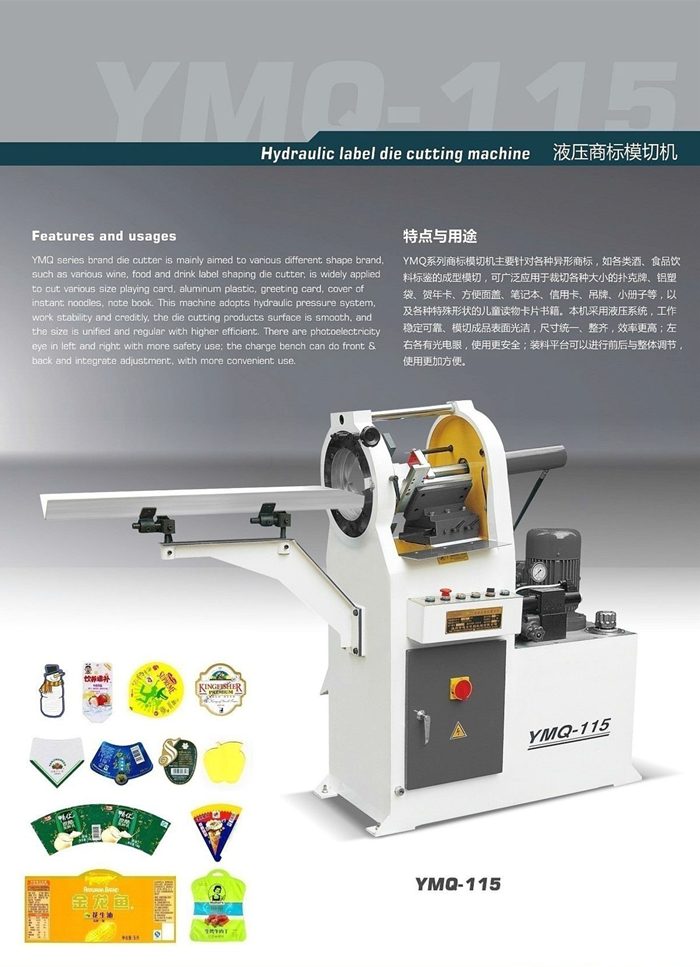

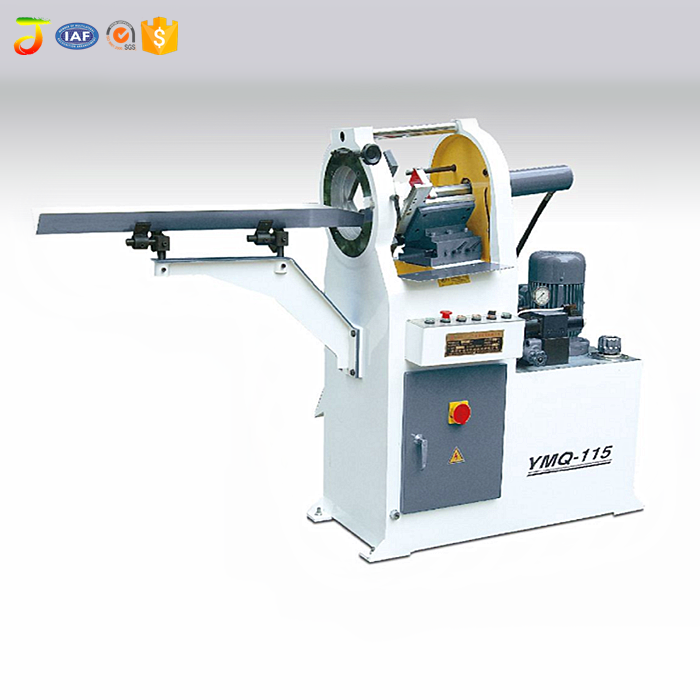

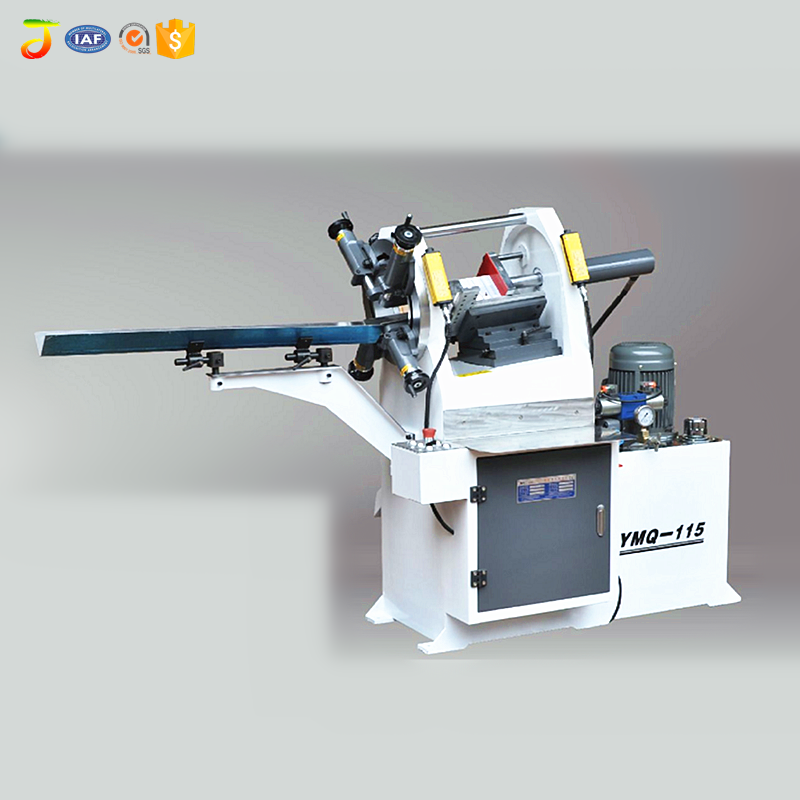

YMQ-115 Hydraulic Label Die Cutting machine for playing card
Which area is used for die-cutting machines?

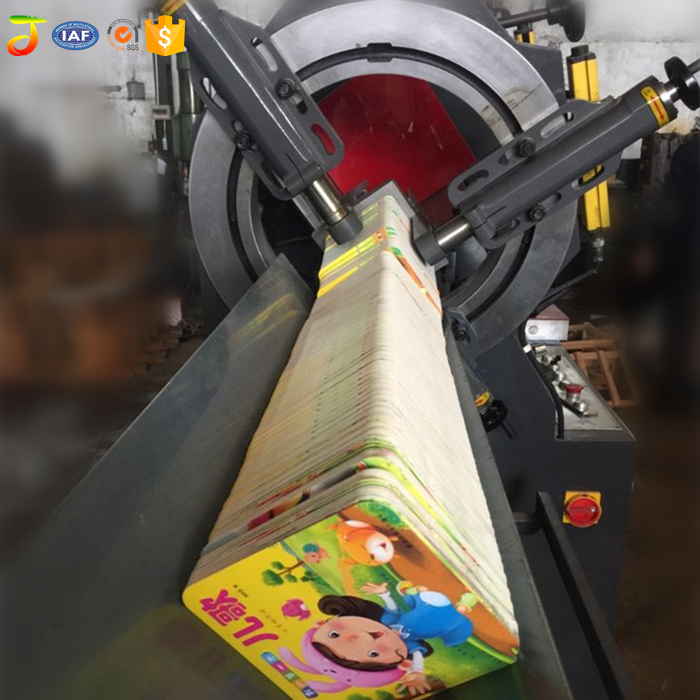

Widely applied to cut various size playing card, aluminum plastic, New year card, instant noodles, note book. Credit card, drop and handbook etc, and various special shape children reading book.
What are the advantages of die-cutting machine?
This machine adopts hydraulic pressure system, work stability and crudity, the die cutting products surface is smooth, and the size is unified and regular with higher efficient. There are photo electricity eye in left and right with safer use; the charge bench can do front & back and integrate adjustment, with more convenient use.
How to choose the right type according to your request?
Main Technical Parameter of Die Cutter:
| ||||

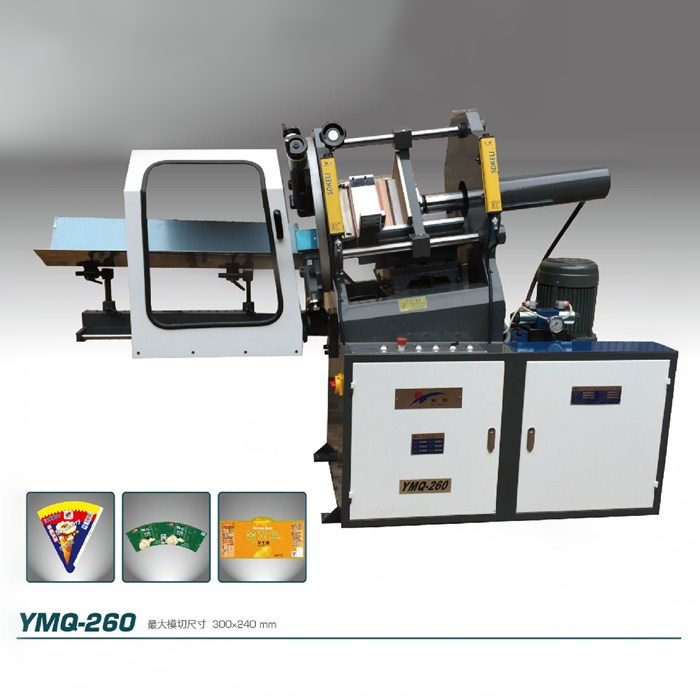

Model | YMQ-350 | YMQ-260 | YMQ-200 | YMQ-115 |
Max.Die-cut size | 380*300mm | 300*240mm | 220*220mm | 140*140mm |
Min.Die-cut size | 90*90mm | 65*65mm | 50*50mm | 20*20mm |
Max.Die-cut height | 310mm | 260mm | 220mm | 200mm |
Die-cut pressure | 11 T | 8 T | 5 T | 3 T |
Working speed | 7 Times/min | 8 Times/min | 10 Times/min | 12 Time/min |
Motor voltage power | 7.5HP 5.6KW | 7.5HP 5.6KW | 5HP 3.75KW | 3HP 2.25KW |
Overall dimension(mm) | 2600*1250*1900 | 2450*1000*1800 | 2200*850*1650 | 1350*750*1500 |
Weight of whole machine | 1900kg | 1600kg | 1200kg | 700kg |

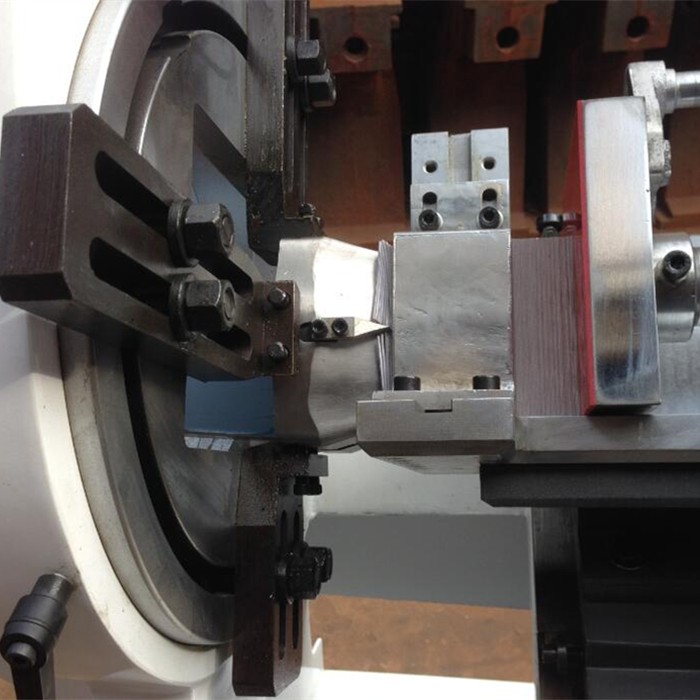

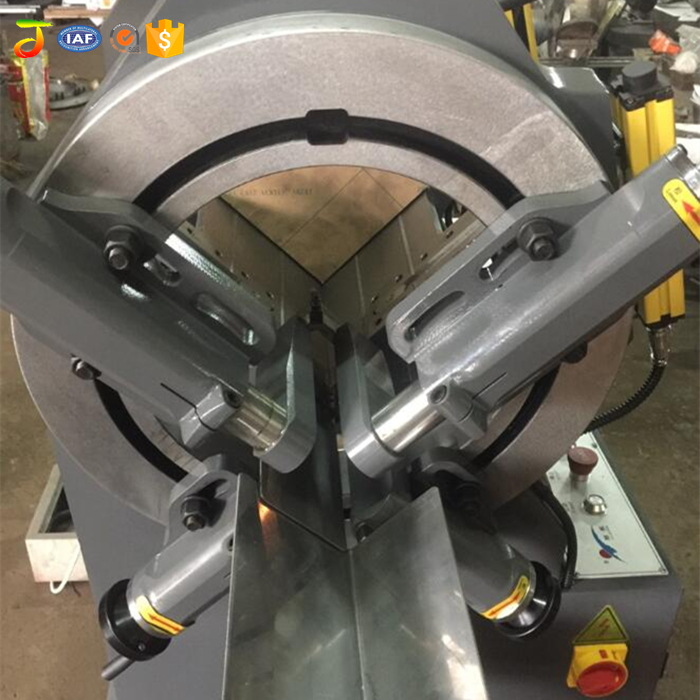

Old blade adapter of YMQ115

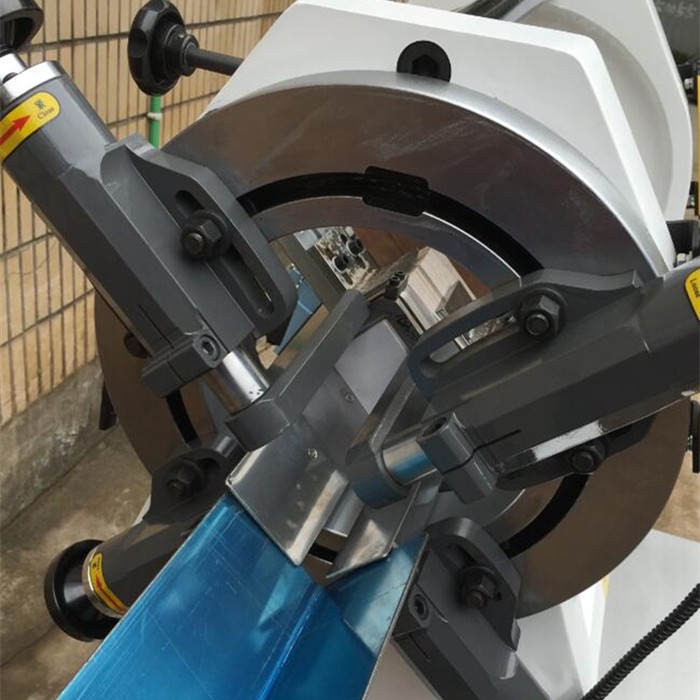

New blade adapter of YMQ115
How are the goods are packed?
Standard export wooden box, also can be packaged as customer's requirement.
