Magnetic Cylinder Die Cutting



Our Magnetic Cylinders Make A Difference！



  We adopt No. DC53 die steel

as the raw material, and the material is better than other manufacturers.



We have many years of experience

in the production of magnetic rollers and carry out strict factory inspections.



We guarantee after-sales for every export order.



Get a Quote



---

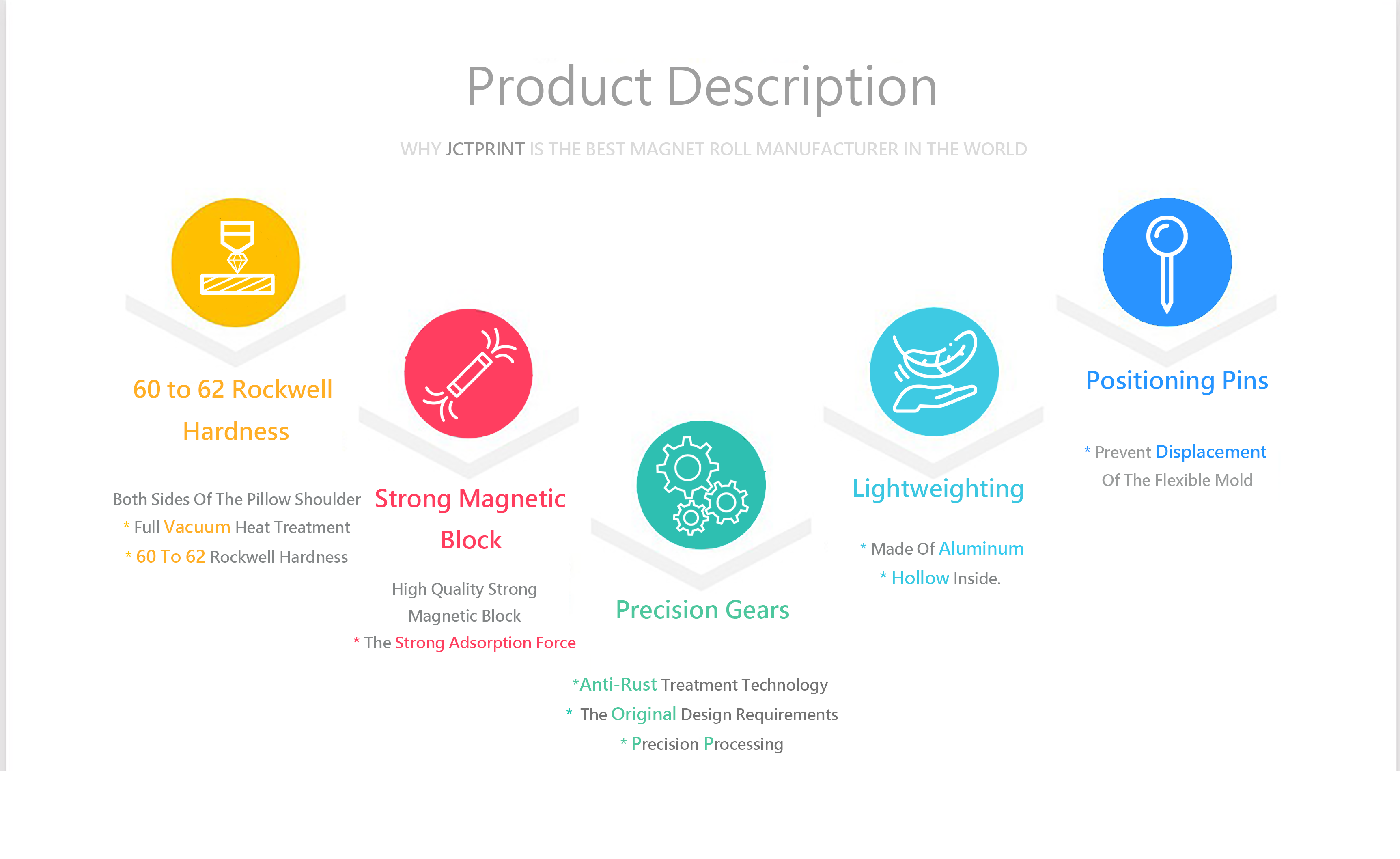

We Pay Attention To The Details Of Magnetic Cylinders!





JCTPRINT magnetic cylinders set new standards in quality, product sophistication and longevity.







1. Pillow shoulder vacuum heat treatment,hardness up to 60-62.



2. High-quality strong magnetic block to ensure the adsorption force.

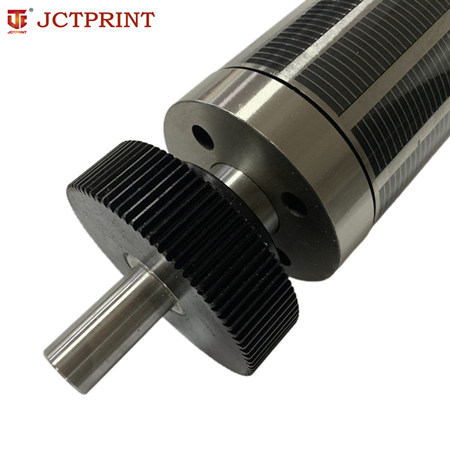

3. Each gear is precision machined andanti-rust treatment technology



4.Outer circle accuracy: within 0~5 microns,Distance accuracy between pillow shoulder and rolling body: 1 micron.





5. In order to prevent the displacement of the flexible molds, a positioning pin is designed on the surface of the cylinder.



Get a Quote





Product Description

---

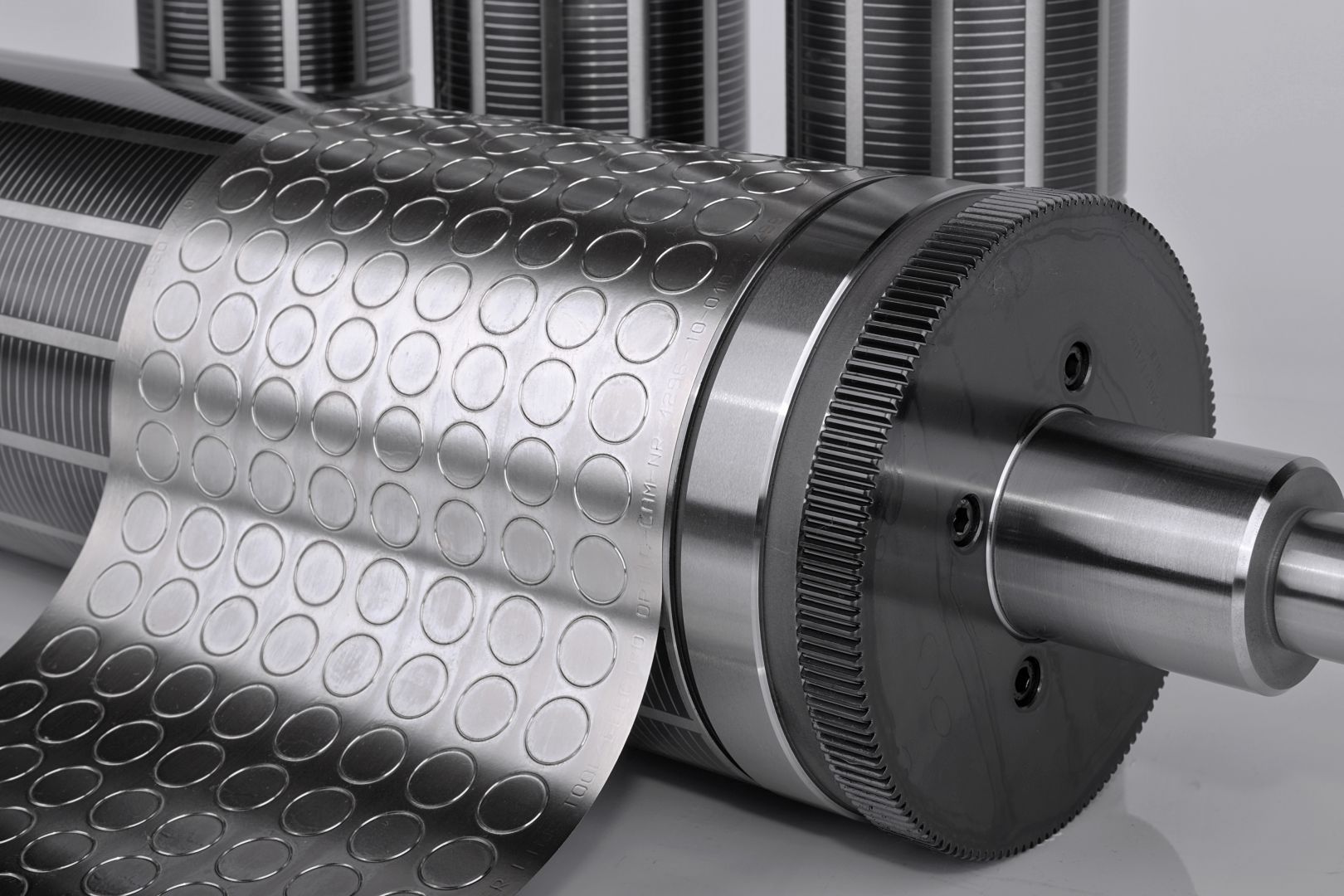

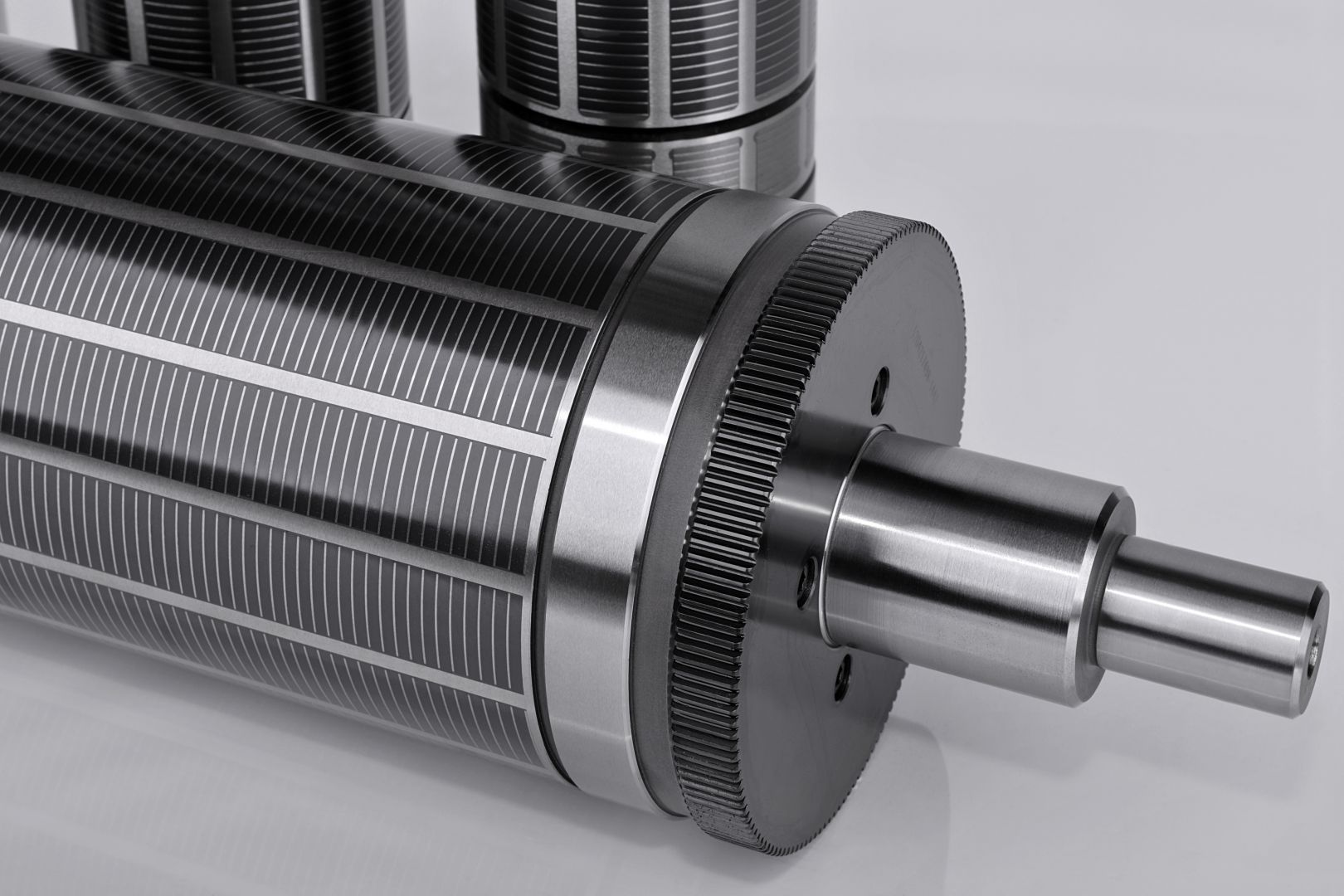

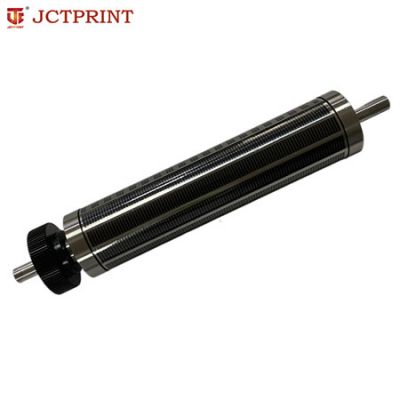

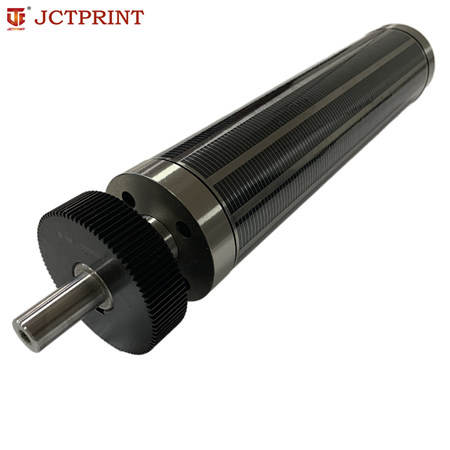

     Magnetic cylinder is made of steel with a magnetic block set into a groove milled into it, and the high strength adhesive and permanent magnetic block are glued together and then completely cured or cured by heating, followed by fine grinding of the  outer circle.



•  The roundness and finish of the surface of the roller body is achieved after fine grinding.
•  The accuracy of the outer circle is ensured to be within 0 to 5 microns,which is to ensure the accuracy and stability of the round die-cut stickers.Including pillow shoulder, roll body and both ends of the shaft.
•  Pillow shoulder and roll body spacing precision control in 1 micron,the same need to be equipped with high-quality magnetic blade to achieve efficient and accurate die-cutting effect.







Application Of Magnetic Die Cylinder



---



1.     It is suitable for various flexographic and letterpress printing and die-cutting machines, including rotary (satellite) flexographic printing machines, letterpress printing machines and group flexographic printing machines, intermittent letterpress printing machines, intermittent die-cutting machines, full rotary letterpress printing machines, circular die-cutting machines and other machinery.
2.     It can be widely used in electronic and label die-cutting industry. It is also widely used in other special rotary processing equipment, such as business form machines, envelope machines, full rotary die-cutting machines for special processing, etc.





---









Magnetic Cylinder are mainly used for label printing

Due to the advantages of low cost and short production cycle, many customers of label printing factories choose to use JCTPRINT's magnetic characteristic curves and cutters to make labels, and the method used is cutting.









Customer Reviews





• "JCTPRINT has made our label printing more efficient. The size of their magnetic cylinders is made exactly according to the drawings with precise measurements. They use high-quality No. DC53 die steel for their magnetic cylinders, which is very durable and long-lasting." ————  George Turner

.
