Analysis of Steel and Aluminum Flexographic Printing Cylinders: Composition and Applications



1. Introduction

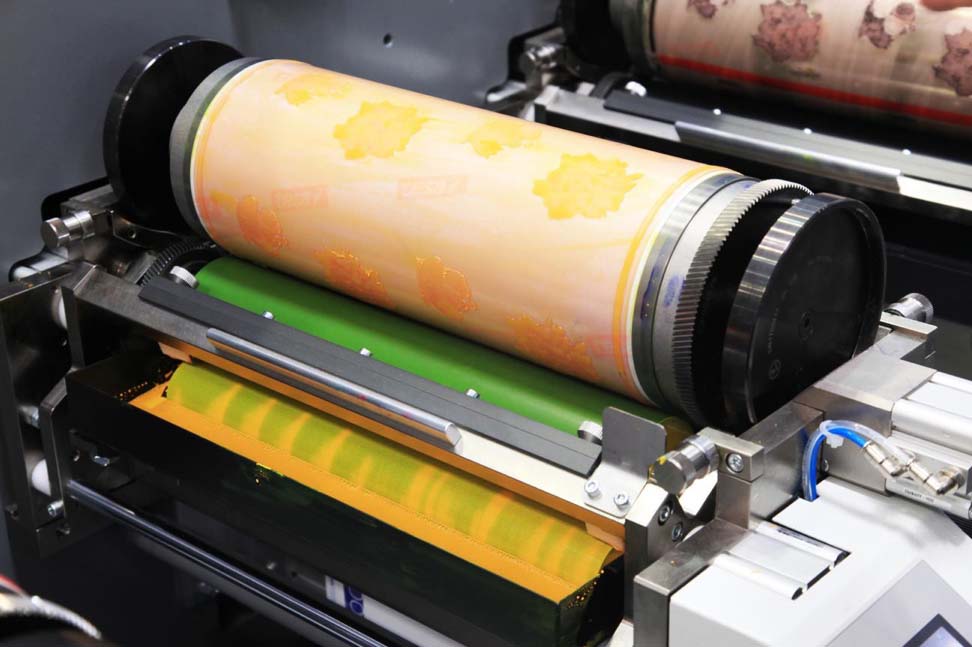

In the modern printing industry, flexographic printing is favored for its superior print quality and broad range of applications. The flexographic printing cylinder, as a core component, significantly influences the efficiency and quality of printing.

2. Composition of Steel and Aluminum Flexographic Printing Cylinders

• Material Selection:

  • Steel Cylinders:
    • Made from high-alloy steel, processed through heat treatment to enhance strength and wear resistance (Source: Smith, J. “Materials for Printing Plates,” Journal of Printing Technology, 2020).
  • Aluminum Cylinders:
    • Typically constructed from 6061 or 7075 aluminum alloy, offering excellent strength-to-weight ratios (Source: Johnson, L. “Aluminum Alloys in Print,” Printing Research Journal, 2019).

• Outer Coating:

  • The type of rubber or polymer used in the coating (such as EPDM or neoprene) is crucial for ink transfer performance (Source: Brown, K. “Ink Transfer in Flexo Printing,” Flexographic Research Institute, 2021).

• Internal Structure:

  • Discuss the design of the cylinder, including cooling or heating systems within the chamber (Source: Miller, T. “Advanced Roller Designs for Flexographic Printing,” Printing and Coating Journal, 2022).

3. Advantages and Disadvantages

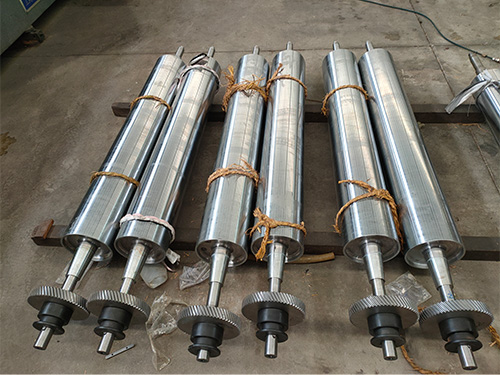

• Steel Cylinders:

  • Advantages:
    • High strength and wear resistance make them superior in high-volume applications (Source: Taylor, R. “High-Speed Printing and Roller Durability,” Printing Technology Today, 2021).
  • Disadvantages:
    • Heavier, which can increase the load on equipment and potentially affect operational efficiency.

• Aluminum Cylinders:

  • Advantages:
    • Lightweight and easy to replace and maintain, ideal for quick-change production environments (Source: Wilson, P. “Flexo Printing Innovations,” Packaging Strategies, 2023).
  • Disadvantages:
    • Prone to deformation under extreme pressure, which can impact print quality.

4. Commonly Used Flexographic Press Models

• Mark Andy: Performance Series is widely used in the label and packaging industry.
• Nilpeter: FA-4* Series is renowned for its high speed and quality (Source: Nilpeter Technical Manual).
• BOBST: M1 and M5 Series are extensively used in film and paper printing (Source: BOBST Technical White Paper).
• Gallus: Labelmaster Series caters to a variety of printing needs (Source: Gallus Product Datasheet).
•

5. Conclusion

Steel and aluminum flexographic printing cylinders play a crucial role in the printing industry. Selecting the appropriate cylinder material based on specific production needs can significantly enhance both production efficiency and print quality.

6. References

• Smith, J. (2020). "Materials for Printing Plates." Journal of Printing Technology.
• Johnson, L. (2019). "Aluminum Alloys in Print." Printing Research Journal.
• Brown, K. (2021). "Ink Transfer in Flexo Printing." Flexographic Research Institute.
• Miller, T. (2022). "Advanced Roller Designs for Flexographic Printing." Printing and Coating Journal.
• Taylor, R. (2021). "High-Speed Printing and Roller Durability." Printing Technology Today.
• Wilson, P. (2023). "Flexo Printing Innovations." Packaging Strategies.
