Air Shaft Slipping? Common Problems and Solutions for Printing & Slitting Machines

Air shafts are widely used in printing, slitting, rewinding, laminating and converting machines to securely hold rolls during production.

But after long-term use, you may experience problems such as roll slipping, air leakage, weak expansion or unstable winding.

These problems can affect web tension, reduce production efficiency and even cause unexpected downtime.

So, what causes these common air shaft problems, and when should you consider replacing the shaft?

1. Air Shaft Slipping During Operation

Roll slipping is one of the most common air shaft problems.

When the shaft cannot grip the roll core firmly, the material may move or slip during unwinding or rewinding.

Common causes include:

• Insufficient air pressure

• Worn expanding lugs or strips

• Incorrect shaft and core size

• Excessive roll weight

• Damaged internal components

For printing and slitting machines, slipping can result in unstable tension, uneven winding and reduced production quality.

How to Solve It?

First, check the air pressure and make sure the shaft is fully expanded.

If the expanding elements are already worn or the shaft no longer provides sufficient gripping force, maintenance or replacement may be necessary.

2. Air Shaft Is Not Expanding Properly

Another common problem is that the air shaft does not expand completely after inflation.

Possible reasons include:

• Damaged air bladder

• Blocked or damaged air valve

• Worn expanding components

• Internal mechanical problems

If only part of the shaft expands, the roll core may not be held evenly.

This is especially important for high-speed slitting and rewinding machines, where stable roll holding is essential.

3. Air Leakage

If an air shaft loses pressure shortly after inflation, there may be an air leakage problem.

Common leakage points include:

• Air valve

• Internal bladder

• Seals

• Connections

Small leaks can gradually reduce the gripping force of the shaft and eventually cause roll slipping during production.

If leakage occurs frequently even after repair, replacing the damaged components—or the complete air shaft—may provide a more reliable solution.

4. Uneven Winding or Unstable Web Tension

Not every winding problem comes from the machine's tension control system.

The air shaft can also be one of the causes.

If the shaft does not hold the core evenly, operators may experience:

• Uneven winding

• Roll movement

• Unstable web tension

• Material wrinkles

• Frequent production adjustments

For printing, laminating and converting applications, these problems can directly affect production efficiency and finished product quality.

The air shaft should therefore be selected according to the roll weight, core diameter, working speed and machine application.

5. When Should You Replace an Air Shaft?

Some air shaft problems can be solved by replacing the bladder, valve, lugs or other components.

However, replacement of the complete shaft may be a better choice when:

• The shaft has been used for a long time

• Air leakage occurs repeatedly

• Expanding components are seriously worn

• The shaft can no longer hold the roll securely

• The shaft is damaged or deformed

• Frequent repairs are causing production downtime

A properly customized replacement air shaft can help restore stable roll handling and reduce repeated maintenance.

Customized Replacement Air Shafts from JCTPRINT

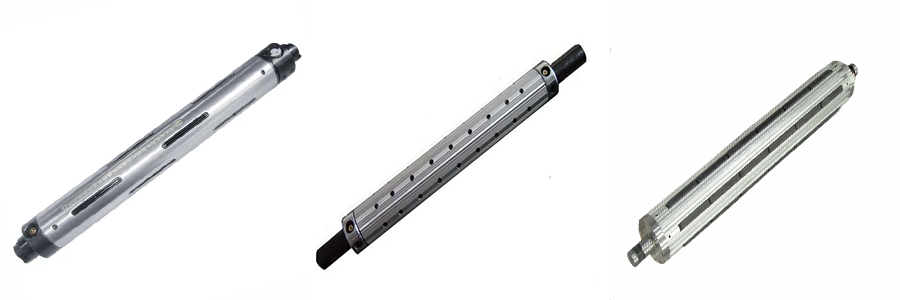

JCTPRINT manufactures customized pneumatic air shafts for different printing and converting equipment.

Our air shafts can be used in:

• Printing machines

• Slitting machines

• Rewinding machines

• Laminating machines

• Coating machines

• Other converting equipment

Different sizes and expanding structures can be customized according to the customer's application.

If you need to replace an existing air shaft, you can send us:

• Shaft drawing

• Overall dimensions

• Working length

• Core diameter

• Photos of the existing shaft

• Roll weight or application information

Our technical team can help confirm the specifications and provide a suitable customized solution.

Need a Replacement Air Shaft?

Air shaft slipping, leakage and weak expansion may seem like small problems, but they can gradually increase downtime and affect production stability.

If your existing air shaft requires frequent repairs or can no longer hold the roll reliably, it may be time to consider a replacement.

Send JCTPRINT your air shaft drawing, dimensions or photos, and we can help you find a suitable replacement solution for your printing, slitting or rewinding machine.
