Windmöller & Hölscher (W&H) CI flexo presses are widely used in flexible packaging production where high printing speed, accurate registration, and consistent print quality are essential.
For these high-performance printing machines, the flexo plate sleeve plays an important role in maintaining printing accuracy and production stability.
When an existing plate sleeve becomes worn, damaged, or no longer meets production requirements, choosing a precisely manufactured replacement is critical.
JCTPRINT provides custom flexo plate sleeves for W&H CI flexo presses, manufactured according to machine specifications, existing sleeve dimensions, or customer drawings.
A flexo plate sleeve is a lightweight cylindrical component used to mount photopolymer printing plates on flexographic printing presses.
The sleeve is mounted onto an air mandrel and provides the printing surface required for different repeat lengths.
Compared with traditional plate cylinders, plate sleeve systems can make job changes faster and easier, especially for flexible packaging printers handling multiple printing jobs.
Flexo plate sleeves are commonly used for:
CI flexo printing
Wide web flexo printing
Flexible packaging
Plastic film printing
Paper packaging
Other high-speed flexographic applications
For W&H CI flexo presses, sleeve accuracy and dimensional stability are especially important during high-speed production.
Modern CI flexo presses are designed for high productivity. As printing speed increases, small dimensional deviations in the plate sleeve may become more noticeable during production.
A high-precision plate sleeve helps maintain:
In multi-color flexographic printing, every printing unit must maintain accurate registration.
A sleeve with stable dimensions and good concentricity helps reduce registration errors and supports consistent print quality throughout the production run.
High-speed printing places greater demands on the sleeve.
Poor roundness, excessive runout, or dimensional inconsistency may contribute to vibration and unstable printing pressure.
A properly manufactured flexo plate sleeve provides better stability for demanding CI flexo applications.
The dimensional accuracy of the sleeve affects the contact between the printing plate, substrate, and other printing components.
Maintaining consistent sleeve dimensions helps achieve more stable printing pressure across the working width.
Plate sleeves allow operators to prepare printing plates before installation on the press.
For packaging printers handling frequent job changes, this can reduce setup time and improve overall production efficiency.
Flexo plate sleeves are designed for repeated use, but long-term operation, improper handling, or accidental damage can affect their performance.
You may need a replacement flexo plate sleeve if you notice:
Surface damage or wear
Difficulty mounting the sleeve onto the air mandrel
Increasing printing registration problems
Excessive runout
Sleeve deformation
Unstable printing pressure
Damage around the sleeve ends
Reduced accuracy after long-term use
If the original sleeve is no longer available from the original supplier, a custom replacement sleeve can also be manufactured according to the existing sleeve specifications.
Different W&H CI flexo presses and printing jobs may require different sleeve dimensions and repeat lengths.
For this reason, replacement sleeves should be manufactured according to the actual machine and application rather than treated as a standard-size component.
JCTPRINT can manufacture custom replacement flexo plate sleeves for W&H CI flexo presses based on the technical information provided by the customer.
Important parameters may include:
W&H machine model
Sleeve inner diameter
Sleeve outer diameter
Sleeve length
Printing width
Repeat length
Wall thickness
Existing sleeve specifications

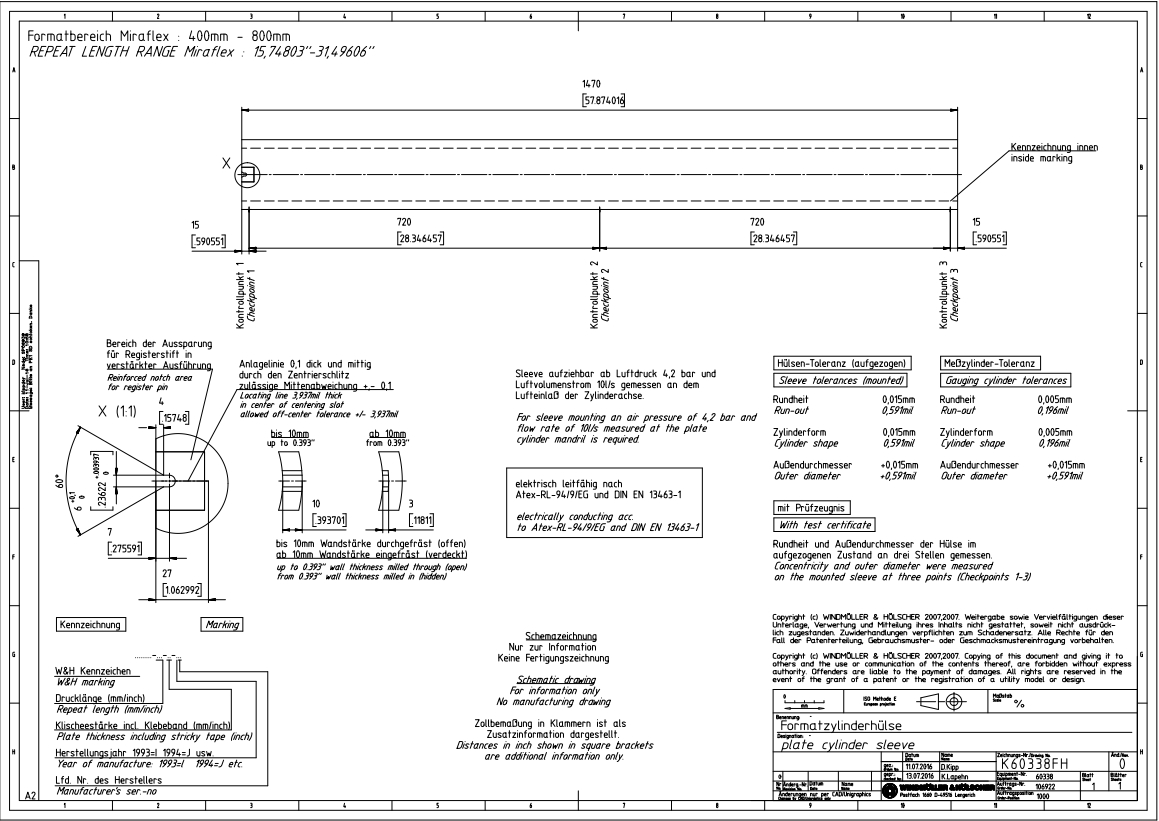

Technical drawing
Special application requirements
If a complete drawing is unavailable, customers can provide the machine model, dimensions, and photos of the existing sleeve for technical evaluation.
Before purchasing a new plate sleeve, several factors should be confirmed.
The sleeve must match the air mandrel and operating requirements of the CI flexo press.
Providing the exact press model can help reduce specification errors during replacement.
The inner diameter is particularly important because it directly affects installation onto the air mandrel.
Incorrect dimensions may cause installation difficulties or unstable operation.
The required printing repeat must be considered when determining the final sleeve dimensions.
Customers should provide their existing sleeve specifications or technical drawing whenever possible.
The sleeve length should match the printing width and machine configuration.
For wide web flexible packaging applications, dimensional stability across the full sleeve length is important.
Low runout and good concentricity contribute to stable rotation and consistent printing performance, especially at higher press speeds.
The sleeve surface should provide a reliable base for plate mounting and maintain dimensional stability during repeated production cycles.
JCTPRINT specializes in rollers, sleeves, and related components for the flexographic printing and packaging industry.
Our flexo plate sleeves can be customized according to different press specifications and printing requirements.
Sleeves can be manufactured according to customer drawings, existing sleeve dimensions, or machine information.
Dimensional accuracy, roundness, and runout are important throughout the manufacturing process to support stable operation on high-speed flexo presses.
Each sleeve is inspected before shipment to ensure that key dimensions meet the required specifications.
Finished sleeves are carefully packed to reduce the risk of damage during international transportation.
JCTPRINT supplies printing rollers and sleeves to customers in different markets worldwide and supports customized replacement requirements for flexographic printing equipment.
In addition to W&H applications, JCTPRINT can provide customized flexo plate sleeves for different flexographic printing machines.
Depending on the required specifications, customized solutions can be developed for various CI and wide web flexo press applications.
If you are unsure whether we can manufacture a sleeve for your machine, send us the machine model, sleeve dimensions, or technical drawing for evaluation.
To receive an accurate quotation for a custom flexo plate sleeve, we recommend providing as much of the following information as possible:
Flexo press brand
Machine model
Sleeve drawing
Inner diameter
Outer diameter
Sleeve length
Required repeat length
Quantity
Photos of the existing sleeve
The more complete the technical information, the faster the sleeve specifications can be confirmed.
Choosing the correct plate sleeve is important for maintaining the performance of a high-speed CI flexo printing machine.
A precisely manufactured replacement sleeve can help maintain accurate registration, stable printing pressure, smooth high-speed operation, and efficient job changes.
JCTPRINT provides custom flexo plate sleeves for W&H CI flexo presses and other flexographic printing machines.
If you are looking for a replacement plate sleeve, send us your W&H machine model, existing sleeve dimensions, or technical drawing. Our team will help confirm the specifications and provide a customized quotation.
