Introduction
In the label and flexible packaging industry, precision and efficiency are critical to maintaining high production standards. Rotary die cutting has become the preferred method for high-speed converting, and the combination of magnetic cylinder and flexible die plays a central role in this process.
A well-matched system not only ensures clean and accurate cuts, but also improves productivity, reduces downtime, and lowers overall production costs. In this article, we’ll explore how magnetic cylinders and flexible dies work together, their key advantages, and how to choose the right solution for your application.

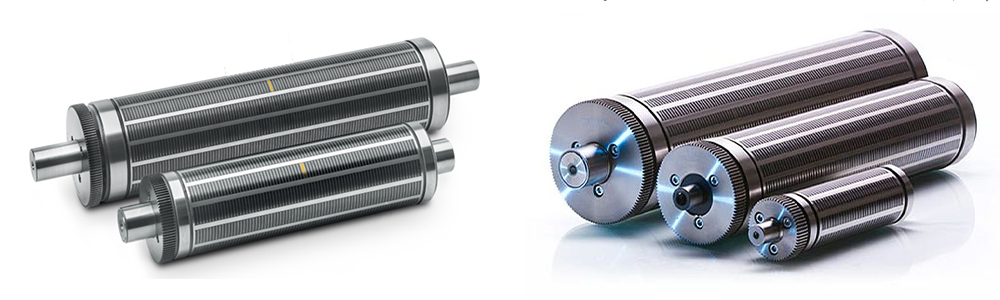

A magnetic cylinder is a precision-engineered tool used in rotary die cutting machines to hold flexible dies firmly in place through magnetic force.
• High-precision magnetic layout for secure die fixation
• Stable rotation for consistent cutting performance
• Long service life with wear-resistant surface treatment
• Compatible with various die cutting machines
Magnetic cylinders are widely used in label printing, flexible packaging, and narrow web converting applications, where accuracy and repeatability are essential.
A flexible die is a thin, lightweight steel die that is mounted onto a magnetic cylinder to perform cutting, perforating, or creasing operations.
• Quick installation and easy replacement
• Lower cost compared to solid dies
• High cutting precision for detailed designs
• Ideal for short to medium production runs
Flexible dies are especially suitable for self-adhesive labels, stickers, tags, and packaging materials.

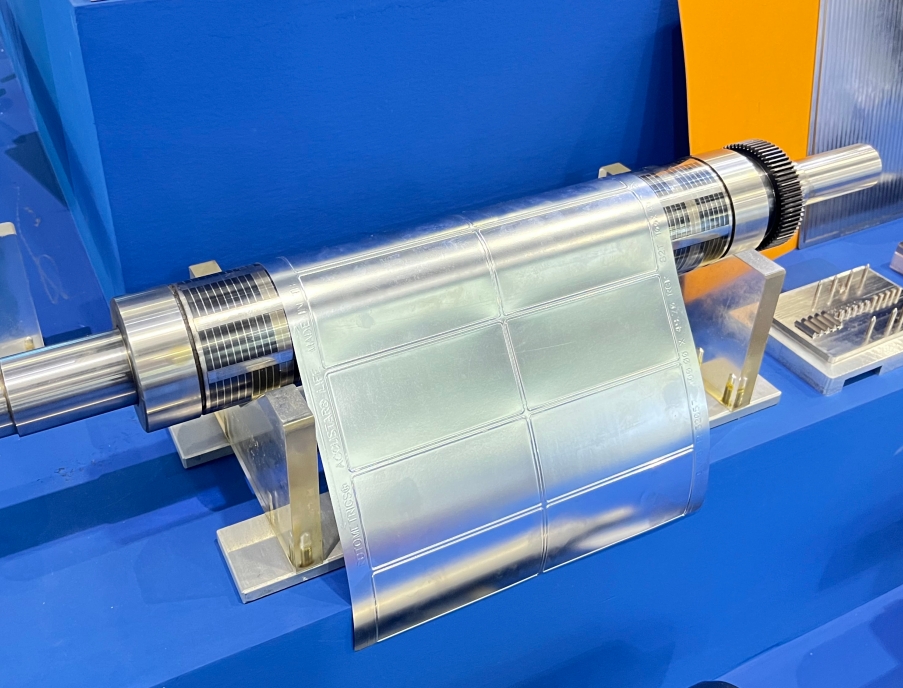

The combination of a magnetic cylinder and flexible die forms a complete rotary die cutting system.
1. The flexible die is mounted onto the magnetic cylinder
2. Magnetic force holds the die securely in position
3. The cylinder rotates at high speed
4.The die cuts the material with precise pressure control
This system ensures:
• Accurate registration
• Clean edges without burrs
• Consistent cutting depth
The magnetic cylinder provides excellent concentricity, ensuring the flexible die performs with maximum accuracy.
Quick die changeover significantly reduces machine downtime, making it ideal for frequent job switching.
Flexible dies are more economical than solid dies, especially for short runs and customized orders.
High-quality magnetic cylinders maintain stable performance over long production cycles.
Suitable for a wide range of applications, including:
• Pressure-sensitive labels
• Shrink sleeves
• Flexible packaging
• RFID labels
Magnetic cylinder and flexible die systems are widely used in:
• Narrow web label printing machines
• Rotary die cutting units
• Flexographic printing lines
• Packaging converting equipment
Their flexibility and efficiency make them an essential solution for modern converting operations.
Selecting the right combination is crucial for optimal performance.
1. Machine Compatibility
Ensure the magnetic cylinder matches your die cutting machine specifications.
2. Cutting Material
Different materials require different die hardness and cutting depth.
3. Repeat Length
Choose the correct cylinder size based on your design repeat.
4. Precision Requirements
High-end applications require tighter tolerances and better engraving quality.
5. Supplier Capability
Work with an experienced manufacturer who can provide stable quality and technical support.
With over 20 years of experience in printing roller manufacturing, JCTPRINT provides reliable and high-performance rotary die cutting solutions.
• Advanced manufacturing technology and strict quality control
• High precision magnetic cylinders with stable performance
• Custom flexible dies tailored to your application
• Fast delivery and responsive service
• Exported to more than 40 countries worldwide
We are committed to helping customers improve efficiency, reduce costs, and achieve consistent die cutting results.
The combination of magnetic cylinder and flexible die is a powerful and cost-effective solution for rotary die cutting. By choosing the right system and a reliable supplier, manufacturers can significantly enhance production efficiency and product quality.
If you are looking for a dependable partner for your die cutting needs, JCTPRINT offers complete solutions tailored to your business.
