Application
Pumping flowing liquids
Transport some non-flowing media
Special: corrosive liquids, liquid particles, high viscosity, volatile, flammable, highly toxic liquids
It combines the advantages of submersible pumps, self-priming pumps, impurity pumps, canned pumps and mud pumps

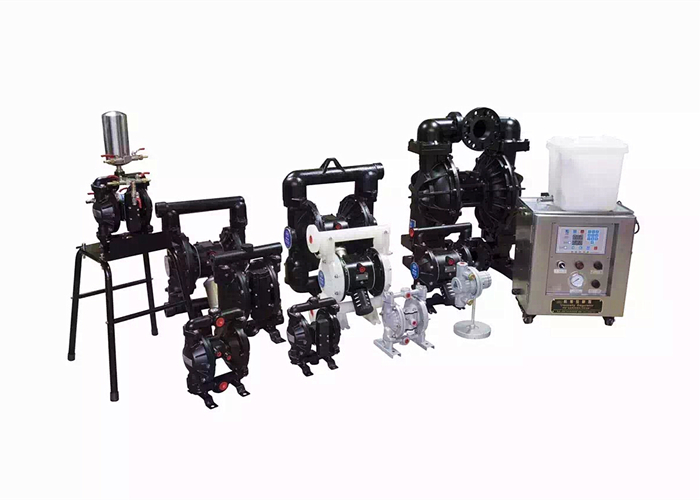

JCTPRINT various materials
Stainless steel pneumatic diaphragm pump

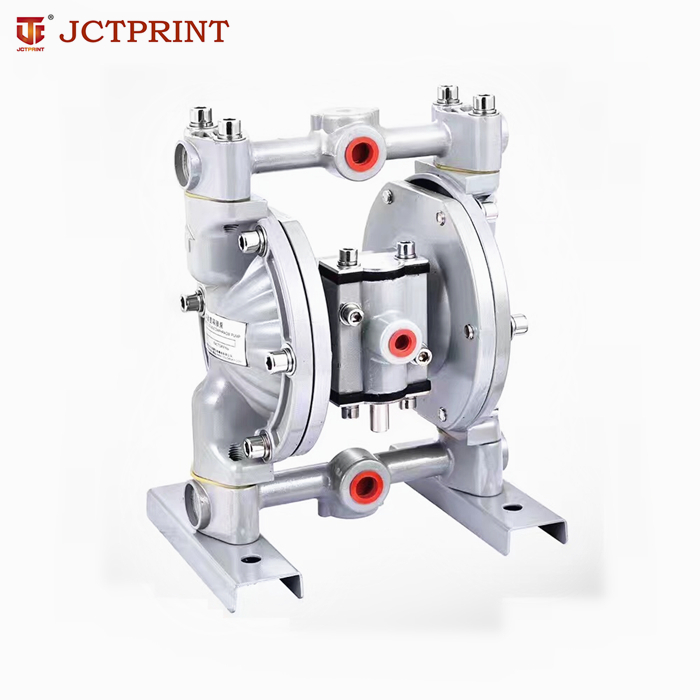

Aluminum pneumatic diaphragm pump

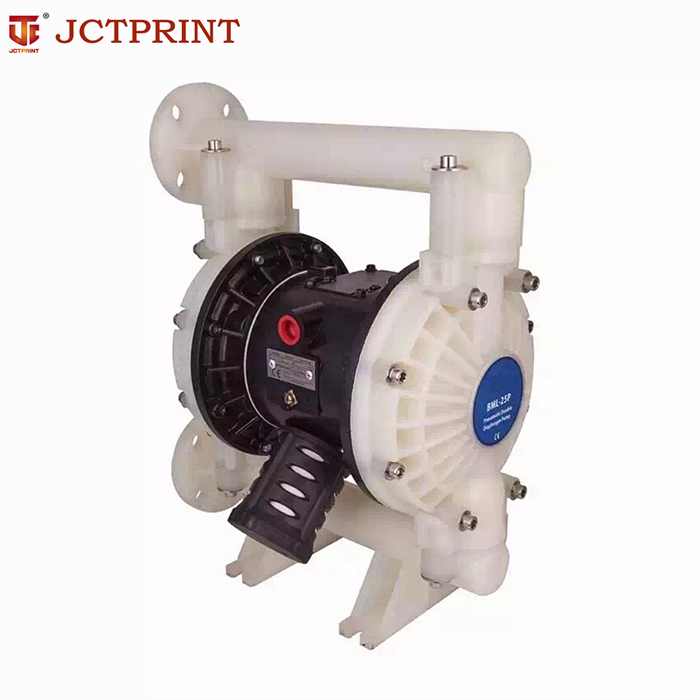

PP plastic pneumatic diaphragm pump
PB plastic pneumatic diaphragm pumpnew
Contact us to recommend a model for you
contact us:[email protected]
Introduction of diaphragm pump

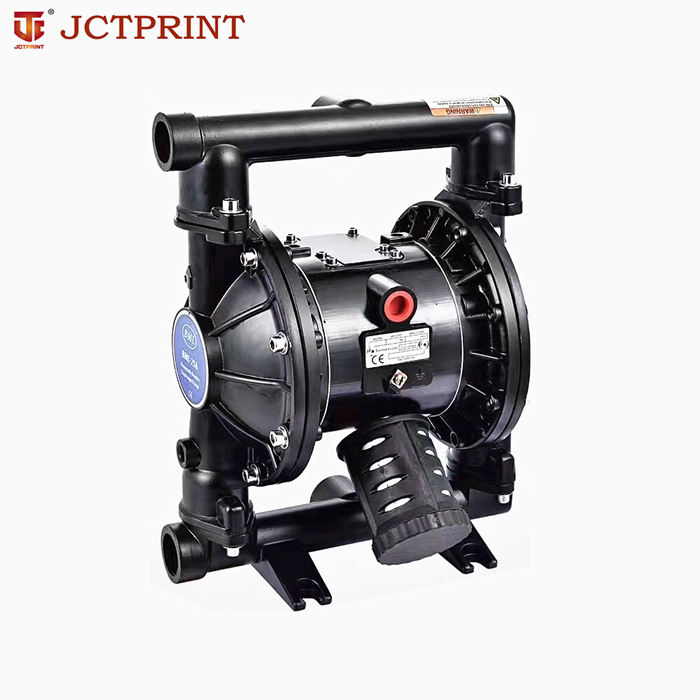

JCTPRINT BML series diaphragm pump is a new type of conveying machinery, using compressed air as the power source
Quick quote and recommended models
Adopting Japanese technology, with the character of high efficiency,steady and durable.
Corrosive,particles containing and high viscosity liquid can be transported.
Without dead point or freezing point to ensure running steadily
Strong power to make the long-distance liquid transportation easily
Easy operation,the liquid transportation can be stepless regulated
Using the compressure air as power, anti- explosion and safety

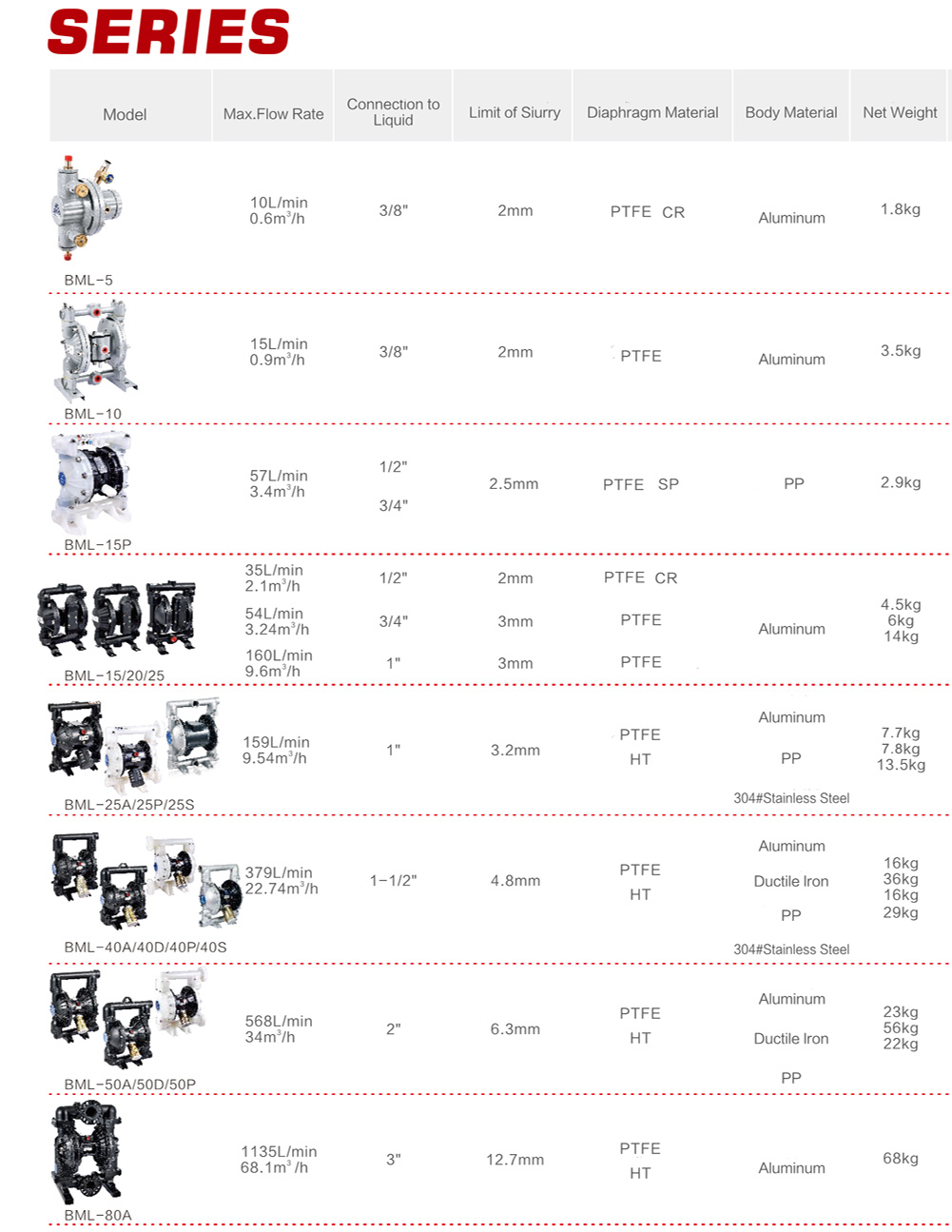

Specification of BML series AODD
| Type | BML-5 | BML-10 | BML-15 | BML-20 | BML-25 | BML-40 | BML-50 |

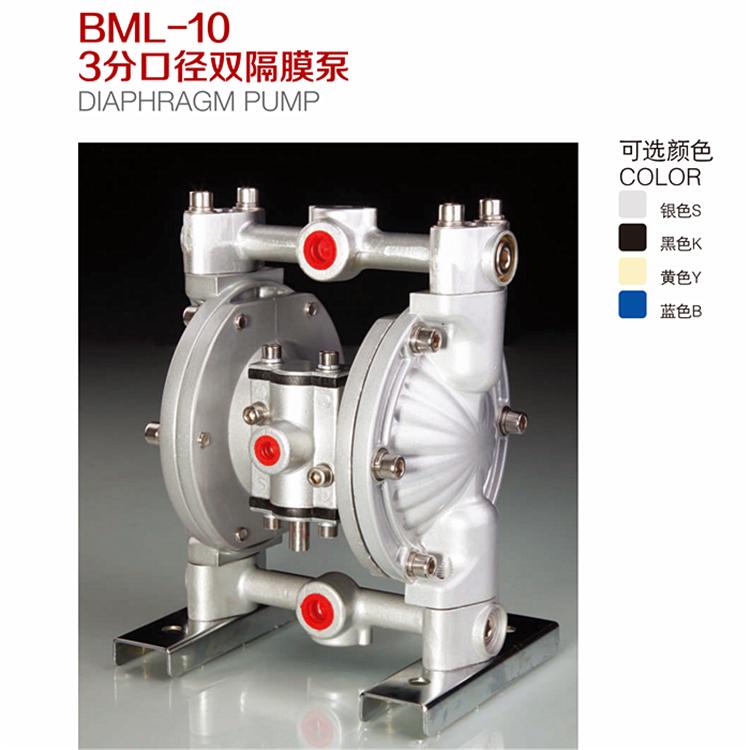

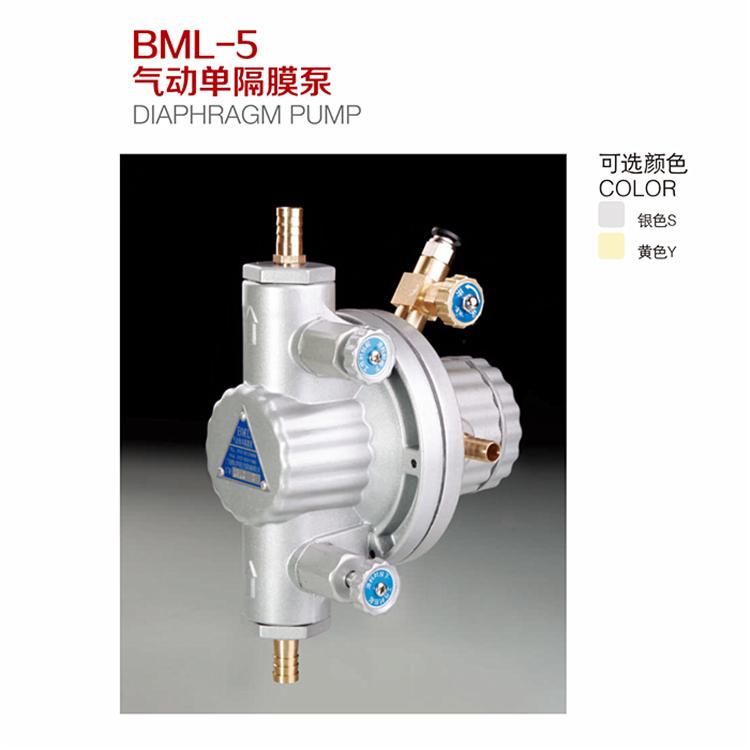

| Diaphragm type | Single | Double | Double | Double | Double | Double | Double |
| Max Flow Rate | 10L/min | 15L/min | 35L/min | 54L/min | 160L/min | 379L/min | 568L/min |
| Connection to Liquid | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/2″ | 2″ |
| Limit of Slurry | 2mm | 2mm | 2mm | 3mm | 3mm | 4.8mm | 6.3mm |
| Suction heigh | 2m | 5m | 7m | 8m | 9m | 10m | 11m |
| Lift | 4m | 60m | 70m | 70m | 70m | 70m | 70m |
| Max.Discharge Pressure | 0.5Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.8Mpa | 0.8Mpa |
| Air Supply Pressure Range (Mpa) |
0.2-0.5 | 0.2-0.7 | 0.2-0.7 | 0.2-0.7 | 0.2-0.7 | 0.2-0.8 | 0.2-0.8 |
| Material of Diaphragm | PTFE | PTFE | PTFE | PTFE | PTFE | CR PTFE | CR PTFE |
| Net Weight | 1.8kg | 3.5kg | 4.5kg | 6kg | 14kg | 16kg | 28kg |
| Ctn Dimension (mm) |
180*180*210 | 270*270*280 | 180*220*280 | 200*230*320 | 240*300*450 | 275*400*540 | 340*460*640 |
