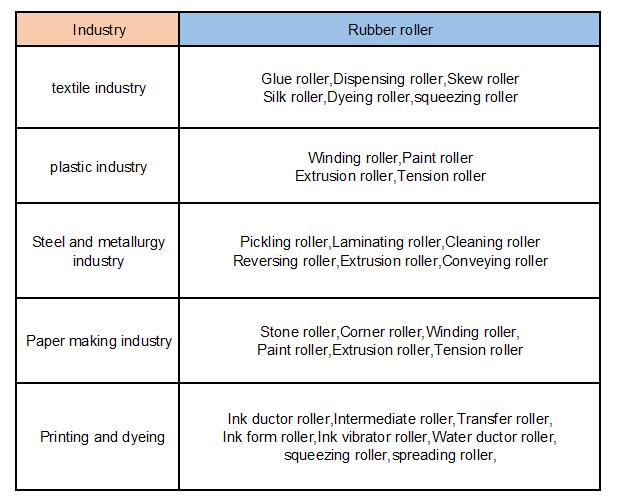

Industrial rubber rollers have a variety of functions, and JCTPRINT can be customized to meet most needs.

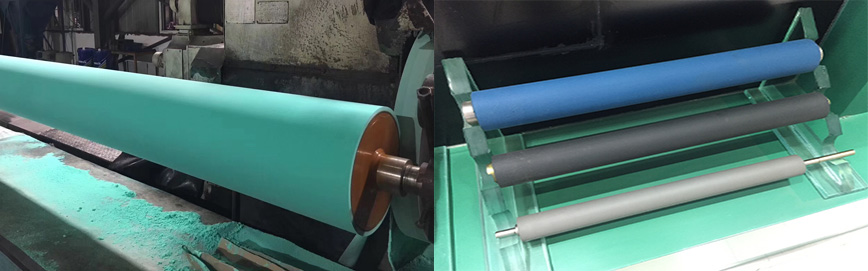

Factory customized industrial rubber roller
The characteristics of different industrial rubber rollers are determined by the requirements of production technology. JCTPRINT rubber roller has the following characteristics: Ozone and chemical resistance,Anti-aging,good flexibility, good elasticity, Excellent oil resistance, Clean and healthy.

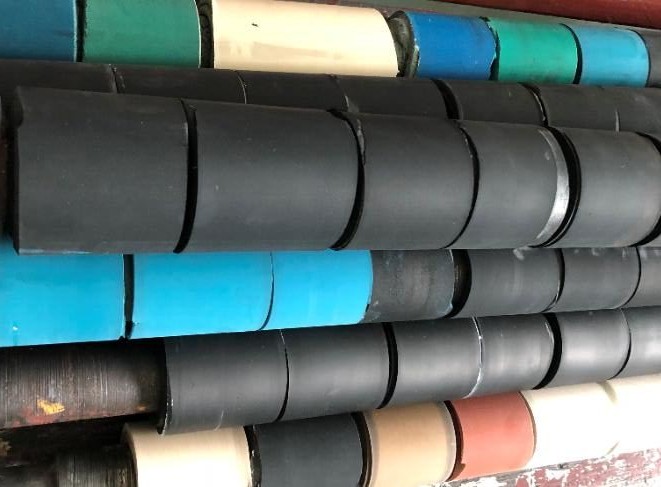

Learn about the industrial rubber rollers we are producing.
Industrial Rubber-Covered Roller Materials
We are meeting your requirements through the ratio of rubber and elastic compounds. JCTPRINT available rubber roller materials include:

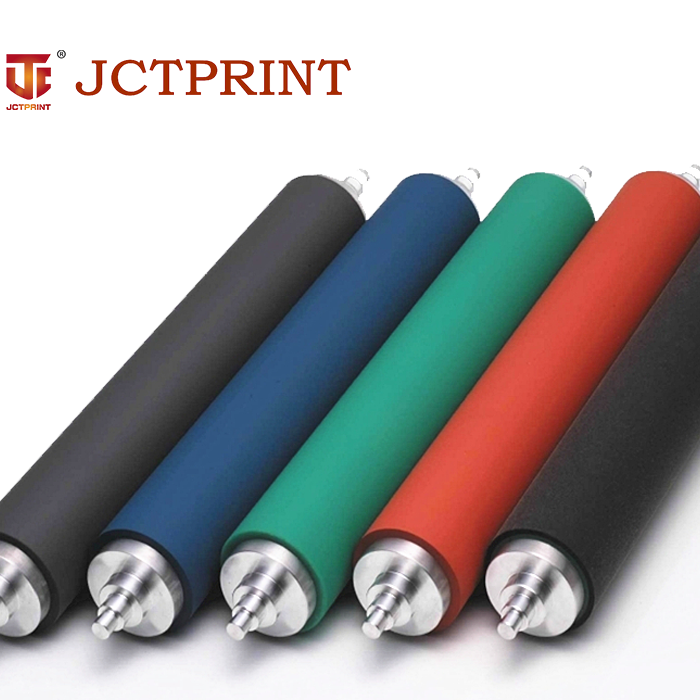

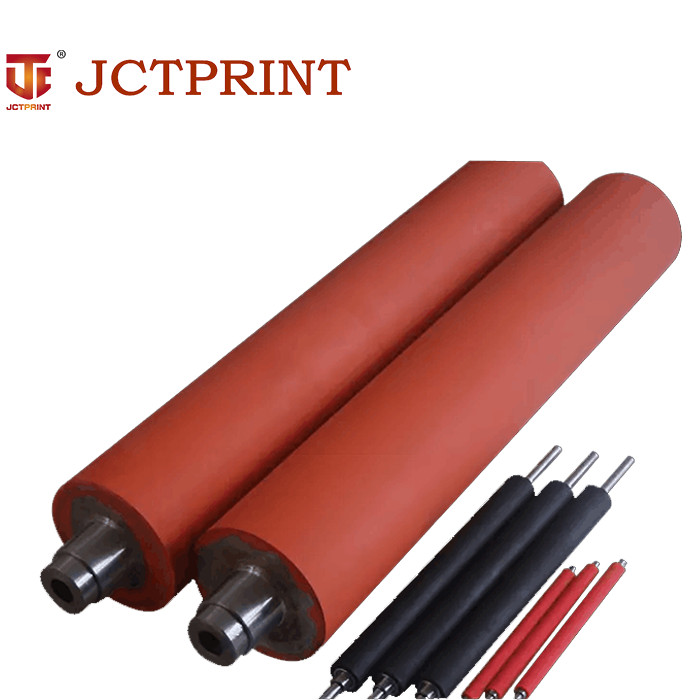

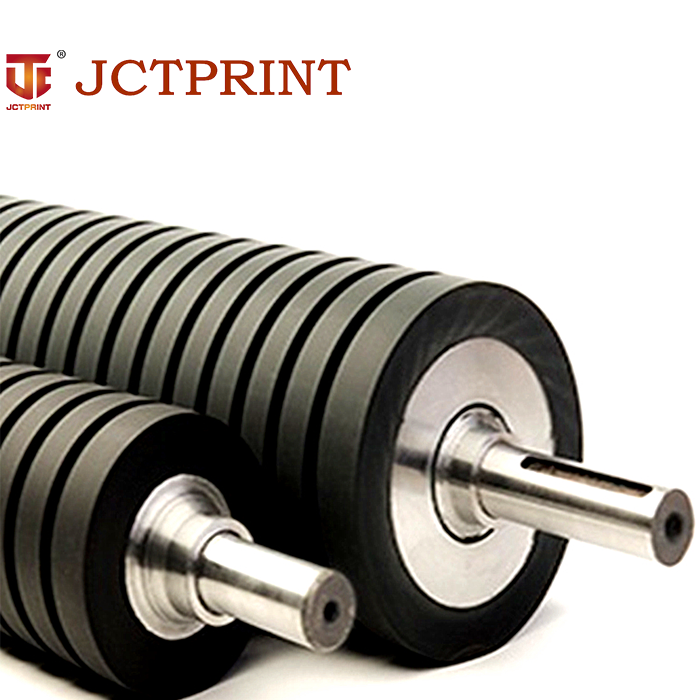

Natural rubber roller,NBR butyronitrile rubber roller,silicone rubber roller,polyurethane rubber roller,EPDM rubber roller,Neoprene rubber roller,Hypalon rubber roller,carbon fiber roller
Specification of rubber rollers
Hardness: 18A-100A
Tolerance: 0.05mm
Size: 1inch-10foot
Dimension: 10mm-1500mm
Length: 5mm-8200mm
Color: Red, Black, White, Clear, etc can do the color base on your pantone NO.
Roll core: Stainless steel,45#steel or 20#steel or 5#aluminum seamless pipe
Customer customization
For your actual application scenarios, select raw materials, blending ratios, production processes, and special inspections.
or mail to:[email protected]
Advantages of our rubber roller
1.Raw materials :
Base roller:
We are using #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing. Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.
Rubber:
Our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we casting the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.
While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.

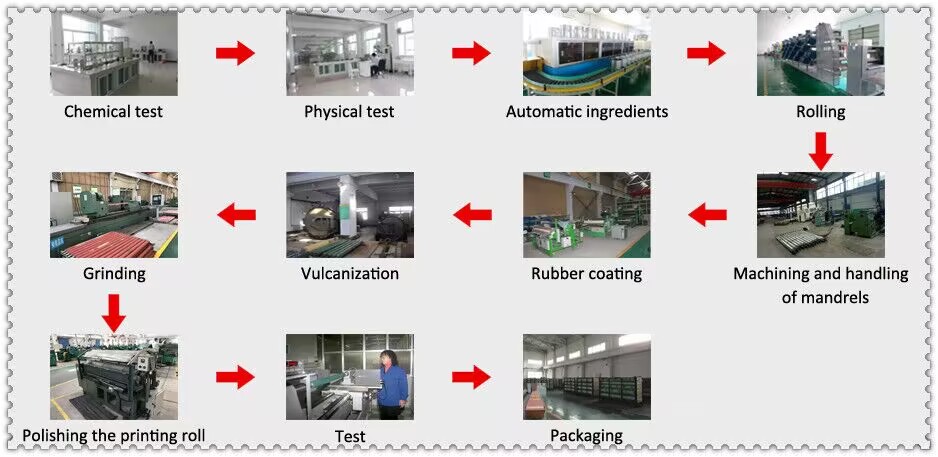

2. Production process:
Hot charging technicals:
Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.
Dynamic balancing:
We will do 3 times of dynamic balancing test in the process of production of each rubber roller,which will ensure the using effect. In general,If it can displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g.
Testing by making small sample before mass production
We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color, and Impurity situation. We will control the hardness tolerance within 3degree. If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request.
Quality control Department
Using all-imported laser tester to ensure that the geometric size and the accuracy of the roller can reach 0.01 mm

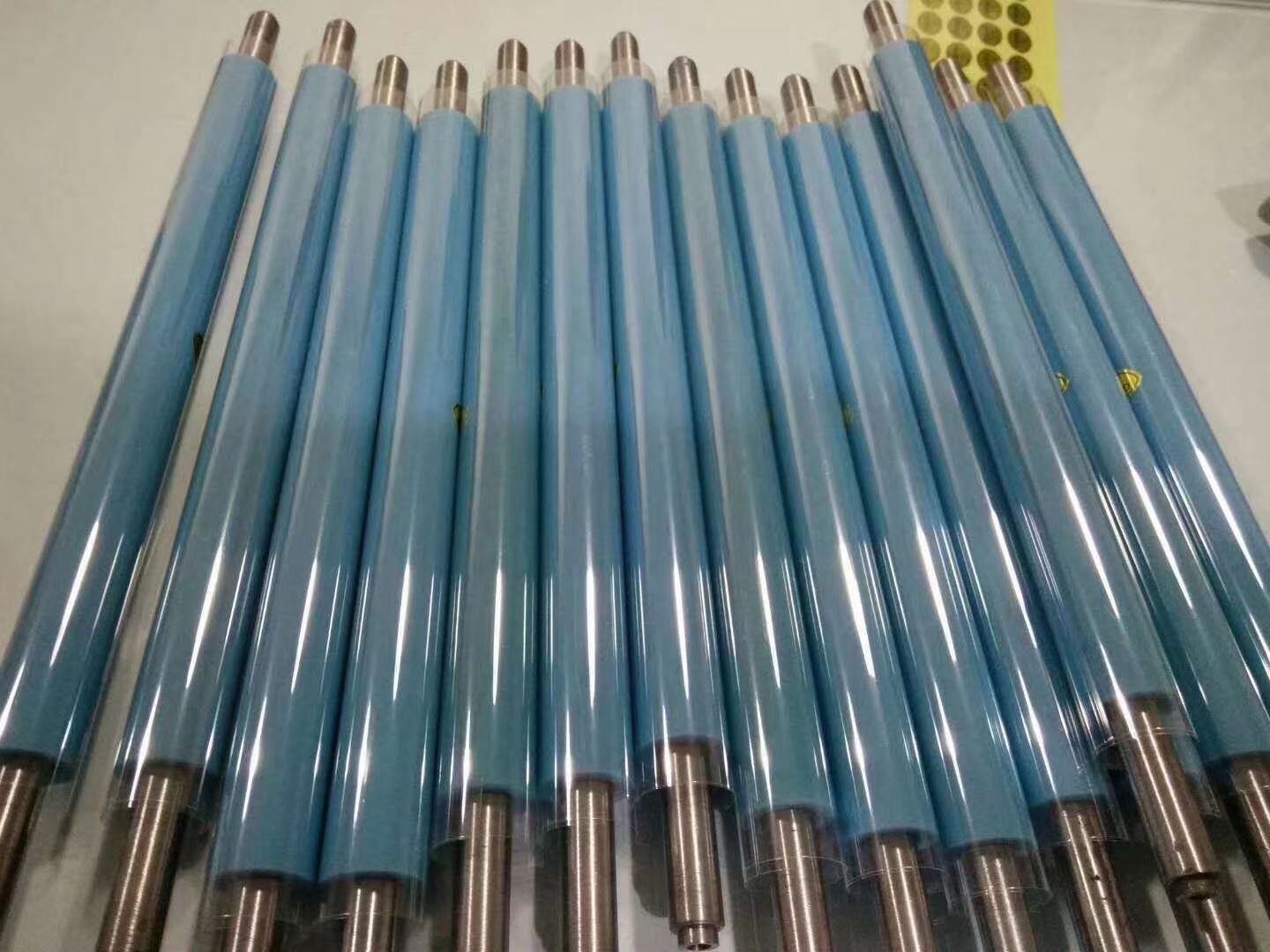

Escort your rubber rollers with the safest packaging
To make sure your products reach your hands safely, use imitation UV paper (black inside) to prevent rubber from aging.
JCTPRINT rubber roller will bring you the greatest production efficiency, come and discuss your business!
