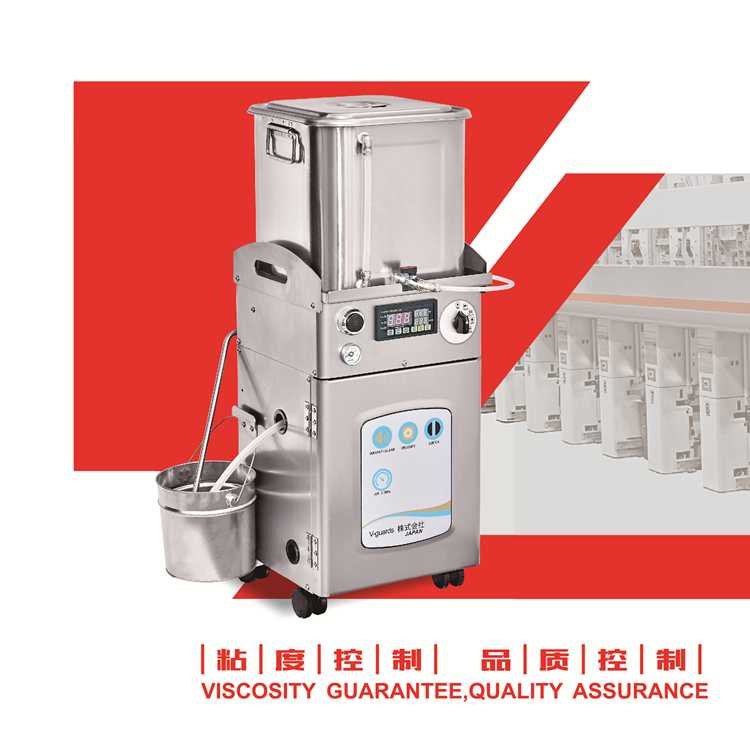

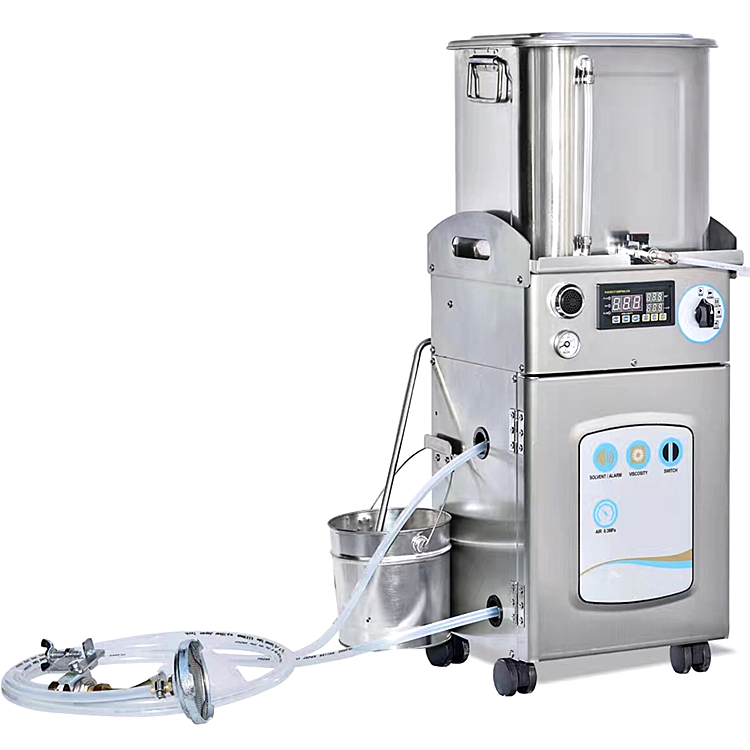

Automatic Viscosity Regulator Viscosity Controller Manufacturer for Rotogravure press
The viscosity controller is suitable for printing industry to automatically dilute the viscosity of the ink, and glue.
Automatic Viscosity Regulator Viscosity Controller Manufacturer for Rotogravure press
1.Product Introduction
The viscosity controller is suitable for printing industry to automatically dilute the viscosity of the ink, and glue.
Our machine is easy to use , don't need to adjust the ink manually.The only thing you need to do is setting the viscosity value according to the product requirement and then the pulse detectorwill test the viscosity and the pneumatic diaphragm pump circulate ink and glue.
It's safe and reliable to operate, and the viscosity detection is accurate.The viscosity controller automatically tracks and monitors to make the viscosity consistent when printing, lamination and coating.
2.Specifications
| Model | V-10 | V-15 | V-20 |
| Appearance | 304 stainless steel,detachable box | 304 stainless steel,detachable box | 304 stainless steel,detachable box |
| Dimension | 300*320*750mm | 300*320*750mm | 300*320*750mm |
| Net weight | 17.5kg | 20kg | 23kg |
| Viscosity control range | 3#Zahn Cup 13-30sec/30-100cP | 3#Zahn Cup 13-30sec/30-100cP | 4#Zahn Cup 10-60sec/100-1000cP |
| Solvent tank | 304 stainless steel tank, capacity:12L | 304 stainless steel tank, capacity:12L | 304 stainless steel tank, capacity:12L |
| Inlet tube | 6.5mm*10mm*2.5m | 11mm*16mm*2.5m | 15mm*21mm*2.5m |
| Outlet tube | 8mm*12mm*2.5m | 11mm*16mm*2.5m | 15mm*21mm*2.5m |
| Ink circulating Rate | 1.5-4.5L/min | 3.5-9L/min | 7.5-19L/min |
| Air consumption | 40L/min | 90L/min | 160L/min |
| Working pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa |
| Voltage/power | 220V/40W | 220V/40W | 220V/40W |
| Application range | Gravure printing,Flexo printing (Sub tank under 20L) |
Gravure printing,Flexo printing,compound,coating (Sub tank under 40L) |
Gravure printing,Flexo printing,compound,coating (Sub tank over 40L) |
3.Advantages
Company Information
Contact
Helen Shen
Jinan Jinchangtai Industry And Trade Co., Ltd
Add:Lushangshengjing Plaza Building B-1406, No.6 Qingfeng Road,
Jinan, Shandong, 250014, China
Tel:0086-0531-61300169
Fax:0086-0531-61300169
Mobile/wechat/Whasapp/skype:0086-18660813189
Email:[email protected]
FAQ
1.Are you manufacturer or Trading company?
We are manufacturer and we have been producing viscosity controller for many years and our machine are sold to more than 20countries in the world and have good reputation.
2. Do you have quality certificate?
Yes ,we have CE, SGS etc,so you can rely on the quality.
3.What's the delivery time?
Around 20~30days after pre payment received, however, based on order.
4.Can you provide foreign country machine instation services?
Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.
5.What’ s the terms of payment?
Usually T/T 100% in advance payment.We can also accept Western Union,paypal and credit card.
