Custom Silver Aluminum Alloy Guide Roller For Paper Industry
Our aluminum guide rollers have the characteristics of high strength, low resistance, light weight, flexible rotation, no-rusty, wear resistance and corrosion resistance.
Custom Silver Aluminum Alloy Guide Roller For Paper Industry
Product description
We adopt high quality aluminum alloy as the body material , use extrusion molding and make ribs structure inside .The outside diameter can be made from 25mm to 320mm. Under the treatment by computer balancing correction process, the dynamic balance of the aluminum roller will be smaller than 2g. With using of sophisticated equipment and special tools, the roll surface gloss can be 0.8, concentricity can reach 0.02mm.
Special Treatment in the shaft axle and the using of imported bearings will make sure the the aluminum guide roller work very well at high speed with no deformation.
Features and applications
Our aluminum guide rollers have the characteristics of high strength, low resistance, light weight, flexible rotation, no-rusty, wear resistance and corrosion resistance.
Aluminum guide rollers are widely used in printing, packaging plastics, paper, glass, pharmaceutical, electronics batteries, textile machinery and industries.

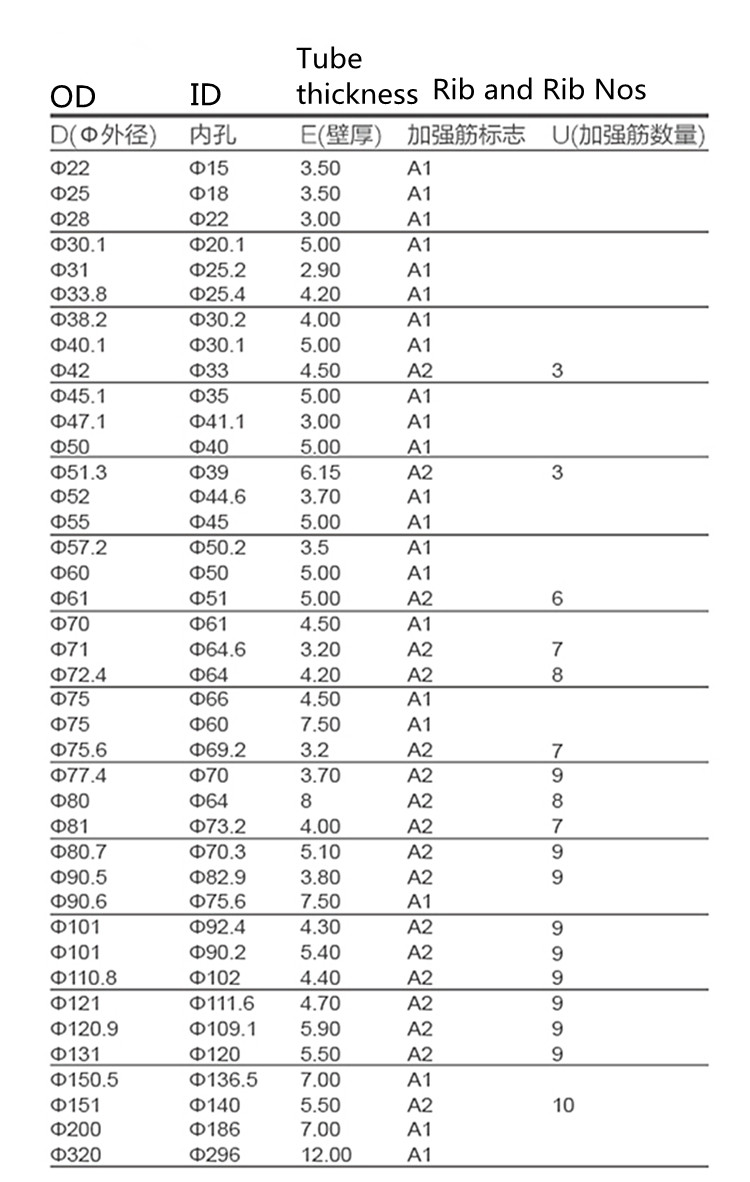

Aluminum tube specifications

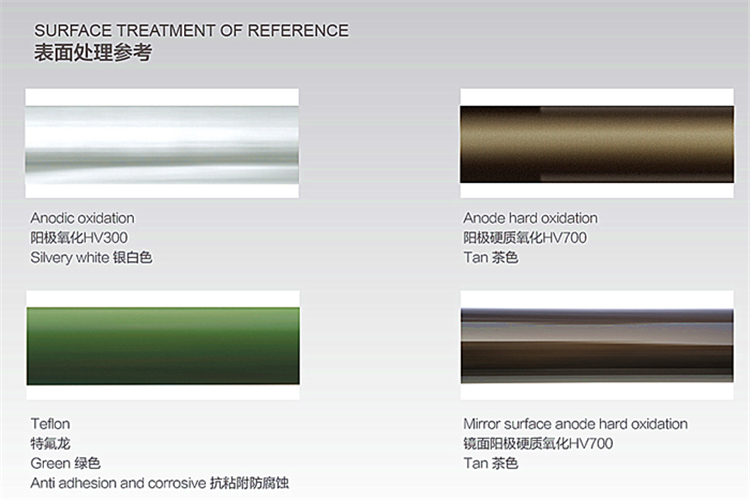

Surface treatment
We can also do special treatment on the aluminum roller surface which can realize good scratch resistance, abrasion resistance and anti-sticking performance.
0.1 Anodizing treatment HV300,the surface is silver.

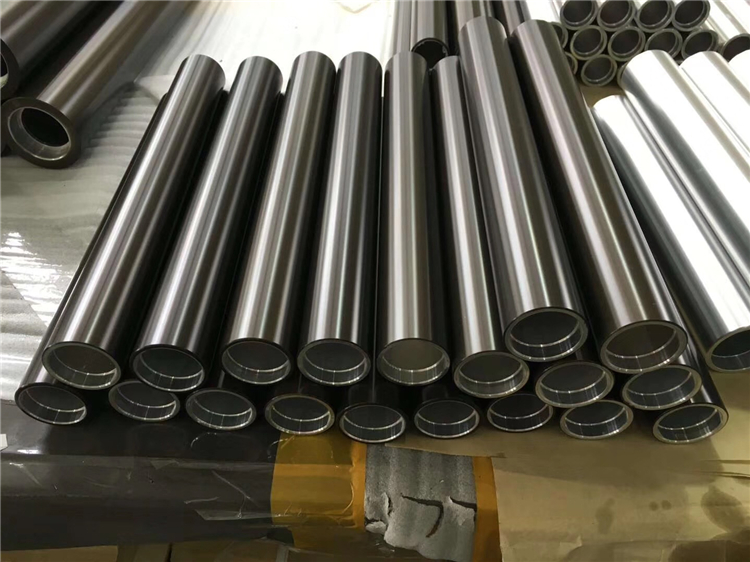

02. Hard anodic oxidation treatment HV700,the surface is dark brown.
0.3 Teflon treatment,the surface is green.The roller is Anti-adhesion, anti-corrosion.
04. Mirror hard anodic oxidation treatment HV700 treatment, the surface is dark brown and has excellent mirror gloss
Various types we can make

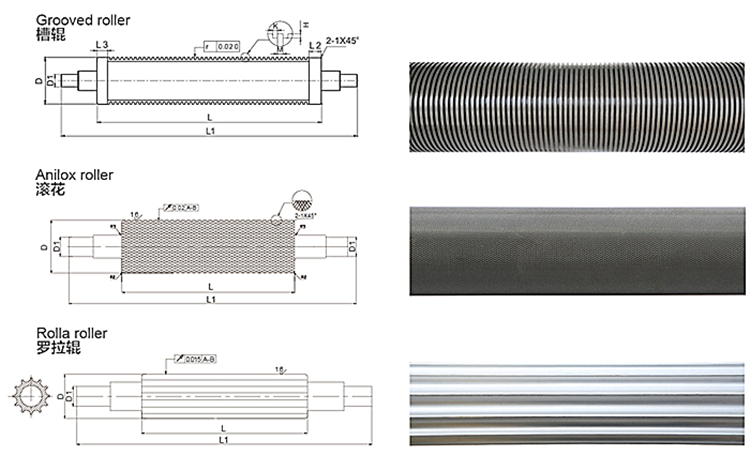

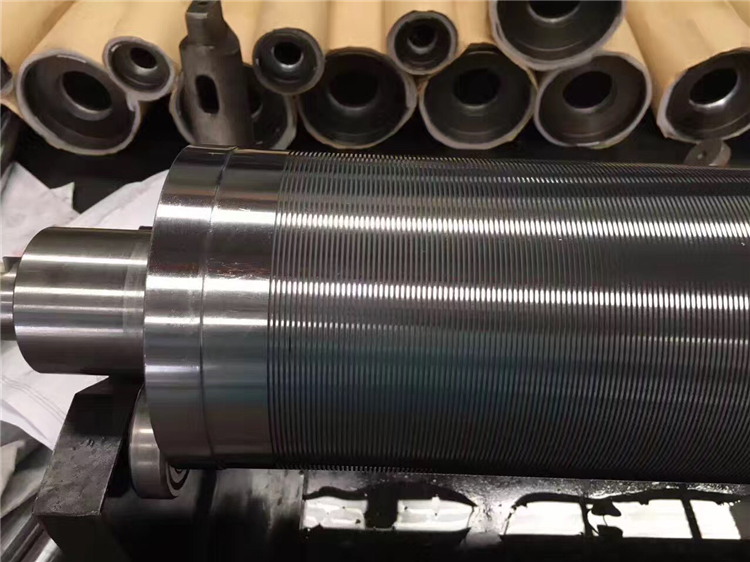

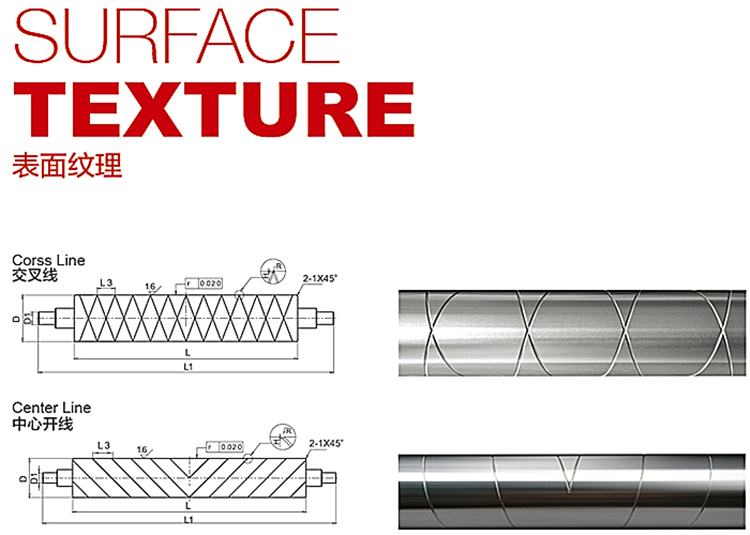

According to surface texture ,aluminum guide roller has 5 tandard types: Cross line type, Center line type, Grooved roller,anilox roller and Rolla roller.

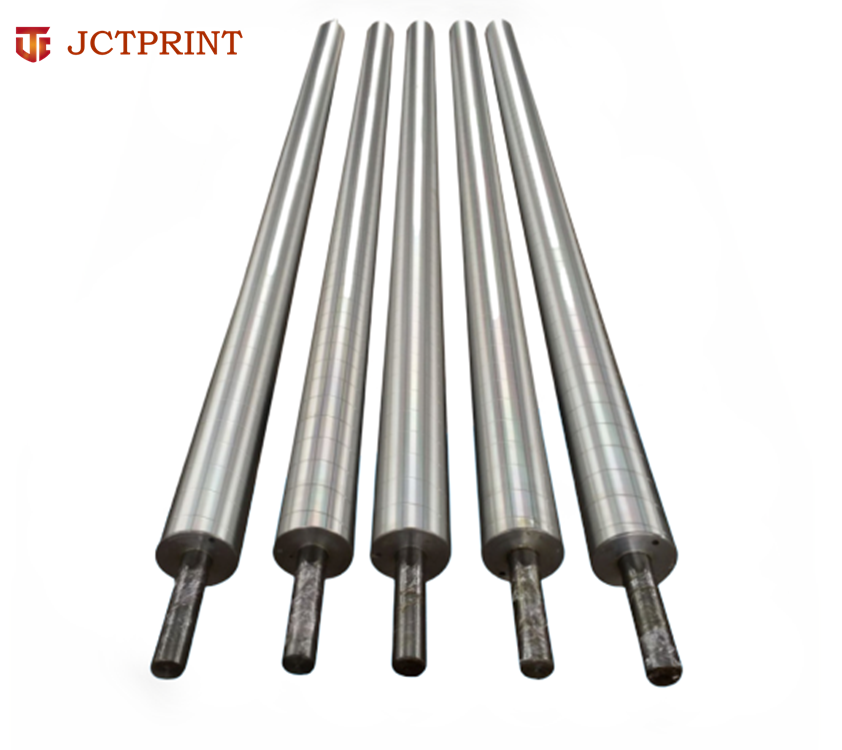

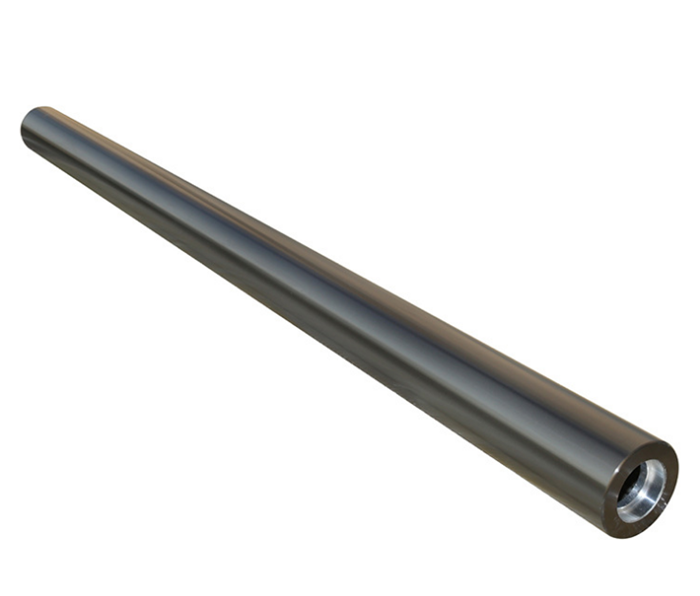

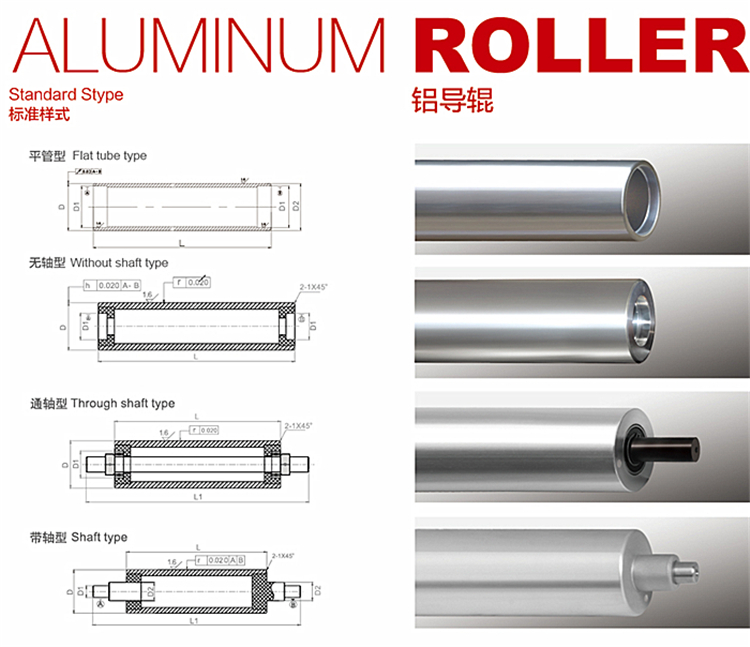

According to shaft end model ,aluminum guide roller has 4 standard types: Flat tube type,Without-shaft type, Shaft type and Through-shaft type.
Advantages of our Aluminum roller

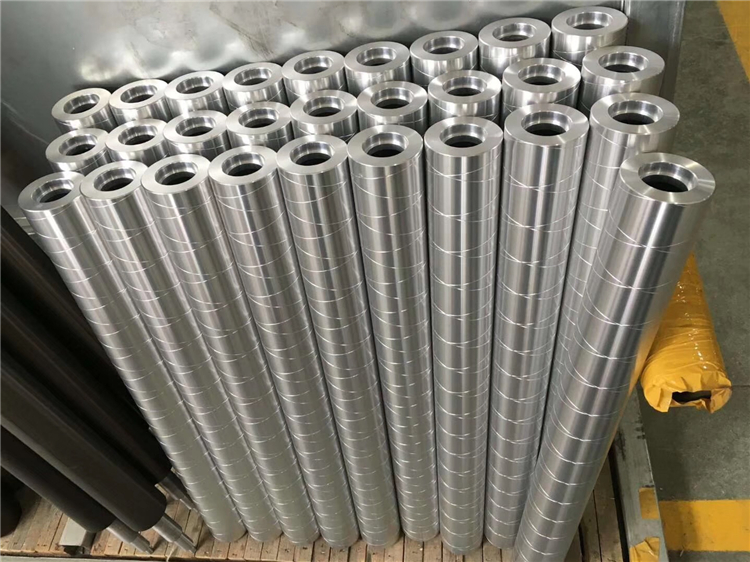

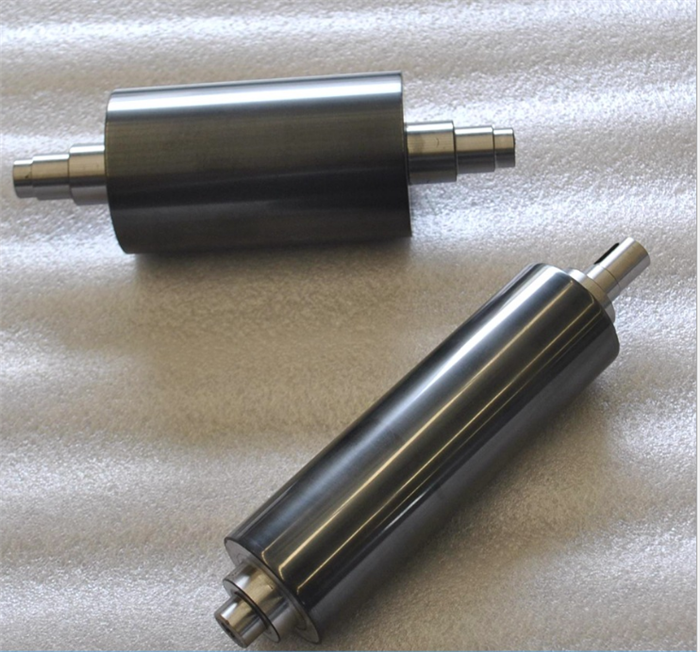

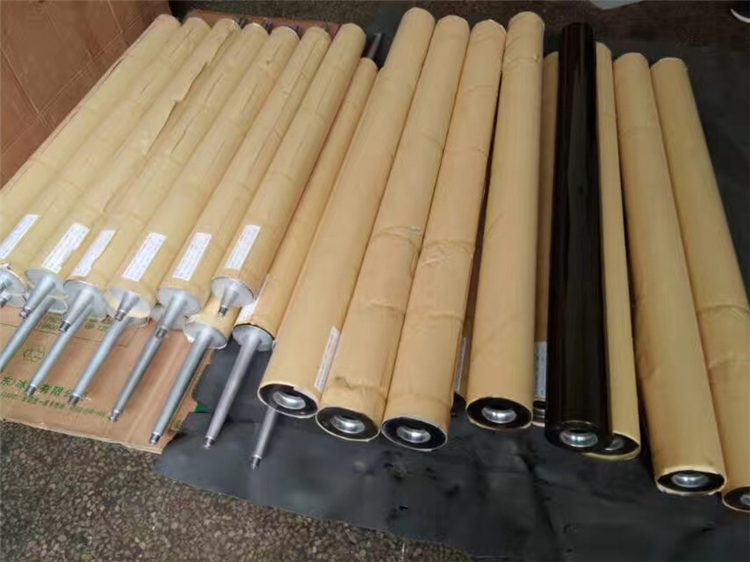

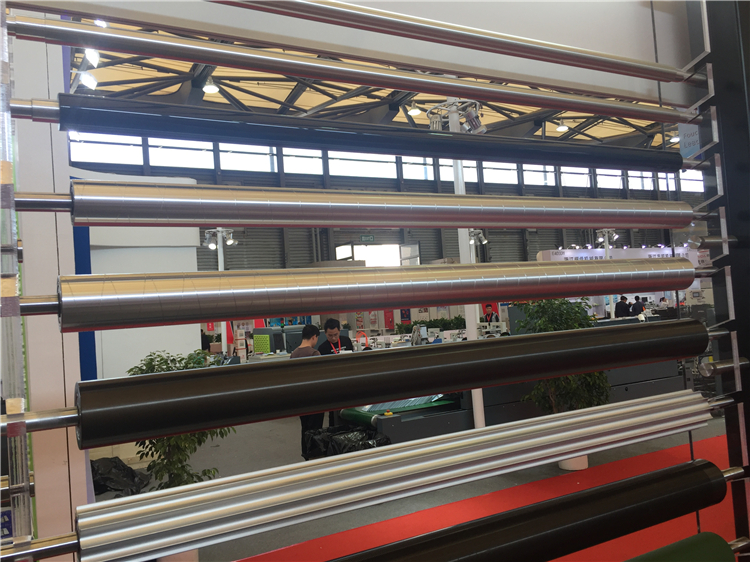

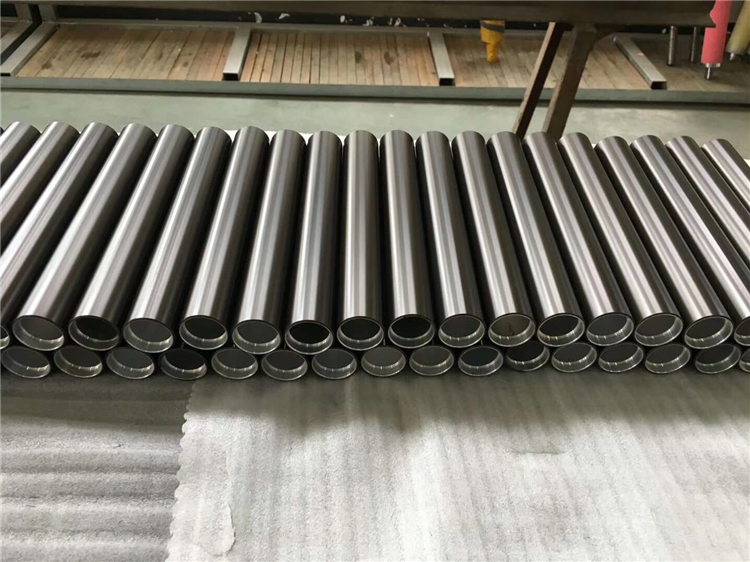

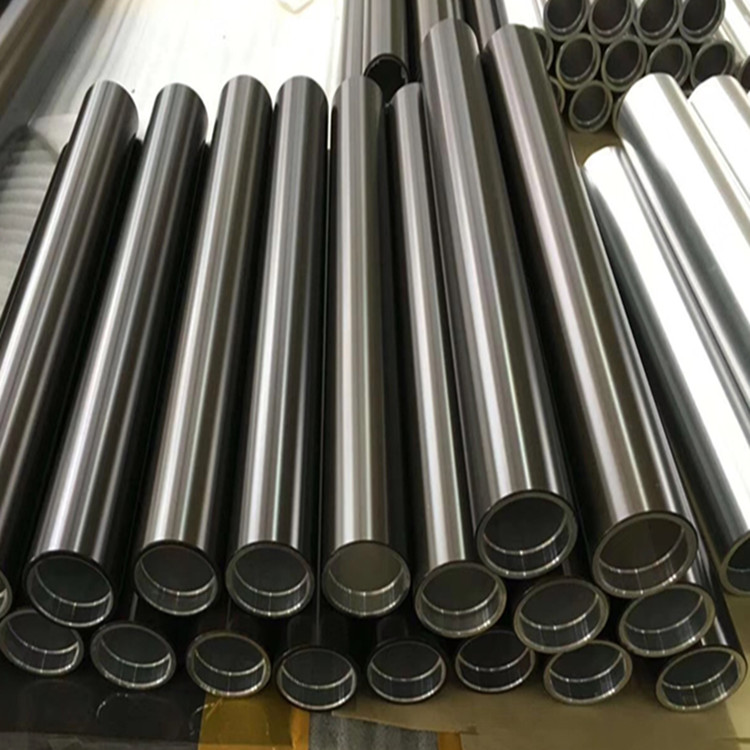

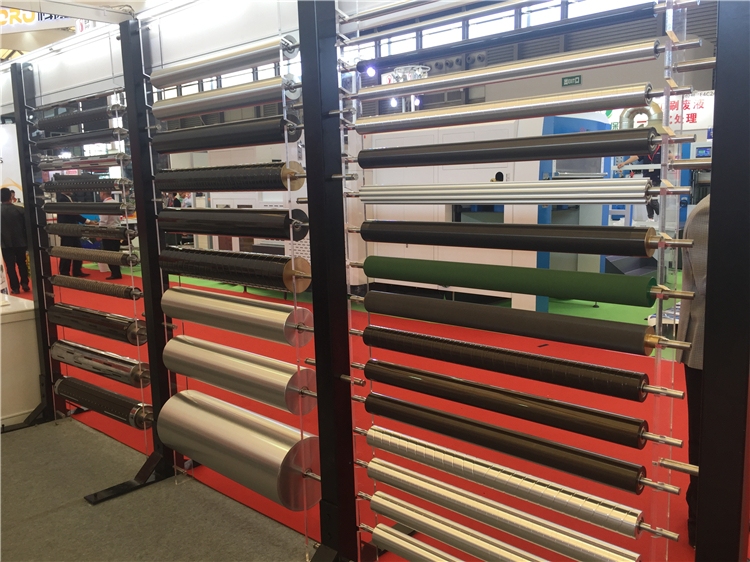

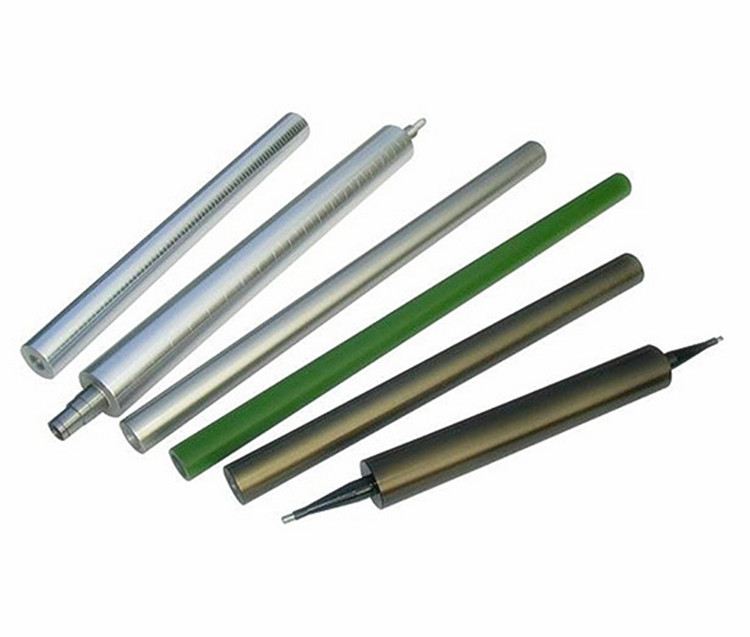

Product pictures
