Product introduction:
1.Our doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing,
2.Blade is thin and elastic strength and high toughness, smoothness, good special and unique,
3.Self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect.
Product application:
Printing mdc doctor blade is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.
Technical data sheet of printing mdc doctor blade:
|
Level |
Low speed blade |
Middle speed blade |
Above the average |
High speed blade |
|
Speed |
0-100/min |
0-120/min |
0-150/min |
0-180/min |
|
Material |
65MN |
SK4 |
C100 |
20C |
Specification of printing mdc doctor blade:
|
Specification |
Detail |
|
Hardness |
1960N/mm(580HV+/-15) |
|

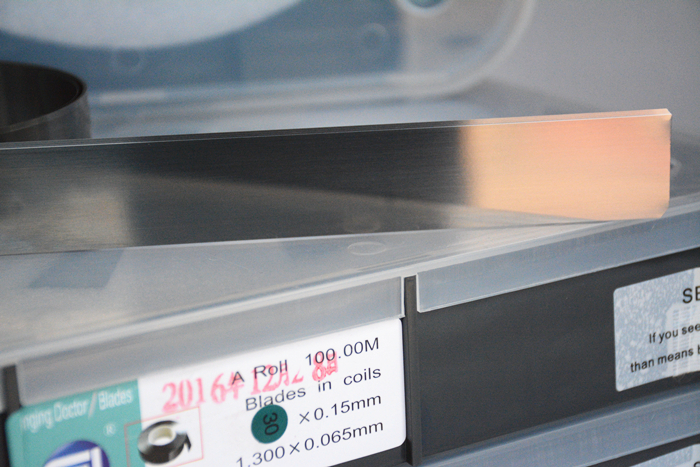

Edge thickness |
0.07mm-0.10mm |
|
Edge height |
1.3mm |
|
Blade thickness |
0.15mm-1.5mm |
|
Blade height |
10-60mm |
|

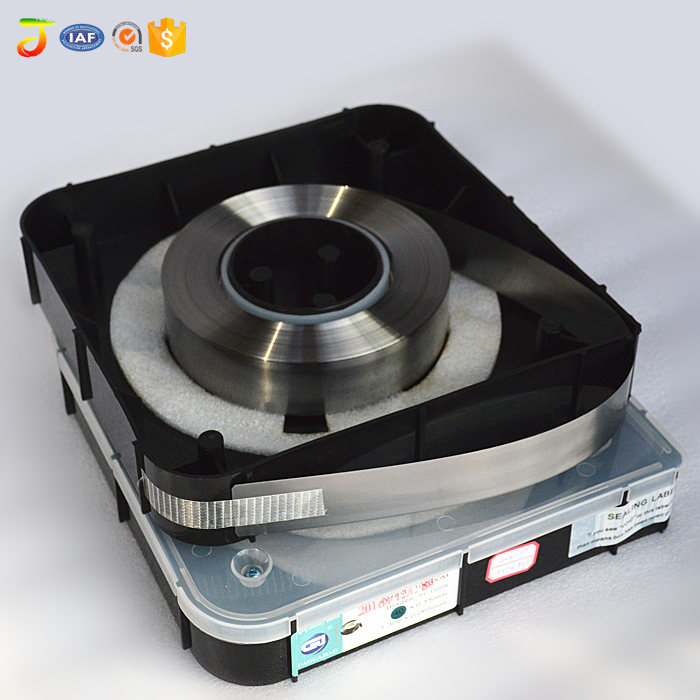

Length of each box |
100m |
Dimension of printing mdc doctor blade:
|
Regular size |
|
30(40,50,60)×0.15 |
|
25(30,35,40,50,60)×0.2 |
|
10×0.1 |
|
17(30,40,50,60)×0.3 |
|
60×0.4 |
|
50×0.5 |
|
Customized |
Features of printing mdc doctor blade:
|
Feature |
Detail |
|
1 |
Good scraping effect &high printing quality |
|
2 |
Good elasticity & strong layering feeling |
|
3 |
Durable &Long life |
Delivery:
Delivery in 20 days after payment received

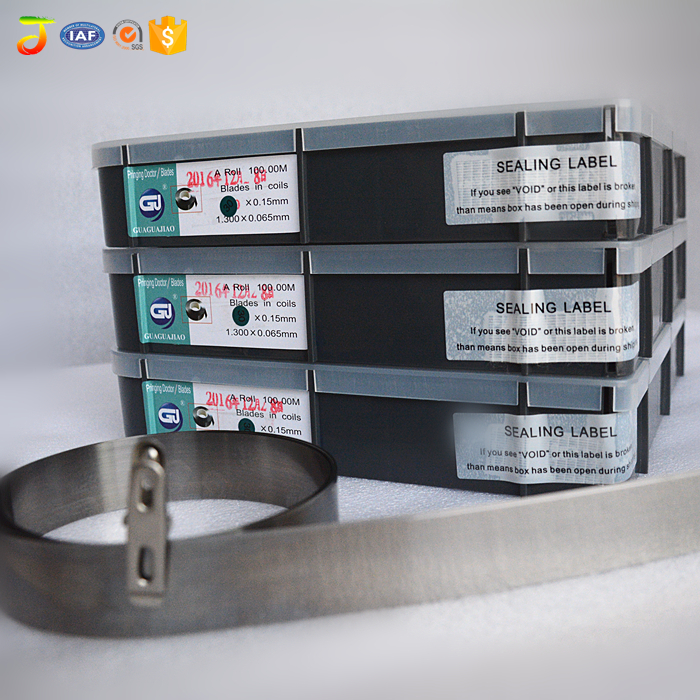

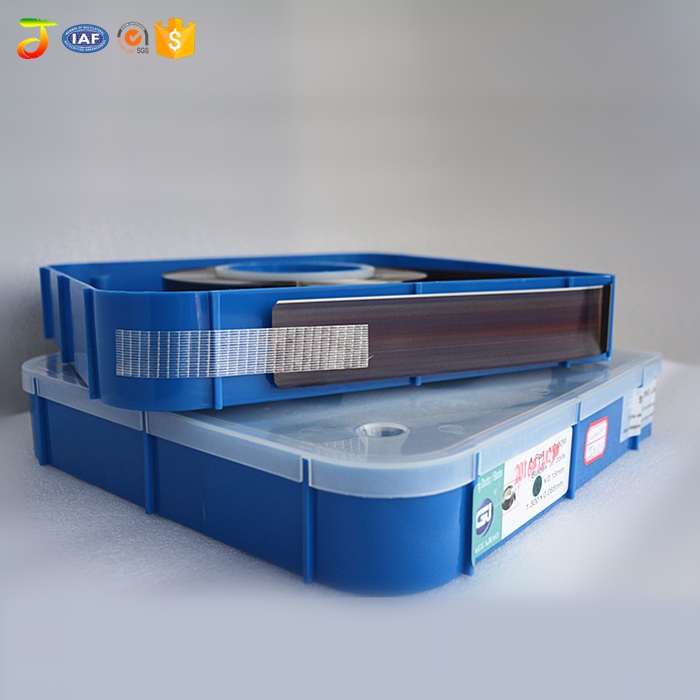

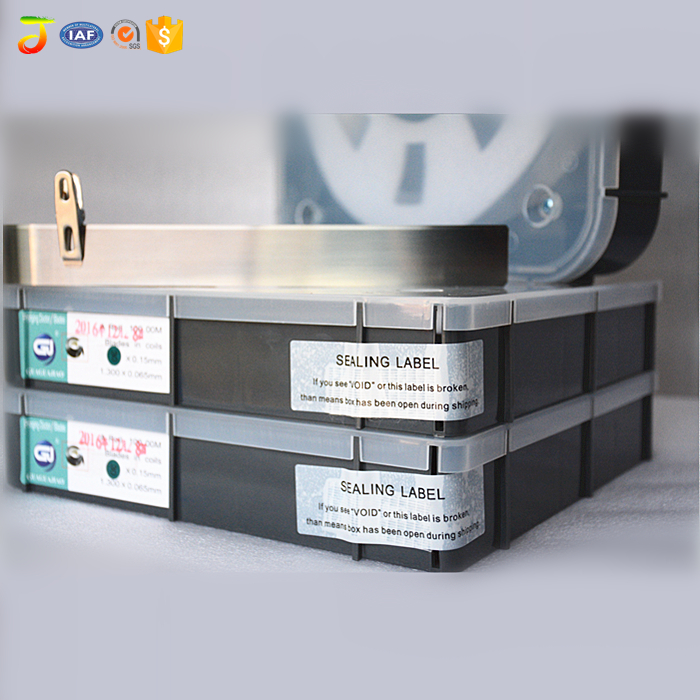

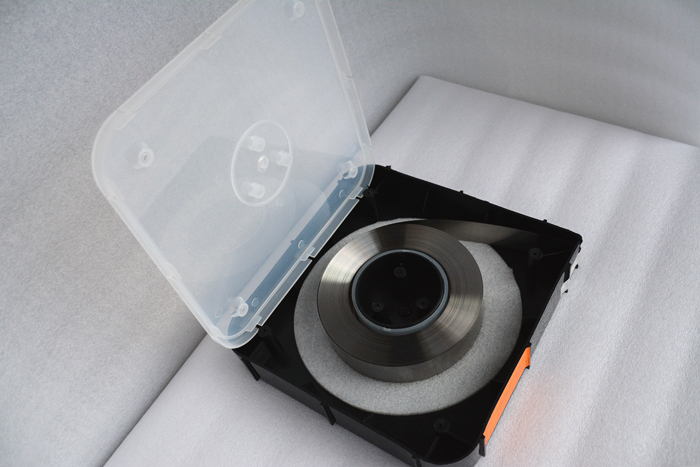

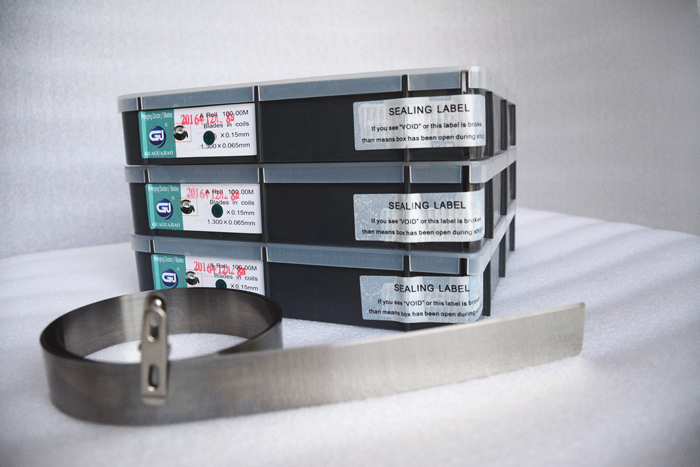

Packaging:
Standard export carton, also can be packaged as customer's requirement.
Detail: According to customer’s requirement
