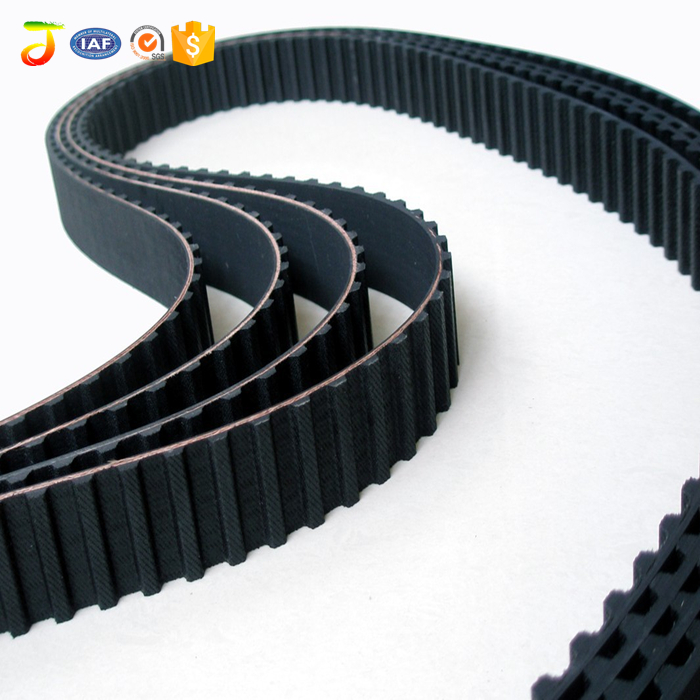

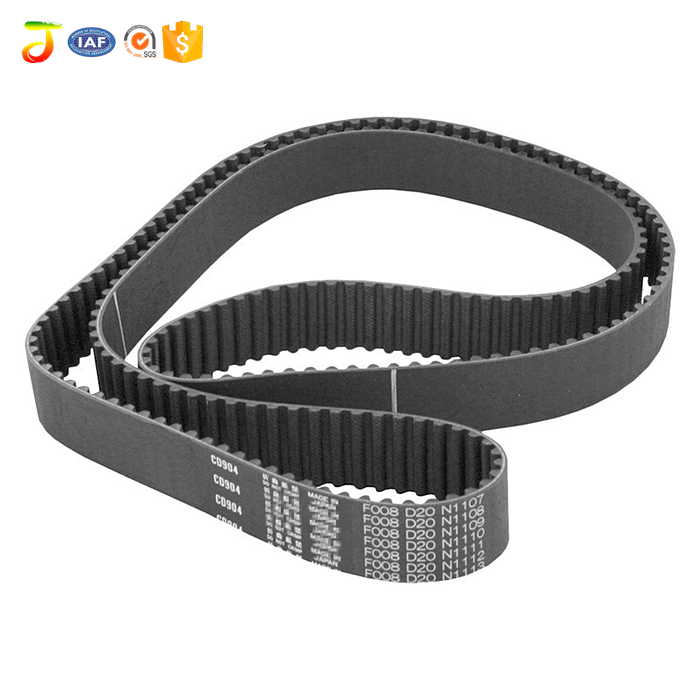

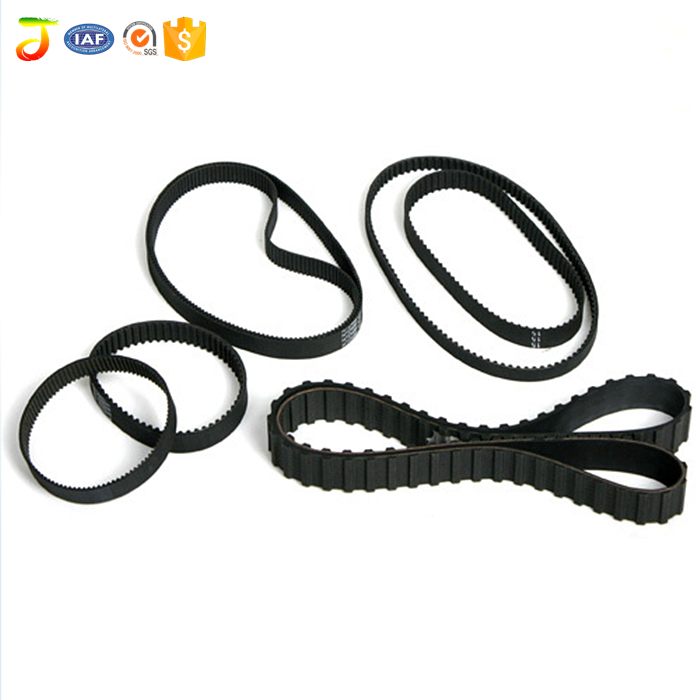

High quality timing belt with kevlar cord
Conditionally resistance to oil.
Temperature range, depending on application, from – 20℃ to + 100 ℃
Resistance to aging and ozone.
Maintanance-free.
Suitable for counterbending.
High quality timing belt with kevlar cord
In accordance with the requirements of industry we draw up the economic and environmental performance parameters demanded by the the market for industrial synchronous belts and timing belts in order to maximize performance, technical design, safety and convenience.
Conditionally resistance to oil.
Temperature range, depending on application, from – 20℃ to + 100 ℃
Resistance to aging and ozone.
Maintanance-free.
Suitable for counterbending.
Specifications of High quality timing belt with kevlar cord
Model | Tooth Pitch(mm) | Tooth Height(mm) |
|
XL | 5.08 | 1.27 | 2.3 |
L | 9.525 | 1.91 | 3.6 |
H | 12.7 | 2.29 | 4.3 |
XH | 22.225 | 6.35 | 11.2 |
XXH | 31.75 | 9.53 | 15.7 |
T5 | 5 | 1.2 | 2.2 |
T10 | 10 | 2.5 | 4.5 |
T20 | 20 | 5 | 8 |
AT5 | 5 | 1.2 | 2.7 |
AT10 | 10 | 2.5 | 5 |
AT20 | 20 | 5 | 8 |
3M | 3 | 1.17 | 2.4 |
5M | 5 | 2.06 | 3.8 |
8M | 8 | 3.36 | 6 |
14M | 14 | 6.02 | 10 |
20M | 20 | 8.4 | 13.2 |
S3M | 3 | 1.14 | 1.9 |
| S5M | 5 | 1.17 | 3.4 |
| S8M | 8 | 3.05 | 5.3 |
S14M | 14 | 5.3 | 10.2 |
Chemical properties of High quality timing belt with kevlar cord
It resist aging,hydrolysis,ultraviolet ray UVA and ozone
Operating temperature -30℃-80℃,it can bear max.+110℃ within a short period of time
Highly oil and grease resistance
It resists partial acid and alkali corrosion
Features & Benefits of High quality timing belt with kevlar cord
Trapezoidal tooth profile
High efficiency due to positive engagement between belt teeth and pulley grooves
No re-tensioning required
No high tension required
1. How can I get the quotation?
Please tell us the model and details you want,then we can quote you accordingly.
2. What’s your MOQ basis?
10pieces.
3. What about the lead time for production?
It depends on the order quantity and the type of products. It is about 8 days.
