Passport aluminium foil die cutting machine hydraulic type
| Model | YMQ-115 | |
| Max.Die-cut size | 140*140mm | |
| Min.Die-cut size | 20*20mm | |
| Max.Die-cut height | 200mm | |
| Working speed | 12 Time/min | |
| Cutting materials | Paper,plastic card and other materials | |
| Application | Industrial Paper Cutting Machine | |
| Die-cut pressure | 3 T | |
| Machine type | Die cutting machine | |
Passport aluminium foil die cutting machine hydraulic type
Pictures of product:
New Product
Product Instruction
Function of product:

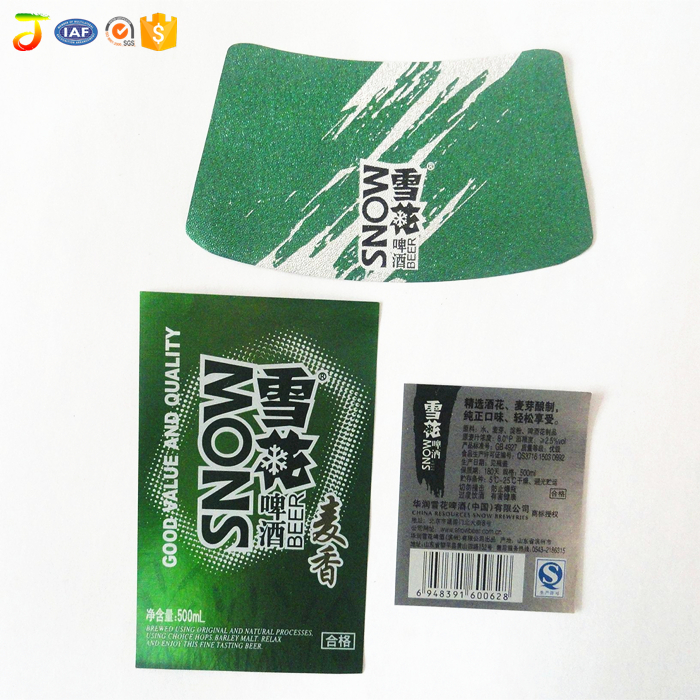

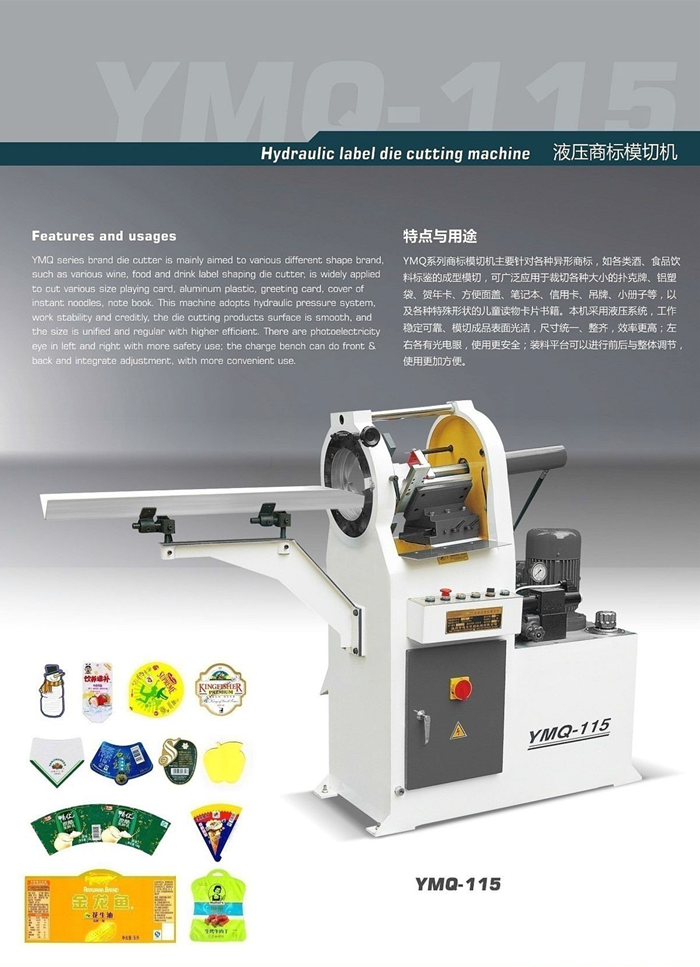

YMQ series brand die cutter is mainly aimed to various different shape brand, such as various wine, food and drink label shaping die cutter.
Application of product:

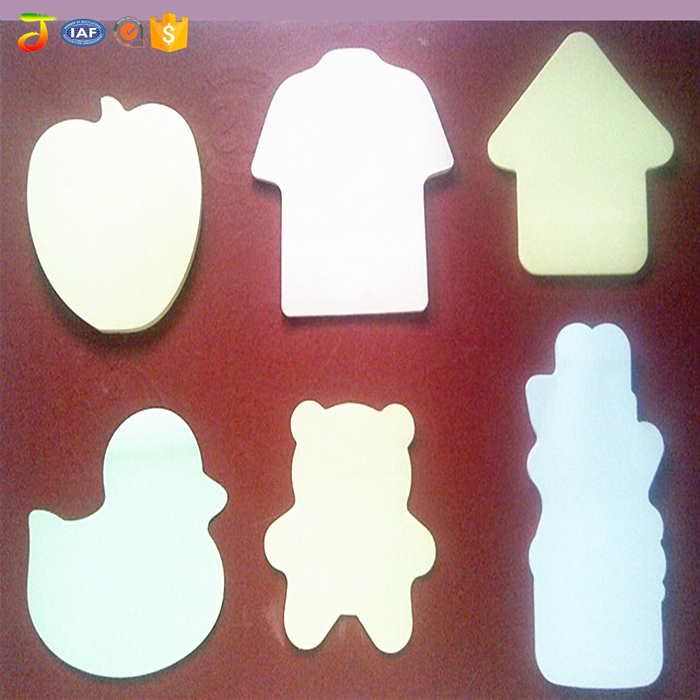

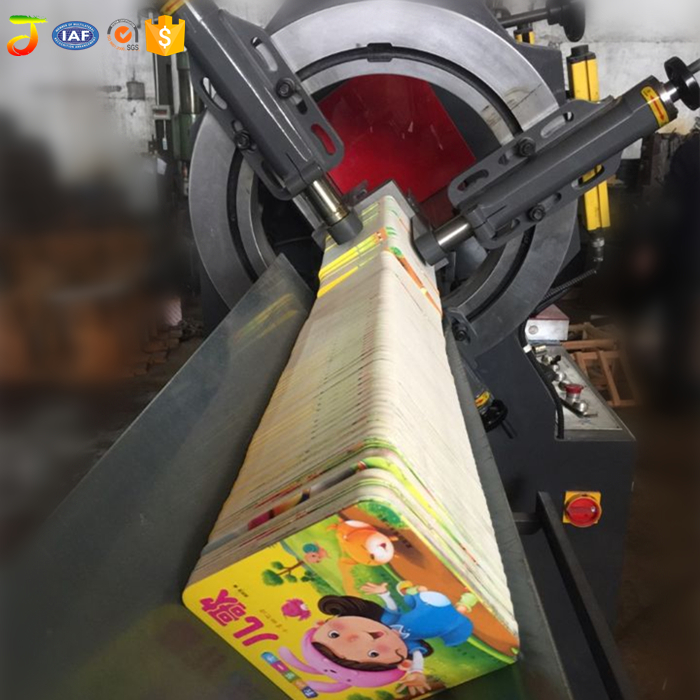

Widely applied to cut various size playing card, aluminum plastic, New year card, instant noodles, note book. Credit card, drop and handbook etc, and various special shape children reading book.
Advantage of product:
This machine adopts hydraulic pressure system, work stability and crudity, the die cutting products surface is smooth, and the size is unified and regular with higher efficient. There are photo electricity eye in left and right with safer use; the charge bench can do front & back and integrate adjustment, with more convenient use.

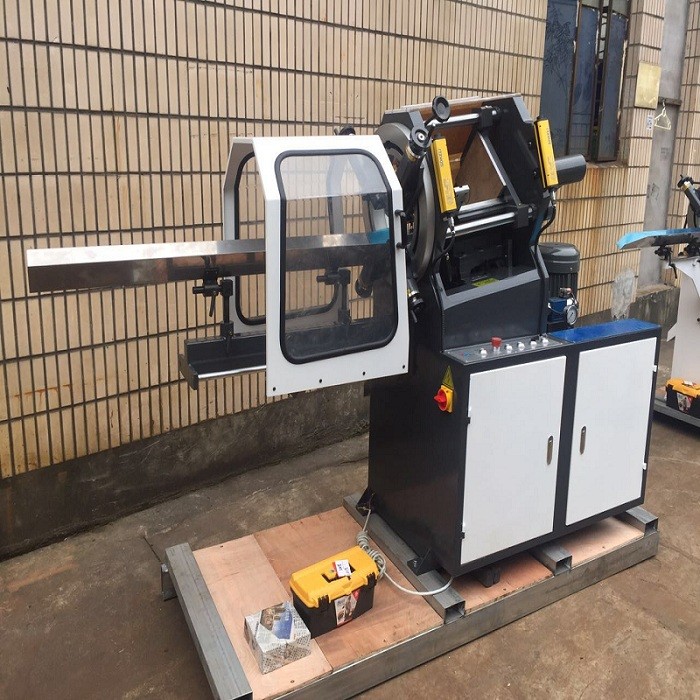

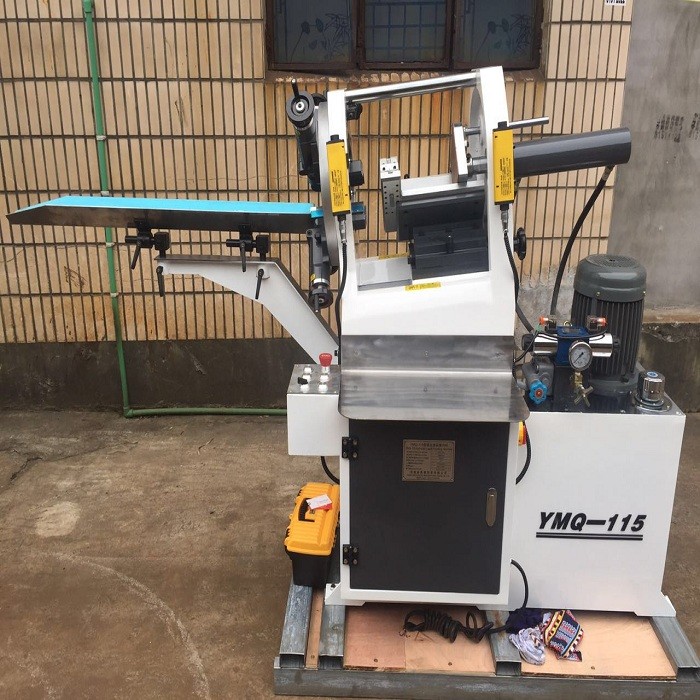

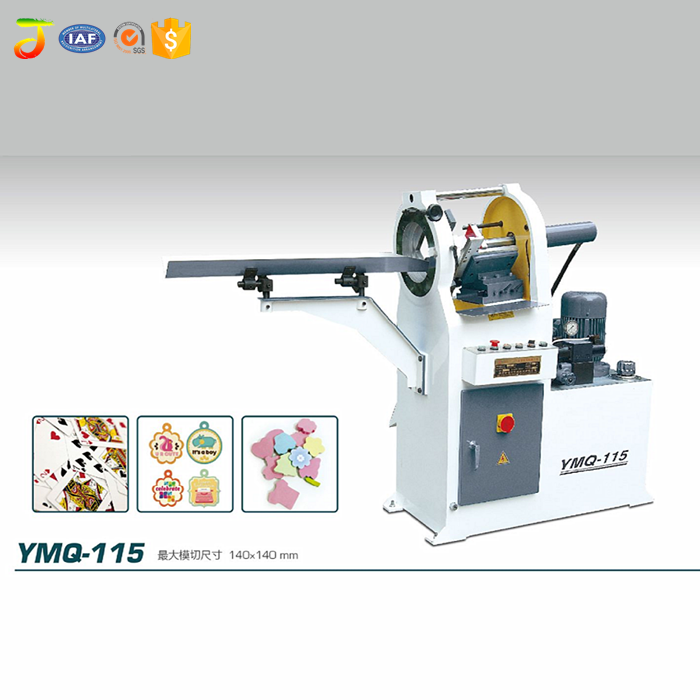

Whole set machine of YMQ-115

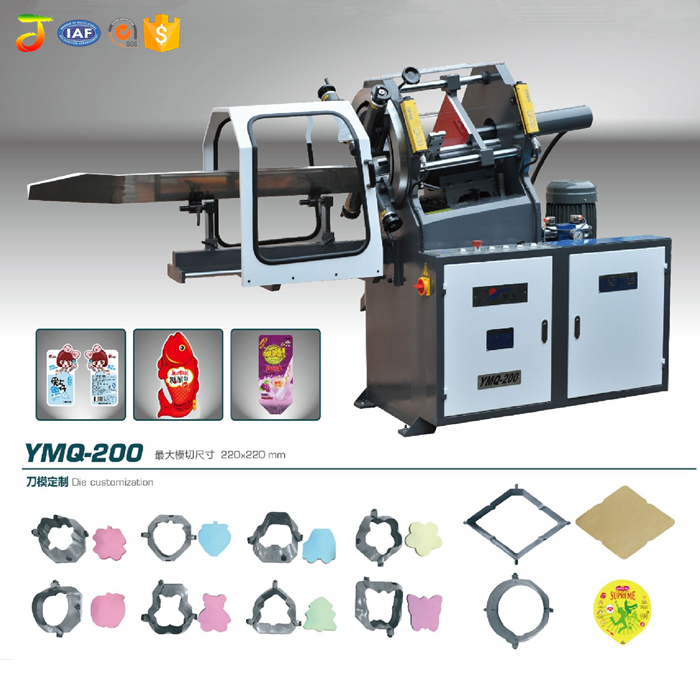

Whole set machine of YMQ-200

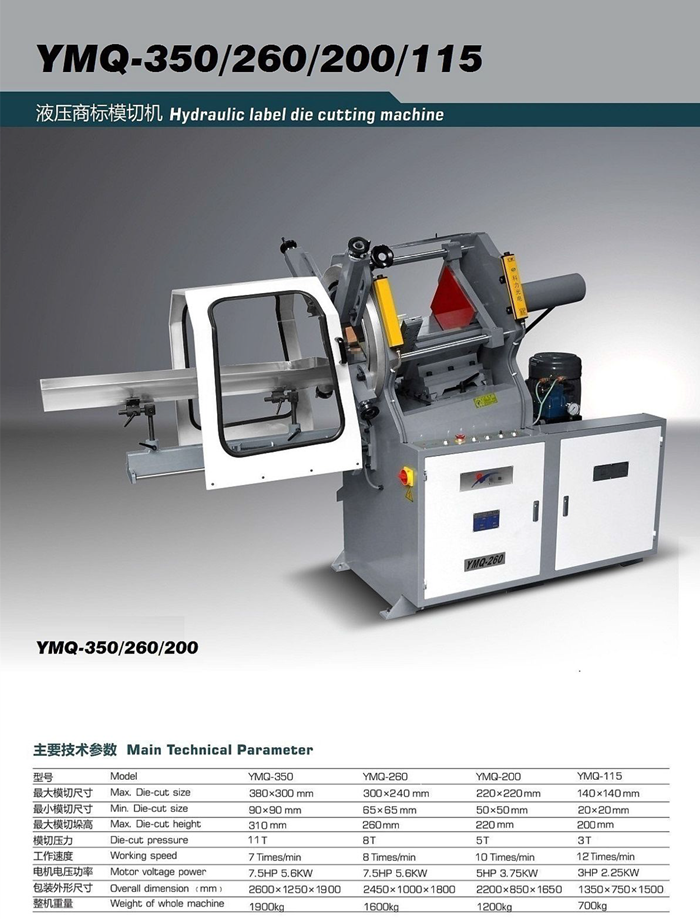

Main Technical Parameter of Die cutting machine:
| ||||
Model | YMQ-350 | YMQ-260 | YMQ-200 | YMQ-115 |
Max.Die-cut size | 380*300mm | 300*240mm | 220*220mm | 140*140mm |
Min.Die-cut size | 90*90mm | 65*65mm | 50*50mm | 20*20mm |
Max.Die-cut height | 310mm | 260mm | 220mm | 200mm |
Die-cut pressure | 11 T | 8 T | 5 T | 3 T |
Working speed | 7 Times/min | 8 Times/min | 10 Times/min | 12 Time/min |
Motor voltage power | 7.5HP 5.6KW | 7.5HP 5.6KW | 5HP 3.75KW | 3HP 2.25KW |
Overall dimension(mm) | 2600*1250*1900 | 2450*1000*1800 | 2200*850*1650 | 1350*850*1480 |
Weight of whole machine | 1900kg | 1600kg | 1050kg | 680kg |

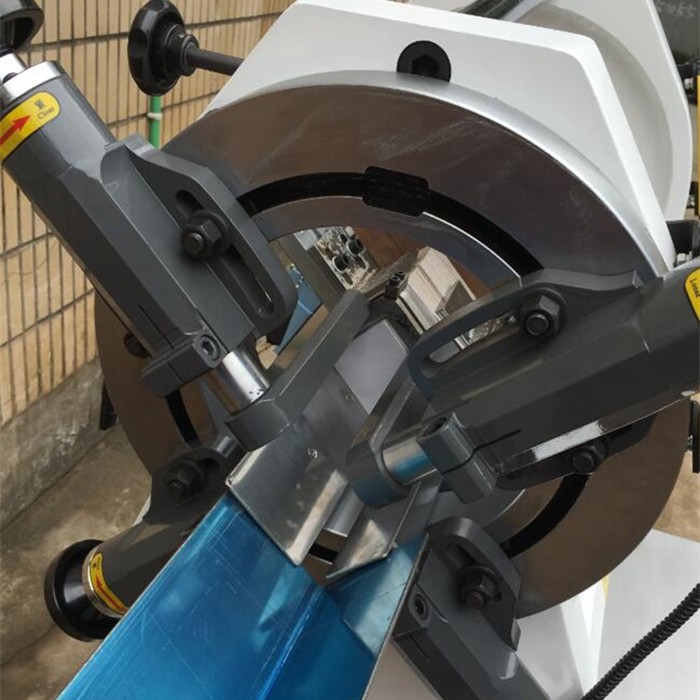

Old blade adapter of YMQ-115

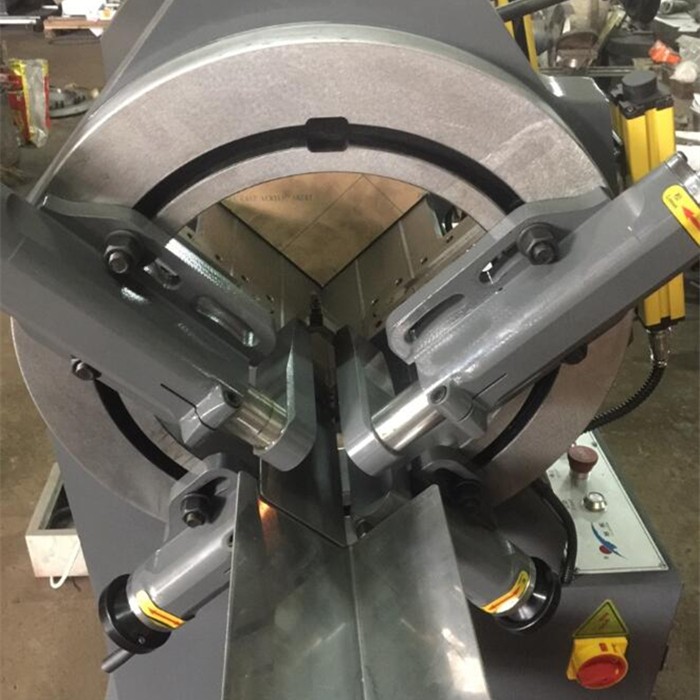

New blade adapter of YMQ-115

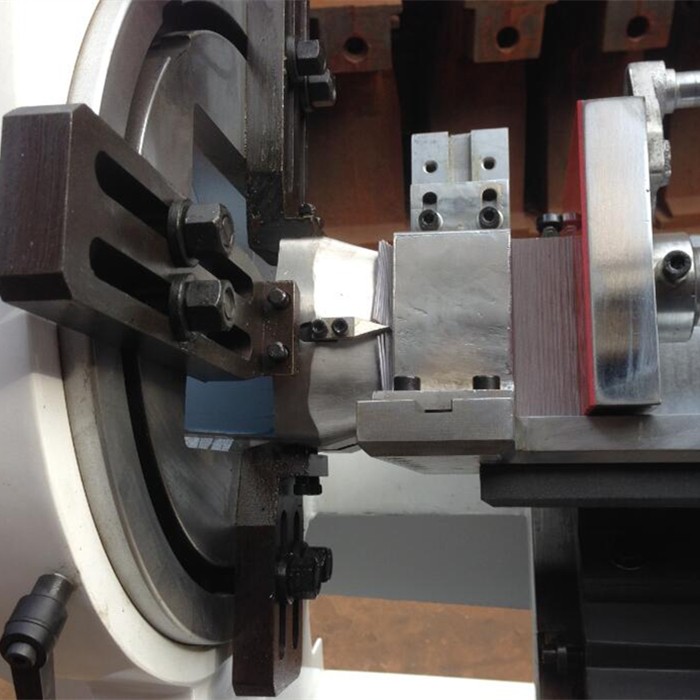

Blade adapter of YMQ-200

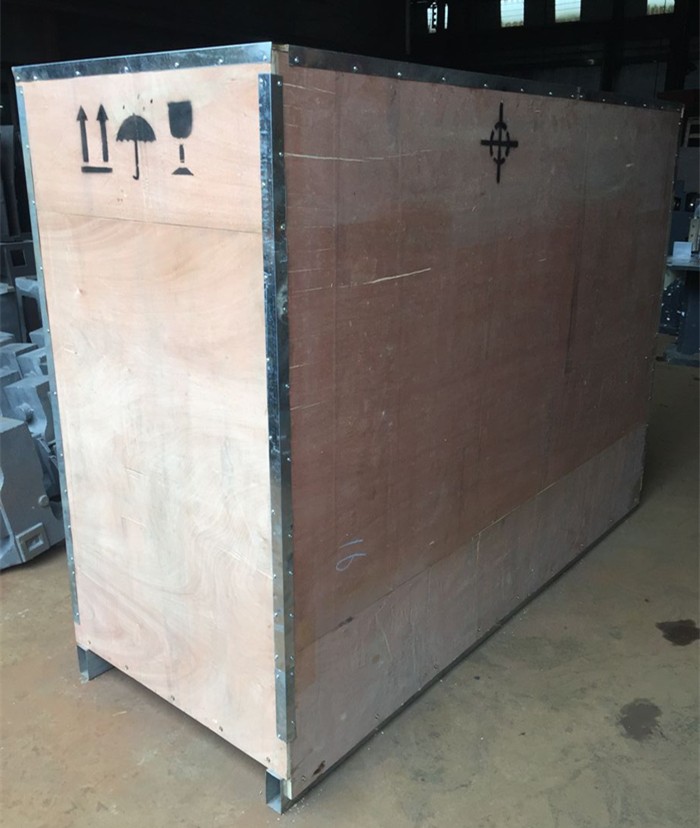

Package wooden case
