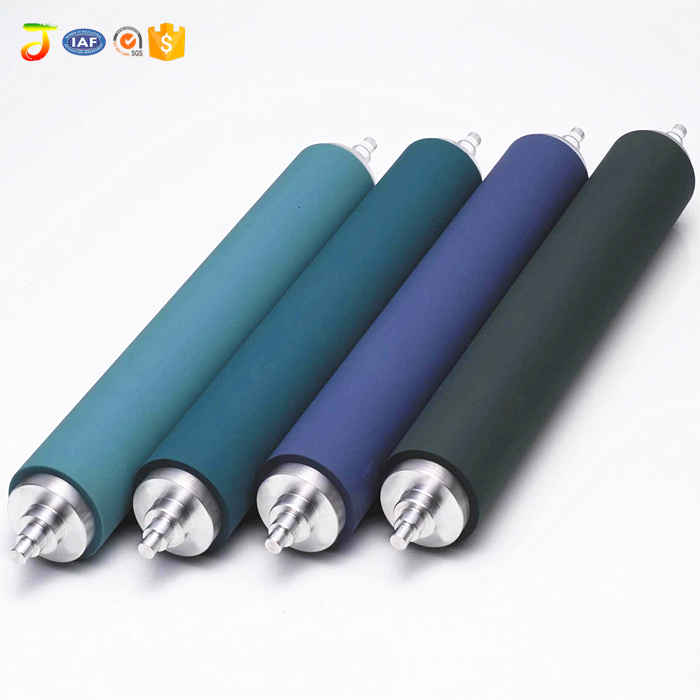

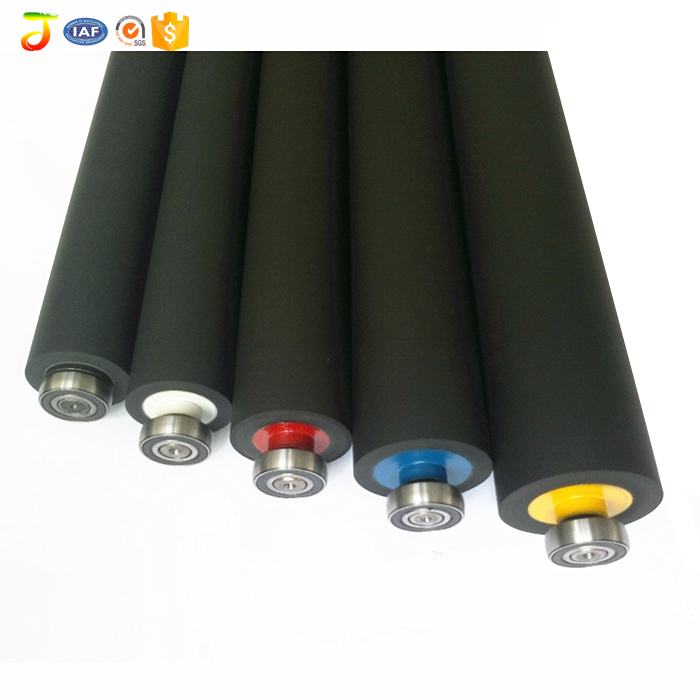

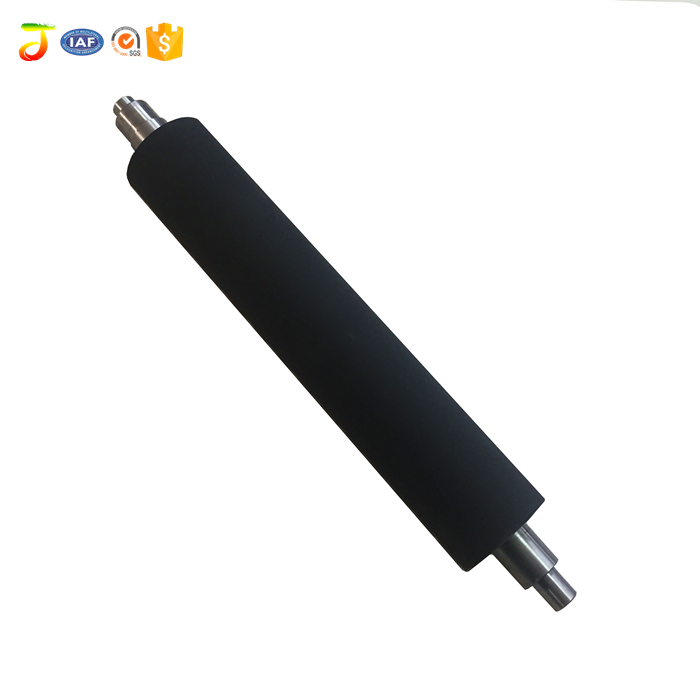

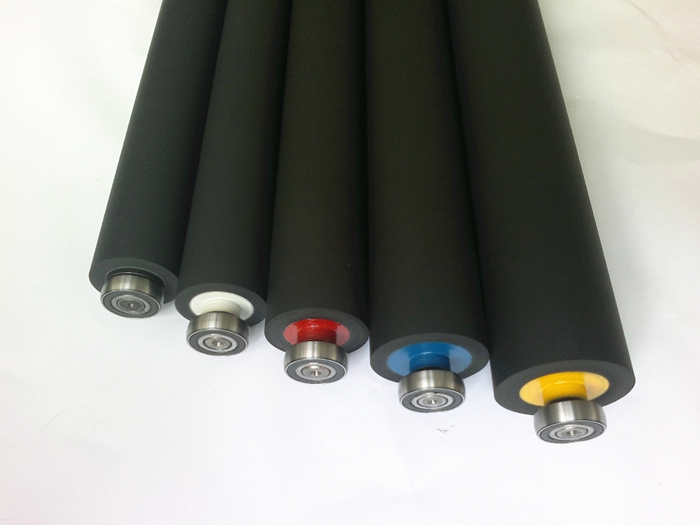

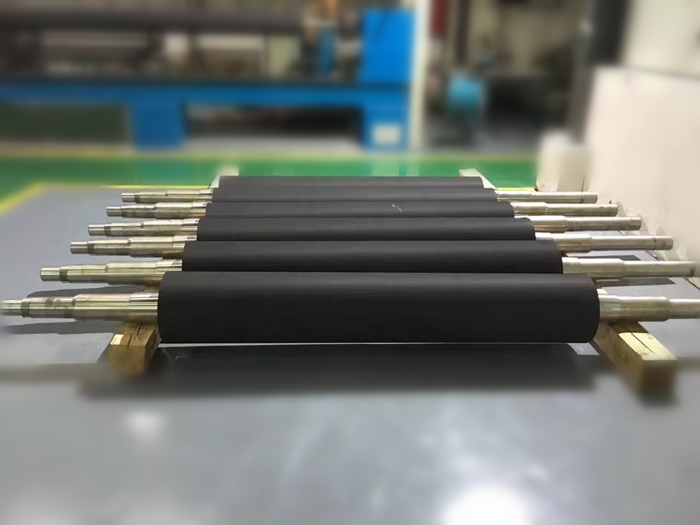

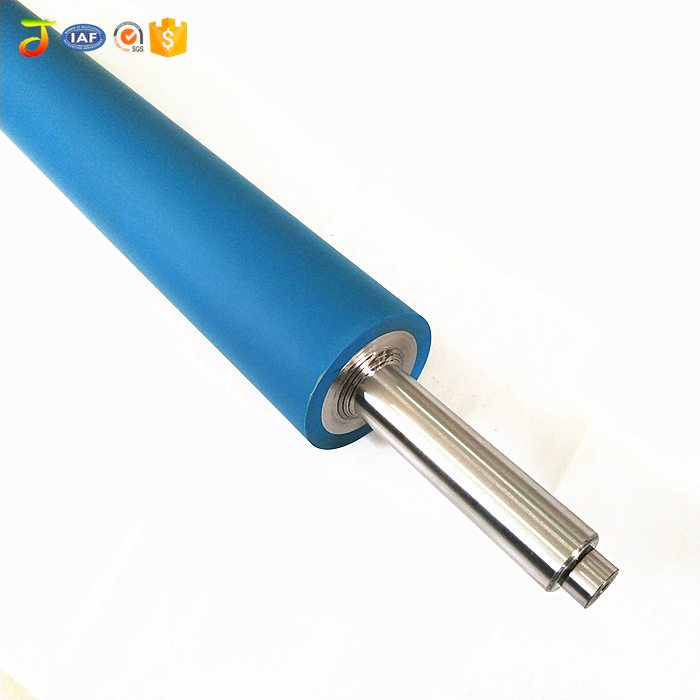

Aluminum core Nitrile Butadiene Rubber roll for offset printing machine
| Size | Customer's Drawing |
| Diameter | 10MM-670MM |
| Length | 50MM-8200MM |
| Material | NBR,Silicone,rubber |
| Hardness | 45A-100D |
| Tolerance | 0.05mm |
| Temperature- resistance | Max.300degree |
| Color | Black,red,white,and so on |
| Roll core | Carbon steel seamless pipe, 304,316bar |
| Spindle head | 304,316,2Cr13,45steel |
| Application | industrial machine, printing machine and packaging machines and so on |
| Other name | rubber rollers |
| MOQ | 1PCS |
| Delivery time | 14days afer advance payment received |
| Package | Wooden box or paper core |
1. Features of rubber roller
1.Ozone and Chemical resistance
2.Anti-aging, good flexibility, good elasticity
3.Excellent oil resistance
4.Clean and healthful for many food and medical applications
2.Specification of rubber rollers
| size | According To Customer's Drawing (For offset printing roller,please tell us the model and we can check if we have the drawing ) |
| Diameter | 10MM-670MM,Length:50MM-8200MM |

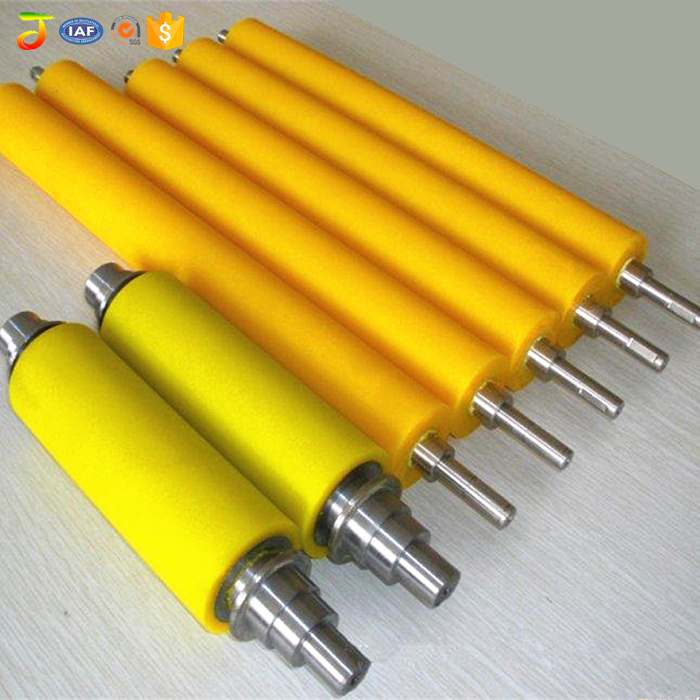

| Material | NBR,Silicone,Rubber,Polyurethane,EPDM, hypalon ETC |
| Hardness | 45A-100D |
| Tolerance | 0.05mm |
| Temperature | According customers's requirements |

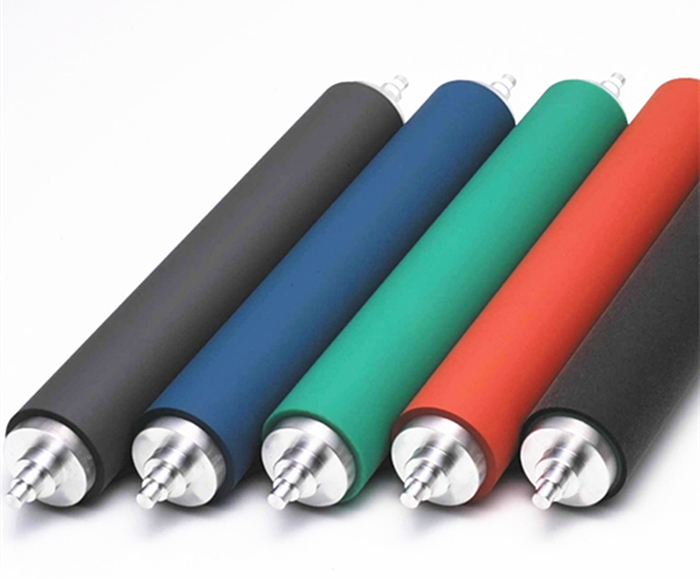

| Color | Red, Black, White, Clear, etc can do the color base on your pantone NO. |
| Roll core | stainless steel,45#steel or 20#steel or 5#aluminum seamless pipe |
| Application | Printing roller,Stretch roller,Back-up roller,Hot stamping pressure roller,Water roller,Traction roller,Ink roller,Gravure pressure roller,Alcohol water roller,,Laminating roller,Textile roller and so on |
3. Advantages of our rubber roller
A.Raw materials ：

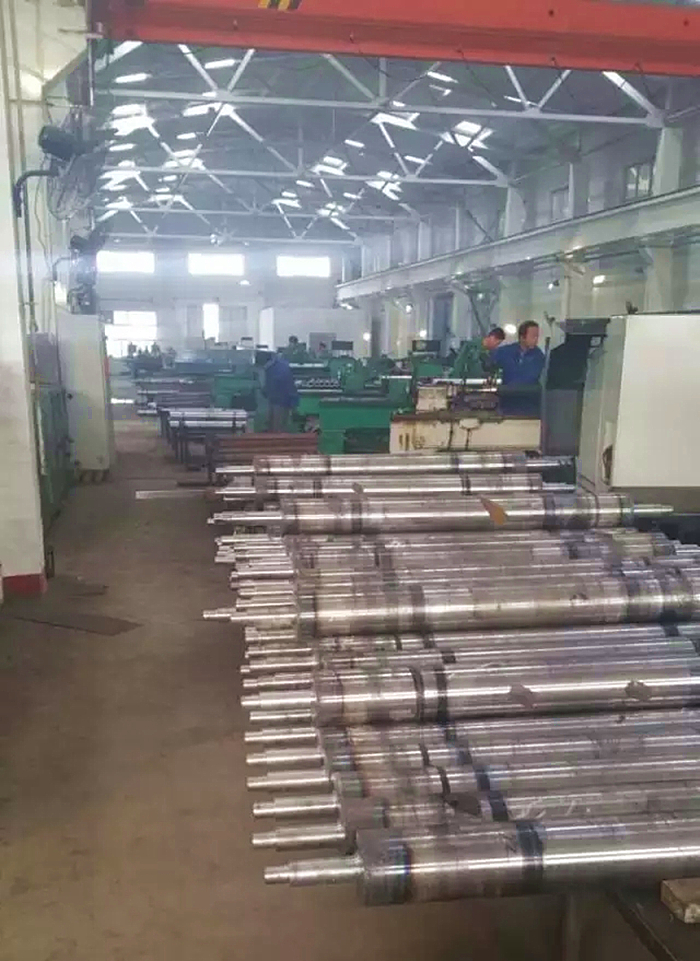

1) Base roller:
we are using is #45 steel or #20steel and 5# aluminum seamless pipe.And we are adopting a reasonable thickness base roller according to customer’s drawing. Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.
2）Rubber:

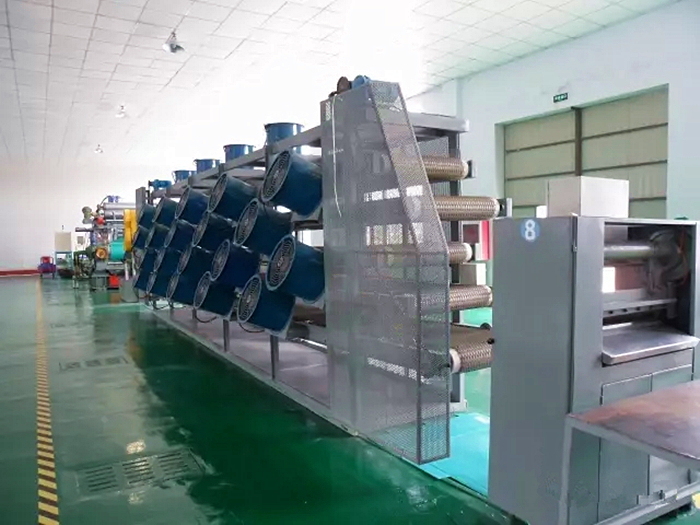

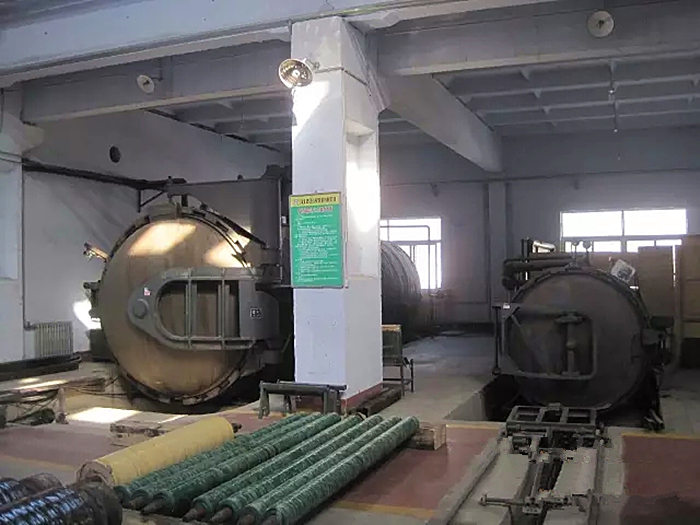

our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we casting the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.
While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.
B. Production process：
1）Dynamic balancing:
Before installing shaft head, we will do dynamic balancing test twice for each rubber roller,which will ensure the using effect.
2) Hot charging technicals:
Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.
FAQ
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place the order?
Please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.Or you need rollers for famous brand machine ,like Heildberg,KBA,Roland,we normally have its drawing,so you just need to tell us your machine model number.
3. What’s your MOQ basis?
1 piece or 1 set,it depends on your actual requirement.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products.
