Specification of industrial die cutting machines for trademark
Model | YMQ-350 | YMQ-260 | YMQ-200 | YMQ-115 |
Max.Die-cut size | 380*300mm | 300*240mm | 220*220mm | 140*140mm |
Min.Die-cut size | 90*90mm | 65*65mm | 50*50mm | 20*20mm |
Max.Die-cut height | 310mm | 260mm | 220mm | 200mm |
Die-cut pressure | 11T | 8 T | 5 T | 3 T |
Working speed | 7 Times/min | 8 Times/min | 10 Times/min | 12 Times/min |
Motor voltage power | 7.5HP 5.6KW | 7.5HP 5.6KW | 5HP 3.75KW | 3HP 2.25KW |
Overall dimension(mm) | 2600*1250*1900 | 2450*1000*1800 | 2200*850*1650 | 1350*750*1500 |
Weight of whole machine
| 1900kg | 1600kg | 1200kg | 700kg |
Supplier High Speed Hardware Punching Automatic Die Cutting Machine For Sales In Jinan.
Description of industrial die cutting machines for trademark
YMQ series brand die cutting machine is mainly aimed to various different various wine, food and drink label shaping die cutter, is widely applied to cut various size of beer label, playing card, aluminum plastic, New year card, instant noodles, note book ,credit card, drop and handbook etc…and various special shape children reading book.
Features of industrial die cutting machines for trademark
1. Widely use: It is Suitable for the production of labels, playing cards, aluminum plastic, New year card, notebook, envelopes of any design or size.
2. High efficiency: with an average production of about 900.000 production of high precision hourly.
3. This machine adopts hydraulic pressure system.
4. With a push-cube self-adjusting to every position of the "V" hold where the pack is positioned
5. The working table has a photoelectric cell which gives maximum safety to the operator and allows
6. The working process stability, products surface is smooth, and the size is unified and regular with high precision
Specification of industrial die cutting machines for trademark
Model | YMQ-350 | YMQ-260 | YMQ-200 | YMQ-115 |
Max.Die-cut size | 380*300mm | 300*240mm | 220*220mm | 140*140mm |
Min.Die-cut size | 90*90mm | 65*65mm | 50*50mm | 20*20mm |
Max.Die-cut height | 310mm | 260mm | 220mm | 200mm |
Die-cut pressure | 11T | 8 T | 5 T | 3 T |
Working speed | 7 Times/min | 8 Times/min | 10 Times/min | 12 Times/min |
Motor voltage power | 7.5HP 5.6KW | 7.5HP 5.6KW | 5HP 3.75KW | 3HP 2.25KW |
Overall dimension(mm) | 2600*1250*1900 | 2450*1000*1800 | 2200*850*1650 | 1350*750*1500 |
Weight of whole machine
| 1900kg | 1600kg | 1200kg | 700kg |

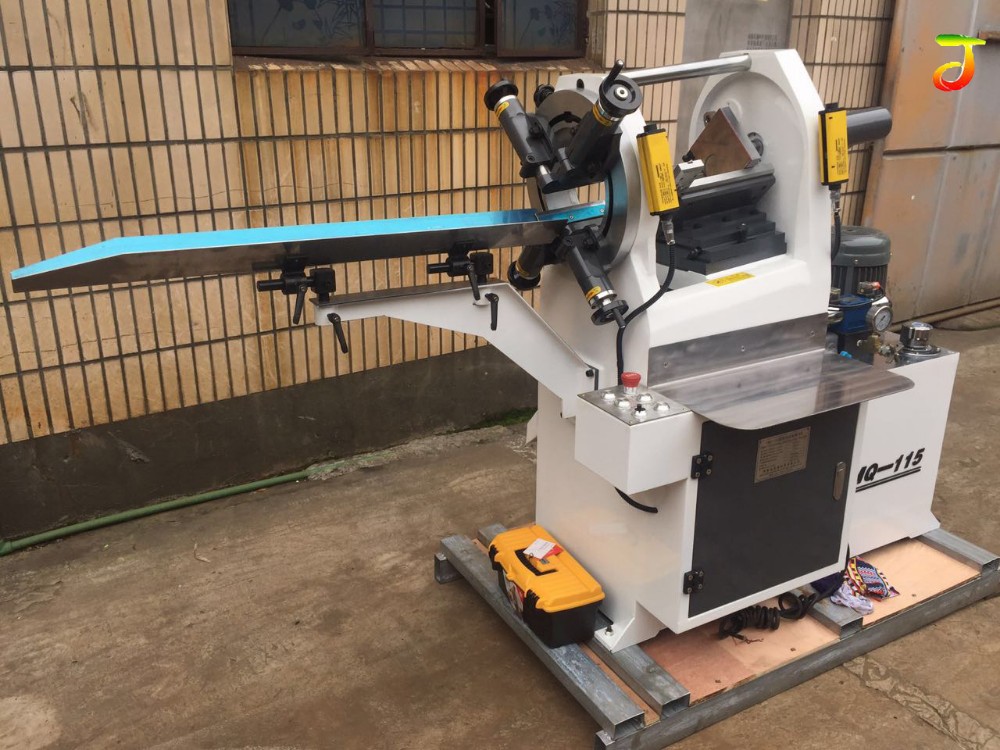

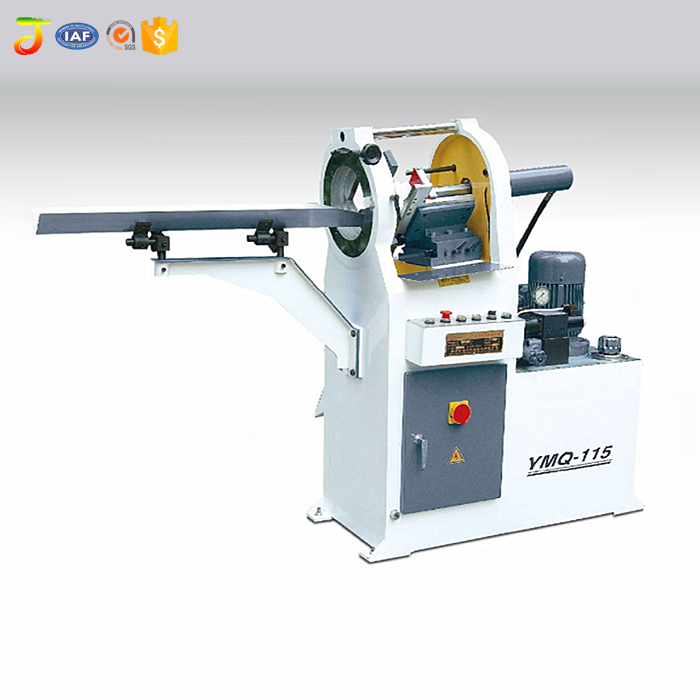

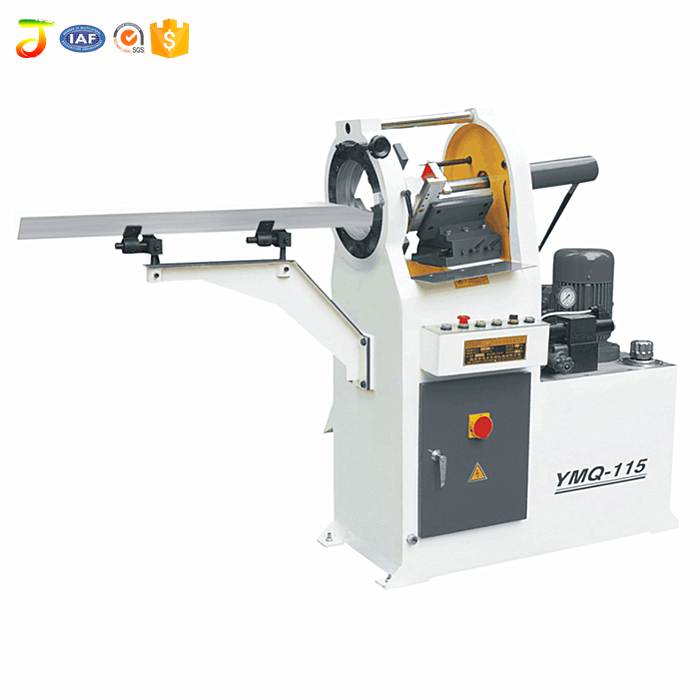

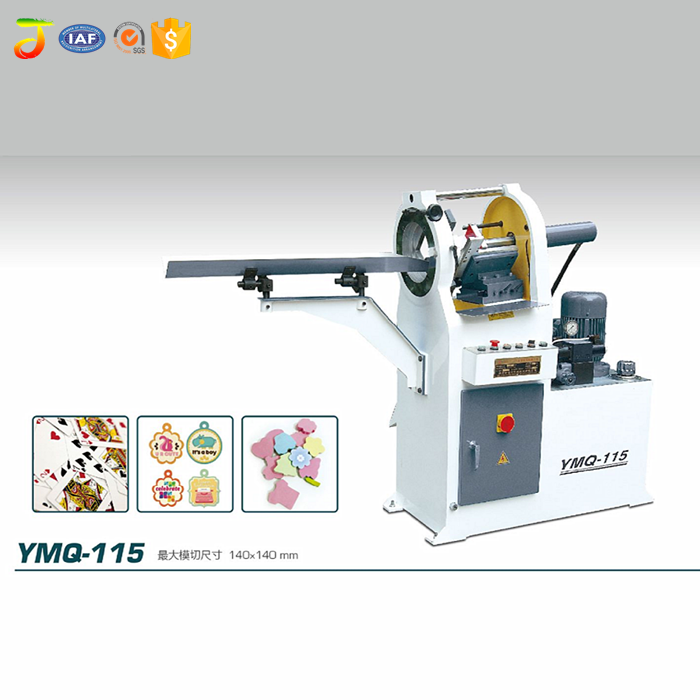

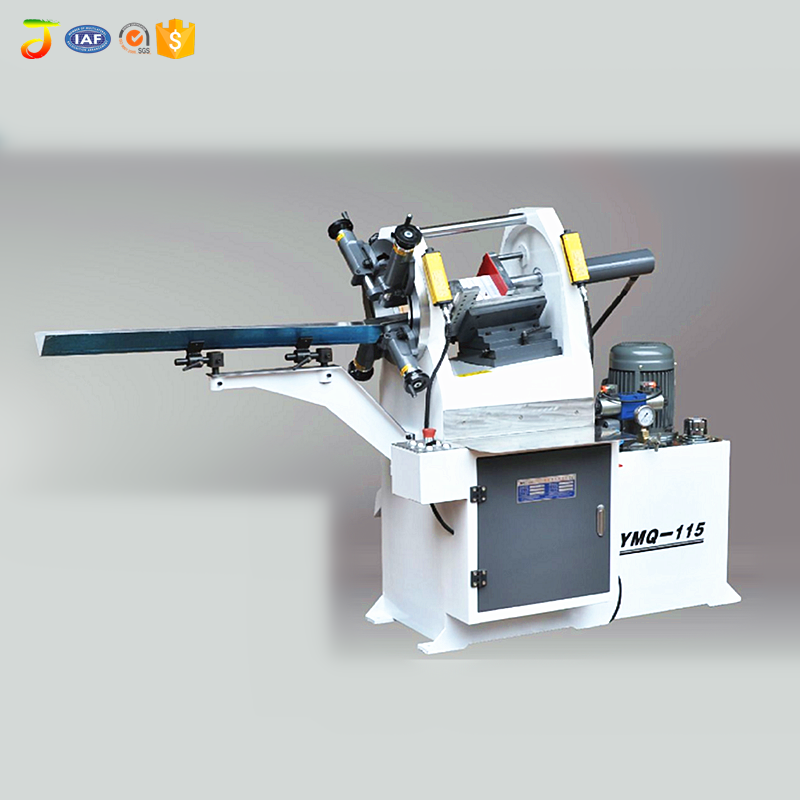

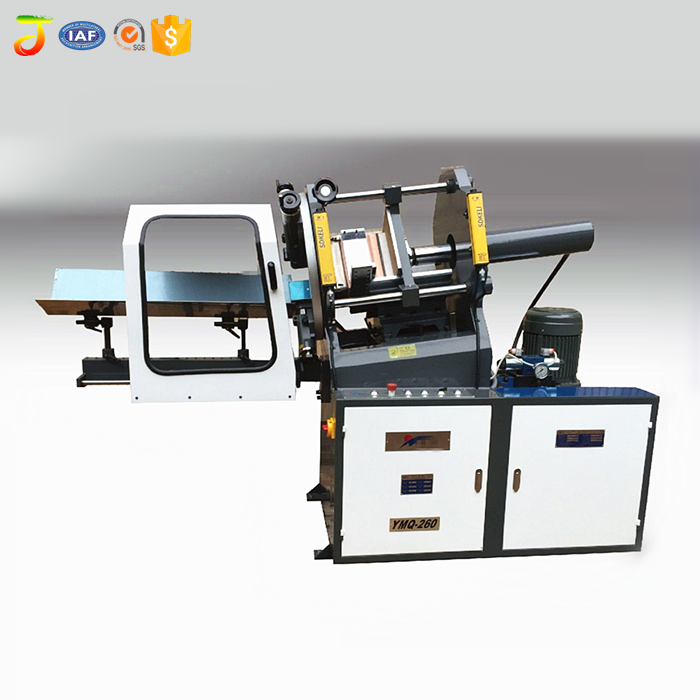

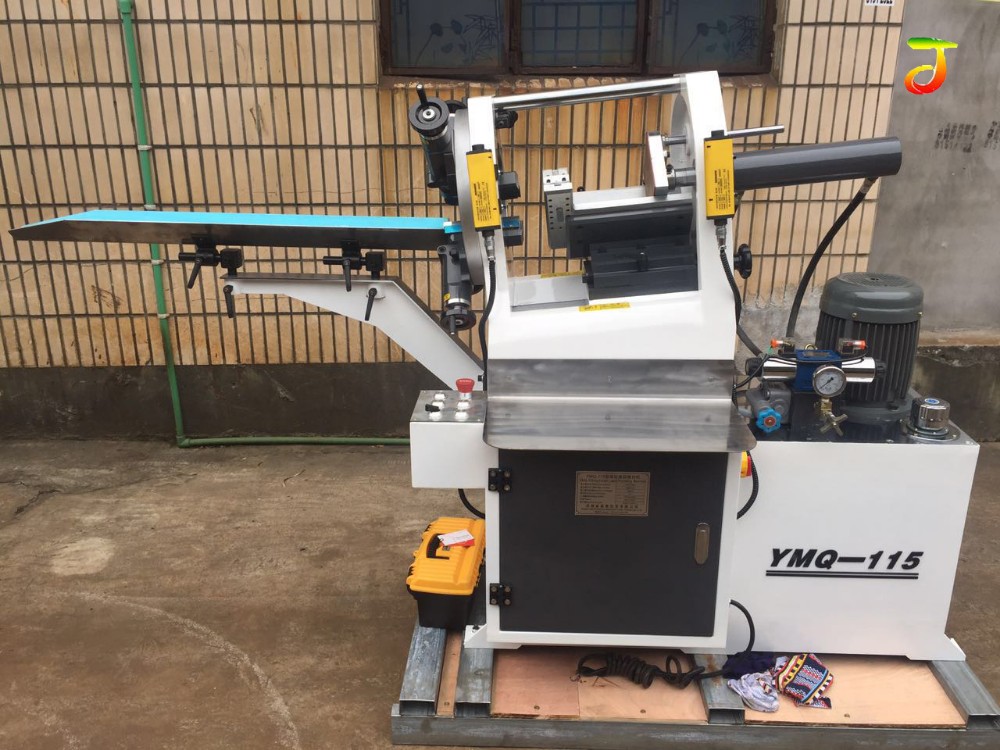

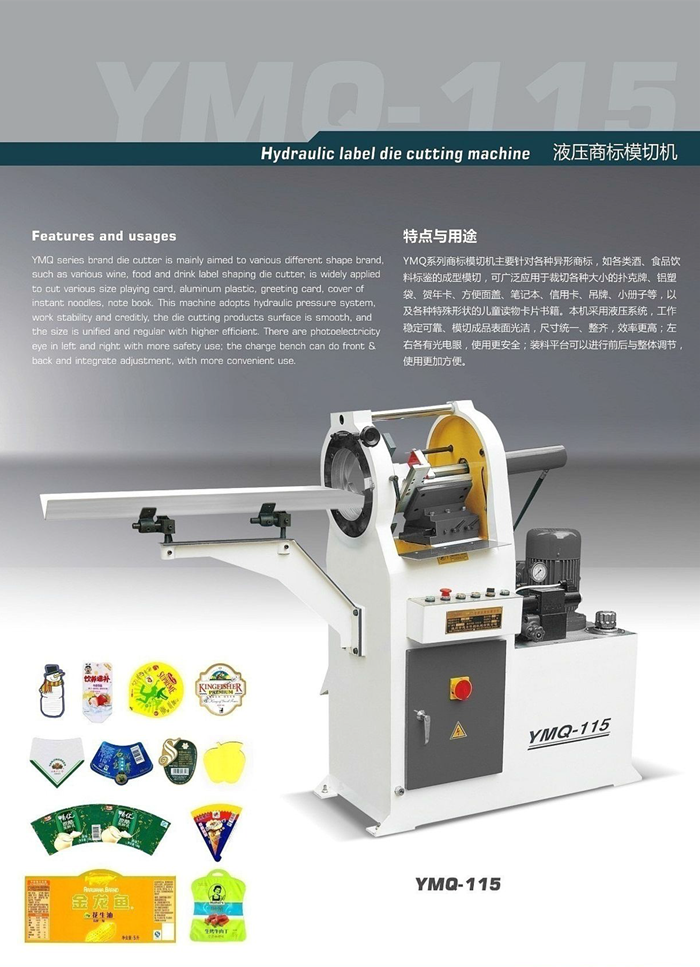

Product picture of industrial die cutting machines for trademark
