YMQ-115 Die cutting machine for paper processing machinery
Product Instruction
Function of product:
YMQ series brand die cutter is mainly aimed to various different shape brand, such as various wine, food and drink label shaping die cutter.
Application of product:
Widely applied to cut various size playing card, aluminum plastic, New year card, instant noodles, note book. Credit card, drop and handbook etc, and various special shape children reading book.
Advantage of product:
This machine adopts hydraulic pressure system, work stability and crudity, the die cutting products surface is smooth, and the size is unified and regular with higher efficient. There are photo electricity eye in left and right with safer use; the charge bench can do front & back and integrate adjustment, with more convenient use.
Main Technical Parameter of Die Cutter:
| ||||
Model | YMQ-350 | YMQ-260 | YMQ-200 | YMQ-115 |
Max.Die-cut size | 380*300mm | 300*240mm | 220*220mm | 140*140mm |
Min.Die-cut size | 90*90mm | 65*65mm | 50*50mm | 20*20mm |
Max.Die-cut height | 310mm | 260mm | 220mm | 200mm |
Die-cut pressure | 11 T | 8 T | 5 T | 3 T |
Working speed | 7 Times/min | 8 Times/min | 10 Times/min | 12 Time/min |
Motor voltage power | 7.5HP 5.6KW | 7.5HP 5.6KW | 5HP 3.75KW | 3HP 2.25KW |
Overall dimension(mm) | 2600*1250*1900 | 2450*1000*1800 | 2200*850*1650 | 1350*750*1500 |
Weight of whole machine | 1900kg | 1600kg | 1200kg | 700kg |
Pictures of product:

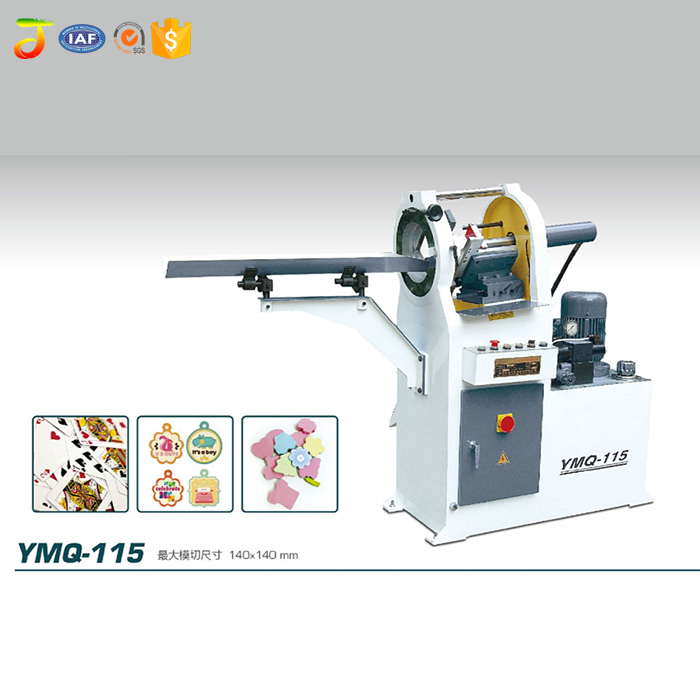

New Product

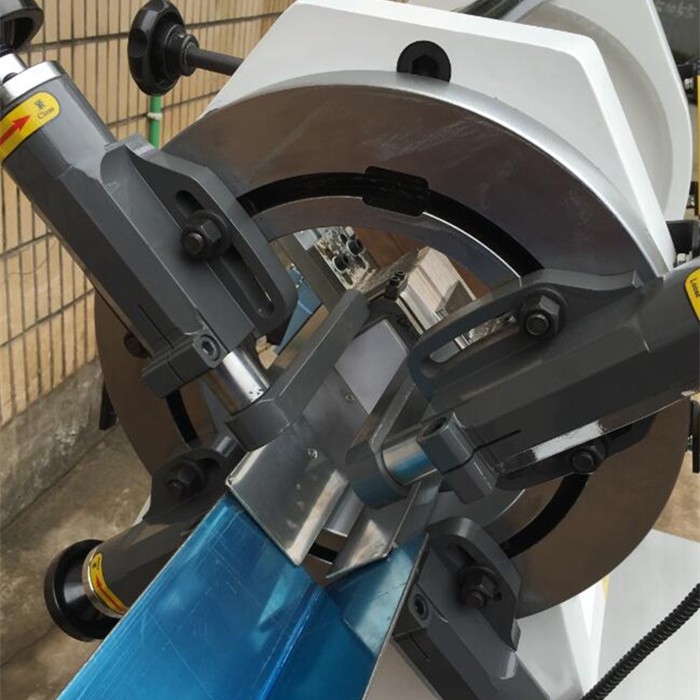

Old blade adapter of YMQ115

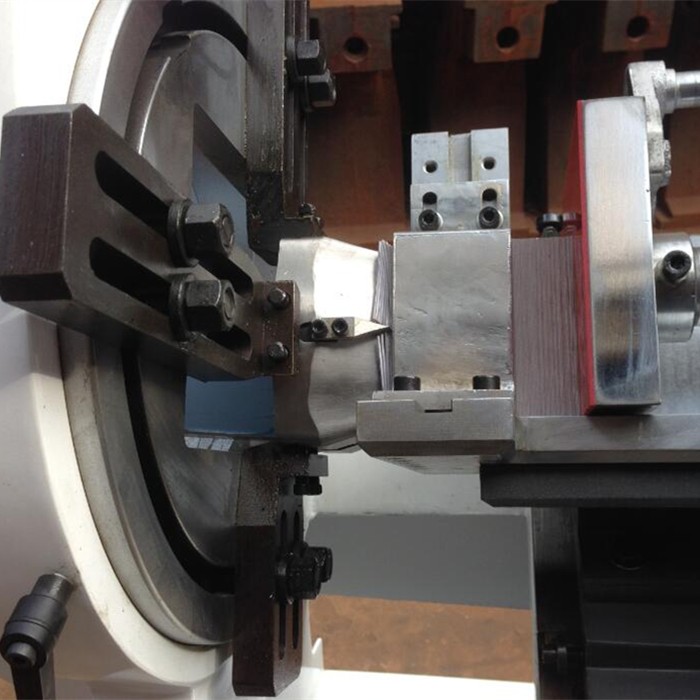

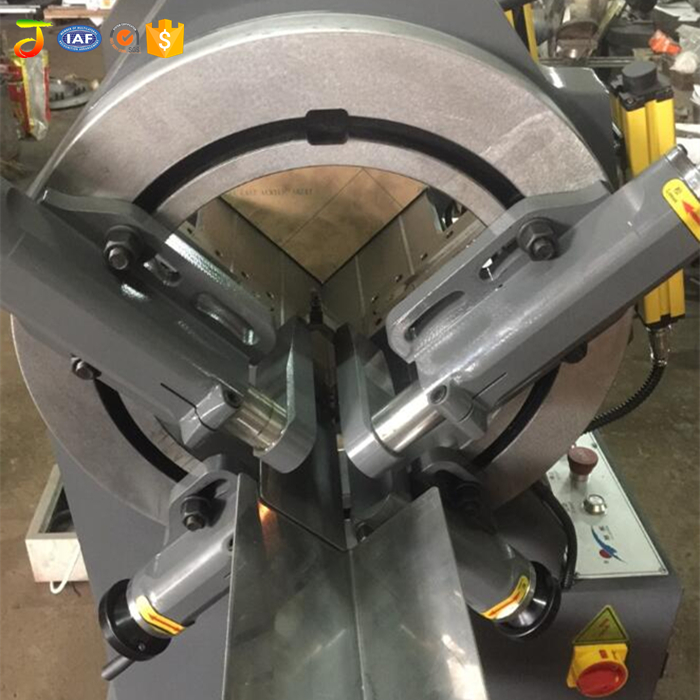

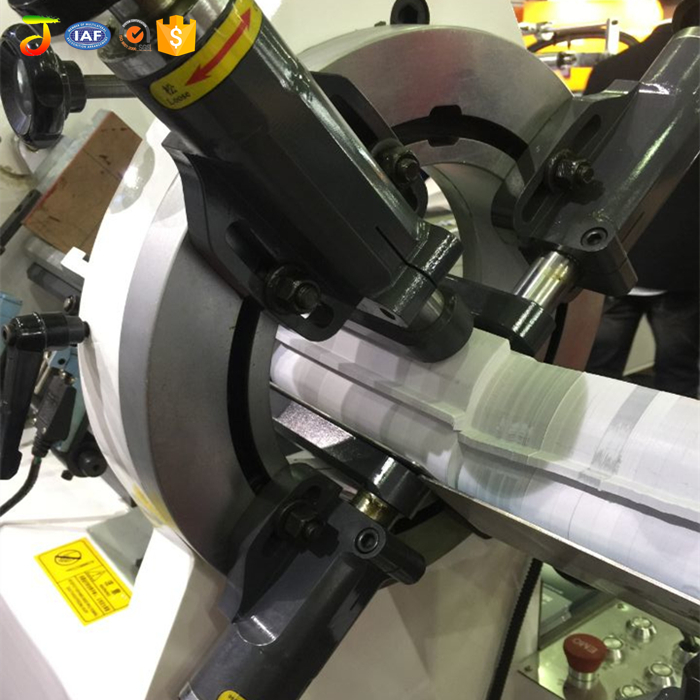

New blade adapter of YMQ115

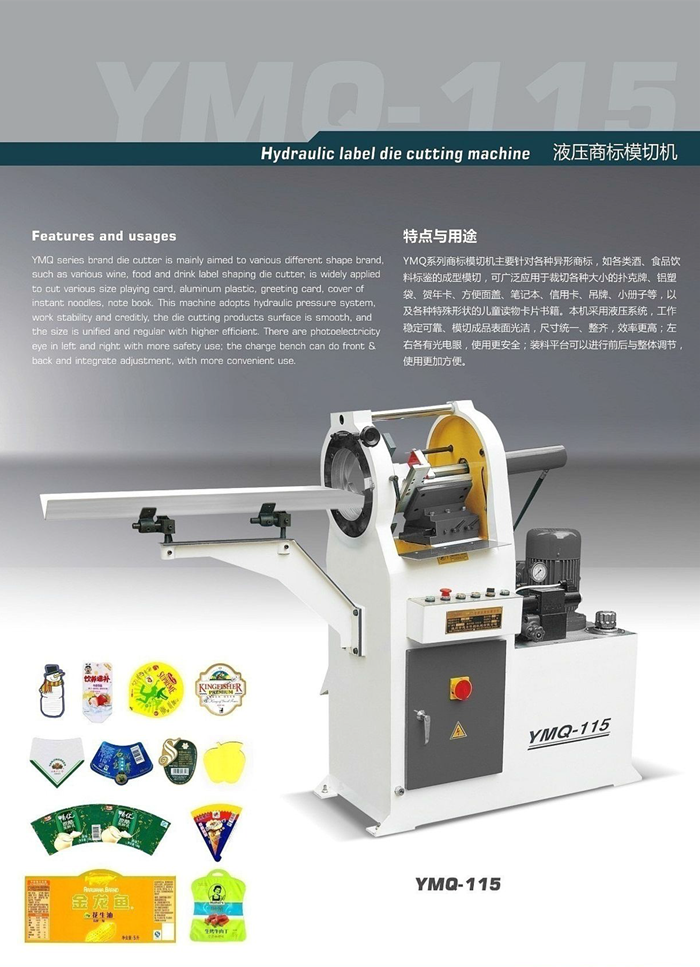

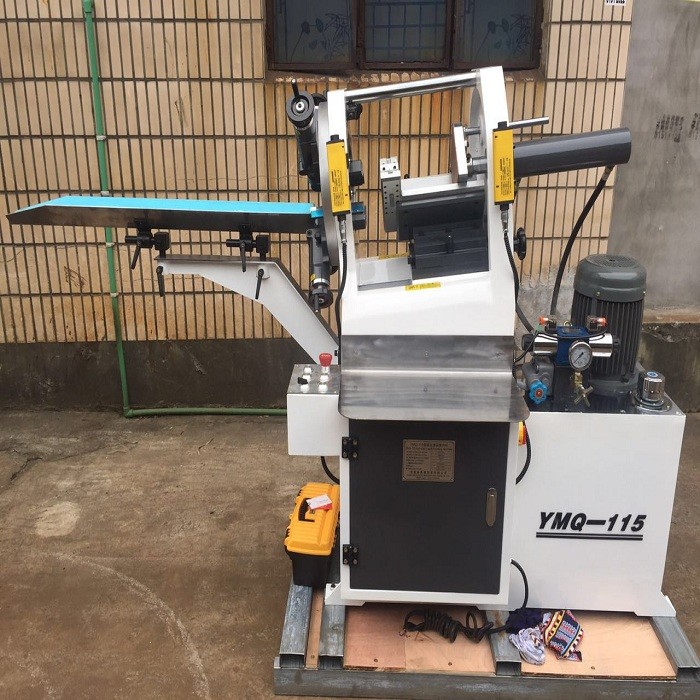

Whole set machine
Package wooden case
