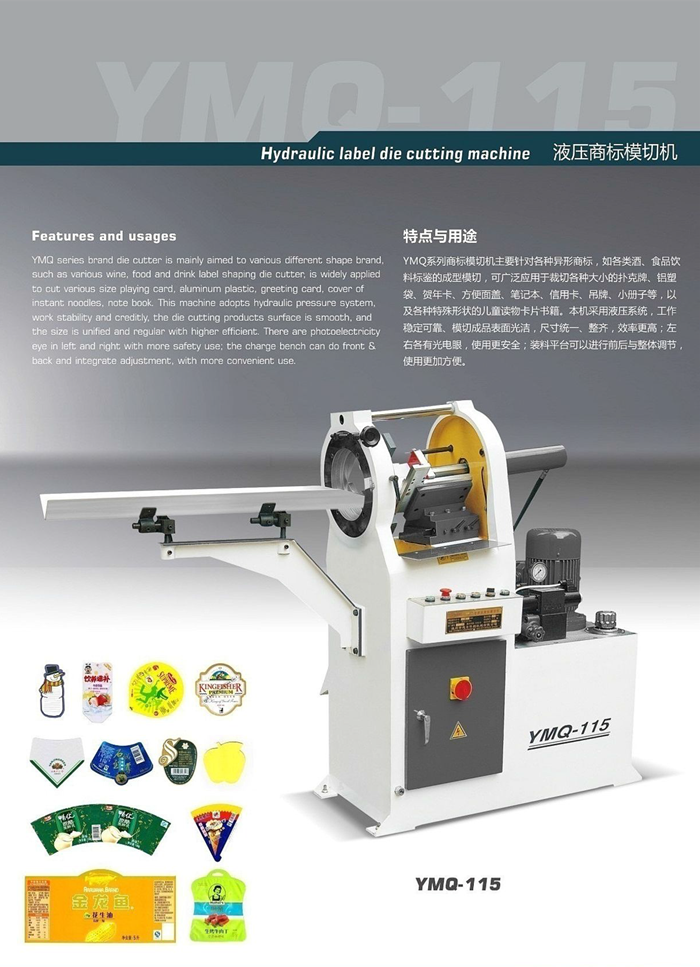

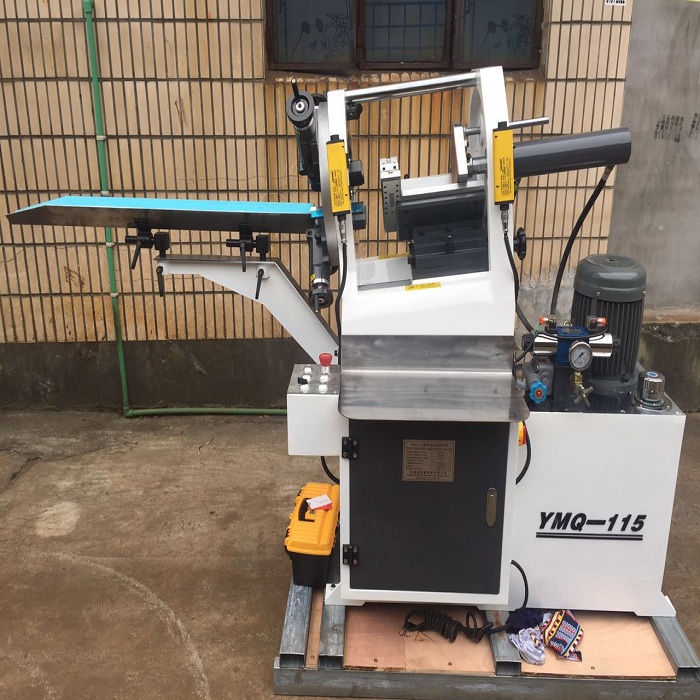

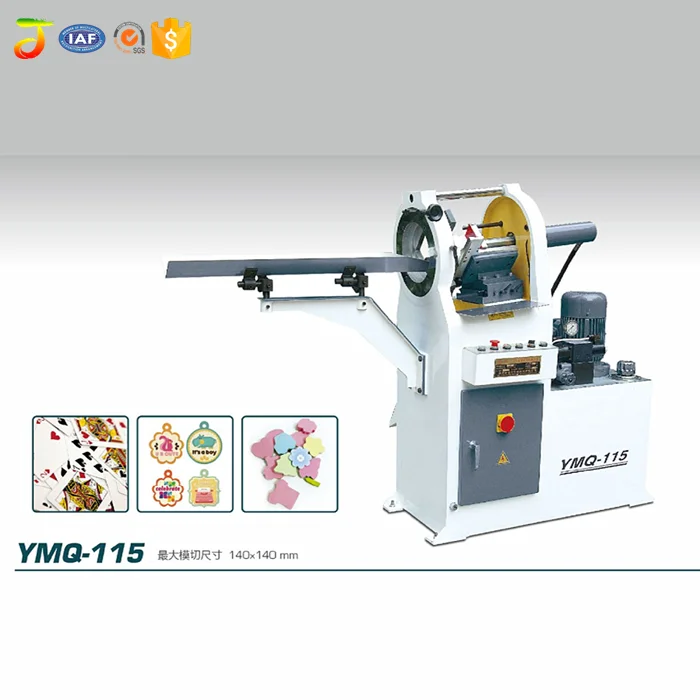

YMQ-115 Hydraulic Label Die Cutting machine for playing card
Which area is used for die-cutting machines?
Widely applied to cut various size playing card, aluminum plastic, New year card, instant noodles, note book. Credit card, drop and handbook etc, and various special shape children reading book.
What are the advantages of die-cutting machine?
This machine adopts hydraulic pressure system, work stability and crudity, the die cutting products surface is smooth, and the size is unified and regular with higher efficient. There are photo electricity eye in left and right with safer use; the charge bench can do front & back and integrate adjustment, with more convenient use.
How to choose the right type according to your request?
Main Technical Parameter of Die Cutter:
| ||||

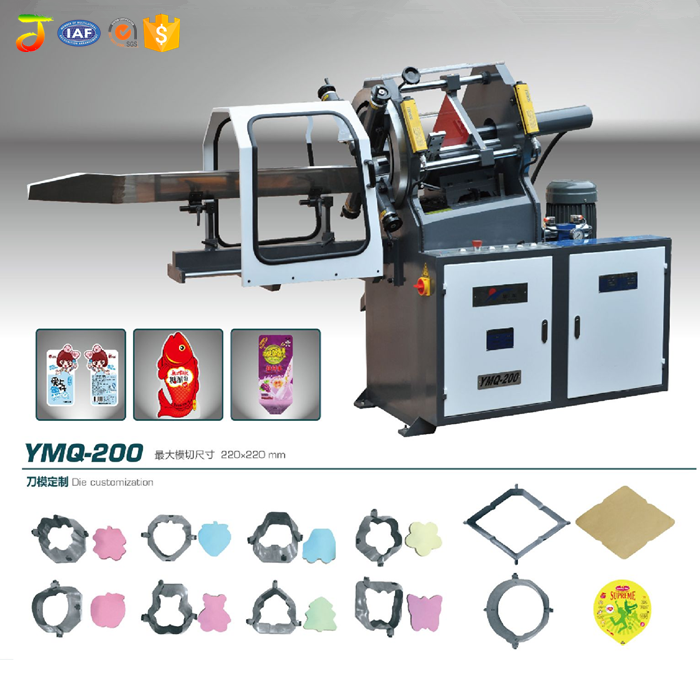

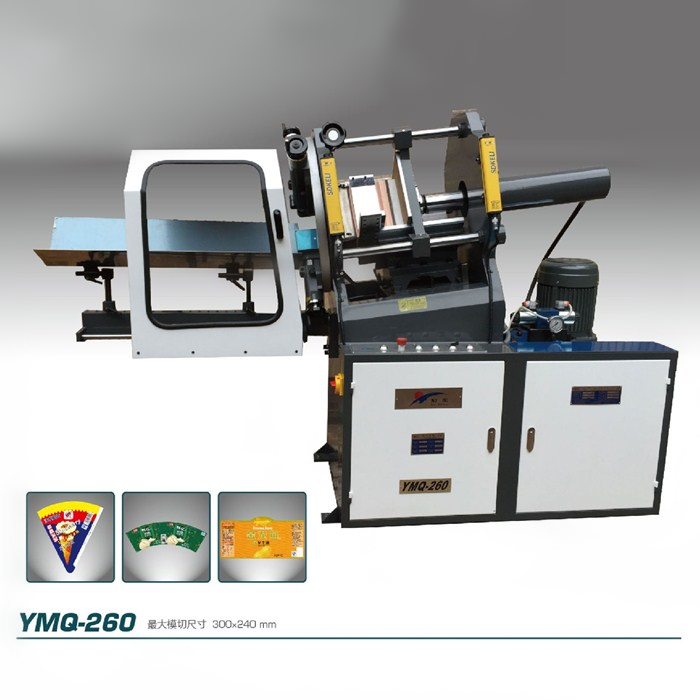

Model | YMQ-350 | YMQ-260 | YMQ-200 | YMQ-115 |
Max.Die-cut size | 380*300mm | 300*240mm | 220*220mm | 140*140mm |
Min.Die-cut size | 90*90mm | 65*65mm | 50*50mm | 20*20mm |
Max.Die-cut height | 310mm | 260mm | 220mm | 200mm |
Die-cut pressure | 11 T | 8 T | 5 T | 3 T |
Working speed | 7 Times/min | 8 Times/min | 10 Times/min | 12 Time/min |
Motor voltage power | 7.5HP 5.6KW | 7.5HP 5.6KW | 5HP 3.75KW | 3HP 2.25KW |
Overall dimension(mm) | 2600*1250*1900 | 2450*1000*1800 | 2200*850*1650 | 1350*750*1500 |
Weight of whole machine | 1900kg | 1600kg | 1200kg | 700kg |

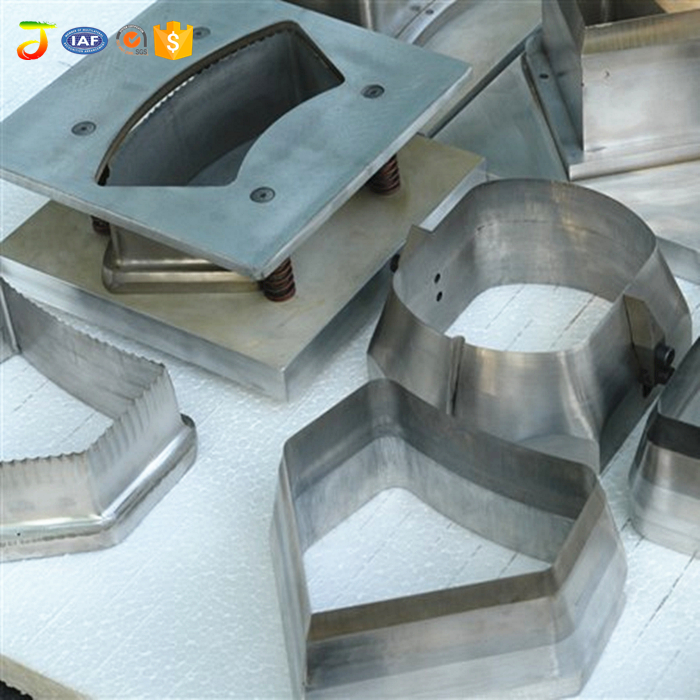

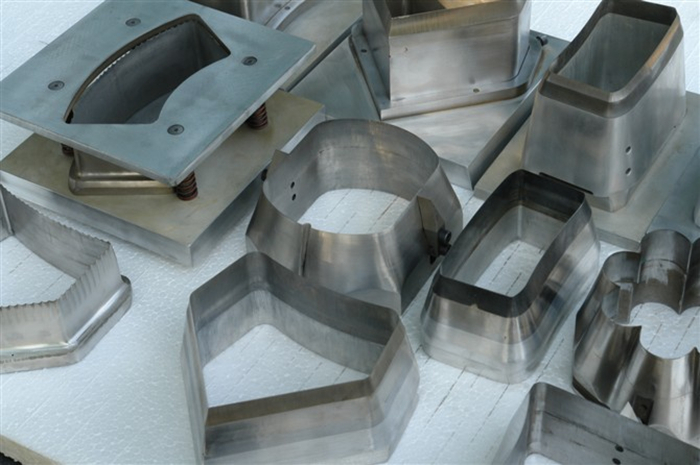

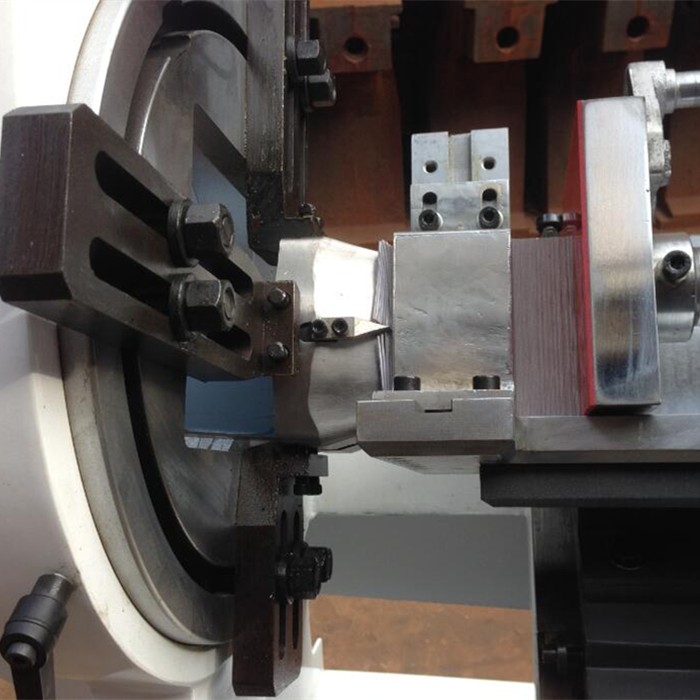

Old blade adapter of YMQ115

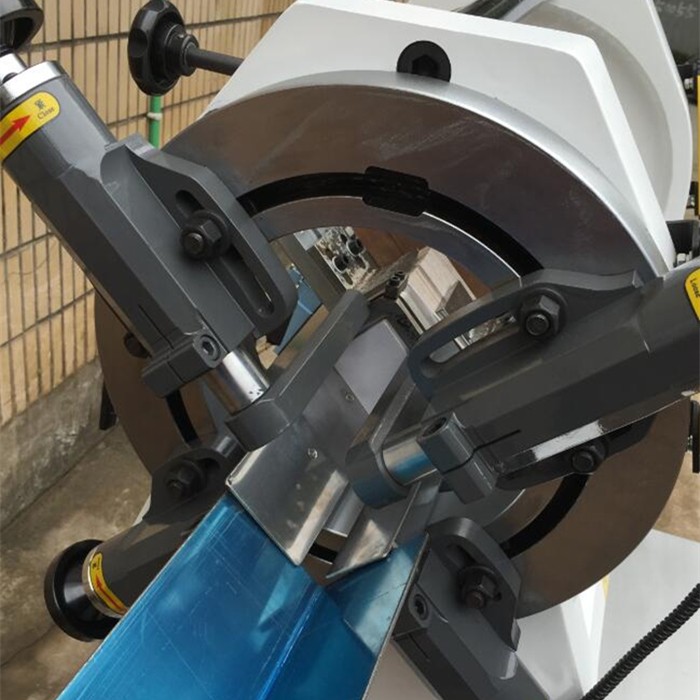

New blade adapter of YMQ115
How are the goods are packed?
Standard export wooden box, also can be packaged as customer's requirement.
The goods can be reached to your hand fast through below means of transport .So that you could use them and resale in time.
We will offer the most professional suggestion to help you start and expand your business!
We assure you of our best service at all times.
1. How many years have you exported the die cutting machine?
We have exported for several years,we have mature and professional service system.
2. Why the customers choose you?
We have high quality of die cutting machine and intimate service.
3. How is the price of die cutting machine?
Our price is strong competitiveness, can save customer's cost.
4. What about your die cutting machine delivery time?
According to customers order quantity to sure delivery time.
