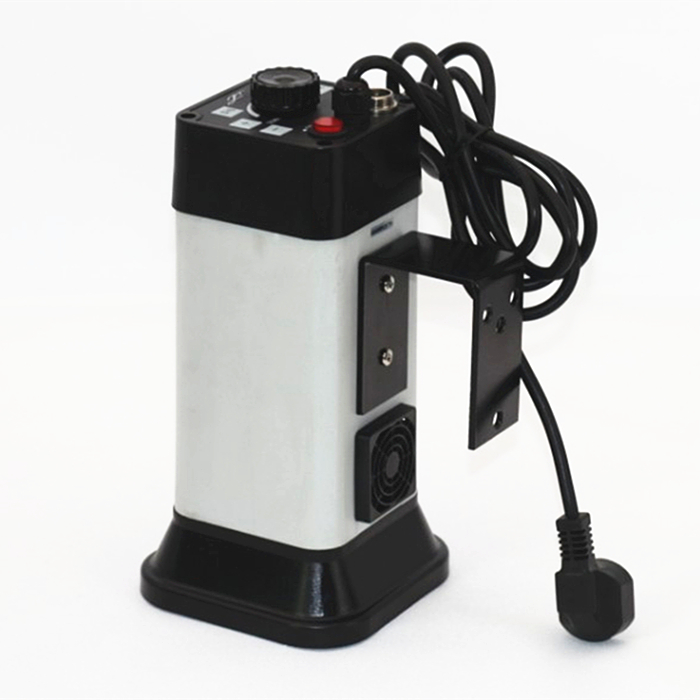

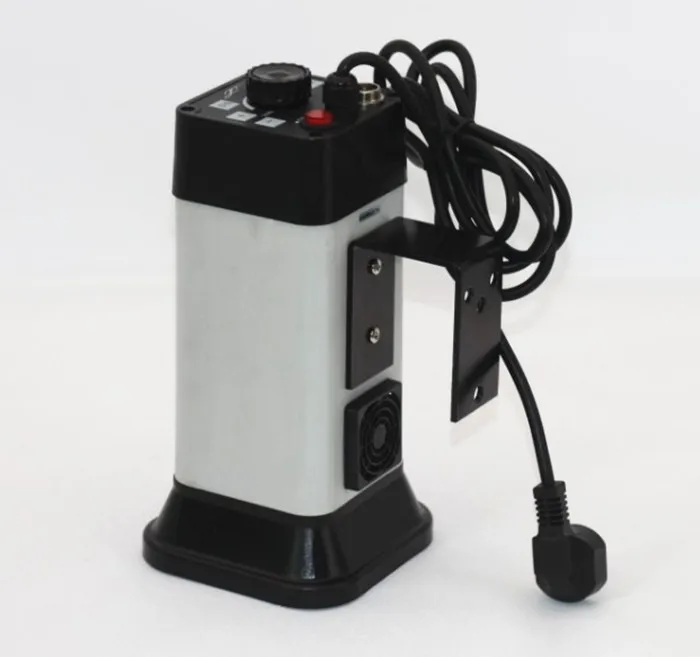

AC Powered Stroboscope
AC Powered Stroboscope AC Powered Stroboscope AC Powered Stroboscope AC Powered Stroboscope AC Powered Stroboscope

AC Powered Stroboscope

Product ID : A-114
Product Tags :
Product Attributes :

AC Powered Stroboscope

Product Description

Fixed type 316 powered stroboscope



The parts of product formation:

Long P high-voltage board+ Long P power panel +N lamp base board +Control panel+ Display board +Low seat tube.



Application of product:

1. DT316J handle is a fixed handle. Used in packaging, printing and tobacco in cigarette quality inspection, can be detected by high speed printing process color, ink color matching, die cutting, punching, folding conditions;

2. Quality inspection of textile industry,can detect the spindle rotation and loom weft cloth machine yarn;

3. Suitable for mechanical manufacturing, observe various rotor, gear machinery manufacturing movement;

4. Suitable in chemical, optical, shipbuilding and other industries.



Function of product:

In stroboscopic instrument observation high speed rotation or movement of objects,by modulating stroboscopic flashing frequency, and the measured object rotating or moving close to the speed of the object to be measured and synchronization,while at high speed, but it is the slow motion or relative rest.The persistence of vision, so that everybody can easily observed by high-speed operation object status.



Attention:

1. Power supply plug slot inserted upwardly, plug sleeve do not screw tight, avoid the internal connection loosening caused by short circuit.

2. When the stroboscope can not work normally, unplug the power line, check the insurance tube.

3. When the strobe drain flash may be lamp aging, please timely replacement lamp.

4. The lamp after the power supply is cut off, and may be charged, non professionals are not allowed to open.

5. Handle with care, do not fall into the water or solvent, not in hot and humid or high environmental pollution.



Product Features:



Setting Accuracy±0.01%
LED SpecGermany Hyman
Power Above 45W
Wide flash range60~99,999FPM
Operating VoltageAC220V
Net weight800g
Dimension225mm*120mm*120mm





CERTIFICATE:

We have obtained the quality management system certificate of ISO9001:2008 and CE certificate. Besides, our digital tachometer stroboscopes have passed EMC test and other domestic test.



Pictures showing:

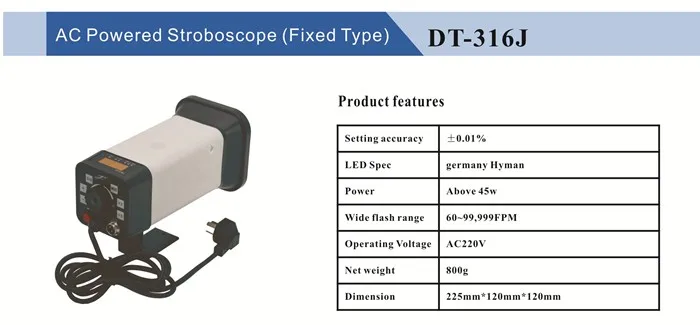

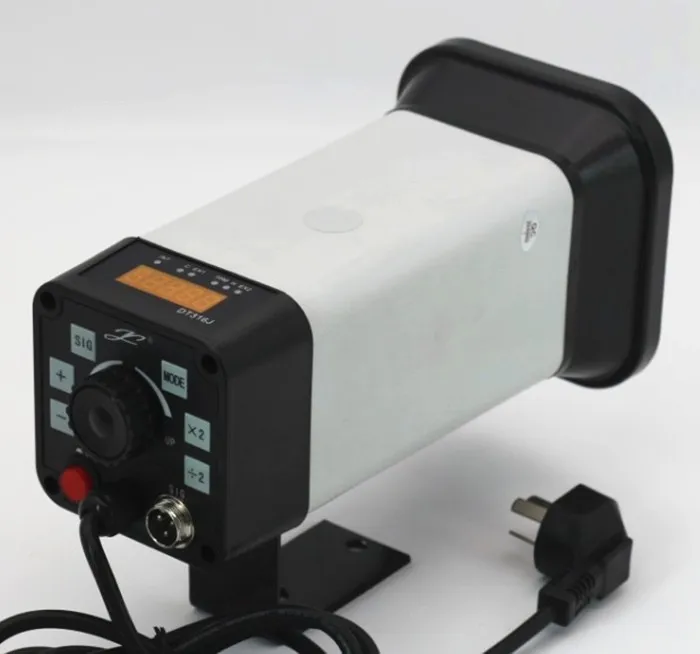

QQ2014090091658_.jpgXenon Stroboscope Catalogue__.jpg
