Hydraulic Label Die Cutting Punching Machine and Punch mold
Product Series

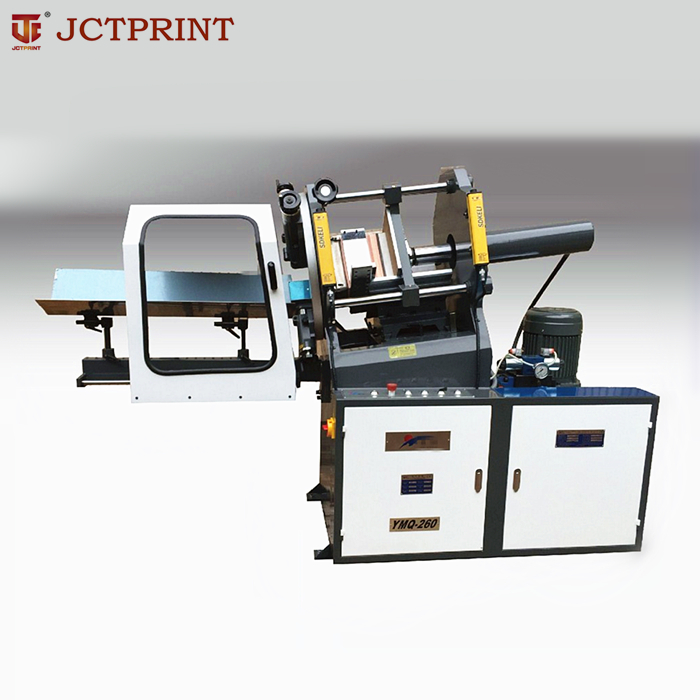

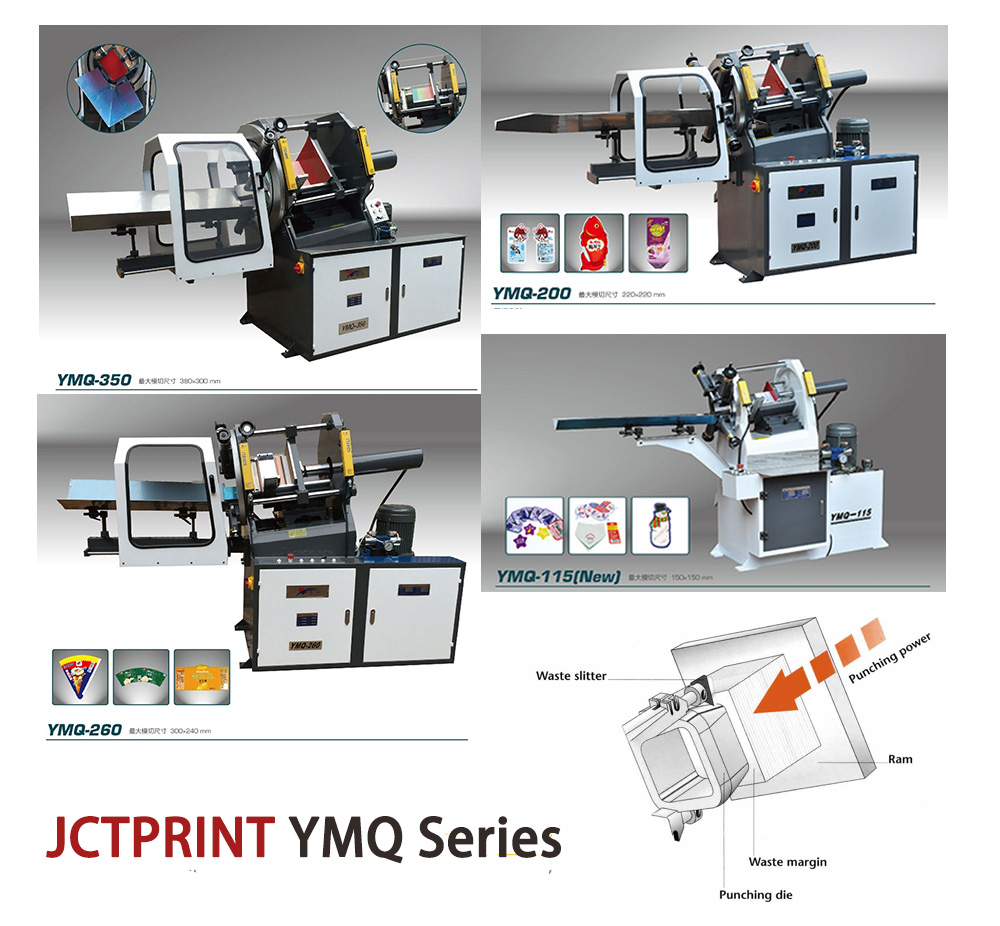

YMQ Series
YMQ-350 YMQ-260 YMQ-200 YMQ-115

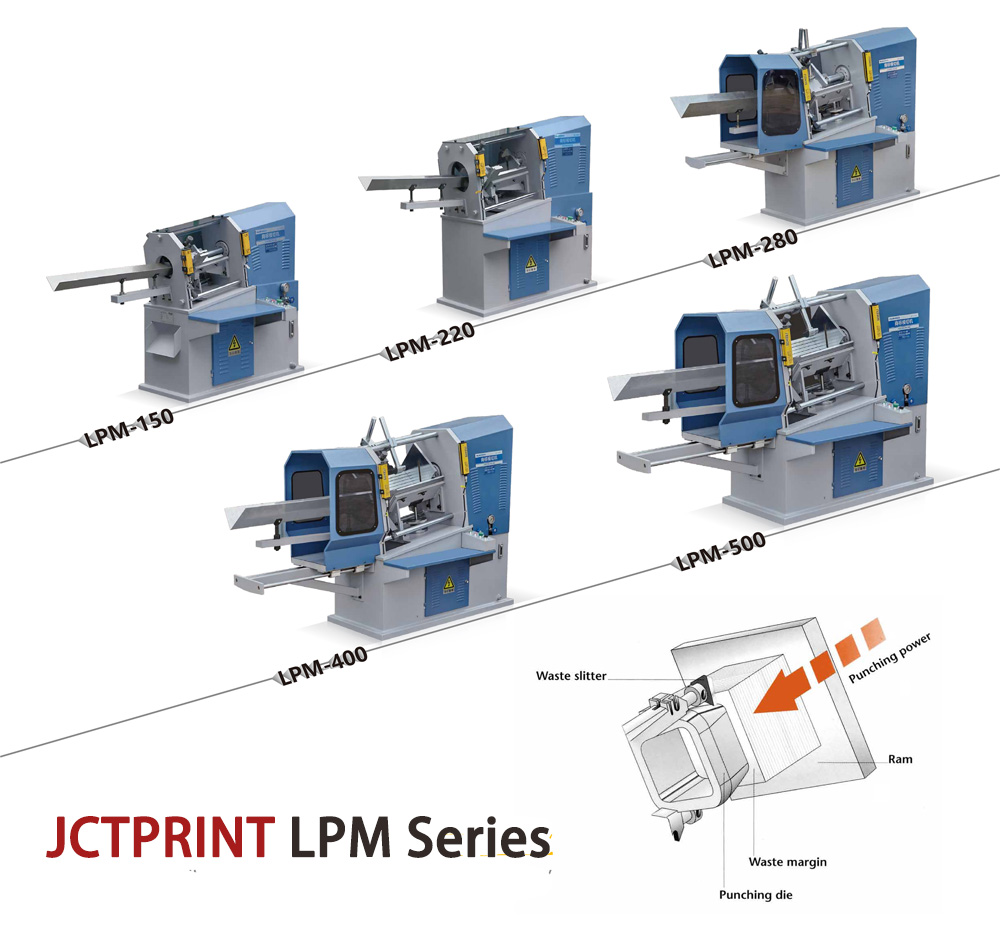

LPM Series
LPM-150 LPM-220 LPM-280 LPM-400 LPM-500

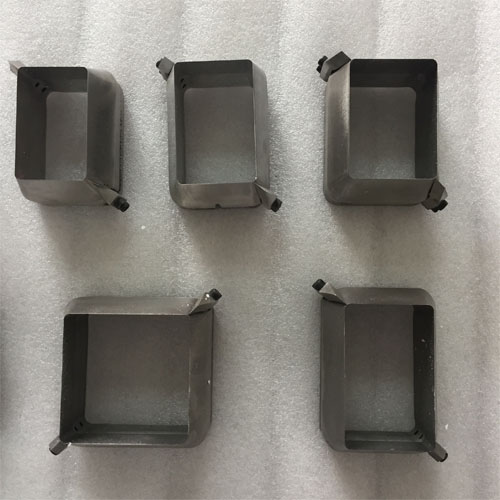

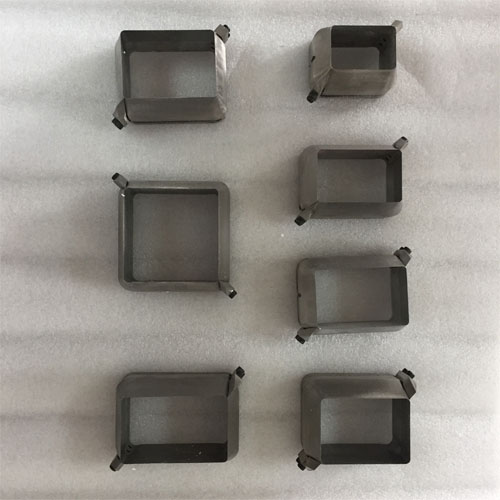

Matching Punch mold
Customized according to drawings
JCTPRINT will provide you with more product details
JCTPRINT more mold information
JCTPRINT Worry-Free Services
· One year warranty for you.
· Provide matching spare parts at discounted prices
· If you need a technician will come to install
· Guaranteed perfect cutting effect error less than 0.1 mm

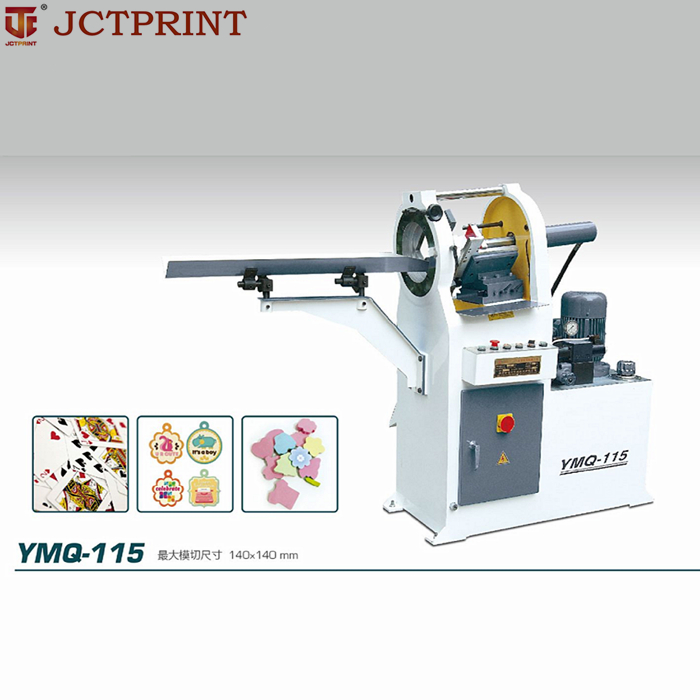

YMQ-115 - Long using life

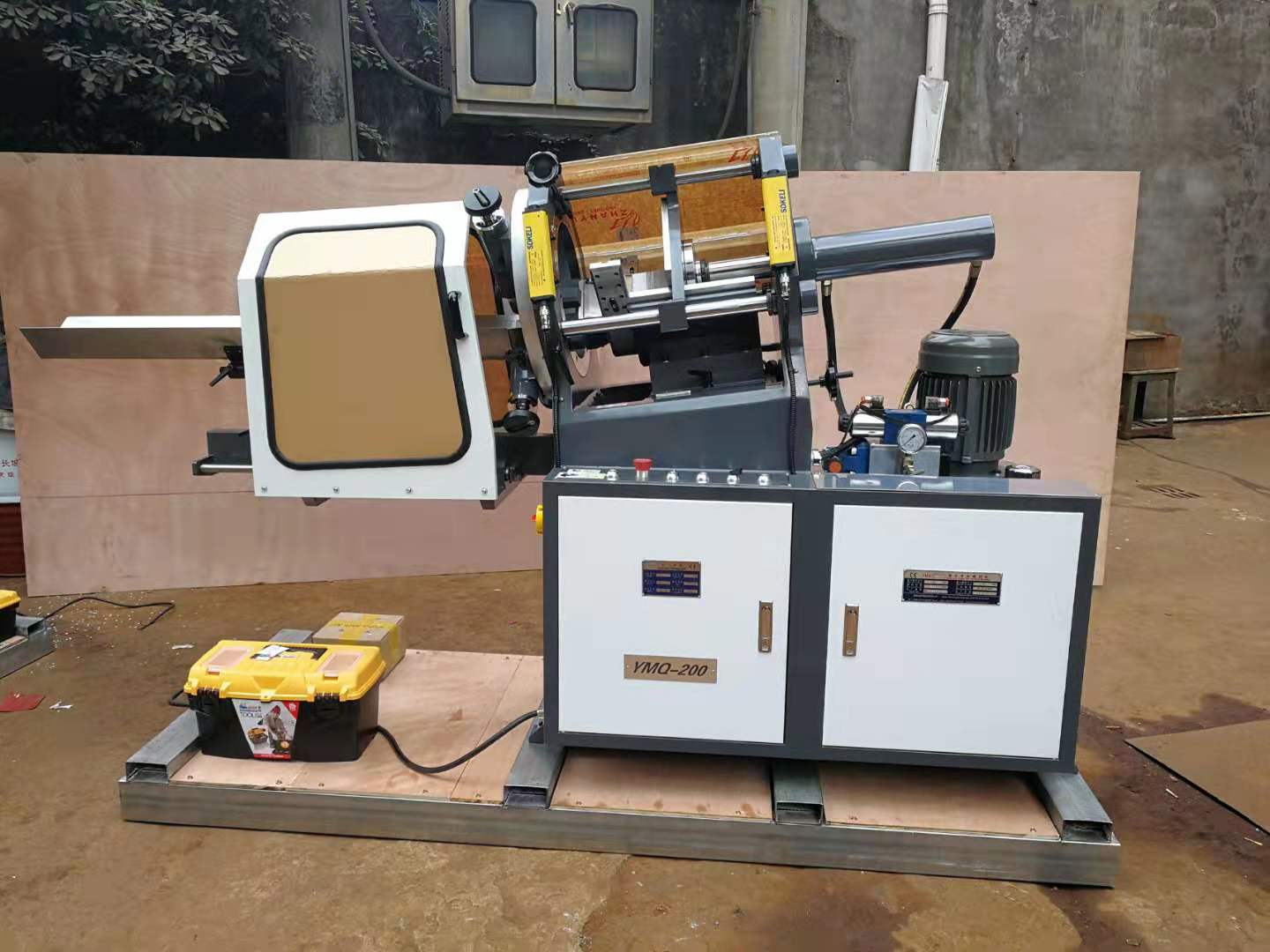

YMQ-200-Popular model
Advantage of product
This machine adopts hydraulic pressure system, work stability and crudity, the die cutting products surface is smooth, and the size is unified and regular with higher efficient. There are photo electricity eye in left and right with safer use; the charge bench can do front & back and integrate adjustment, with more convenient use.
Parameters Table
| Main Technical Parameter of YMQ Die Cutter | ||||
| Model | YMQ-350 | YMQ-260 | YMQ-200 | YMQ-115 |
| Max.Die-cut size | 380*300mm | 300*240mm | 220*220mm | 140*140mm |
| Min.Die-cut size | 90*90mm | 65*65mm | 50*50mm | 20*20mm |
| Max.Die-cut height | 310mm | 260mm | 220mm | 200mm |
| Die-cut pressure | 11 T | 8 T | 5 T | 3 T |
| Working speed | 7 Times/min | 8 Times/min | 10 Times/min | 12 Time/min |
| Motor voltage power | 7.5HP 5.6KW | 7.5HP 5.6KW | 5HP 3.75KW | 3HP 2.25KW |
| Overall dimension(mm) | 2600*1250*1900 | 2450*1000*1800 | 2200*850*1650 | 1350*850*1480 |
| Weight of whole machine | 1900kg | 1600kg | 1050kg | 680kg |
| Main Technical Parameter of LPM Die Cutter | |||||
| Model | LPM-500 | LPM-400 | LPM-280 | LPM-220 | LPM-150 |
| Power(W) | 4kw | 4kw | 3kw | 2.2kw | 1.5kw |
| Max. Die-cut size | 340*340mm | 270*270mm | 200*200mm | 160*160mm | 110*110mm |
| Min. Die-cut size | 150*150mm | 120*120mm | 55*60mm | 10*20mm | 10*20mm |
| Cutting Stroke | 200mm | 200mm | 200mm | 200mm | 200mm |
| Working speed | 12000 Sheet/min | 12000 Sheet/min | 12000 Sheet/min | 12000 Sheet/min | 12000 Sheet/min |
| Dimension | 2500*1140*1660 | 2500*1040*1660 | 2300*850*1600 | 1450*850*1500 | 1200*850*1400 |
| Gross Weight | 1140kg | 900kg | 560kg | 360kg | 300kg |
Application of product
Widely applied to cut various size playing card, aluminum plastic, New year card, instant noodles, note book. Credit card, drop and handbook etc, and various special shape children reading book.

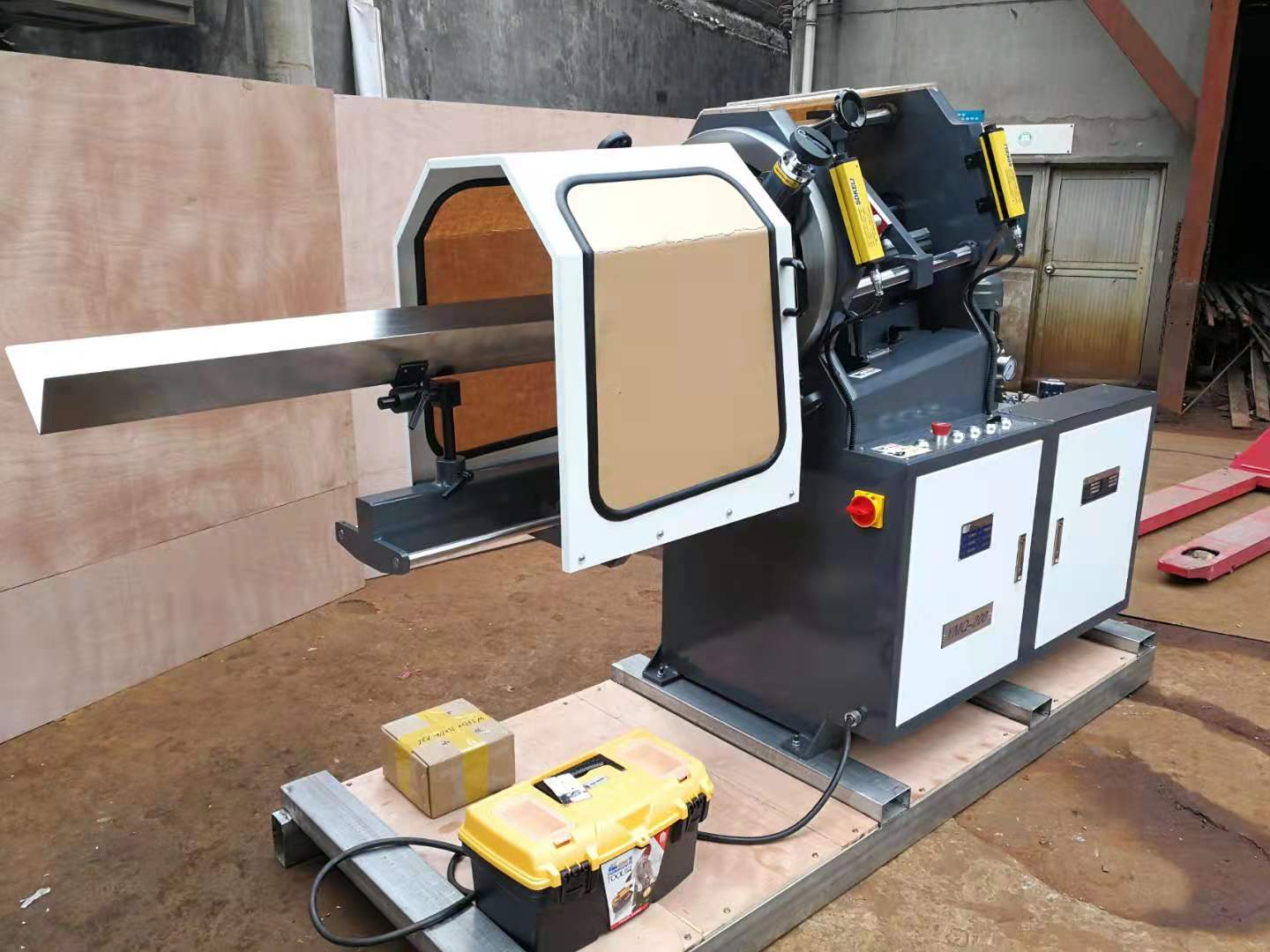

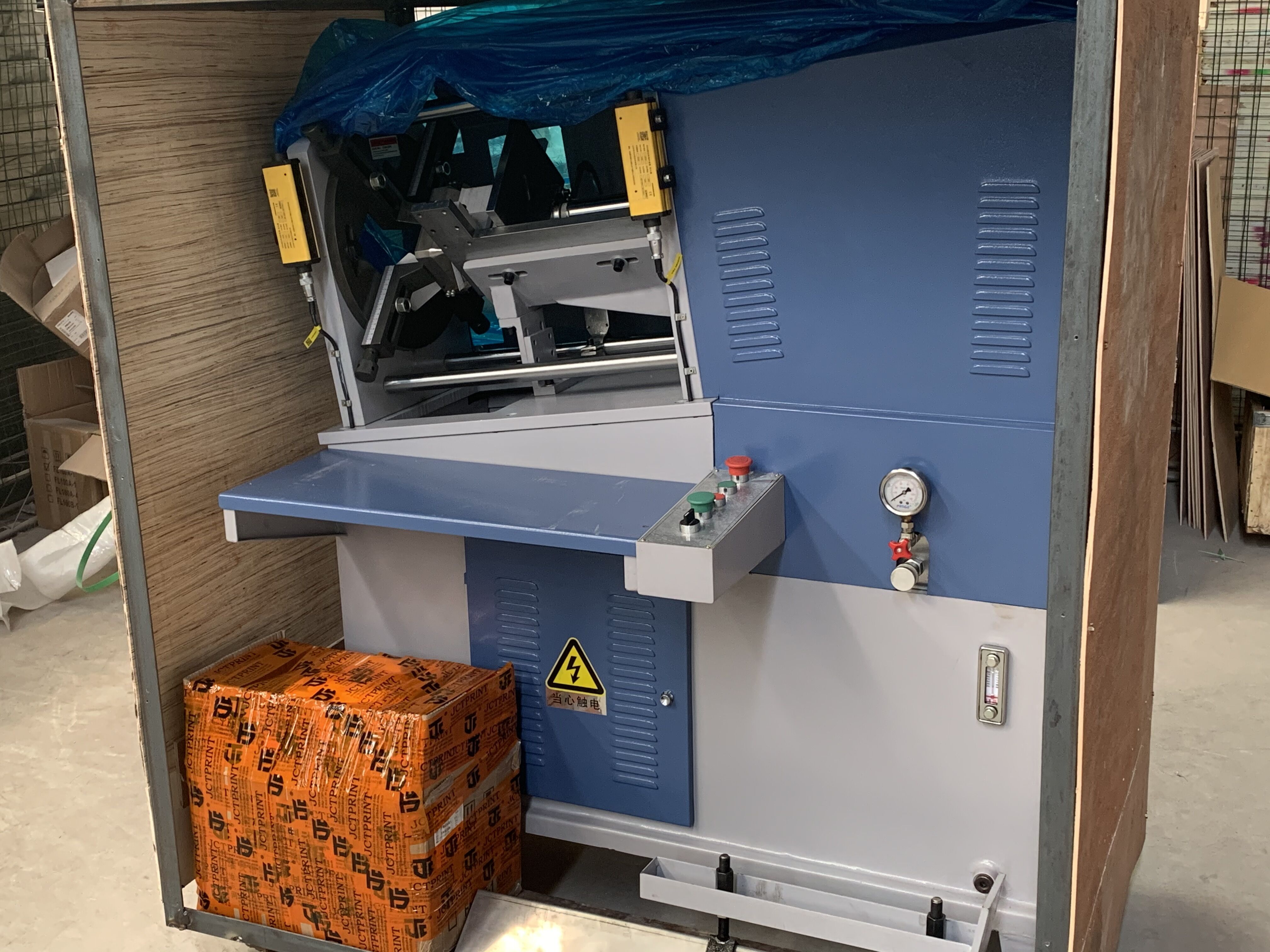

Real shot of delivery
