Description of doctor blade
We have introduced a German-made super-precision grinding machine and CNC machining to ensure that the blade accuracy is controlled between 0.002-0.005. The finished product has the characteristics of no burr and long service life.
In addition, we also use German heat treatment technology, large diameter vacuum quenching furnace, the product hardness is uniform, consistent in the outside and inside. The process is unique and the manufacturing precision is high.The blade are thin with high elastic strength, good toughness and good smoothness,good durability ,which can save the time for replacing new doctor blade or grinding blade,will greatly improve the efficiency of printing machines and save production costs.
Technical data sheet
|
Level |
low speed blade |
middle speed blade |
above the average |
high speed blade |
|
speed |
0-80/min |
0-120/min |
0-150/min |
0-180/min |
|
material |
T10 |
SK4 |
C100 |
20C |
Specification
|
Specification |
Detail |
|
Hardness |
1960N/mm(580HV+/-15) |
|
Edge thickness |
0.07mm-0.10mm |
|
Edge height |
1.3mm |
|
Blade thickness |
0.15mm-1.5mm |
|
Blade height |
10-60mm |
|
Length of each box |
100m |
Dimension
|
Regular size |
|
30(40,50,60)×0.152mm |
|
25(30,35,40,50,60)×0.2mm |
|
10×0.1mm |
|
17(30,40,50,60)×0.3mm |
|
60×0.4mm |
|
50×0.5mm |
|
Customized |
Features
|
Feature |
Detail |
|
1 |
Good scraping effect &high printing quality |
|
2 |
Good elasticity & strong layering feeling |
|
3 |
Durable &Long life |

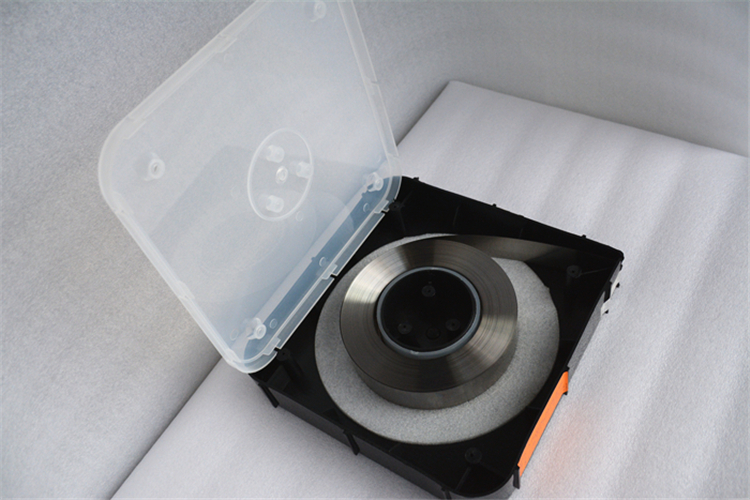

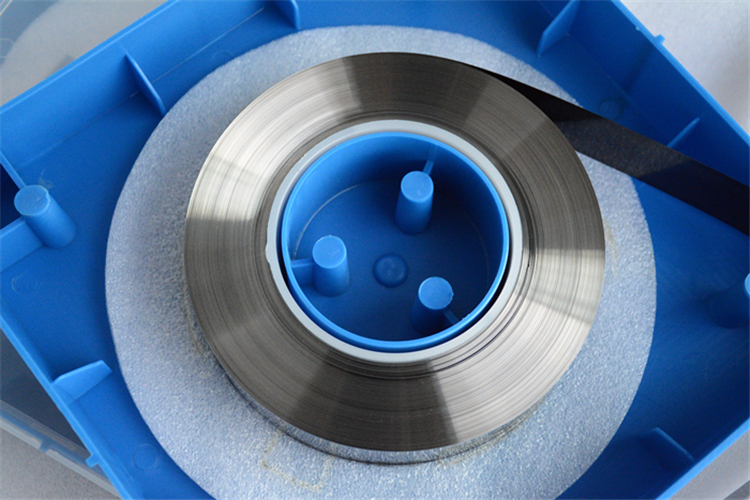

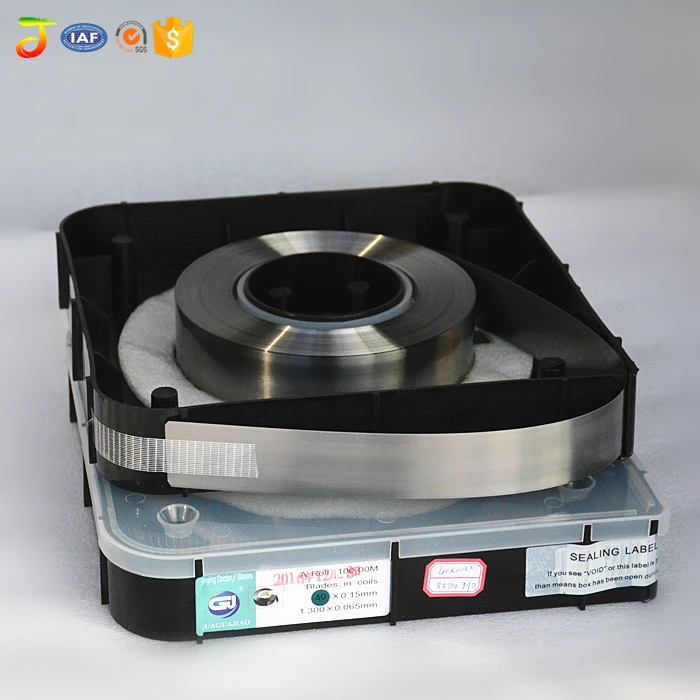

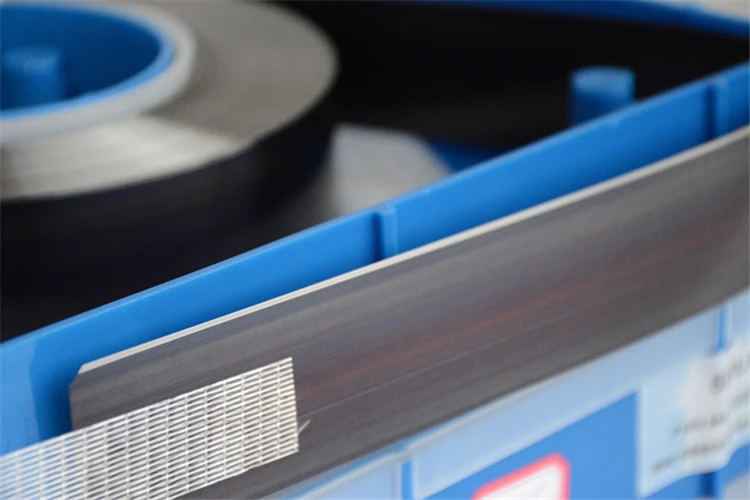

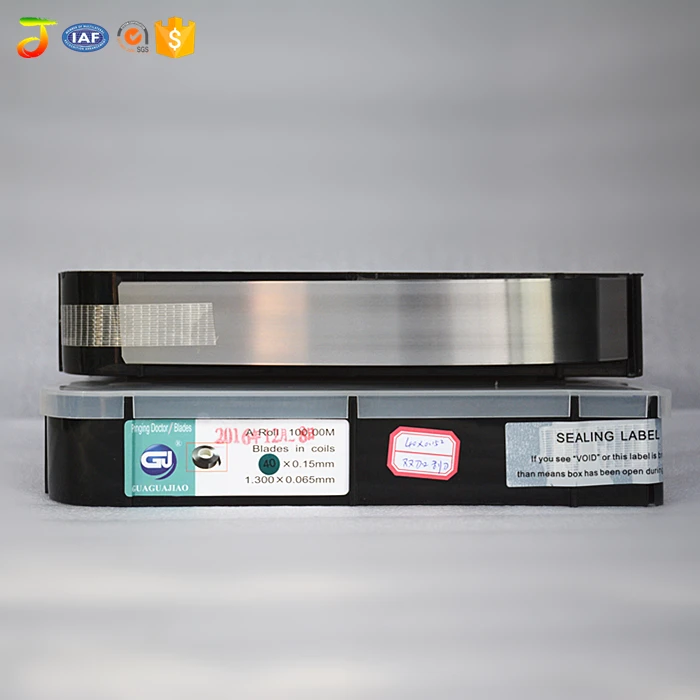

The picture in detail:

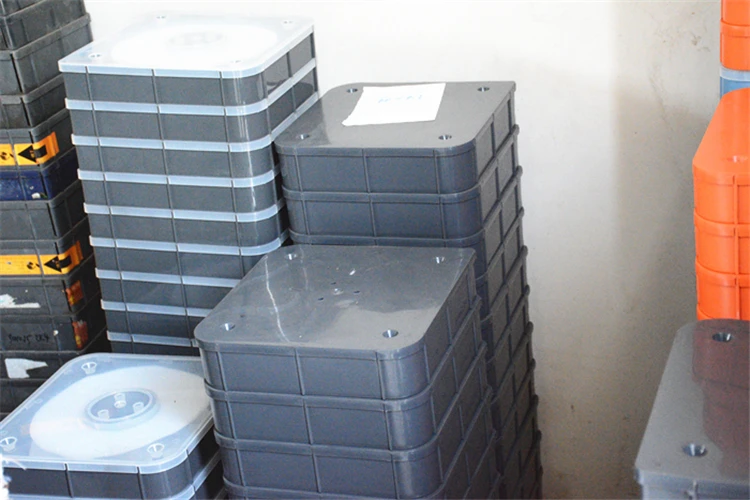

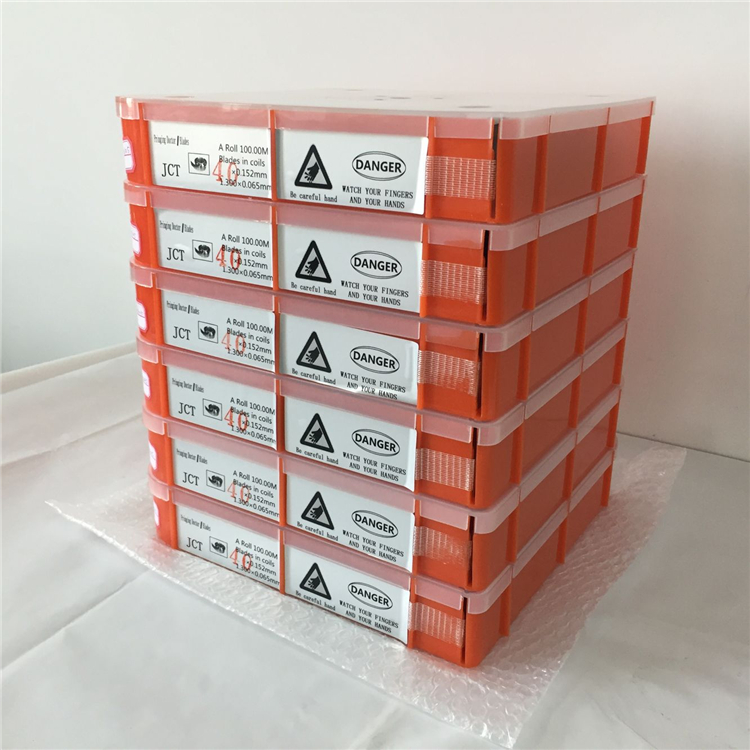

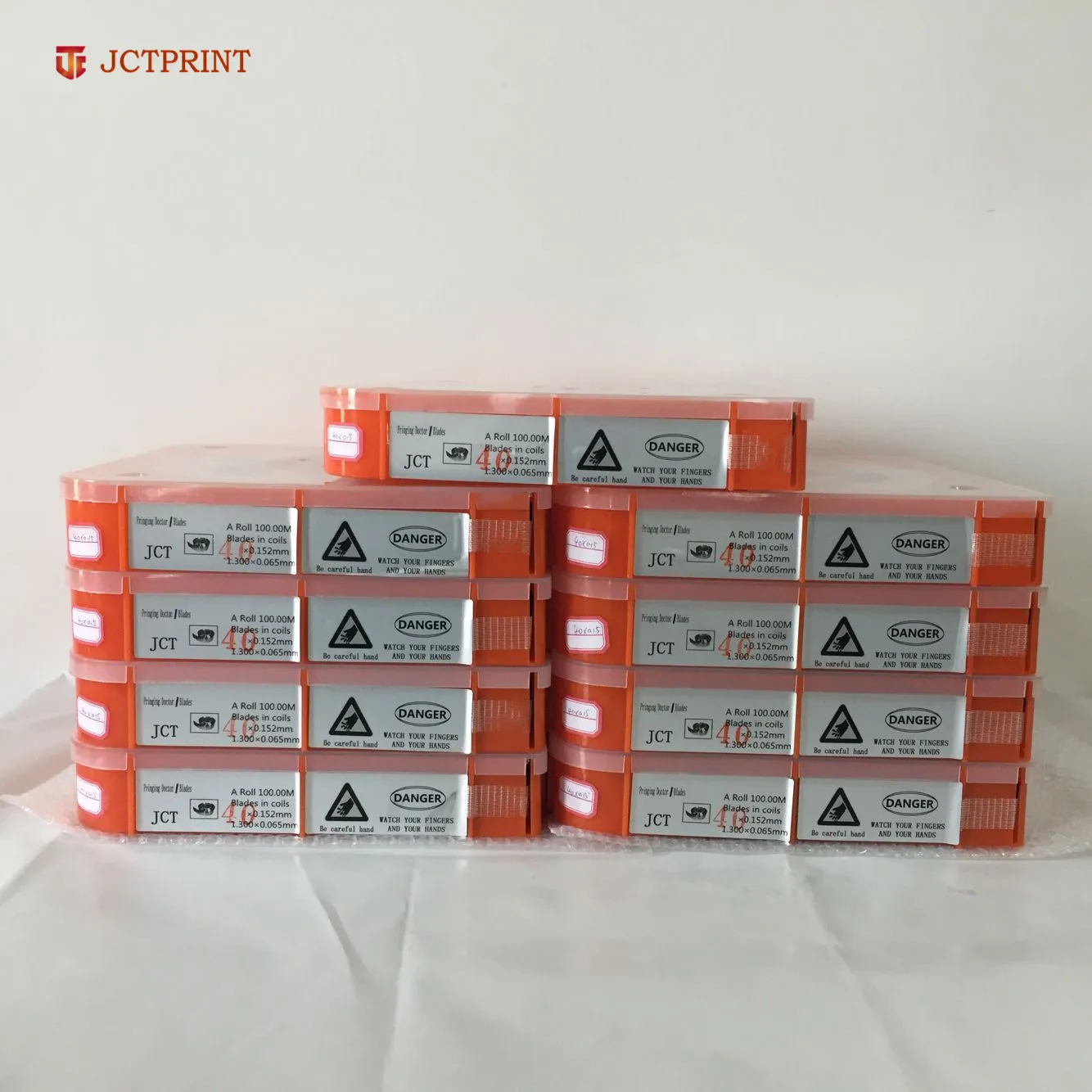

Our inventory products

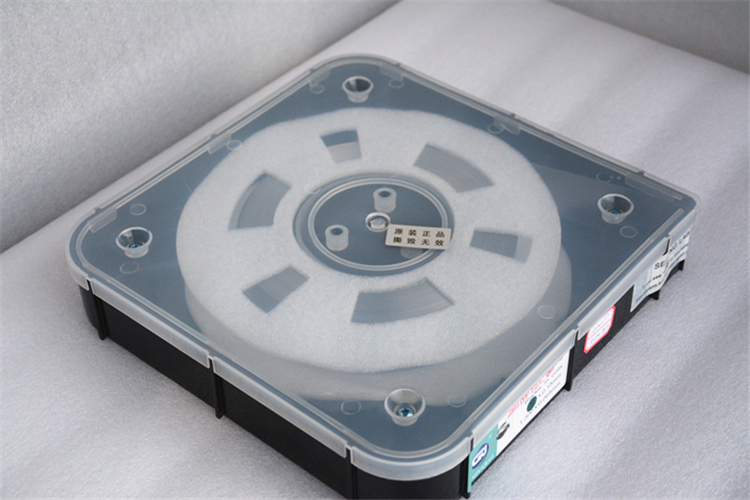

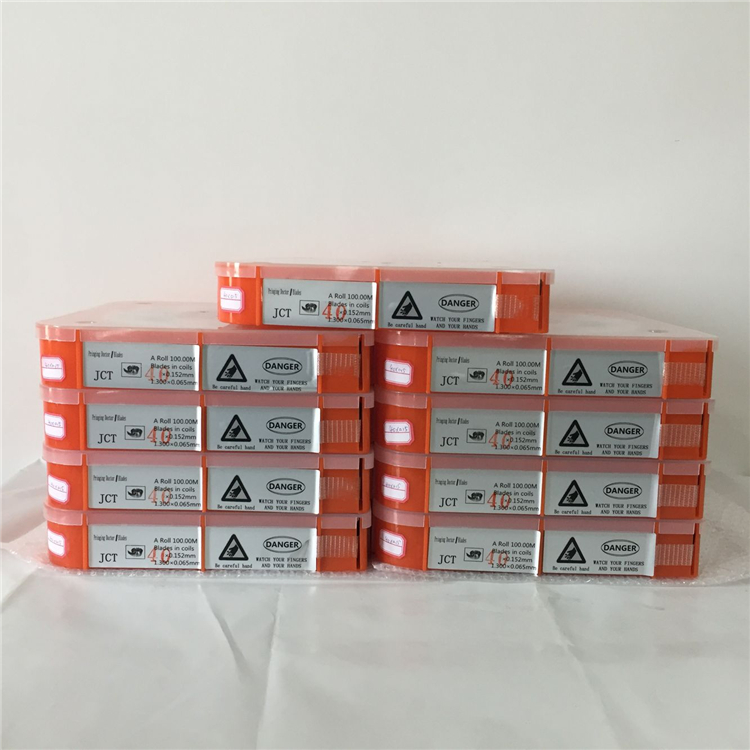

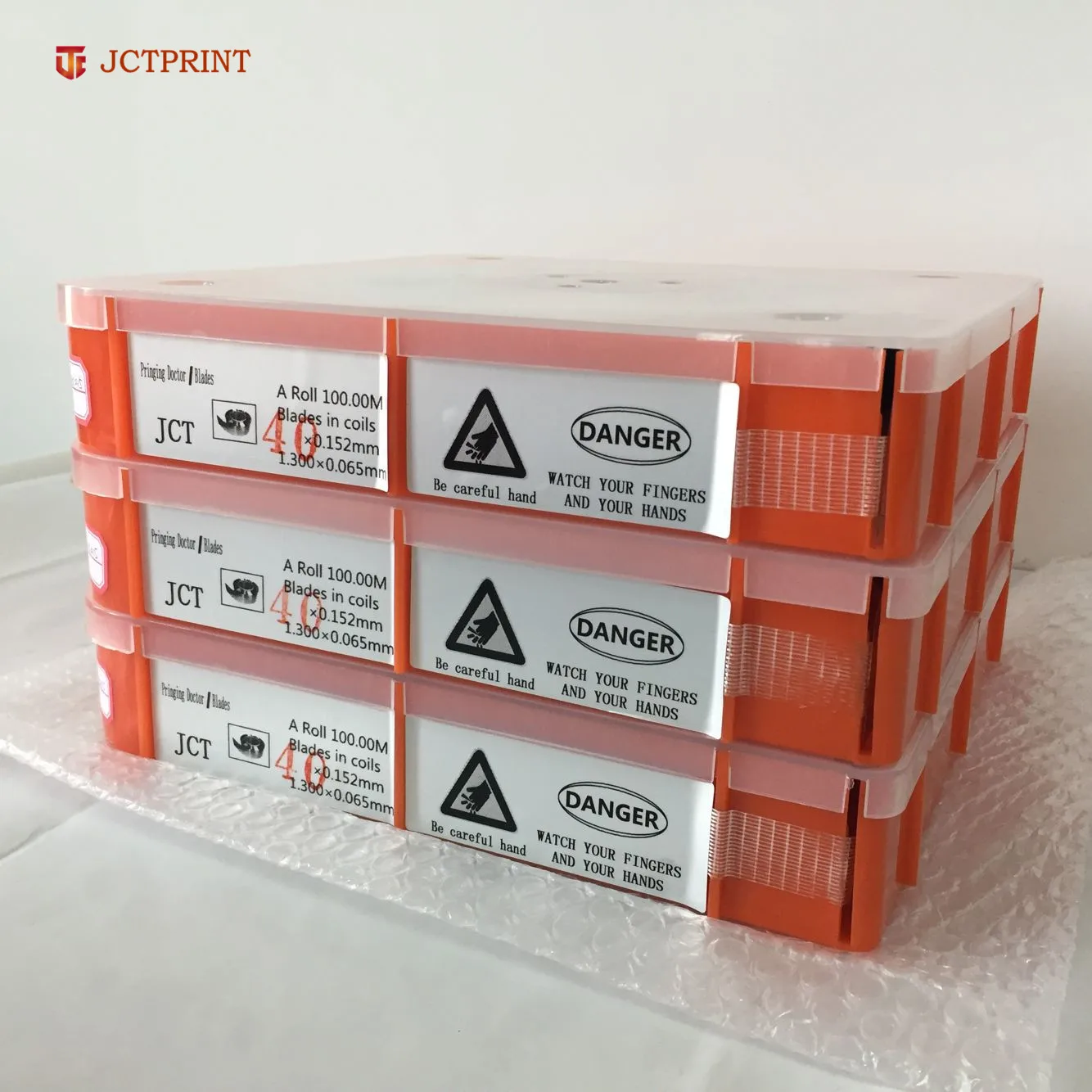

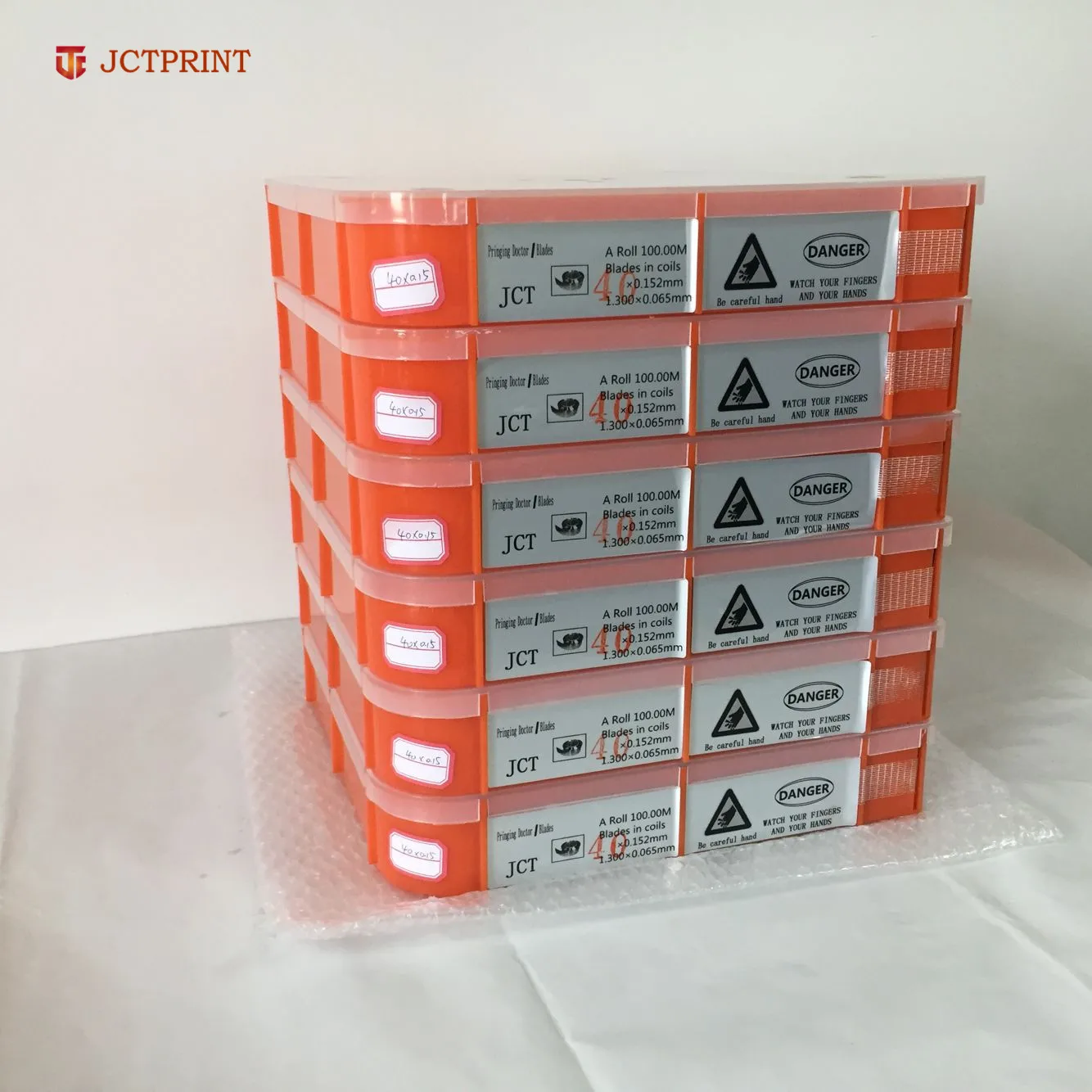

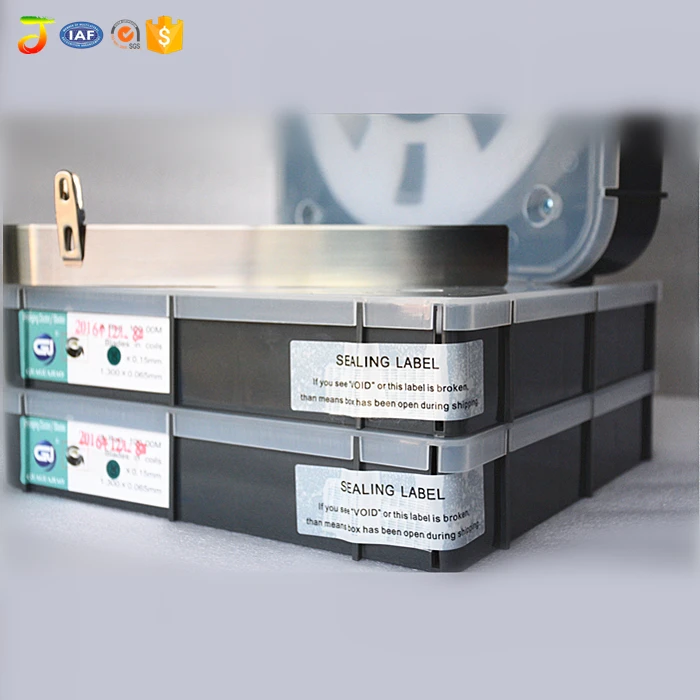

Packaging and Shipping
We will choose the most suitable package according to the weight of the goods.
