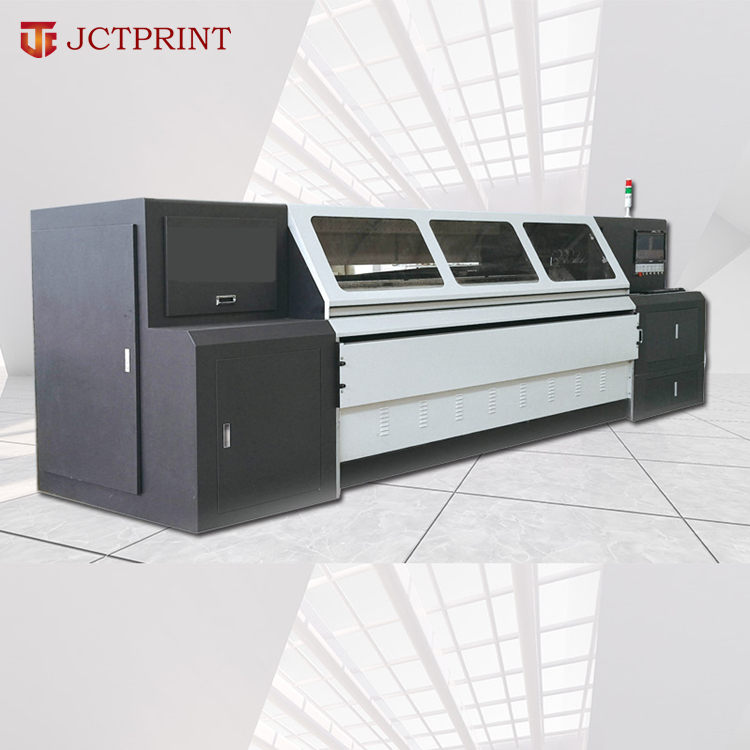

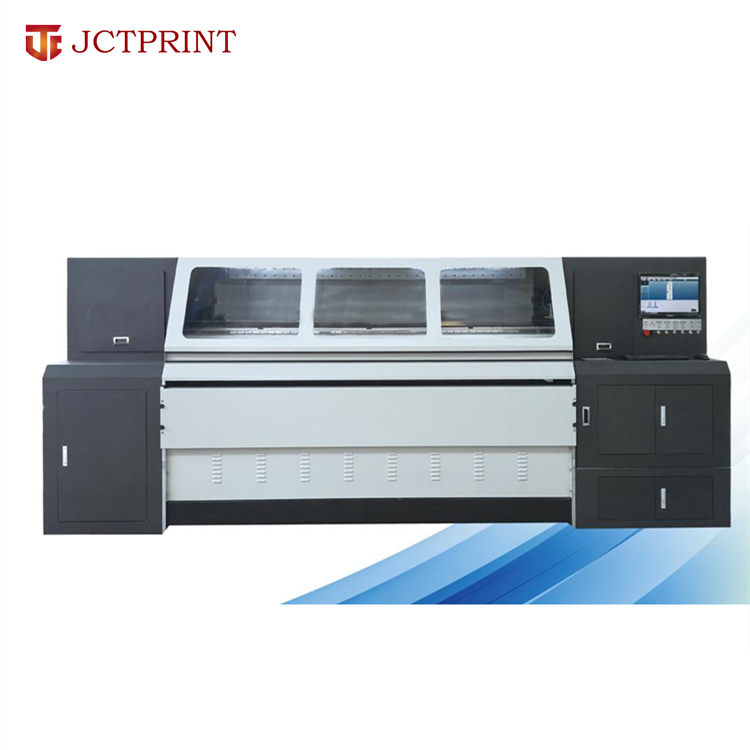

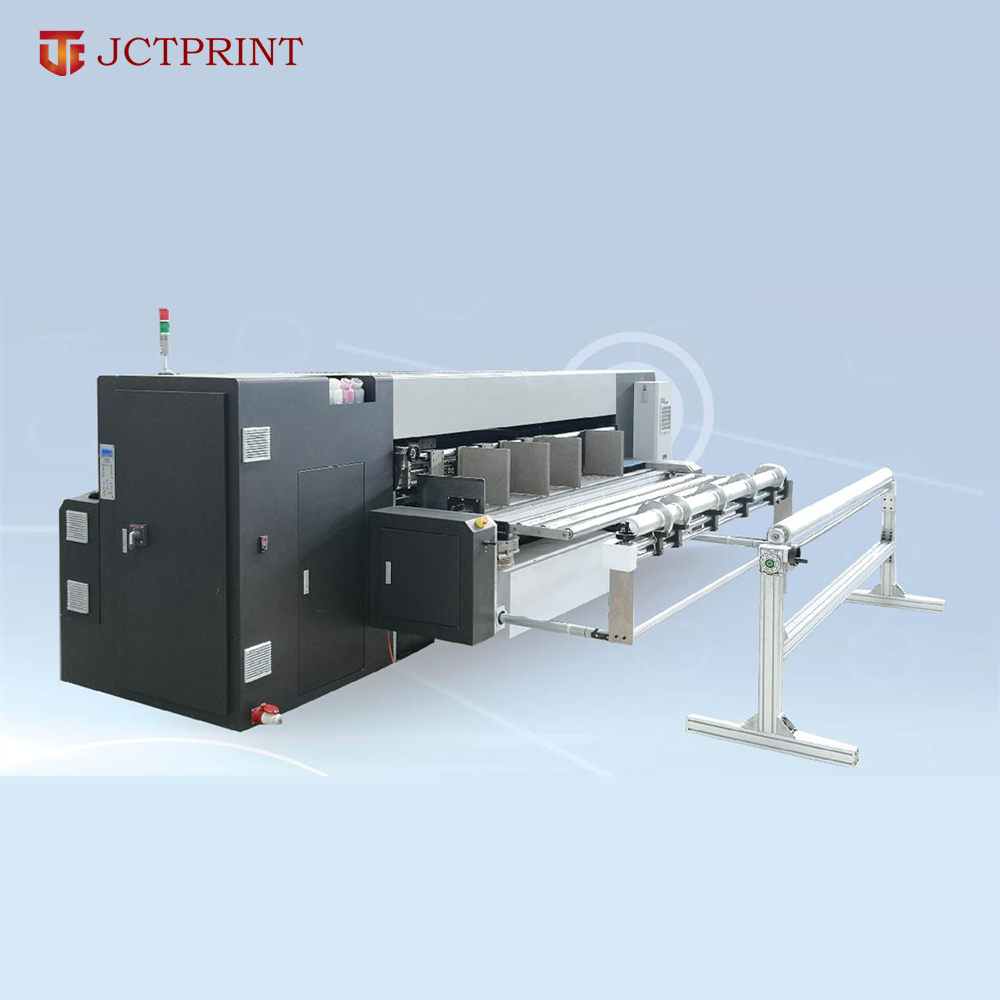

Small order Automatic digital corrugated box printing machine carton printer
JCTPRINT printing machine model
Product details
Printing effect
Product description

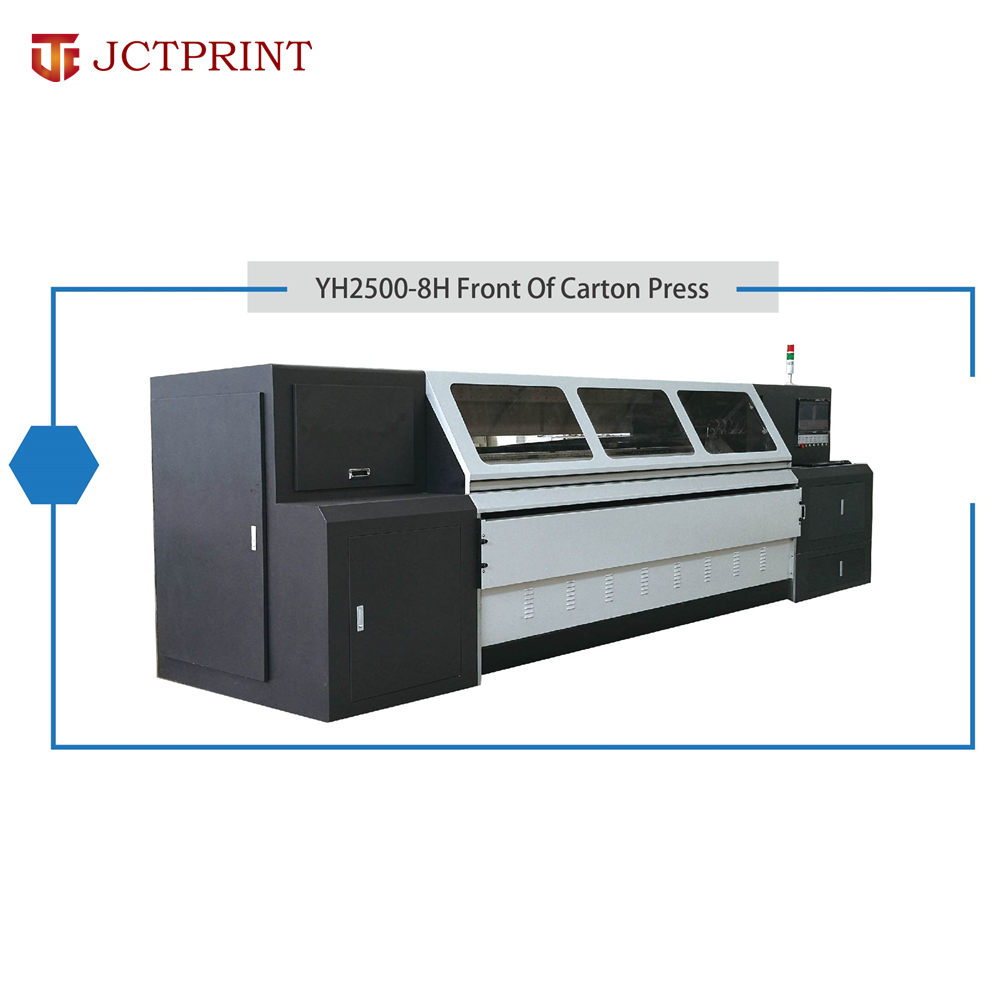

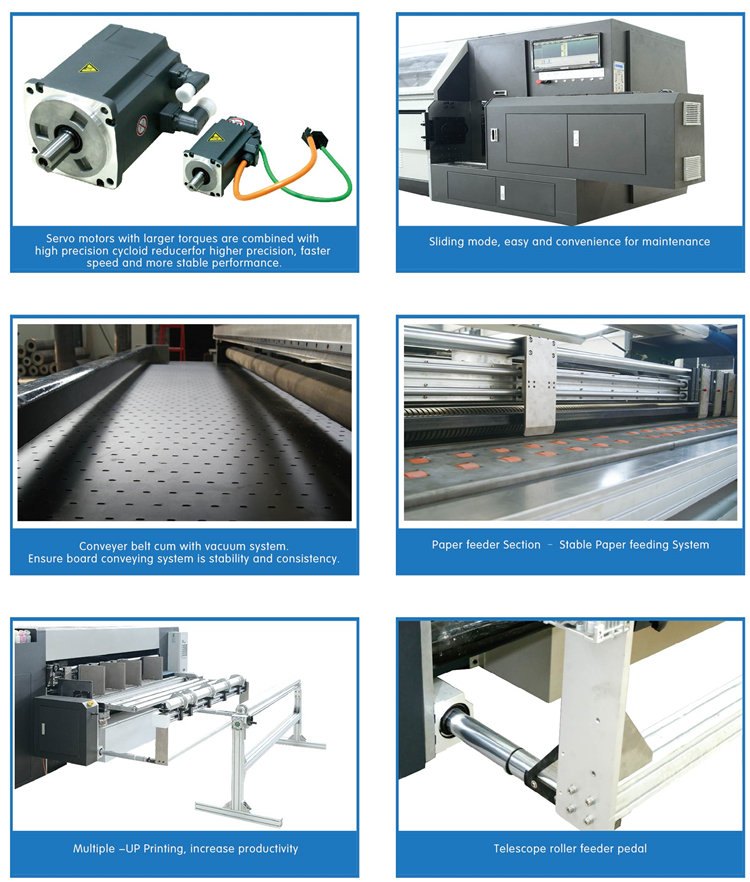

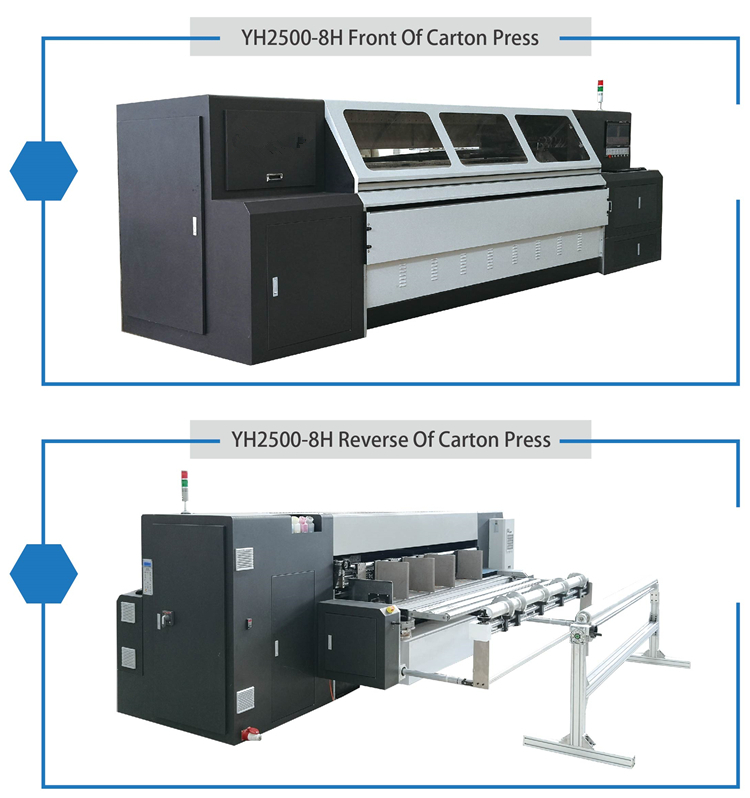

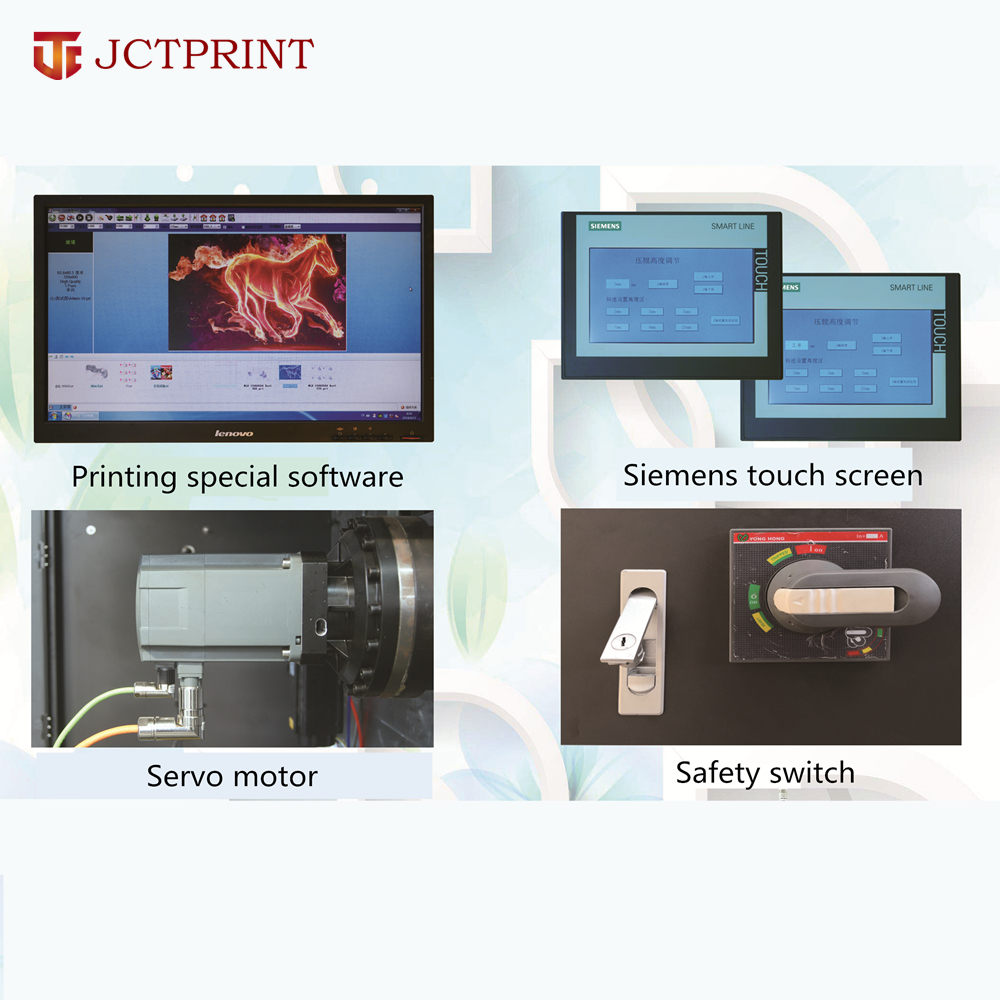

Design Details of YH2500-8H Carton printer
Contact us for more product details
Specifications of YH2500-8H Carton printer
Printing Head
A.Epson Original Micro-piezoelectric
B.High precisionPrint Head.Max up to 8 Arrays for 8 Heads
C.Print Head to Board gap is 1mm to 2mm.
D.Each pass print width 271mm.
Other specifications
| Ink | Water Base Dye Ink |
| Colour | C M Y K |
| Maximum Printing Width | 2500mm |
| Print Length Range | ≥550mm |
| Control Mode | P. L. C.System |
| Print Resolution | 2 pass:720*600 1 pass: 360*600 |
| Ink Drying Speed | Dry immediately for medium paper(drying speed vary depending on other substrate quality) |
| Software | Printer Manager by YH and RIP System |
| Working Environment | Room Temperature 10-35 Degrees,Humidity 20-70% |
| Rated Power& Power Supply | 10KW;AC380±10%,50-60HZ,3 phases |
| Machine Dimension | 4750(L)×2220(W)×1730(H)mm |
| Machine Weight | Net Weight=4500kg |
| Media Thickness | 3mm-20mm(≥20mm can be custom made) |
Why choose JCTPRINT plateless digital inkjet carton printer?
A.Solution to problems of carton packaging small orders:The MOQ of conventional priting order is 500,if you use the Flexo Printing,the less amount,the more cost.While plateless printing can solve this problem due to its process of inkjet printing and computer-control system,even small order is profitable enough.
B.Saving plate charge: conventional printing needs to do plate-making before printing even if small orders will do.Can we cut out this part of cost?Yes.Plateless prinitng will help you.
C.The plateless digital printing methoud has no trial printing due to the inkjet printing process, which reduces the problem of printing waste.
D.The digital carton printer is controlled by computer automatically. It just need 1-2 people who have computer operation experience to operate it,which helps save the labor cost.
E.Carton board often causes dents and creases in the production and handling process. This situation is likely to cause waste during printing. The digital printing machine adopts inkjet printing technology and non-contact printing, which reduces the above problems and increases the compression resistance of the carton.
Company Information
FAQ:
1.Are you manufacturer or Trading company?
We are manufacturer and we have been producing carton printer for cardboard,paperboard,pasteboard, chipboard,pressboard for more than 7years.
2.How big order is suitable for your printer?
Our carton printer is suitable for small order less than 2000 pieces,even you want to print 1piece of carton or carboard,we can also make it.
3.What's the delivery time?
Around 20~30days after pre payment received, however, based on order.
4.Can you provide foreign country machine install services?
Yes,we have a after service team can provide install services and engineers are available to solve prolems overseas.
5. Can you supply the ink which are used on your machine?
