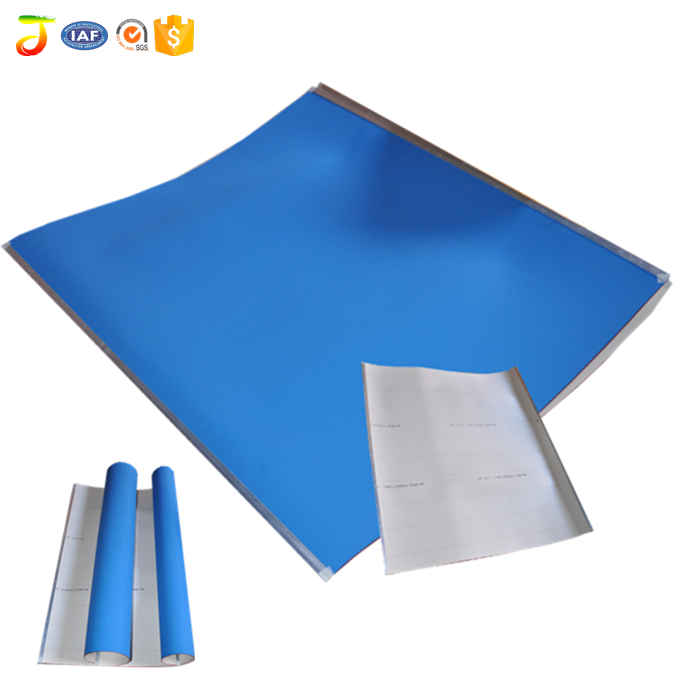

China factory price top quality rubber blankets
Characteristic:Durable
Advantange: Professional and experienced
Machine type:Suitable for all kinds of high speed offset printing machine
Thickness:1.68mm or 1.95mm

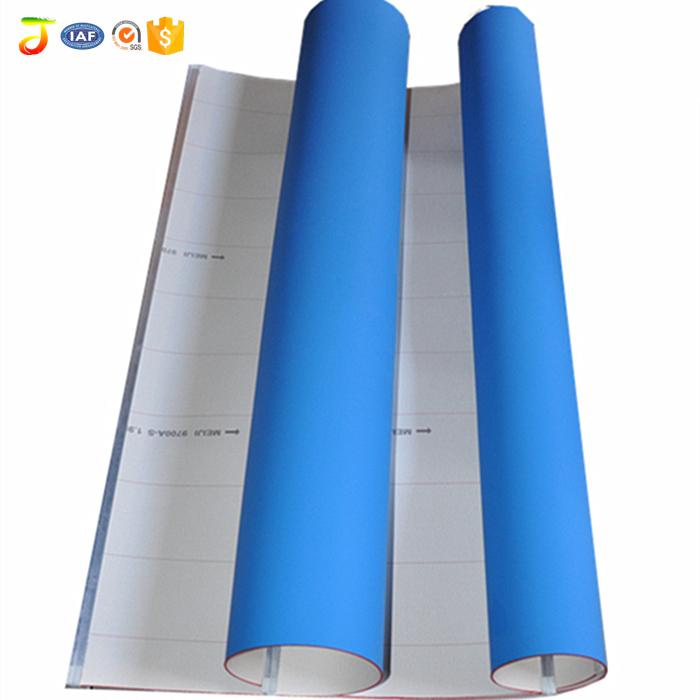

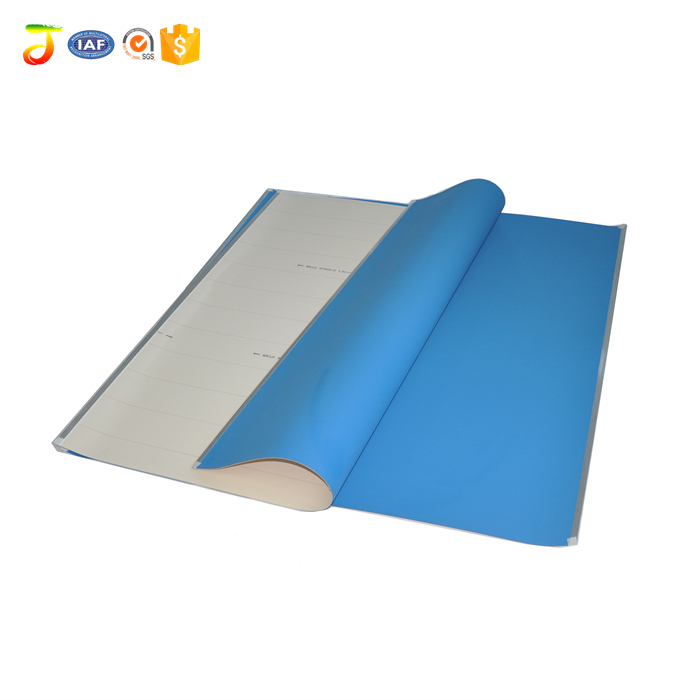

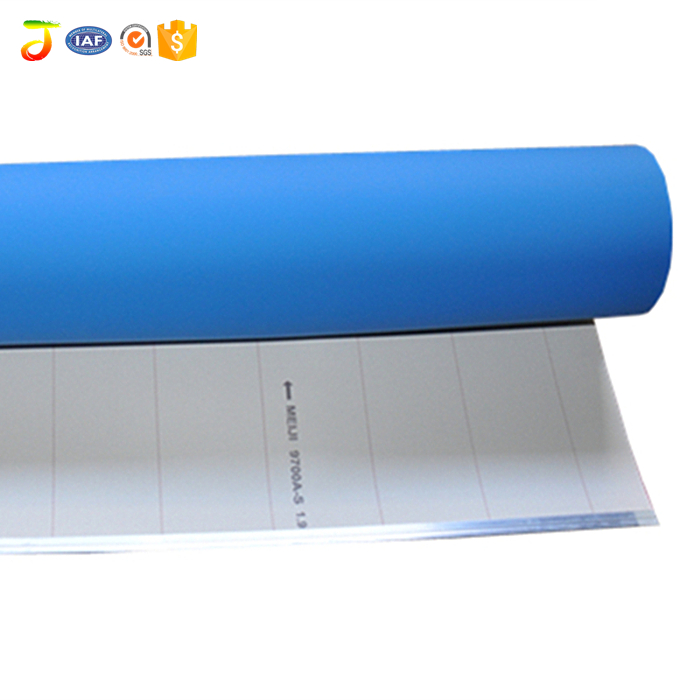

Manufacturer of top quality rubber blankets
Application
In the offset printing,rubber blanket is used for transferring the ink from the plate to the substrate.
Specification

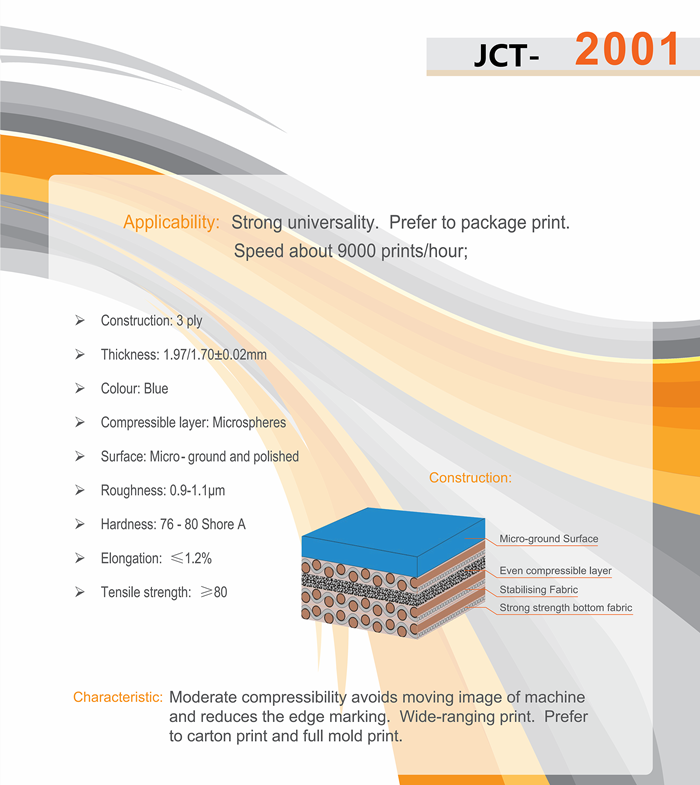

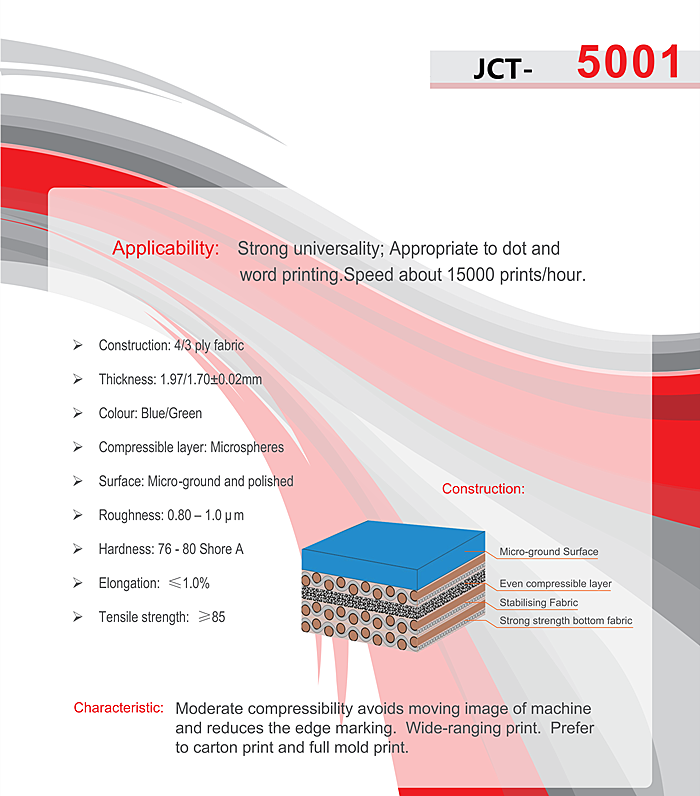

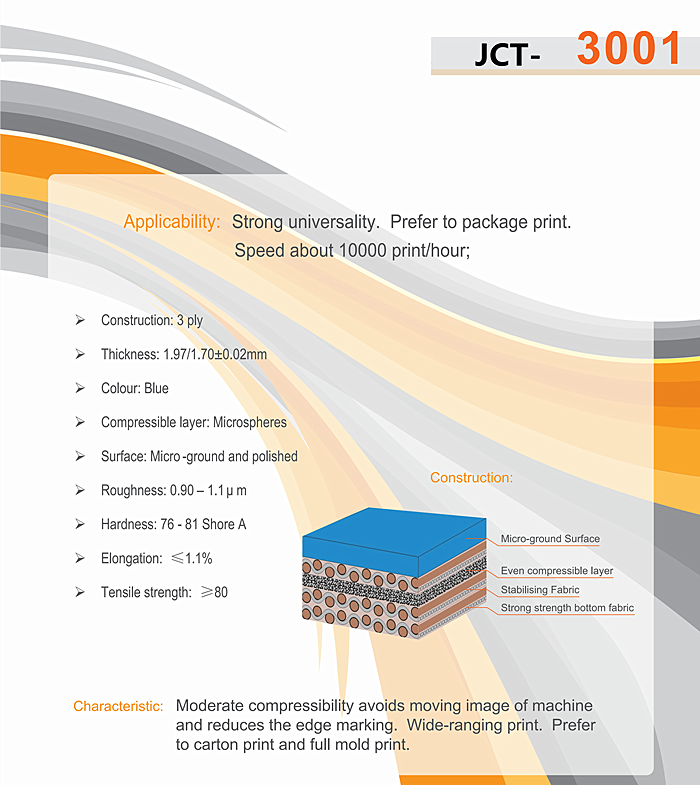

| Product model | JCT-2001 | JCT-3001 | JCT-5001 |
| Compressible layer | Microspheres | Microspheres | Microspheres |
| Construction | 3Ply | 3Ply | 4/3Ply fabric |
| Surface color | Blue | Blue | Blue/Green |
| Thickness(mm) | 1.97/1.70±0.02mm | 1.97/1.70±0.02mm | 1.97/1.70±0.02mm |
| Hardness | 76-80 ShoreA | 76-81 ShoreA | 76-80 ShoreA |
| Roughness | 0.9-1.1μm | 0.9-1.1μm | 0.8-1.0μm |
| Elongation | ≤1.2% | ≤1.1% | ≤1.0% |
| Tensile strength | ≥80 | ≥80 | ≥85 |
| Applicable speed | 9000prints/hour | 10000prints/hour | 15000prints/hour |
Advantage
Long service life
Good ink transfer function
Clear printing dot
Characteristics
Moderate compressibility avoids moving image of machine and reduces the edge marking.
Wide-ranging printing.
Suitable for carton print and full mold print.
