Product Description

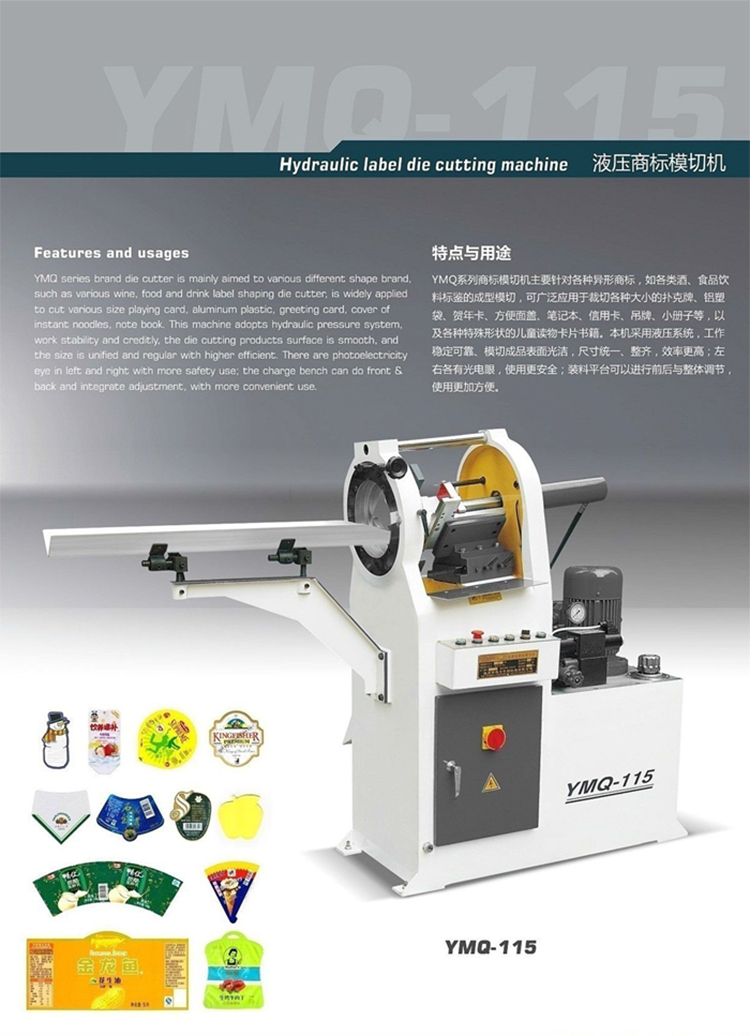

YMQ series label Die Cutting/Punching machine :



This series punching machine is mainly product of our company. It is Suitable for the production of labels, playing cards, aluminum plastic, PP ,PE-foil, self-adhesive foil, envelopes of any design or size.with an average production of about 900.000 production of high precision hourly.

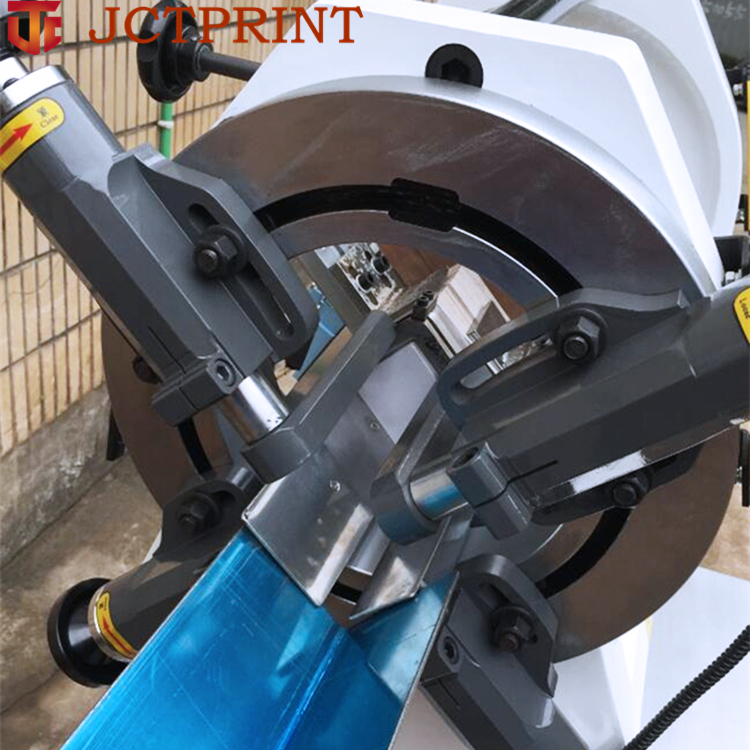

This machine adopts hydraulic pressure system with a push-cubeself-adjusting to every position of the"V"hold where the pack is positioned. The working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the following punch and is adaptable both for low and medium production.



The working process is completely stability.The die cutting products surface is smooth, and the size is unified and regular with high precision.



Main parameters:



Model	YMQ-115	YMQ-115-1	YMQ-200	YMQ-260	YMQ-350
Max. Die-cut size	140*140mm	140*140mm	220*220mm	300*240mm	380*300mm
Min. Die-cut size	20*20mm	20*20mm	50*50mm	65*65mm	90*90mm
Max. Die-cut height	200mm	200mm	220mm	260mm	310mm
Working speed	12Time/min	12Time/min	10Time/min	8Time/min	7Time/min
Die-cut pressure	3T	3T	5T	8T	11T
Dimension(L*W*H)	1350*750*1500	1400*850*1500	2200*850*1650	2450*1000*1800	2600*1250*1900
Gross Weight	680kg	660kg	1200kg	1600kg	1900kg
Special  configuration	/	Photo electric protection



 Features

Features of our die cutting machine:

1. Widely use: It is Suitable for the production of labels, playing cards, aluminum plastic, New year card, notebook, envelopes of any design or size.
2. High efficiency: with an average production of about 900.000 production of high precision hourly.
3. This machine adopts hydraulic pressure system.
4. With a push-cube self-adjusting to every position of the "V" hold where the pack is positioned
5. The working table has a photoelectric cell which gives maximum safety to the operator and allows
6. The working process stability, products surface is smooth, and the size is unified and regular with high precision



 Products Overview

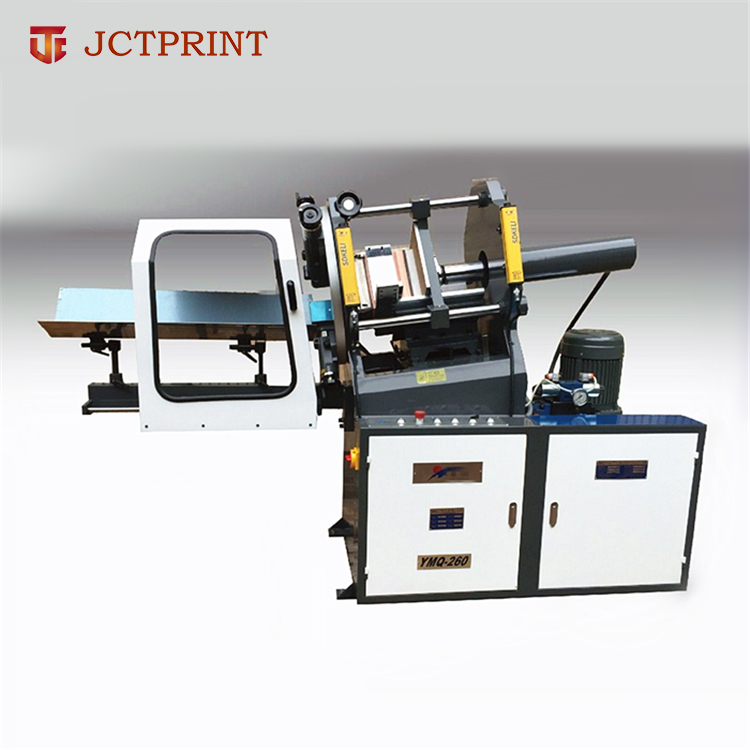

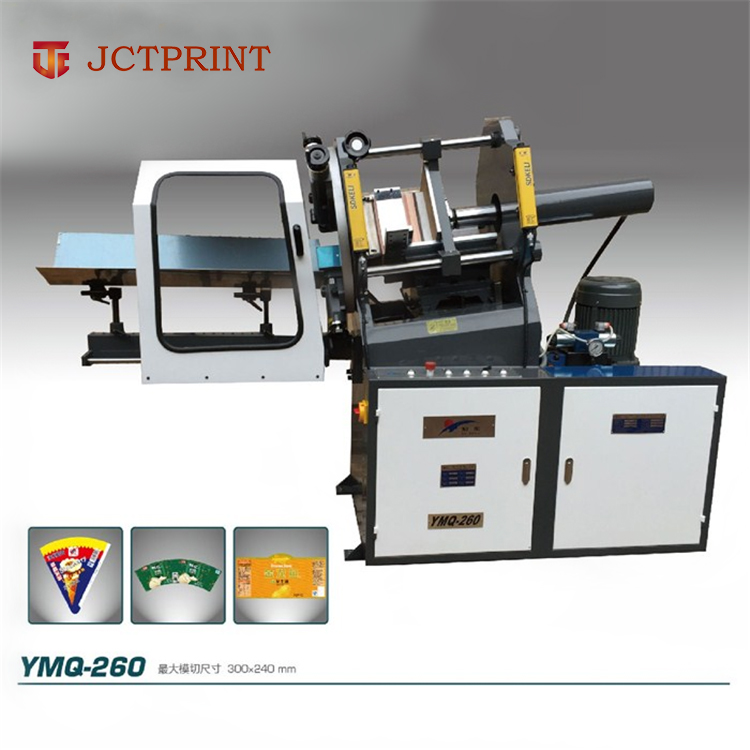

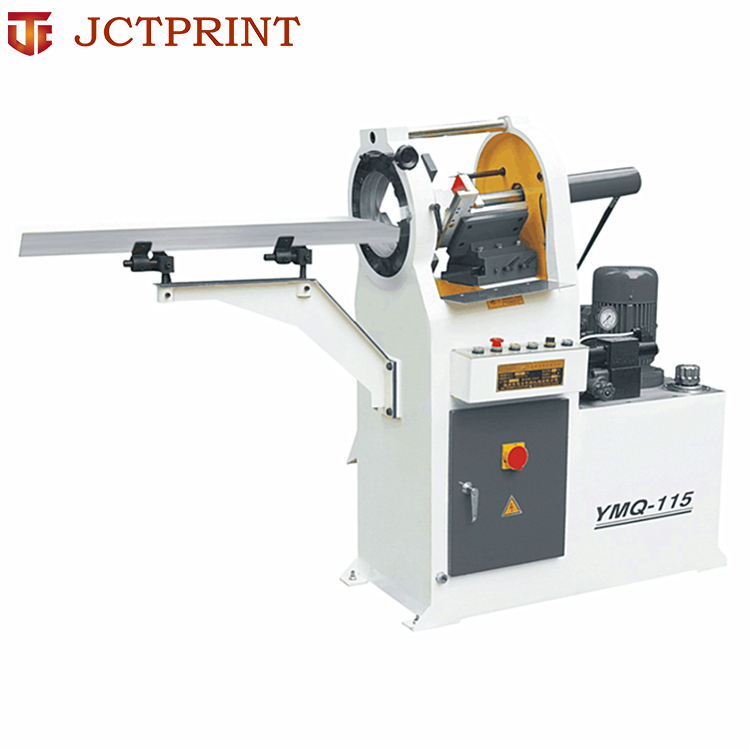

Machine Picture :

Improvement Details:

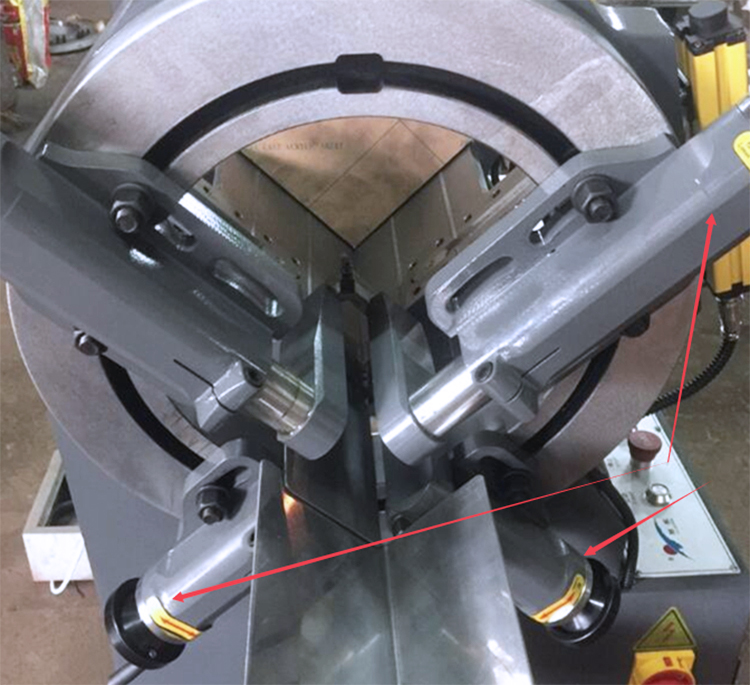

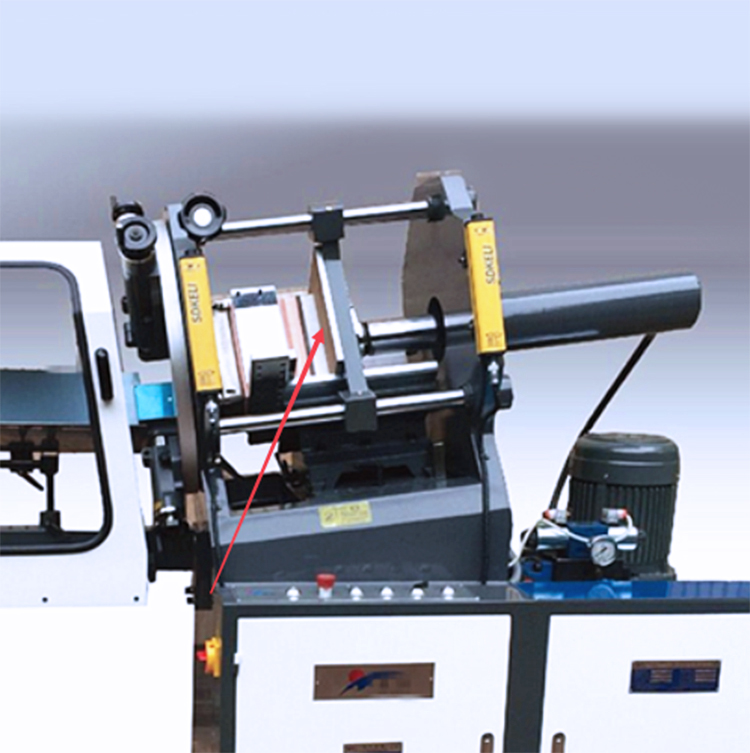

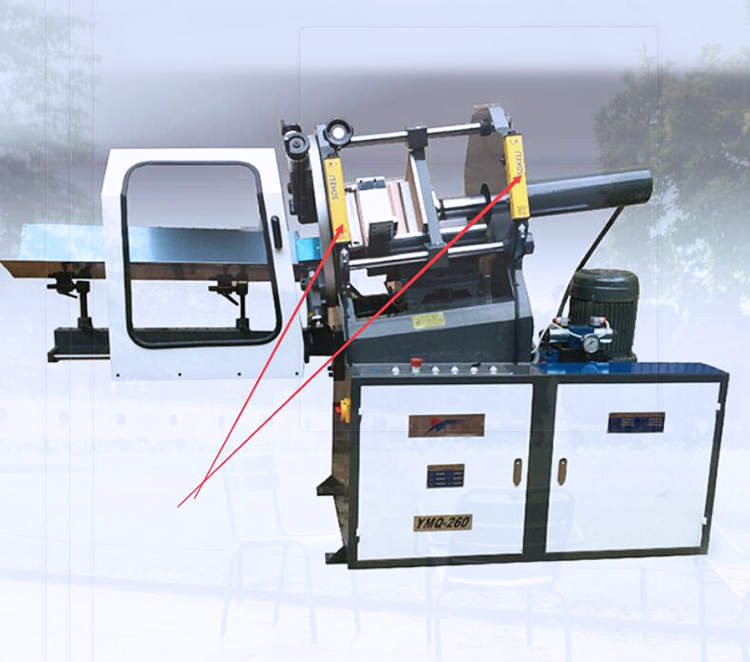

1. Photoelectric protection device :

The Photoelectric protection device is changed from ordinary photoelectric eye to grating, which is safer to use.

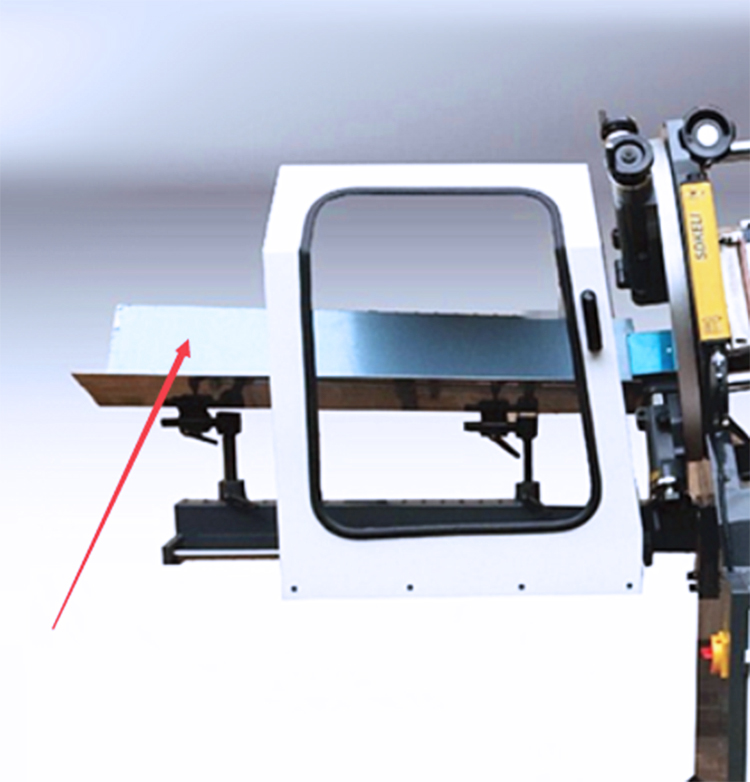

2. Material receiving rack:

The Material receiving rack is changed to a separate receiving rack, and the shape of the tool changes, which will not affect the receiving processing.

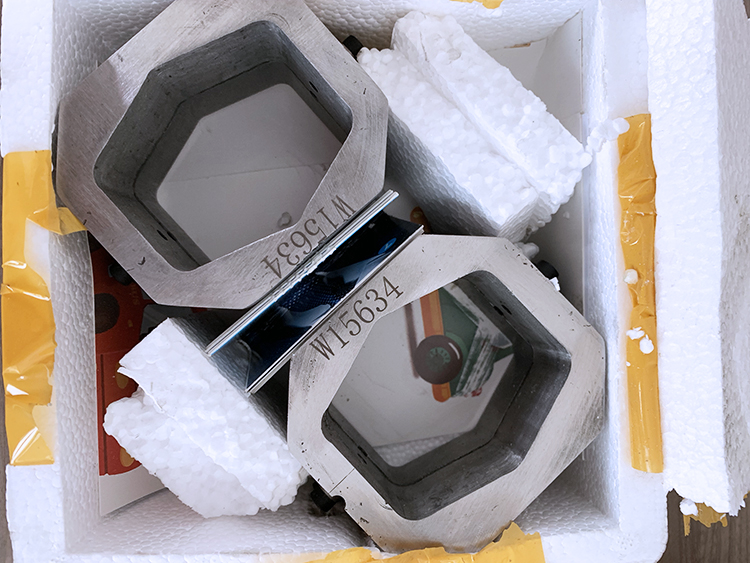

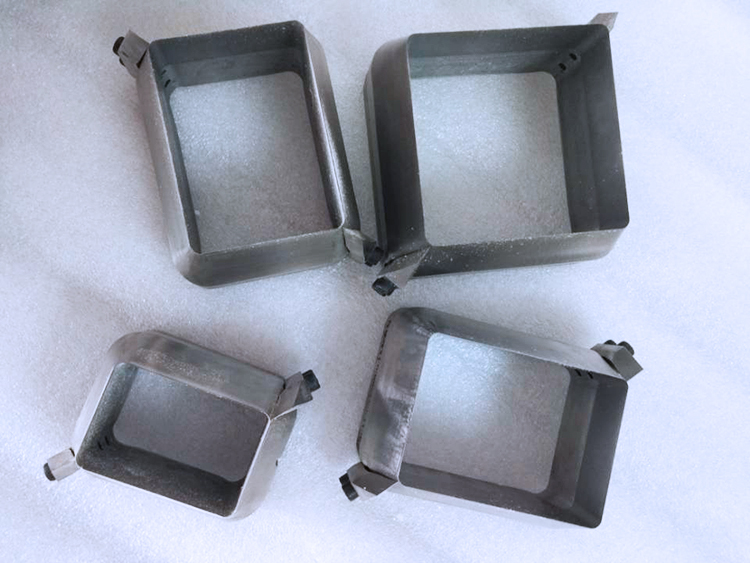

3. Tool holder:

The tool holder is changed to the fine-turning positioning of the overall tool holder. There are five independent tool holders.



4. Operating station:

The operation of the discharge platform is larger, the material turnover can be placed directly, and the discharging operation is more convenient.

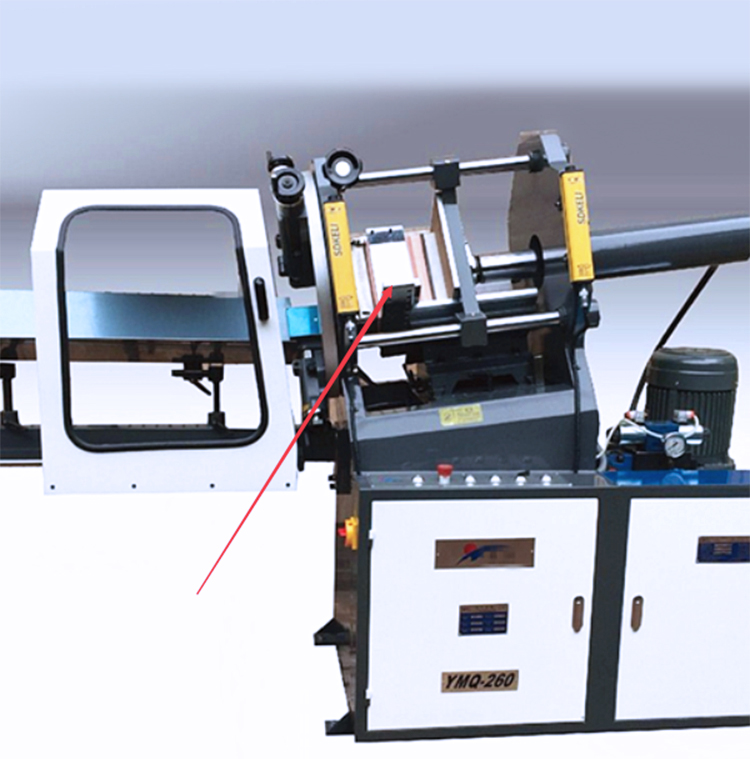

5. Push-cut board:

The push-cut board is changed to a collective

three-point support without displacement push plate, no matter the material size. it will not affect the direction of the push plate

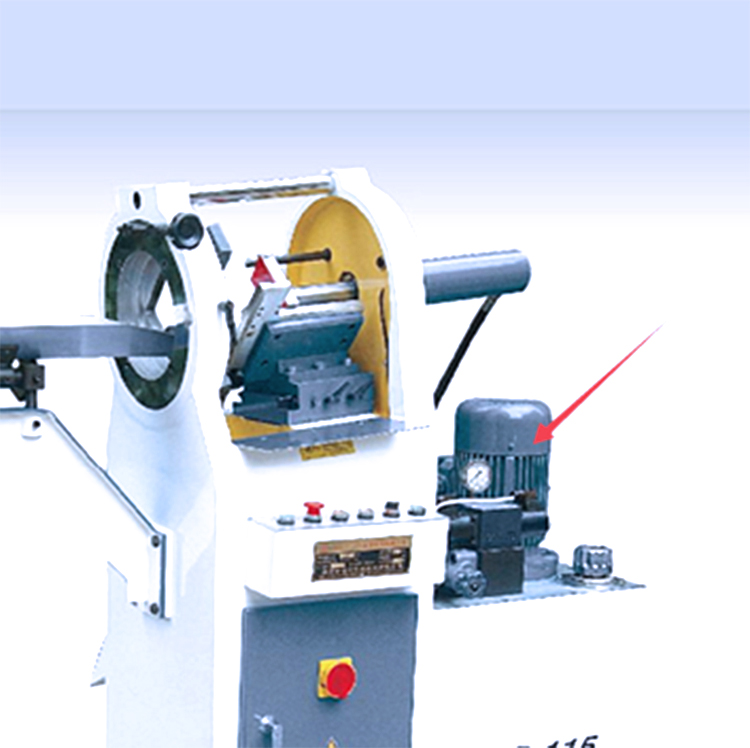

6. Oil pump motor:

The ordinary motor is changed to a special oil pump motor to make the power transmission more complete and quieter.

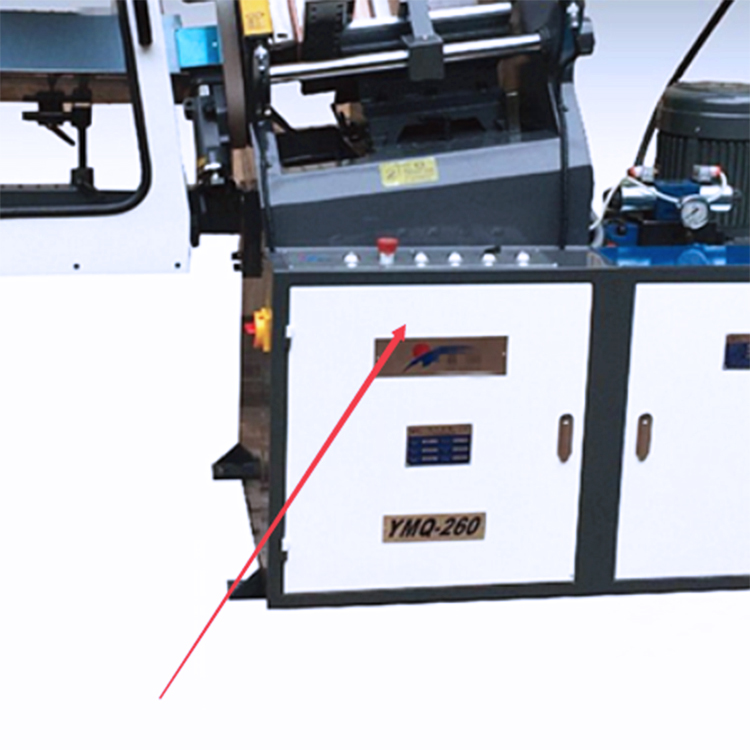

7. Electrical configuration:

Switch to a more secure electrical contiguration to make sure your safety.
