Rewinding and unwinding air inflatable shaft for paper machine
Rewinding and unwinding air inflatable shaft for paper machine Rewinding and unwinding air inflatable shaft for paper machine Rewinding and unwinding air inflatable shaft for paper machine Rewinding and unwinding air inflatable shaft for paper machine Rewinding and unwinding air inflatable shaft for paper machine

Rewinding and unwinding air inflatable shaft for paper machine

Product ID : S015
Product Tags :
Product Attributes :

Rewinding and unwinding air inflatable shaft for paper machine

Applicationprinting   machine,plastic machinery and so on
Diameter1 inch-12 inch
Colorsliver or others
Seriesair shaft
Surface   TreatmentHV700/HV300
TypeKey strip type,lath   type ,differential type and so on
Usesupport big roll   material
Working   principleair compress
MOQ1 Piece
Packagingwooden case, sea   worthy packaging
Torque Capacity3600N
Tolerance0.01mm
Payment termTT,Paypal,and so on
Length0.2m-3.8m
CoatingsNickel
Standard3inch,6inch
weight5-100kg


Product Description

Rewinding and unwinding air inflatable shaft for paper machine





Product Description



1.Application for air shaft

Printing machine

Cutting machine

Slitting machine

Coating machine

Laminating machine

Bag making machine

And so on



2.Specification for air shaft



Type

Unaerated diameter (ømm)

Inflated diameter(ømm)

Applicable volume tube inner diameter(ømm)

1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

252-256

12″

300

308-310

302-305



 3.advantages of our air shafts





A. High quality material for body tube

We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at  same height .And it will  greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.This kind of  tube is 460 dollars more expensive per ton than normal steel other suppliers usually used.

“Professional



B. High performance spare parts

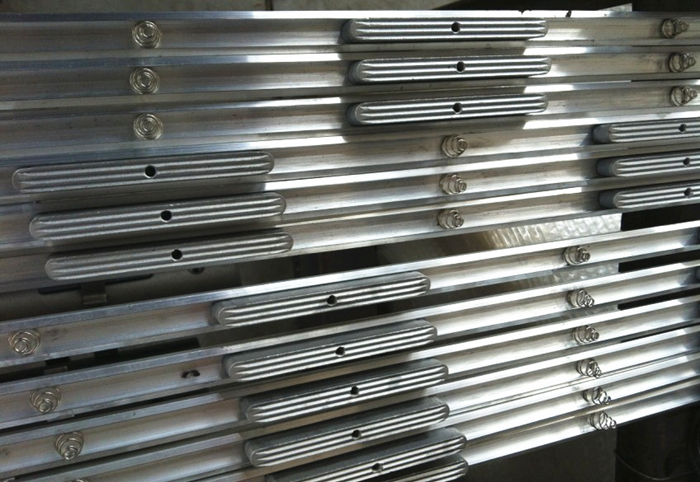

The  key strips we used are whole piece of aluminium alloy plate,and they will be good protectors to the rubber balloon. Besides,we adopt pagoda spring which won’t  be broken even compressed or stretched 30000 times.

“Professional

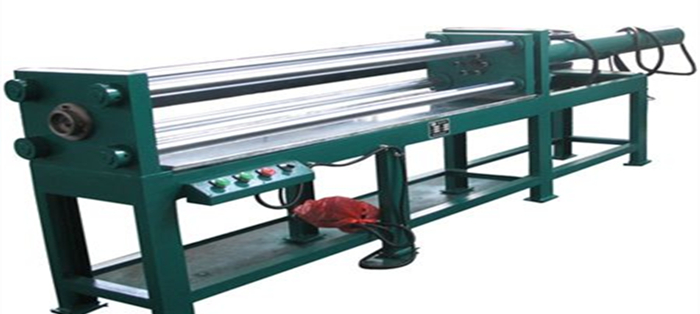

C. Interference fit

The connection o f shaft head and and body is interference fit.It will ensure the quality  and precision.We use a powerful press machine  which can produce 80t thrust  to realize the connection. And this kind of connection is different  from  other suppliers.They usually hit shaft head into the body with a hammer, which will be easily damaged by heavy load . And the screw  on it is easy to loosen.

“Professional

D. connection detail of rubber balloon

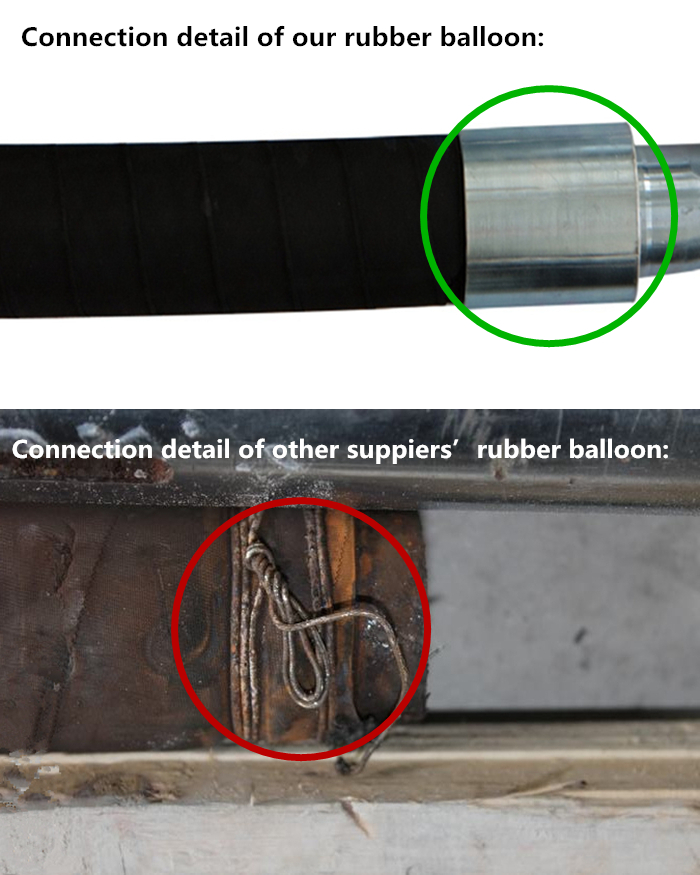

The rubber  balloon  is tightly coupled with the shaft head,  while other supplier produced air shafts are connected with the wire ,which get rusty easily. “Professional



Detailed pictures

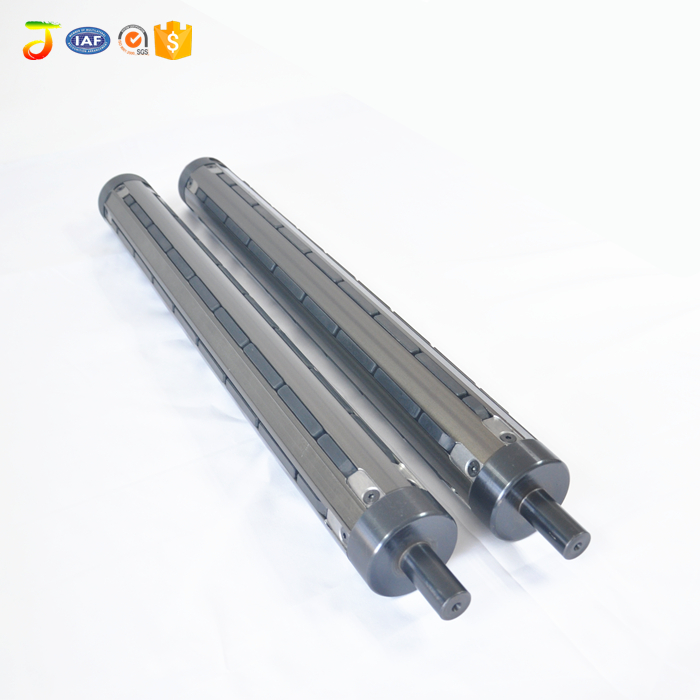

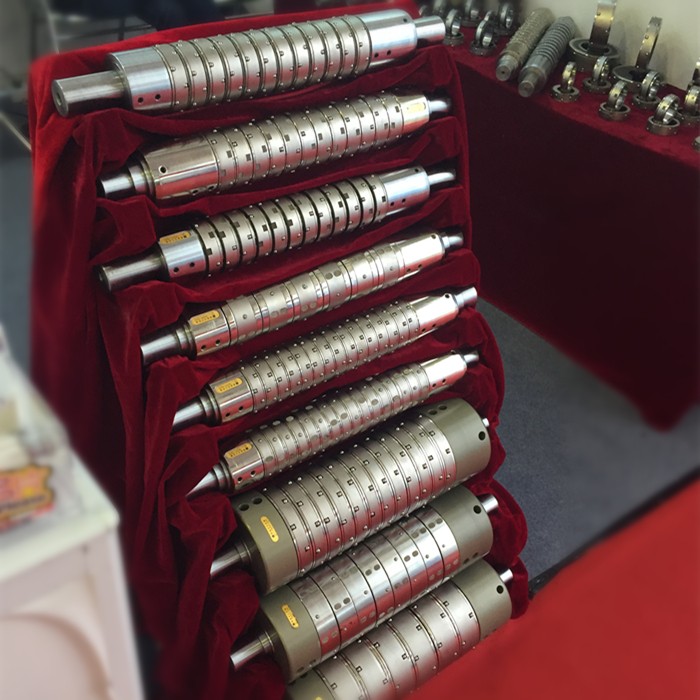

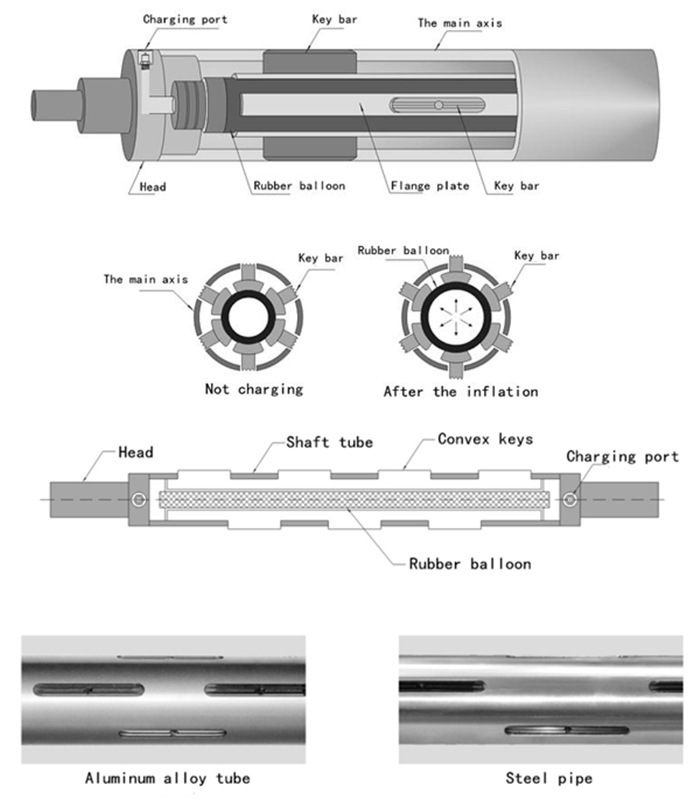

Structure of air shaft we can produce:

“New

Product Overviews

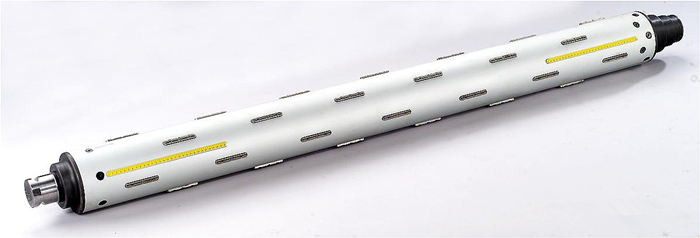

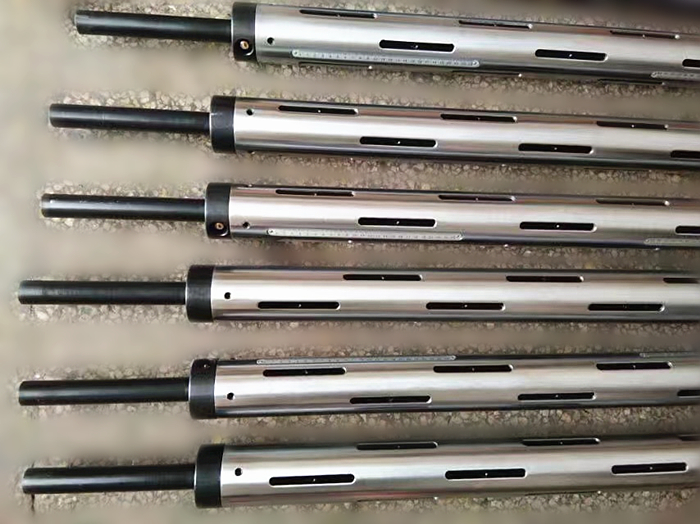

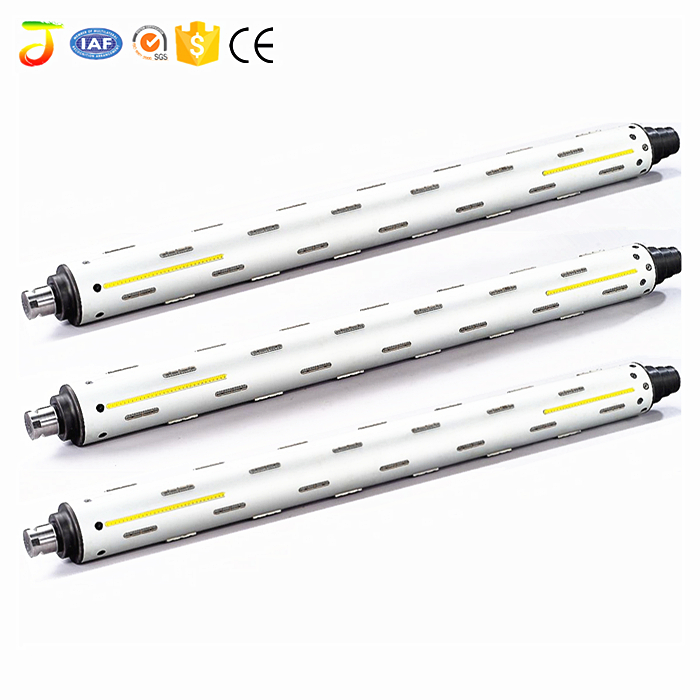

 Pictures for key type air shaft:





“New

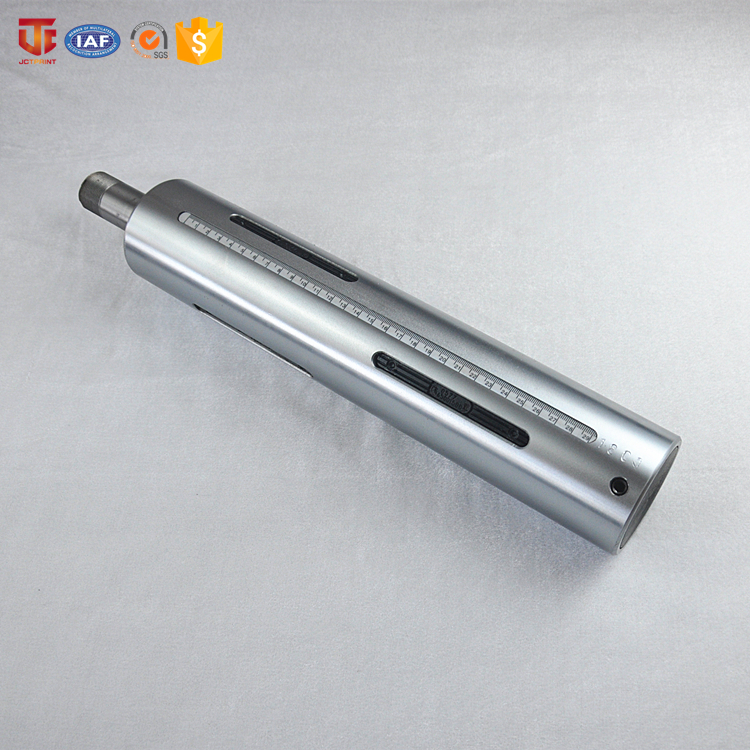

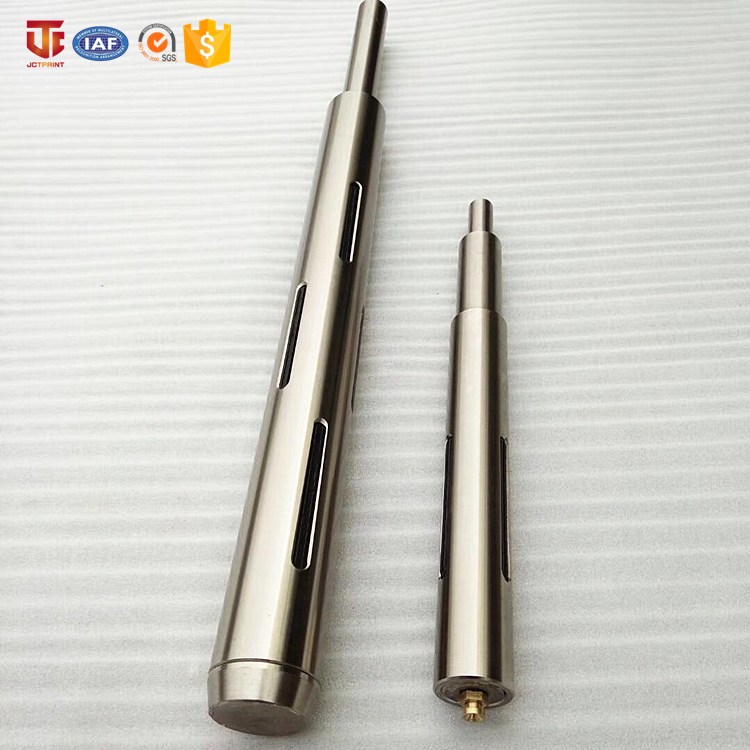

Lath type air shaft:



“New

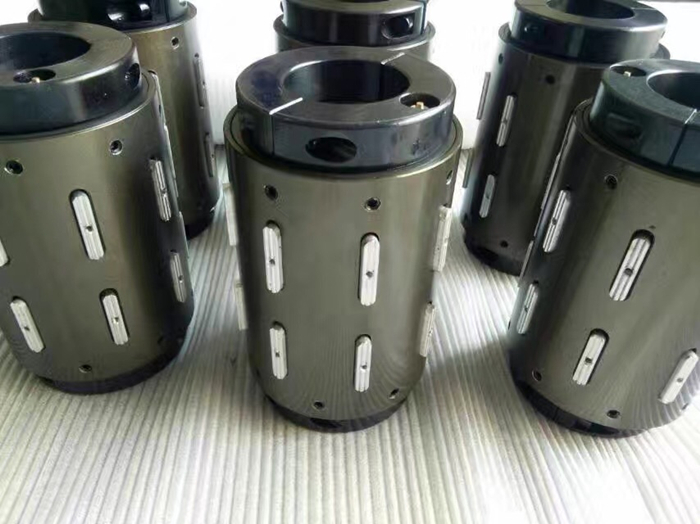

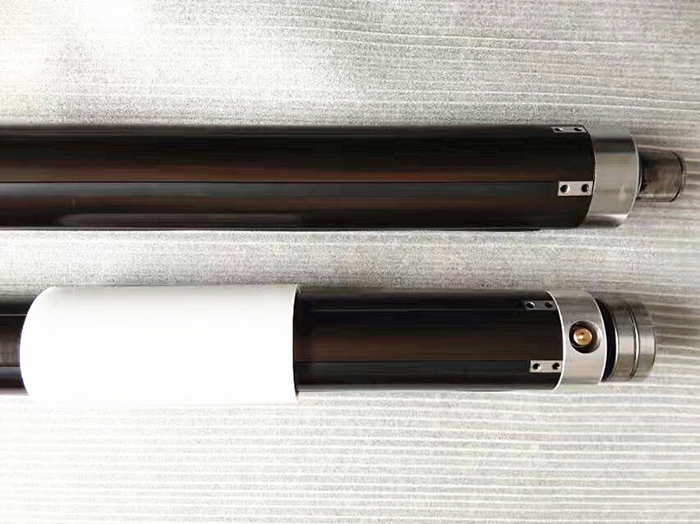

Differential shaft:



“New

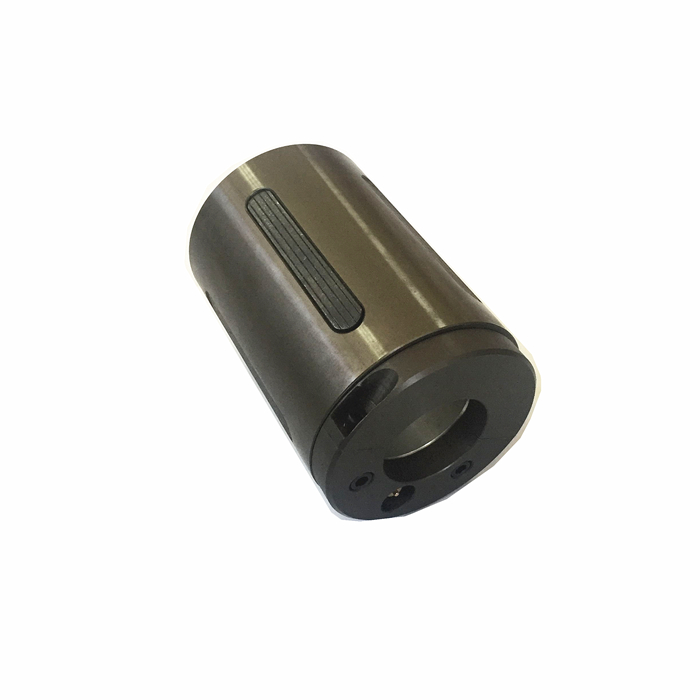

Adapter for air shaft:



“New

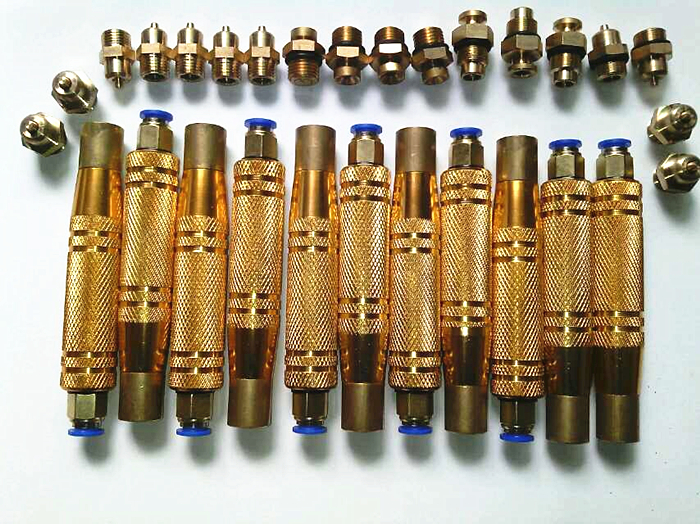

Hand shank and air tap:



“New

Packaging




Company Information



“New“New“New



Contact us



“New





FAQ





1.   How should I place the order?



For air shaft , please send us your drawing, or let us know your request.



2.What is your MOQ?



1 Piece.



3.What material of your shaft is made of?



45# steel ,5# aluminum.



4.Can you produce relative product,like adapter,hand shank?



Yes,Sure.
