Jctprint Machinery Co., Ltd
Place of Origin:Shandong, China (Mainland)
Brand Name:JCT
Model Number:AES-074
Type:Air expanding shaft
Use:All knids of printing machine
Printing Type:Printing machine
Product name:SGS certificate air shaft cylinder for flexo label printing machines
Classify:Winding and unwinding
Material:stainless steel
Coating:Nickel
Specification:1--12 inch
Package:Wooden case
Shape:Roller
Name:Air expanding shaft
Payment:T/T,and so on
Shipping Method:DHL Fedex TNT EMS UPS
SGS certificate air expanding shaft cylinder for flexo label printing machines
1.Winding and unwinding air shaft for:
Printing machine;
Cutting machine;
Slitting machine;
Coating machine;
Laminating machine;
Bag making machine;
And so on
2.Specification of air expanding shaft:
Type | Unaerated diameter (ømm) | Inflated diameter(ømm) | Applicable volume tube inner diameter(ømm) |
1″ | 24.8 | 24.8-28 | 25-26 |
1.5″ | 37 | 40-42 | 38-38.5 |
2″ | 49 | 52-54 | 50-51 |
3″ | 74-75 | 80-82 | 75.5-78 |
4″ | 99-100 | 104-106 | 101-102 |
5″ | 125 | 130-133 | 126-128 |
6″ | 150 | 154-156 | 151-153 |
8″ | 200 | 206-264 | 202-204 |
10″ | 250 | 260-264 | 252-256 |
12″ | 300 | 308-310 | 302-305 |
3.Features of cheap air expanding shaft:
It is applicable to winding and unwinding shaft of the related machine in coating, cutting, printing,
compounding,paper making,bag making,plastic items,and it can improve the working efficiency effectively.
4.Packaging:
Fumigation wooden case, sea worthy packaging

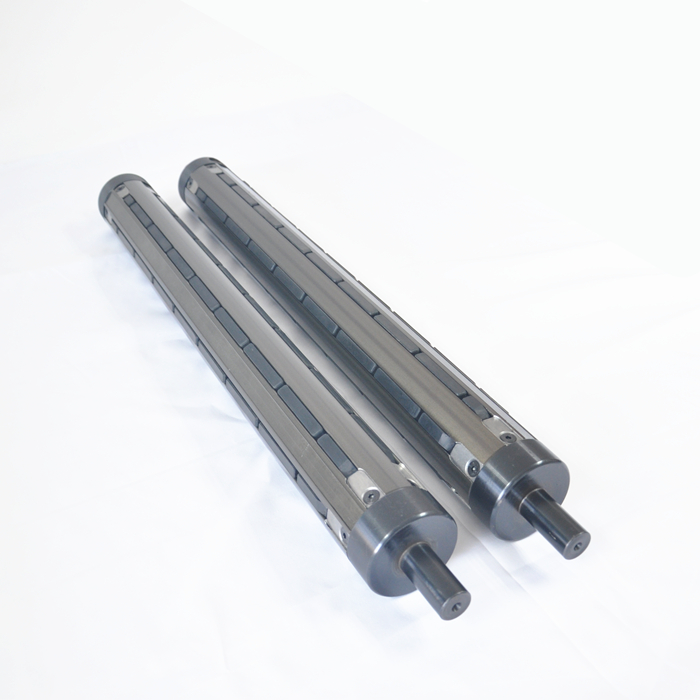

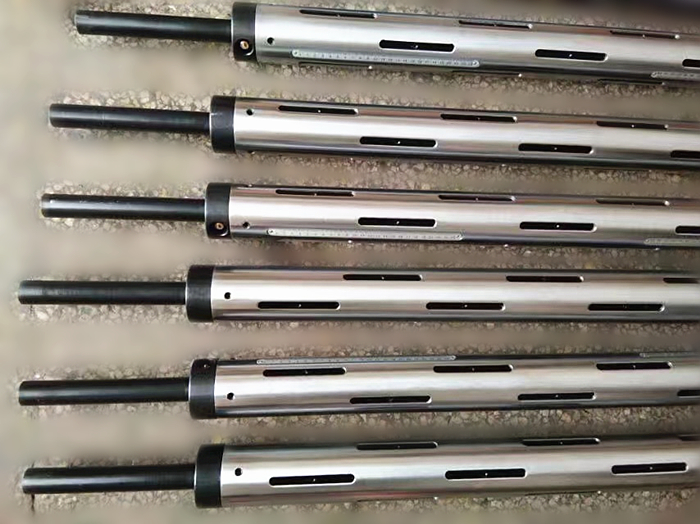

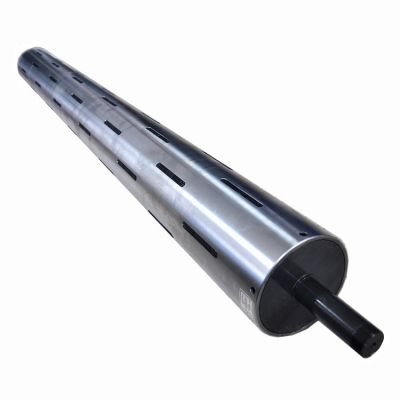

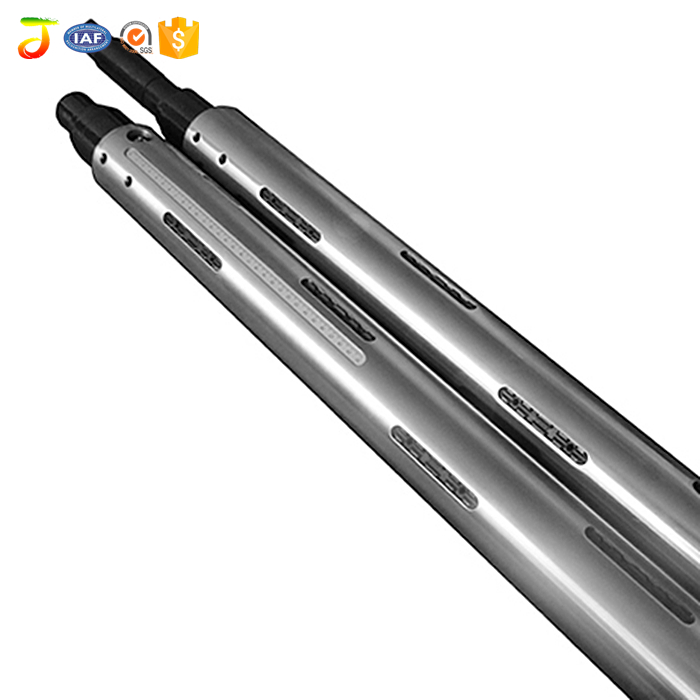

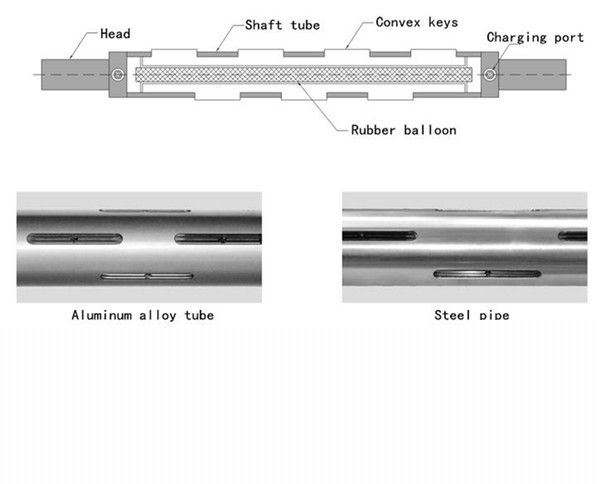

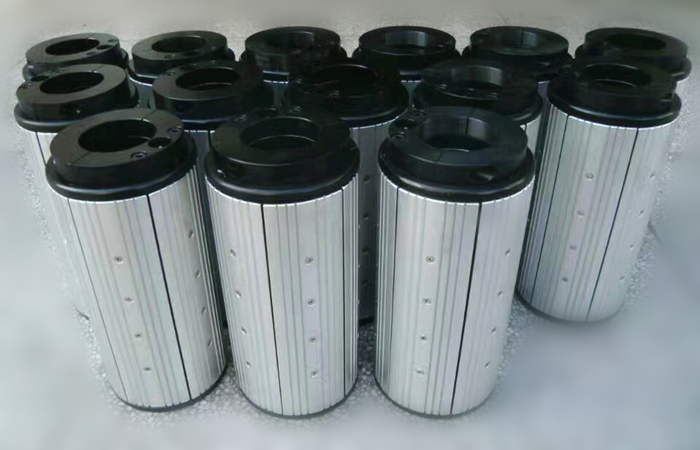

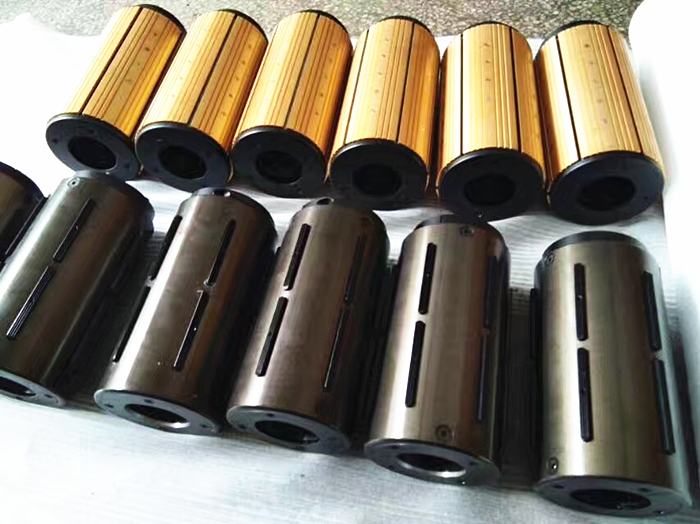

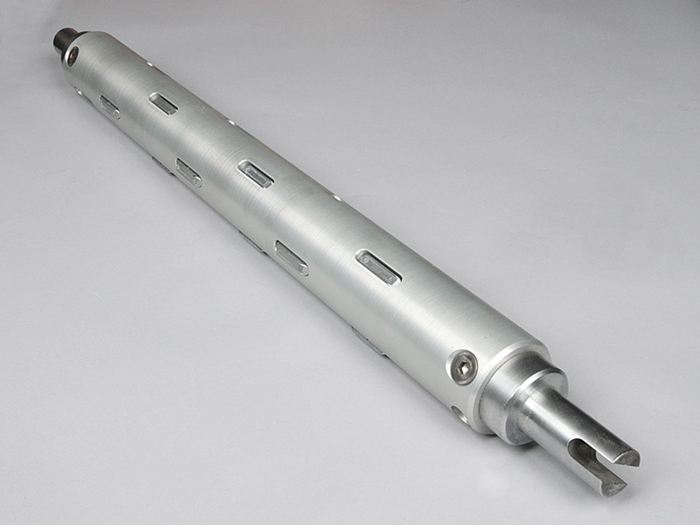

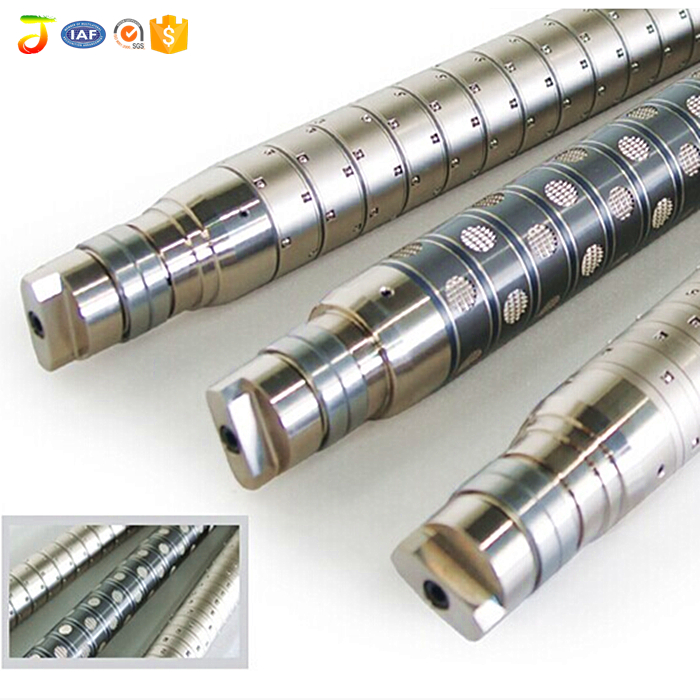

Pictures of air expanding shaft:
