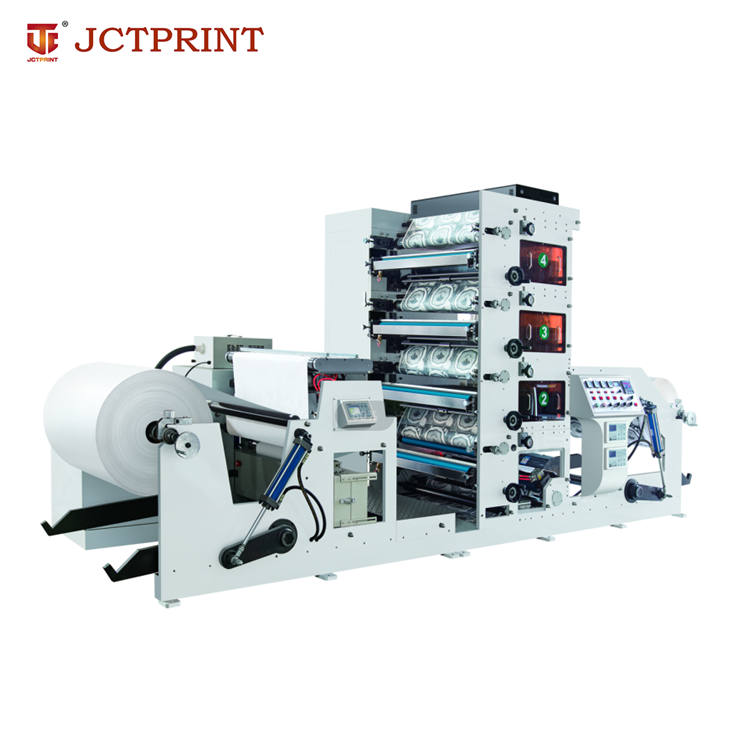

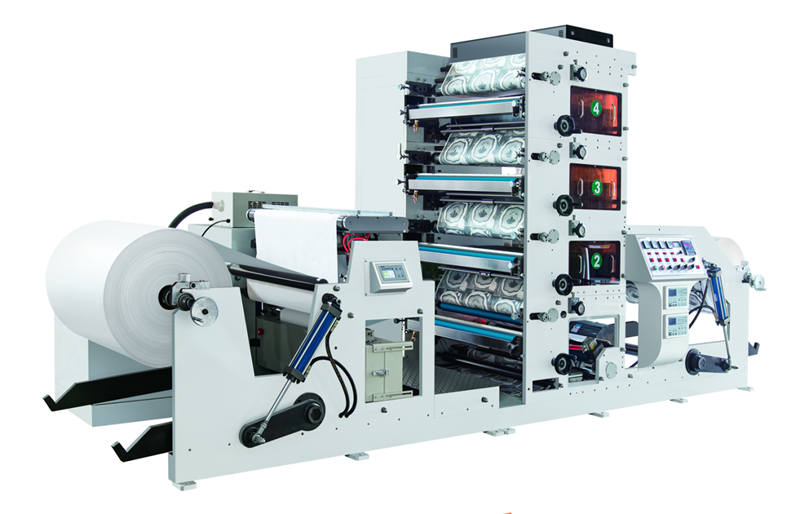

RY (LRY)series flexo printing machine is for printing 1 color to 8 colors as maximum print jobs. Machine adopts independent printing units are stacked up and down, reasonable short distance paper route and ink system, inking uniformly, good print quality.
The most ideal flexo label printing machine for customers choice to do high pressure sensitive label, sticker, paper, cardboard print business.
Also, it is an ideal printing machine for the commercial bill, card paper, high-grade adhesive tape trademark.
Technical Specification
|
Model |
RY-320 |
RY-470 |
LRY-320 |
LRY-470 |
|
Max. Web Width |
320mm |
450mm |
330mm |
450mm |
|
Max. Printing Width |
310mm |
440mm |
320mm |
440mm |
|
Printing Repeat |
180～380mm |
180～380mm |
180～380mm |
180～380mm |
|
Color |
2-6 |
2-6 |
2-8 |
2-8 |
|
Thickness of Substrate |
0.1～0.3mm |
0.1～0.3mm |
0.1～0.3mm |
0.1～0.3mm |
|
Machine Speed |
10-80m/min |
10-80m/min |
10-80m/min |
10-80m/min |
|
Max. Unwind Diameter |
600mm |
600mm |
650mm |
650mm |
|
Max. Rewind Diameter |
550mm |
550mm |
650mm |
650mm |
|
Die cutting station |
No |
No |
3 |
3 |
|
Main motor Capacity |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
|
Main power |
3 Phases 380V/50hz |
3 Phases 380V/50hz |
3 Phases 380V/50hz |
3 Phases 380V/50hz |
|
Overall Dimension(LxWxH) |
3000 x1500 x3000mm |
3000 x 1700 x 3000mm |
2420 x1020 x2740mm |
2420 x 1020 x 2740mm |
|
Machine Weight |
about 2000kg |
about 2300kg |
about 2500kg/5 colors |
about 3000kg/5 Colors |
Machine Details:
1. Buttom control panel
2. Printing cylinder support thickness 1.7mm and 1.14 mm plate , support straight gear and helical gear both
3. The printing unit can register in 360 degree, each printing unit can be independently geared and loosen to have rest of unit dring .
4. China Brand Web guide
5. Adopt ceramic anloix roller which offers durability m wear resistance and corrosion resistance , also is more eddicient on continue to printing
6. Adopt high-precision planetary gear box to ensure that no ink bars are generated during printing
7. Options device Delam& Relam : support to print glue side , maximum 1 color
8. Supporting LED uv dryer , China /Taiwan UV dryer ,IR dryer printing
9. It only can add one station of die cutting unit.
