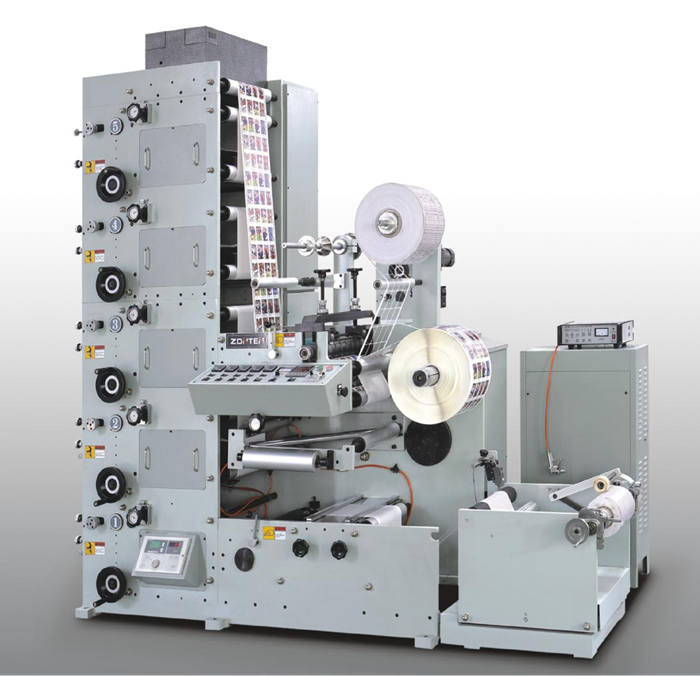

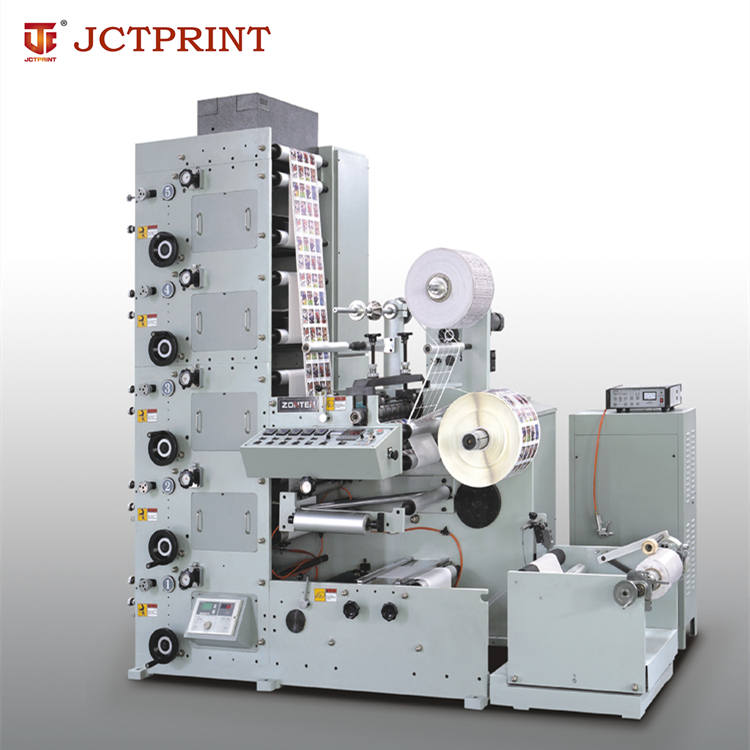

RY FLEXO PRINTING MACHINE

RY (LRY)series flexo printing machine is for printing 1 color to 8 colors as maximum print jobs. Machine adopts independent printing units are stacked up and down, reasonable short distance paper route and ink system, inking uniformly, good print quality.

The most ideal flexo label printing machine for customers choice to do high pressure sensitive label, sticker, paper, cardboard print business.

 Also, it is an ideal printing machine for the commercial bill, card paper, high-grade adhesive tape trademark.

According to the printing width and operation method, it can be divided into RY-320/470 and LRY-330/470. The difference between LRY and RY:

1. The machine operation of RY is button type, and LRY is a touch screen with PLC program;

2. RY post-printing process, only one set of die-cutting stations can be added, while LRY can add three stations of die-cutting, slitting and breaking.



Technical Specification

Model

RY-320

RY-470

LRY-320

LRY-470

Max. Web Width

320mm

450mm

330mm

450mm

Max. Printing Width

310mm

440mm

320mm

440mm

Printing Repeat

180380mm

180380mm

180380mm

180380mm

Color

2-6

2-6

2-8

2-8

Thickness of Substrate

0.1~0.3mm

0.1~0.3mm

0.1~0.3mm

0.1~0.3mm

Machine Speed

10-80m/min

10-80m/min

10-80m/min

10-80m/min

Max. Unwind Diameter

600mm

600mm

650mm

650mm

Max. Rewind Diameter

550mm

550mm

650mm

650mm

Die cutting station

No

No

3

3

Main motor Capacity

2.2kw

2.2kw

2.2kw

2.2kw

Main power

3 Phases 380V/50hz

3 Phases 380V/50hz

3 Phases 380V/50hz

3 Phases 380V/50hz

Overall Dimension(LxWxH)

3000 x1500 x3000mm

3000 x 1700 x 3000mm

2420 x1020 x2740mm

2420 x 1020 x 2740mm

Machine Weight

about 2000kg

about 2300kg

about 2500kg/5 colors

about 3000kg/5 Colors



RY flexo printing machine :

1. Buttom control panel

2. Printing cylinder support thickness 1.7mm and 1.14 mm plate , support straight gear and helical gear both

3. The printing unit can register in 360 degree, each printing unit can be independently geared and loosen to have rest of unit dring .

4. China Brand Web guide

5. Adopt ceramic anloix roller which offers durability m wear resistance and corrosion resistance , also is more eddicient on continue to printing

6. Adopt high-precision planetary gear box to ensure that no ink bars are generated during printing

7. Options device Delam& Relam : support to print glue side , maximum 1 color

8. Supporting LED uv dryer , China /Taiwan UV dryer ,IR dryer printing

9. It only can add one station of die cutting unit.
